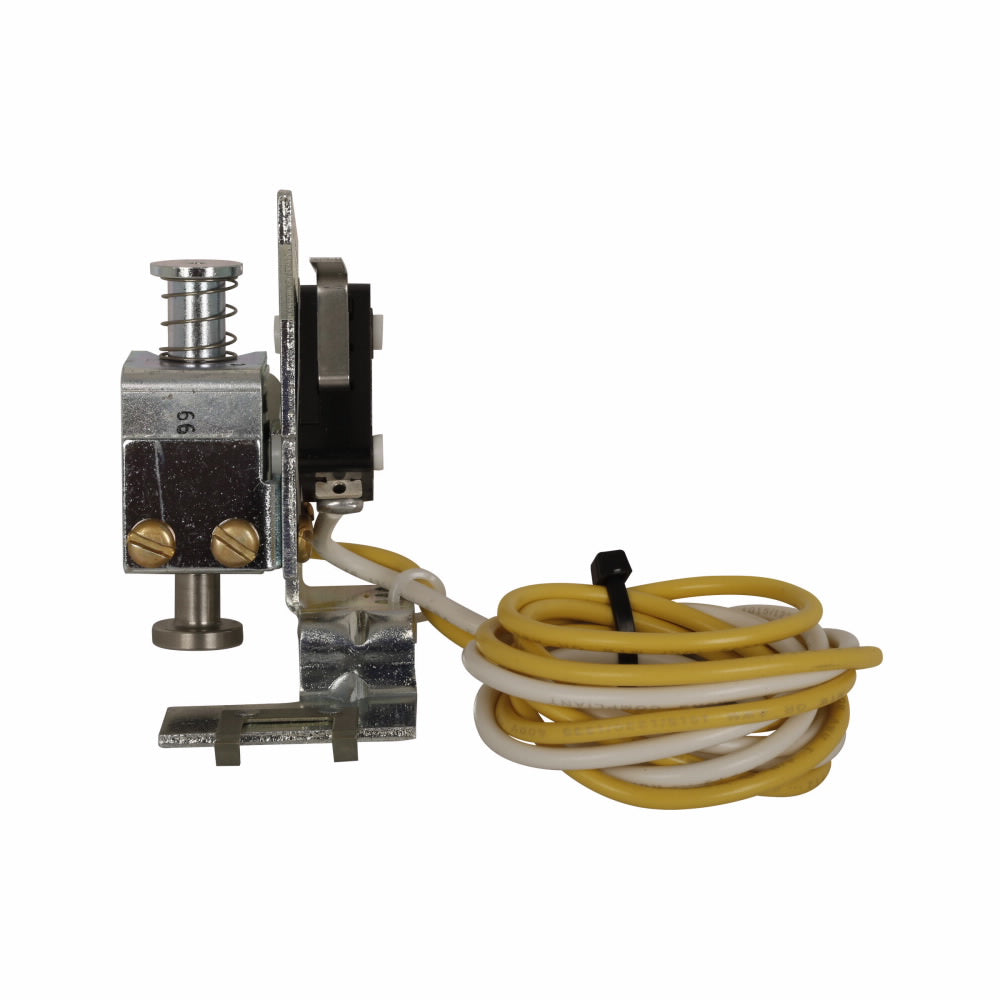

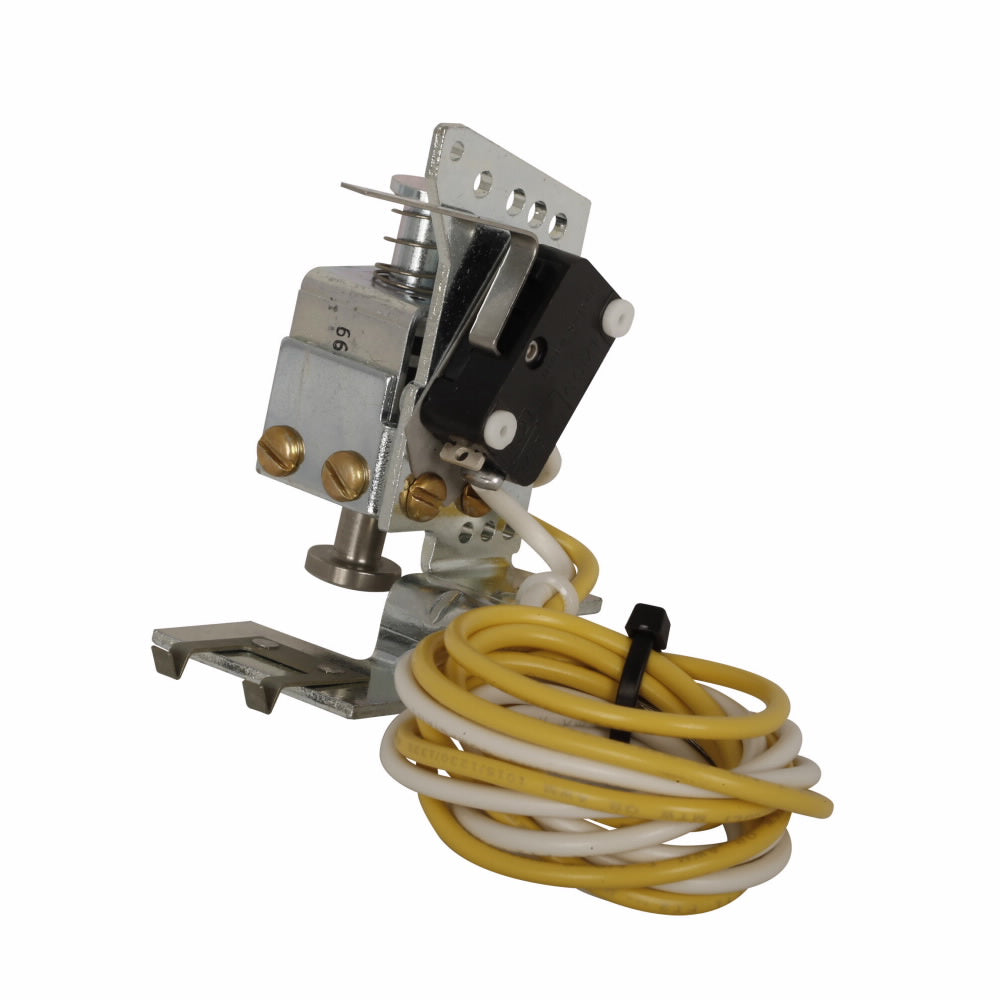

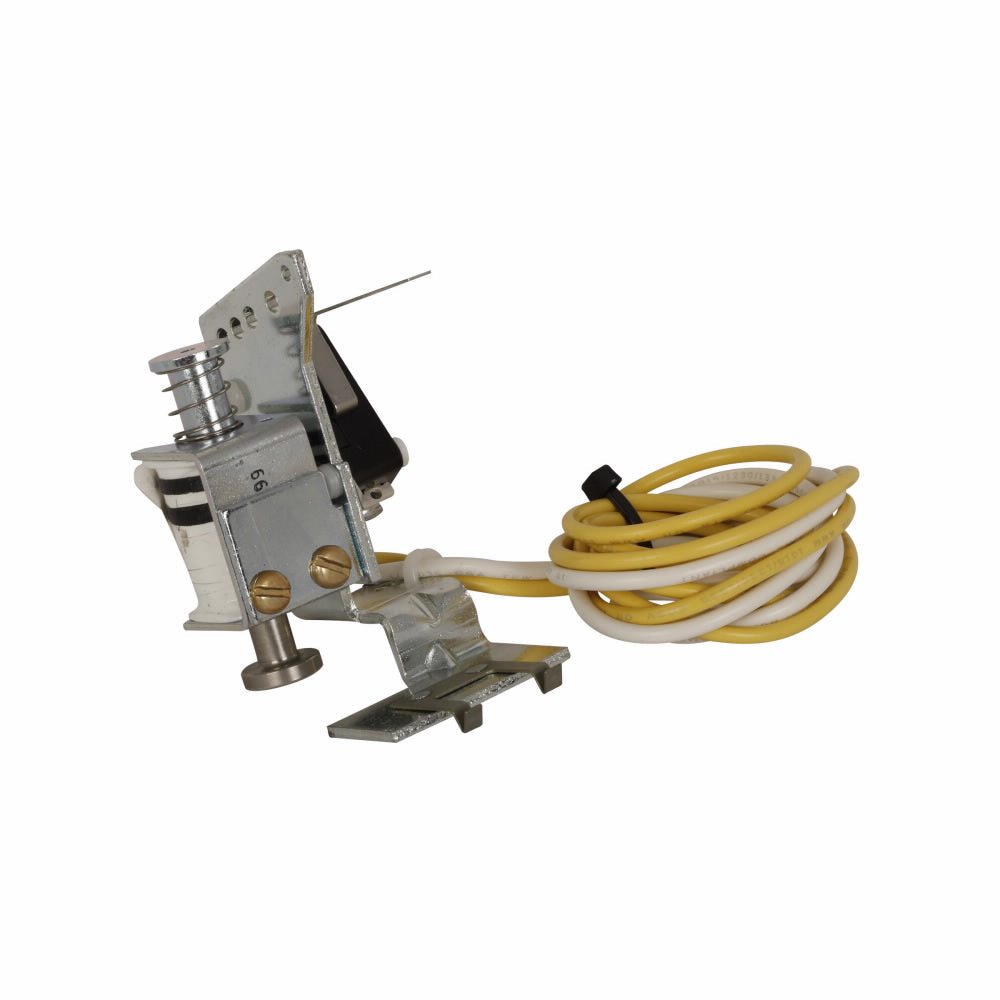

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Shunt Trip
- Series
- Series C
- Frame
- G
- Rated current
- 1200
- Voltage
- 48/60VDC
- Poles
- 3
- Connection
- Pigtail Lead
- Country of origin
- United States
- Control Voltage Minimum
- 48
- Compatible Frames
- ND, NG
- Control Voltate Maximum
- 60
- UPC
- 786678262727
Show all specifications (4 more)
- GTIN
- 00786678262727
- Dimensions
- 5.5 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight
- 0.5
- Certification
- CSA
Product description & additional details
SNT5LP23K
SNT5LP23K is a Cutler Hammer Eaton shunt trip accessory designed for N-frame circuit breakers, providing remote trip capability with a 48-60V DC coil voltage.This shunt trip unit is factory or field mountable with a pigtail lead connection, compatible with N-frame (J-K frame) molded case circuit breakers. It operates at 48-60 volts DC and is used to remotely trip the breaker for enhanced safety and control in electrical distribution systems.
- Manufacturer: Cutler Hammer Eaton
- Part Number: SNT5LP23K
- Type: Shunt Trip Accessory
- Voltage Rating: 48-60V DC
- Frame Compatibility: N-Frame (J-K Frame)
- Mounting: Factory or Field Mounted
- Connection: Pigtail Lead
- Application: Remote trip for molded case circuit breakers
- Interrupt Rating: Matches N-frame breakers (consult breaker specs)
- Certifications: Eaton standard certifications (UL, CSA typical)
Specifications
- Part Number: SNT5LP23K
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Series C
- Type : G
- Voltage : 48/60VDC
- Amperage : 1200
- Poles : 3
- Connection : Pigtail Lead
- Control Voltage Minimum : 48
- Compatible Frames : ND, NG
- Control Voltate Maximum : 60
Product Data
- UPC : 786678262727
- GTIN : 00786678262727
- Country of Origin : United States
- Dimensions : 5.5 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : CSA
