Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Shunt Trip
- Series
- Powerpact
- Frame
- S
- Voltage
- 24VDC
- Country of origin
- United States
- Control Voltage Minimum
- 24
- Compatible Frames
- DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
- Control Voltate Maximum
- 24
- UPC
- 785901627579
- GTIN
- 00785901627579
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight
- 0.32 lb
Show all specifications (2 more)
- Certification
- CSA
- Wire Size
- 18 to 14 AWG
Product description & additional details
S29390

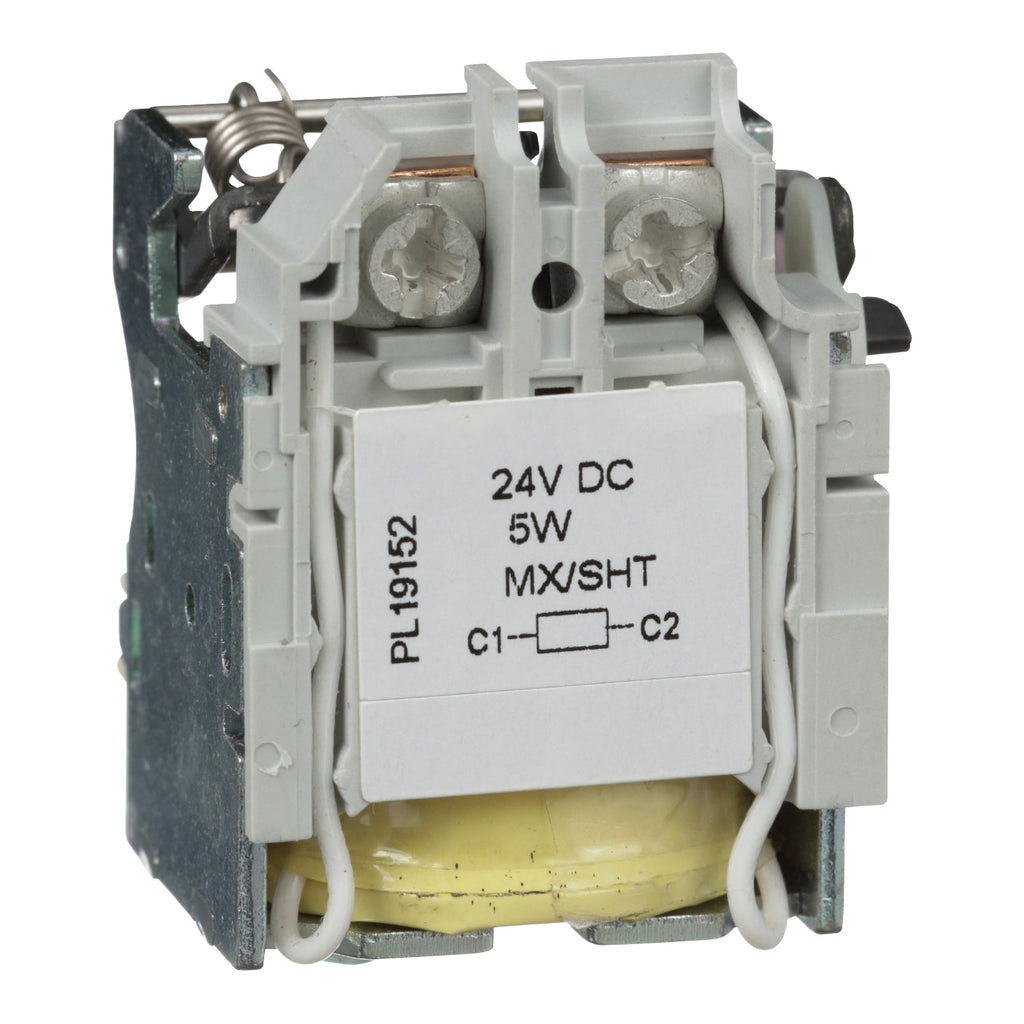

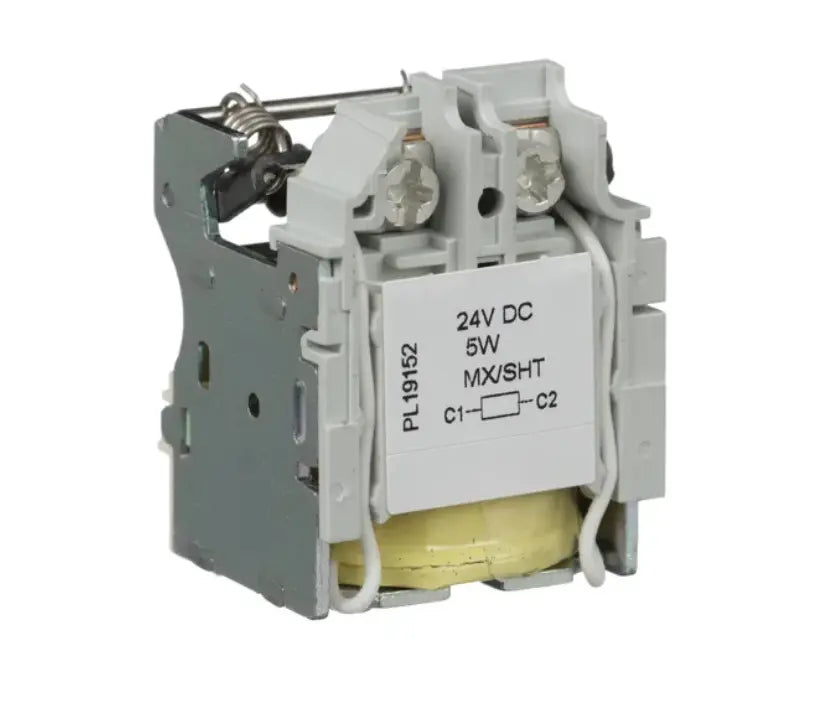

S29390 is a Square D PowerPacT H/J/L frame shunt trip accessory designed for remote tripping of compatible molded case circuit breakers.
This shunt trip features a 24VDC control voltage, screw connection, and is rated for 5 watts. It is compatible with DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, and LR frame types. The snap-in terminal design allows easy conversion between busbar and lug options, and it accepts 18 to 14 AWG wire. The accessory is field mountable and is designed for use with PowerPacT H-, J-, and L-frame circuit breakers, which protect electrical systems from overloads and short circuits.
-
Key Specifications
- Part Number: S29390
- Manufacturer: Square D by Schneider Electric
- Type: Shunt Trip (MX)
- Voltage: 24VDC
- Power Rating: 5W
- Wire Size: 18–14 AWG
- Mounting: Field mount, screw connection
- Frame Compatibility: PowerPacT H, J, L (DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR)
- Trip Unit: Not applicable (accessory only)
- Interrupt Rating: Not applicable (accessory only)
- Certifications: UL 489 listed, CSA, IEC
- Environmental: Complies with California Proposition 65
- Dimensions: 1.8" H x 3.1" W x 4.5" D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: S29390
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Powerpact
- Type : S
- Voltage : 24VDC
- Control Voltage Minimum : 24
- Compatible Frames : DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
- Control Voltate Maximum : 24
Product Data
- UPC : 785901627579
- GTIN : 00785901627579
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.32 lb
- Certification : CSA
- Wire Size : 18 to 14 AWG
