Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Shunt Trip
- Series
- Series C
- Frame
- G
- Rated current
- 1200
- Voltage
- 24VAC/VDC
- Poles
- 3
- Connection
- Pigtail Lead
- Country of origin
- United States
- Control Voltage Minimum
- 24
- Compatible Frames
- ND
- Control Voltate Maximum
- 24
- UPC
- 786678262604
Show all specifications (3 more)
- GTIN
- 00786678262604
- Dimensions
- 5.5 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight
- 0.46
Product description & additional details
SNT5LP03K

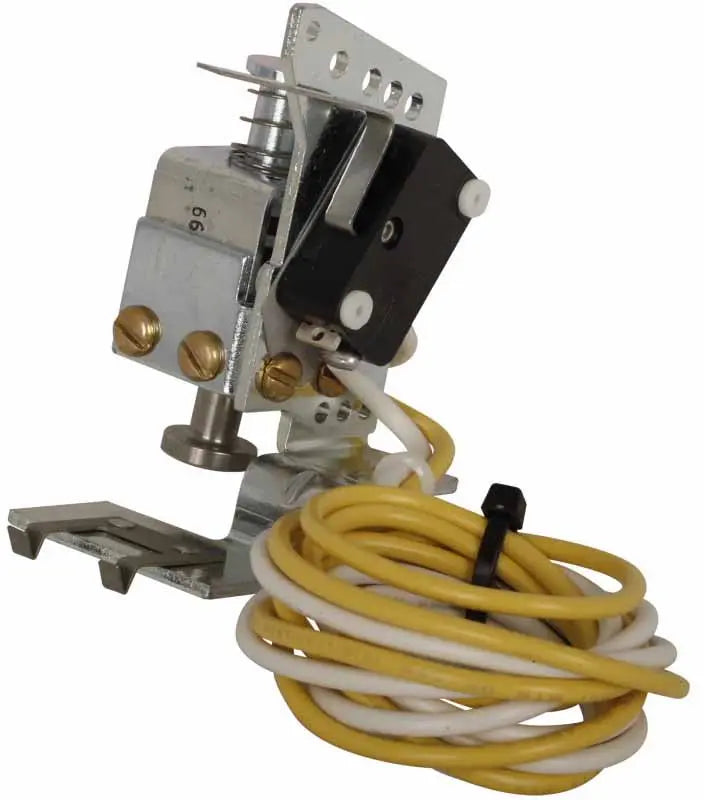

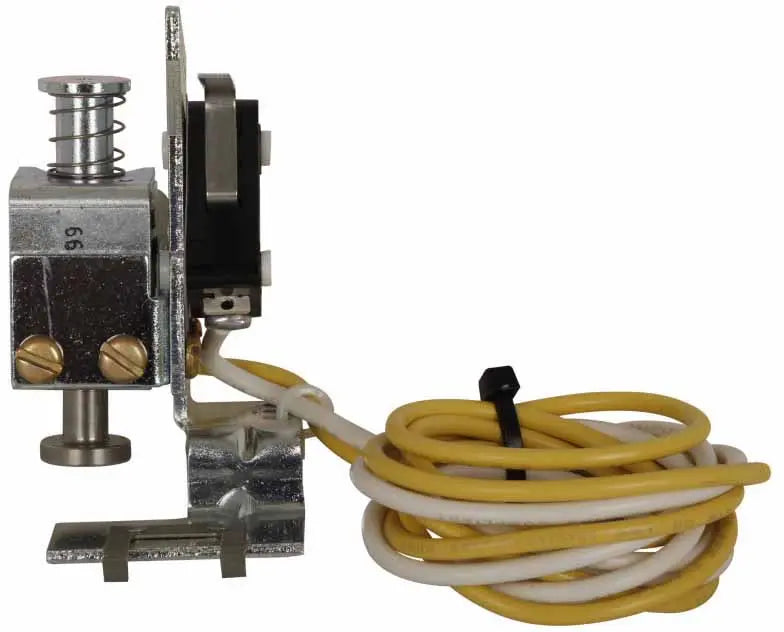

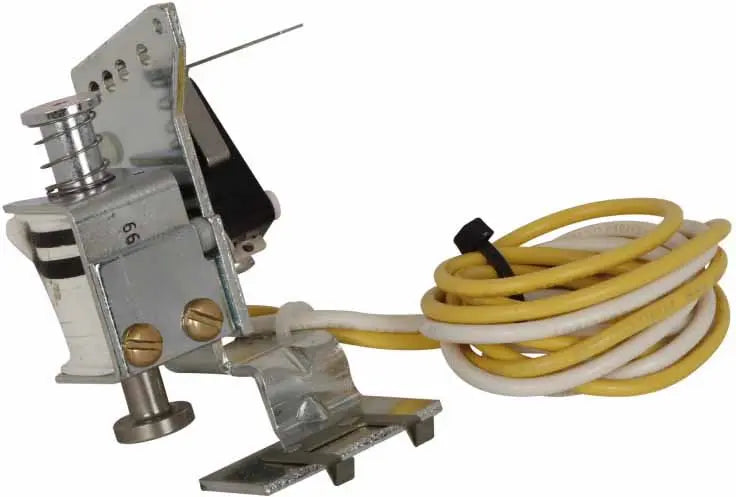

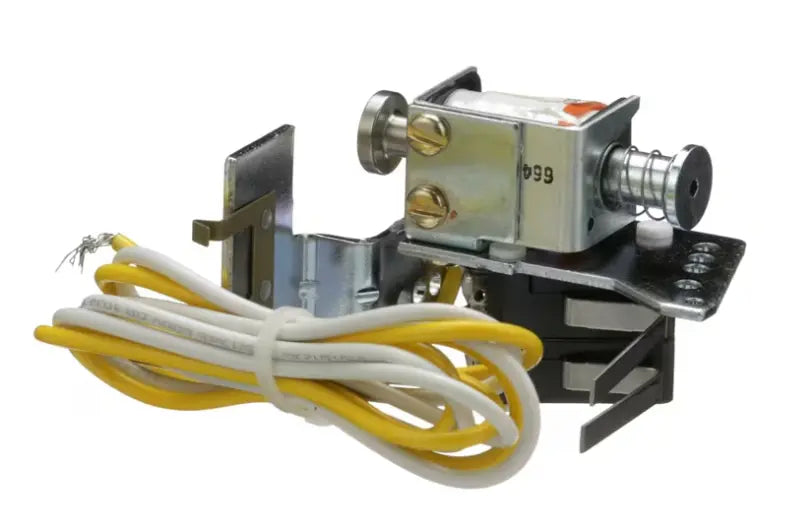

SNT5LP03K is a Cutler Hammer shunt trip accessory designed for use with NG-frame, Series G molded case circuit breakers.
This shunt trip unit enables remote tripping of compatible circuit breakers, providing enhanced safety and control in electrical distribution systems. It is engineered for reliable performance and easy integration with existing breaker panels.
-
Key Specifications
- Amperage: 1200A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Left side mounted
- Interrupt Rating: 35 kAIC at 480V AC / 65 kAIC at 240V AC
- Series/Frame: Series G, NG-Frame (also compatible with Series C and mining duty frames)
- Trip Unit: Shunt trip, 24V AC/DC
- Certifications: Complies with Eaton standards; specific UL/ANSI certifications not listed in available data
- Dimensions: 5.5" x 3" x 3"
- Weight: 0.46 lbs
- Connection: Pigtail lead
- Warranty: 1 year
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: SNT5LP03K
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Series C
- Type : G
- Voltage : 24VAC/VDC
- Amperage : 1200
- Poles : 3
- Connection : Pigtail Lead
- Control Voltage Minimum : 24
- Compatible Frames : ND
- Control Voltate Maximum : 24
Product Data
- UPC : 786678262604
- GTIN : 00786678262604
- Country of Origin : United States
- Dimensions : 5.5 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight : 0.46
