Eaton

SNT5LP05K

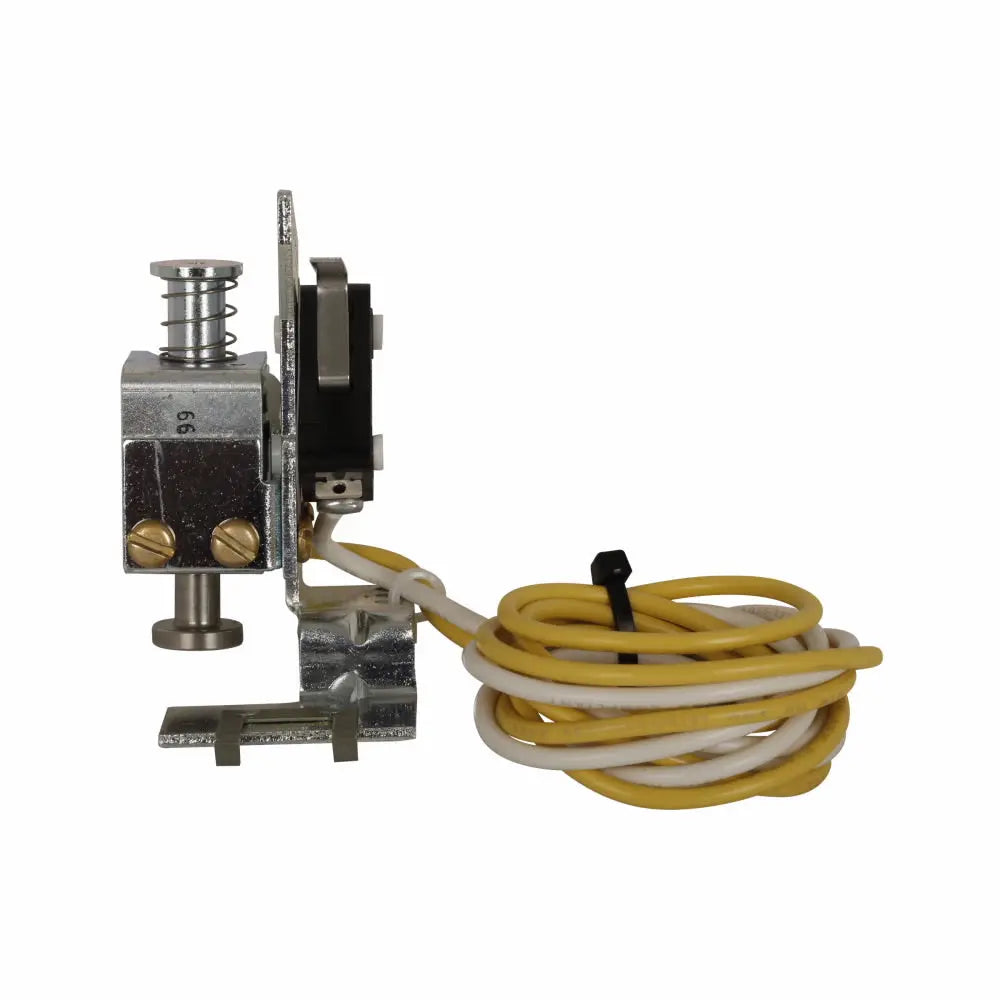

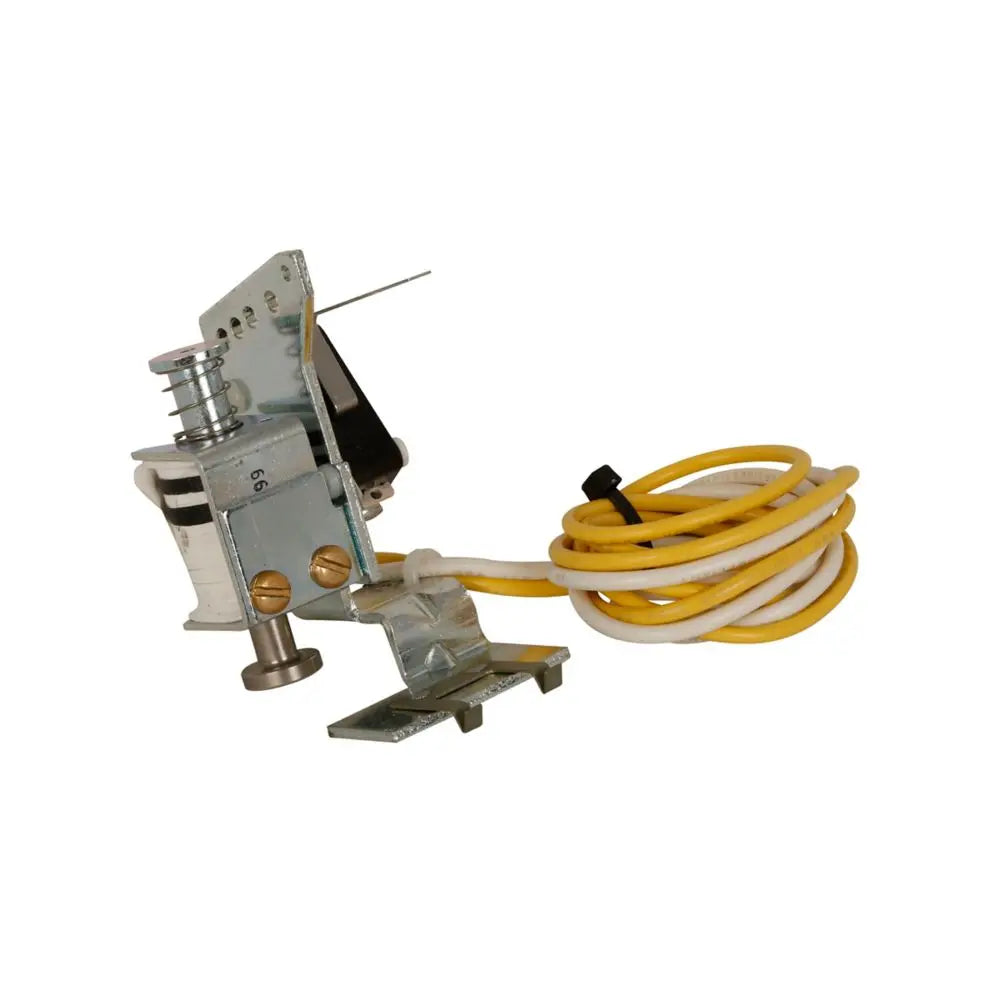

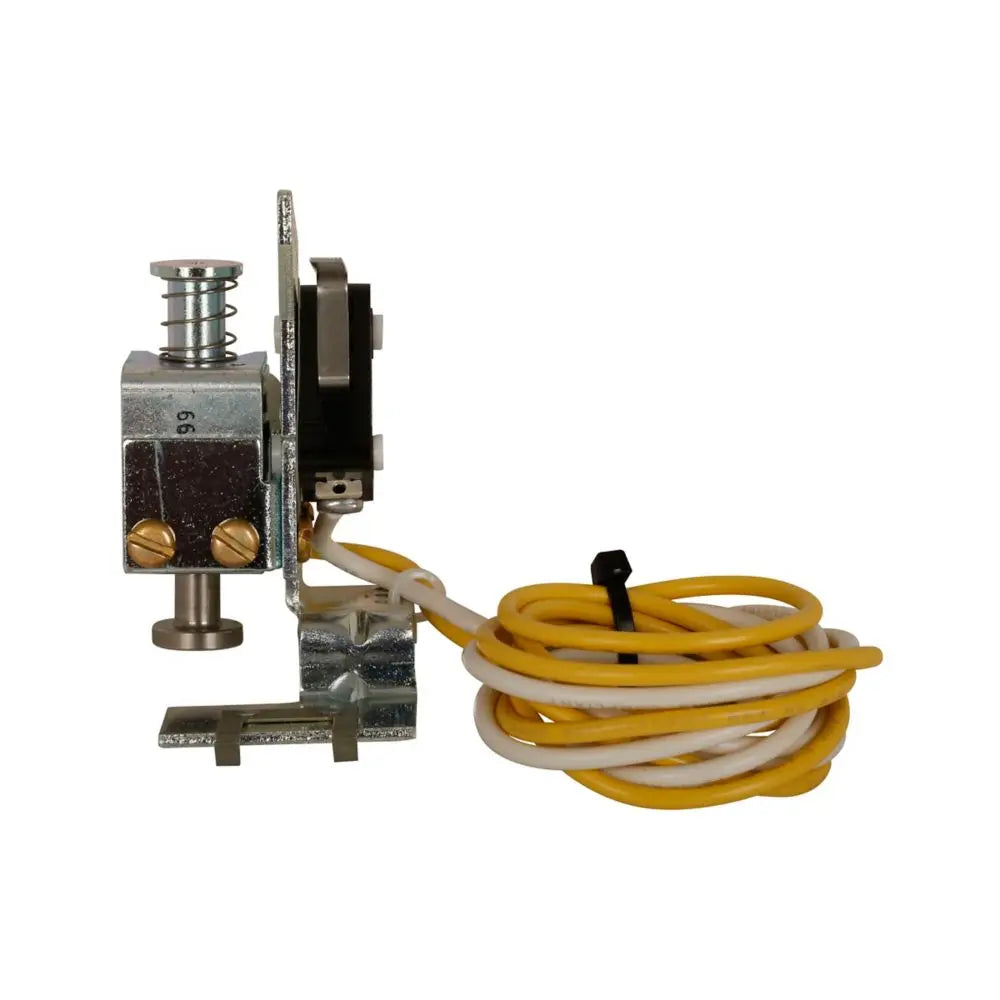

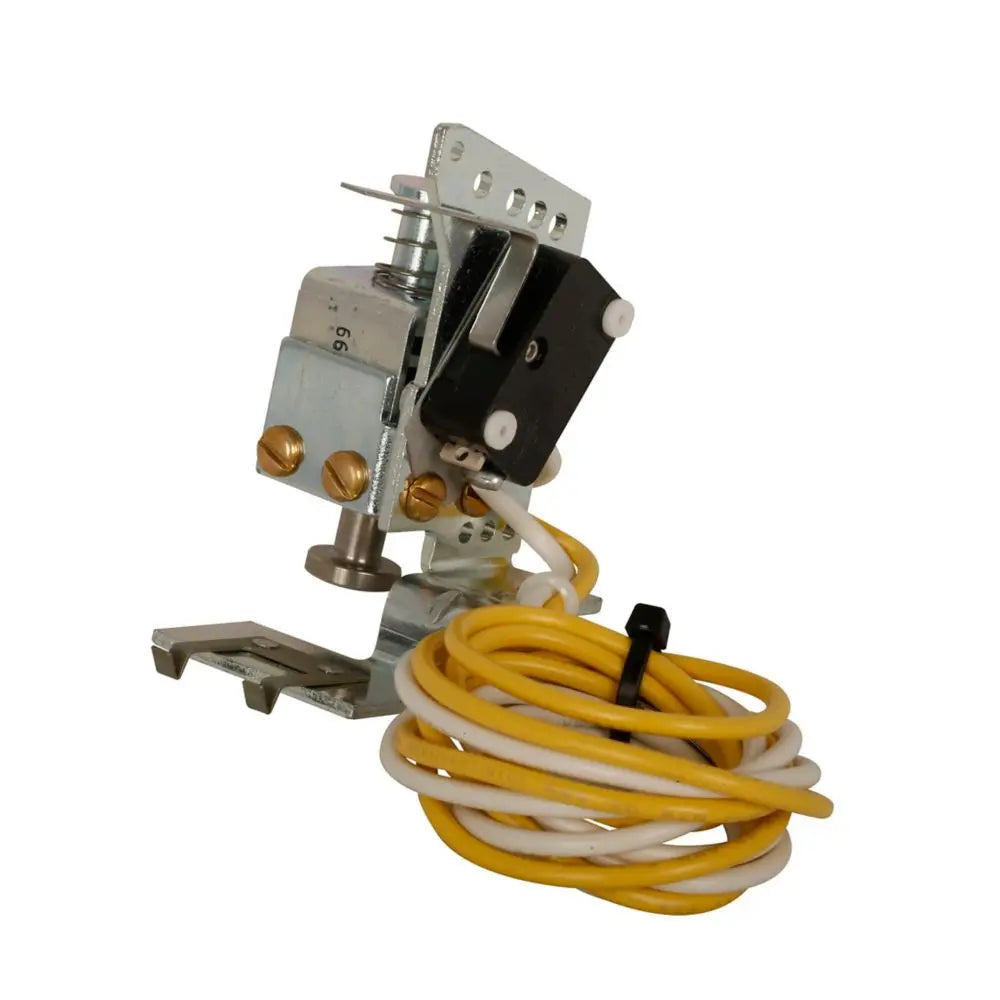

Cutler Hammer 1200A 48-60V 3-Pole Shunt Trip Circuit Breaker Accessory Frame J-K

Current: 1200Poles: 3Voltage: 48/60VACConnection: Pigtail Lead
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$499.02 $1,020.00
Save $520.98
12 In stock, ready to be shipped
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Eaton
Brand
Cutler Hammer
Sub-Category
Shunt Trip
Series
Series C
Frame
C
Rated current
1200
Voltage
48/60VAC
Poles
3
Connection
Pigtail Lead
Country of origin
United States
Control Voltage Minimum
48
Compatible Frames
ND
Control Voltate Maximum
60
UPC
786678262628
Show all specifications (3 more)
GTIN
00786678262628
Dimensions
1 in x 1 in x 1 in (Length/Depth x Height x Width)
Weight
1
Product description & additional details

SNT5LP05K


SNT5LP05K is a Cutler Hammer shunt trip accessory designed for molded case circuit breakers, providing reliable remote tripping capability.This shunt trip is rated for 1200 amps and operates at a control voltage range of 48 to 60 volts AC. It fits NG-frame molded case breakers, specifically Frame J-K, and mounts on the left pole with a pigtail lead connection. It can be factory or field mounted to enhance breaker functionality by enabling remote trip control.
    Key Specifications
    • Manufacturer: Cutler Hammer (Eaton)
    • Part Number: SNT5LP05K
    • Type: Shunt Trip
    • Amperage: 1200 Amps
    • Voltage Rating: 48-60 VAC
    • Poles: 3
    • Frame Size: J-K (NG-Frame)
    • Mounting: Left Pole, Factory or Field Mounted
    • Connection: Pigtail Lead
    • Interrupt Rating: Matches Frame J-K Breakers
    • Certifications: Eaton Selling Policy Warranty
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: SNT5LP05K
  • Manufacturer : Eaton
  • Brand : Cutler Hammer
  • Category : Circuit Breaker
  • Item Subcategory : Shunt Trip
  • Family : Series C
  • Type : C
  • Voltage : 48/60VAC
  • Amperage : 1200
  • Poles : 3
  • Connection : Pigtail Lead
  • Control Voltage Minimum : 48
  • Compatible Frames : ND
  • Control Voltate Maximum : 60

Product Data

  • UPC : 786678262628
  • GTIN : 00786678262628
  • Country of Origin : United States
  • Dimensions : 1 in x 1 in x 1 in (Length/Depth x Height x Width)
  • Weight : 1
