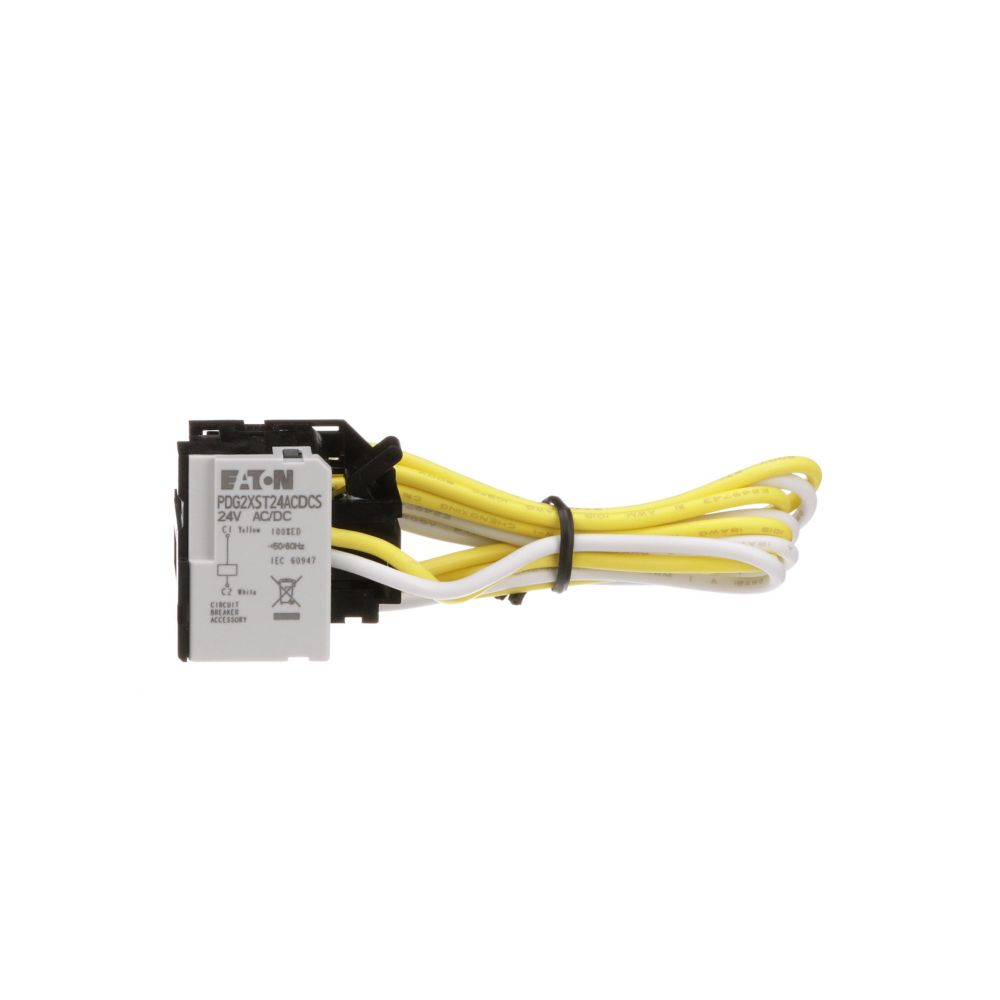

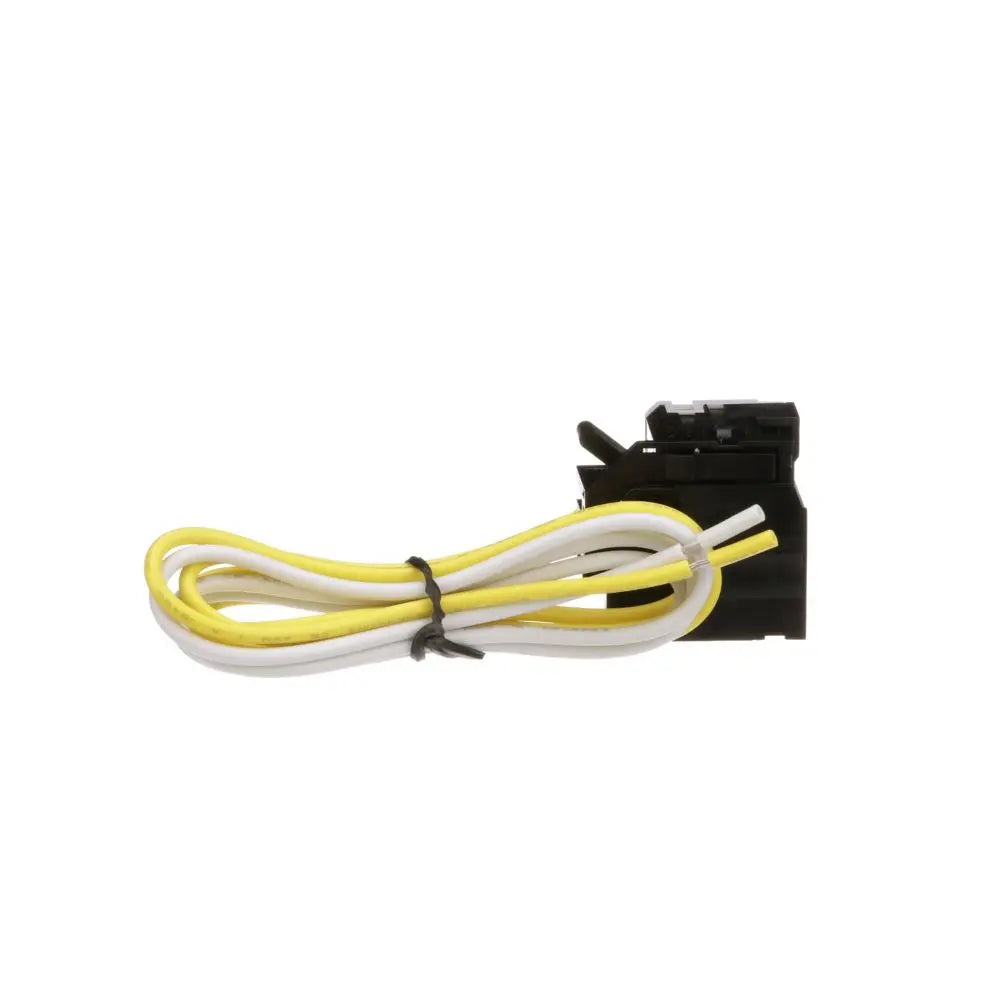

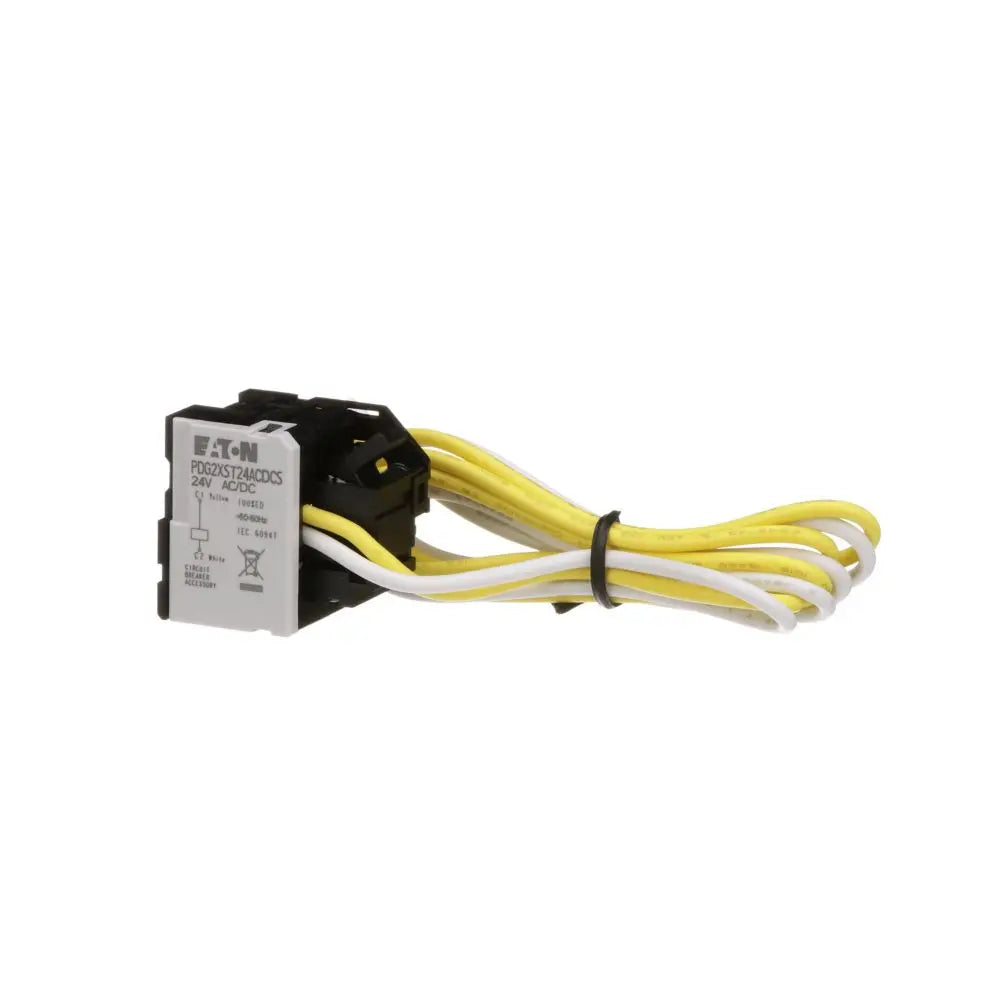

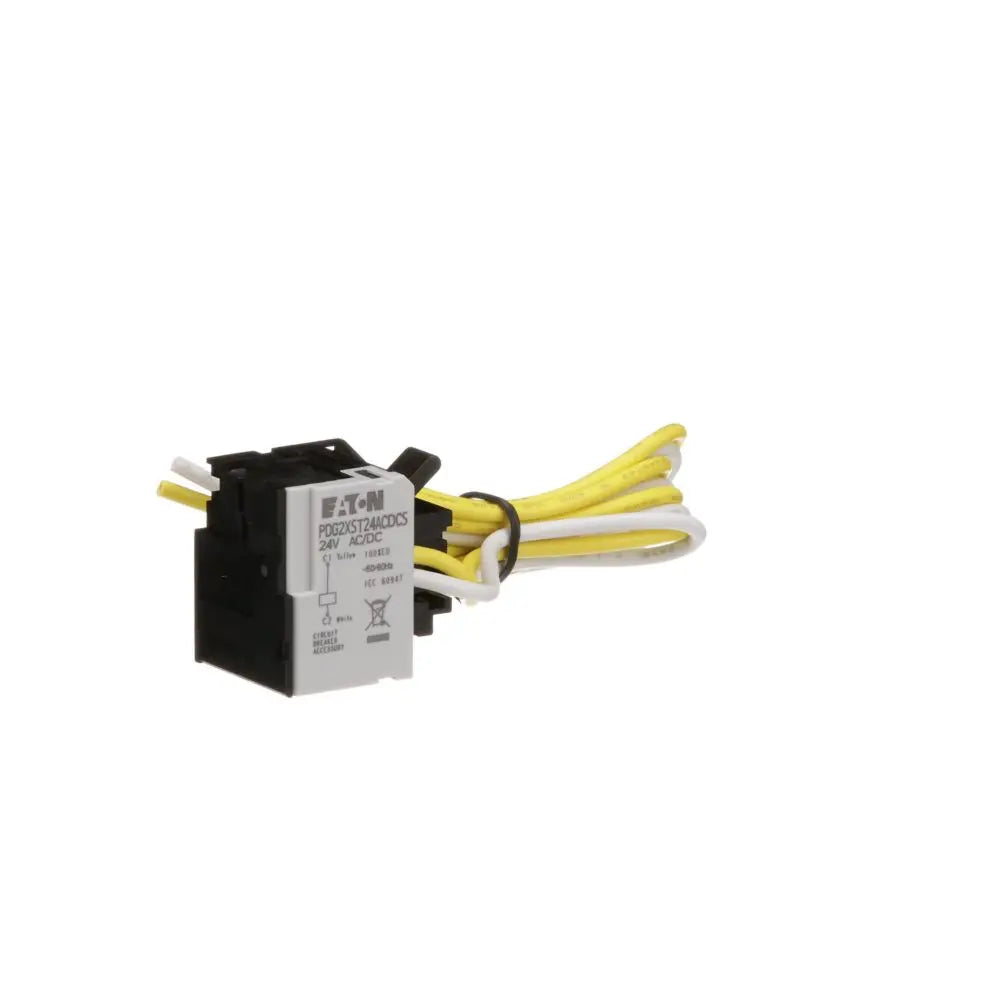

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Shunt Trip
- Series
- Power Defense Series
- Frame
- PDG
- Voltage
- 110-130VAC, 125VDC
- Poles
- 3
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Pigtail
- Standards
- RoHS
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Control Voltage Minimum
- 110
- Compatible Frames
- PDG
- Control Voltate Maximum
- 130
Show all specifications (5 more)
- UPC
- 786679586938
- GTIN
- 786679586938
- Dimensions
- 1.299 in x 1.575 in x 1.161 in (Length/Depth x Height x Width)
- Weight
- 0.141 lb
- Certification
- UL, CSA, IEC, CCC
Product description & additional details
PDG2XST130ACDCS
PDG2XST130ACDCS is a Cutler Hammer Power Defense shunt trip accessory designed for molded case circuit breakers with a 110-130 V AC/125 V DC voltage rating.This shunt trip is compatible with Power Defense PD2 Global series circuit breakers, Frame J-K, Frame 2 size. It features a 0.75 meter pigtail for easy installation and is RoHS compliant with certifications including CCC Marked, CSA, IEC 60947-2, and UL 489.
- Voltage rating: 110-130 V AC / 125 V DC
- Compatible with Power Defense PD2 Global series
- Frame size: J-K, Frame 2
- Type: Shunt trip accessory
- Pigtail length: 0.75 meters
- RoHS compliant
- Certifications: CCC Marked, CSA, IEC 60947-2, UL 489
- Manufacturer: Cutler Hammer (Eaton)
- Mounting: Molded case circuit breaker accessory
Specifications
- Part Number: PDG2XST130ACDCS
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Power Defense Series
- Type : PDG
- Voltage : 110-130VAC, 125VDC
- Poles : 3
- Connection : Pigtail
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Control Voltage Minimum : 110
- Protection : Thermal Magnetic
- Compatible Frames : PDG
- Control Voltate Maximum : 130
Product Data
- UPC : 786679586938
- GTIN : 786679586938
- Dimensions : 1.299 in x 1.575 in x 1.161 in (Length/Depth x Height x Width)
- Weight : 0.141 lb
- Standards : RoHS
- Certification : UL, CSA, IEC, CCC
