Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Shunt Trip
- Series
- Power Defense Series
- Frame
- PDG
- Voltage
- 110-130VAC, 125VDC
- Protection
- Thermal Magnetic
- Connection
- Pigtail
- Standards
- RoHS
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Control Voltage Minimum
- 110
- Compatible Frames
- PDG
- Control Voltate Maximum
- 130
- UPC
- 786679611111
- GTIN
- 00786679611111
Show all specifications (3 more)
- Dimensions
- 2.44 in x 1.3 in x 1.24 in (Length/Depth x Height x Width)
- Weight
- 0.15 lb
- Certification
- UL, CSA, IEC, CCC
Product description & additional details
PDG3XST130ACDCS

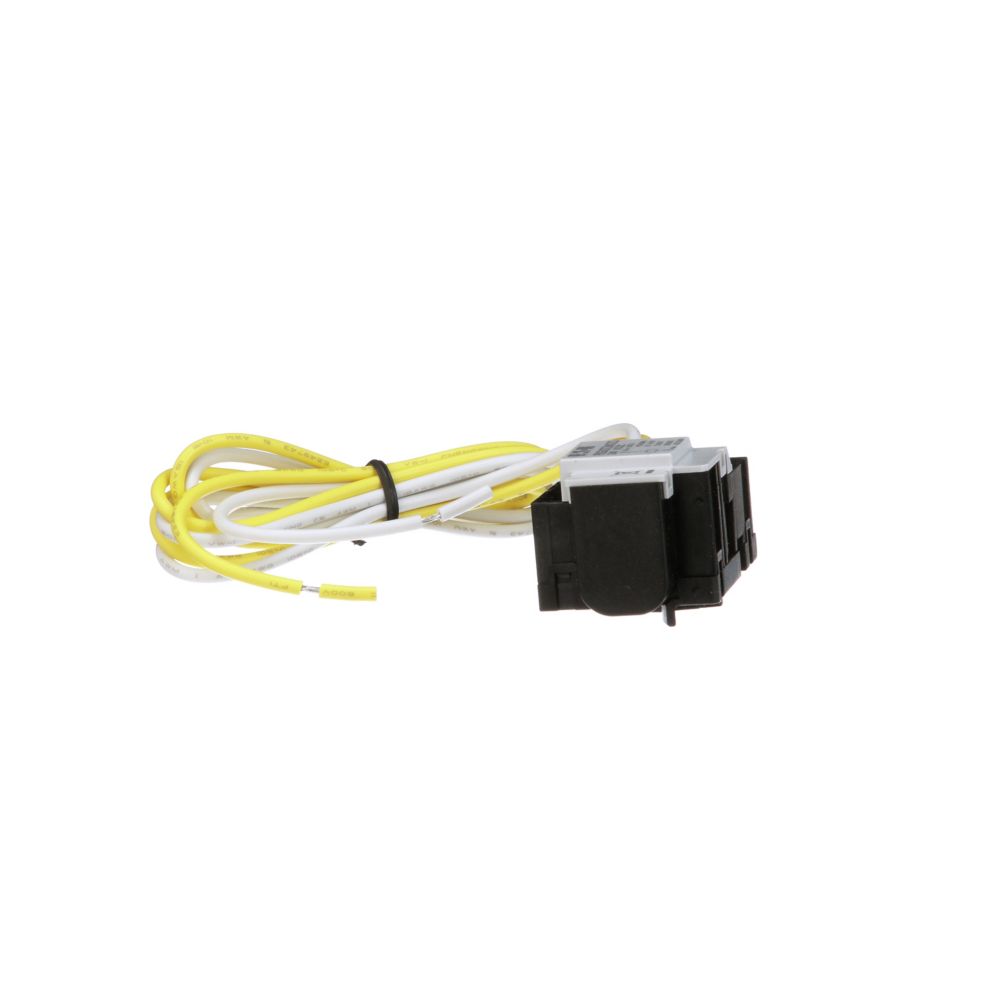

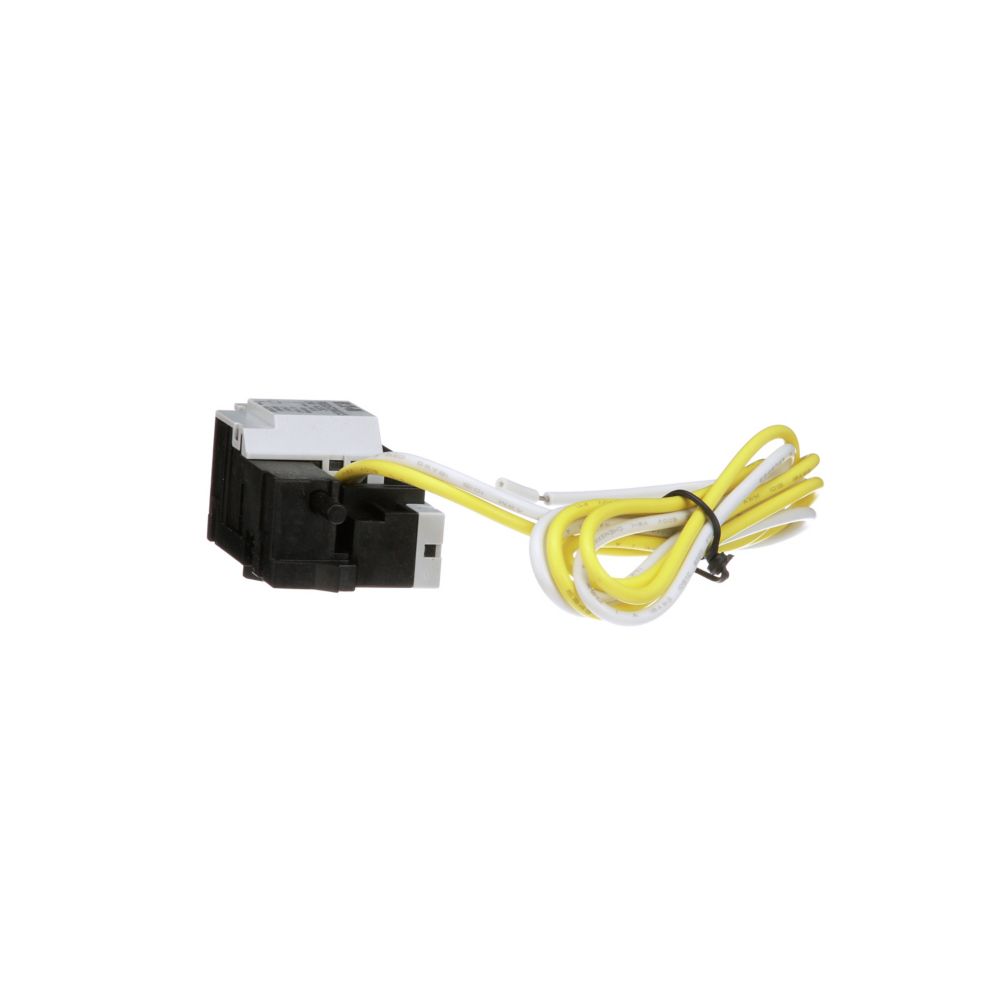

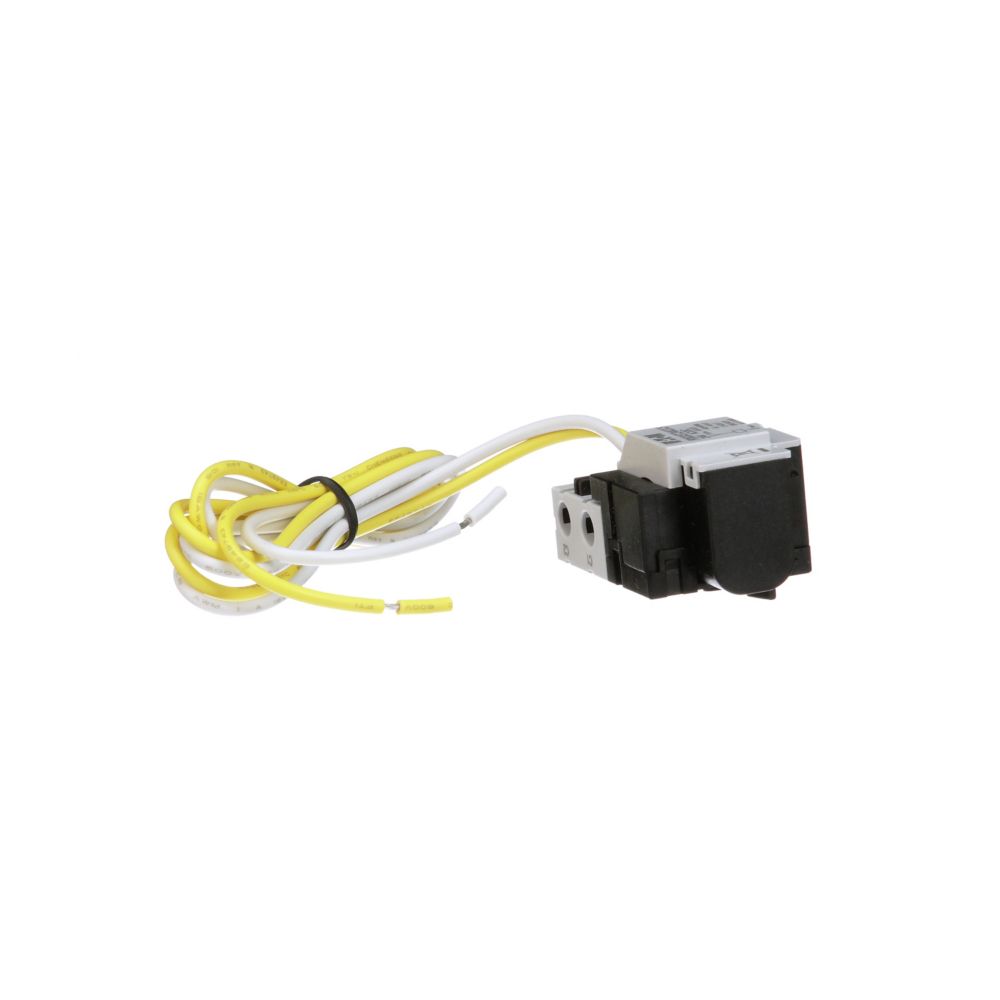

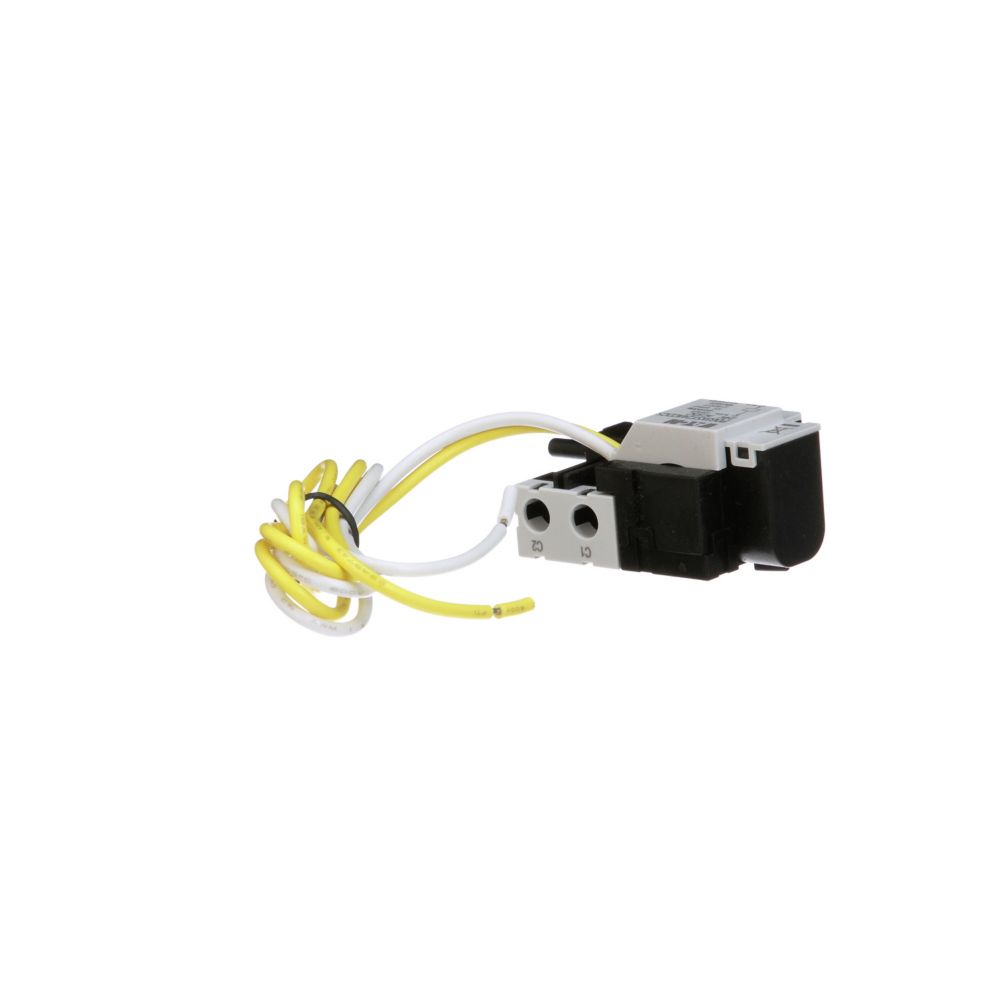

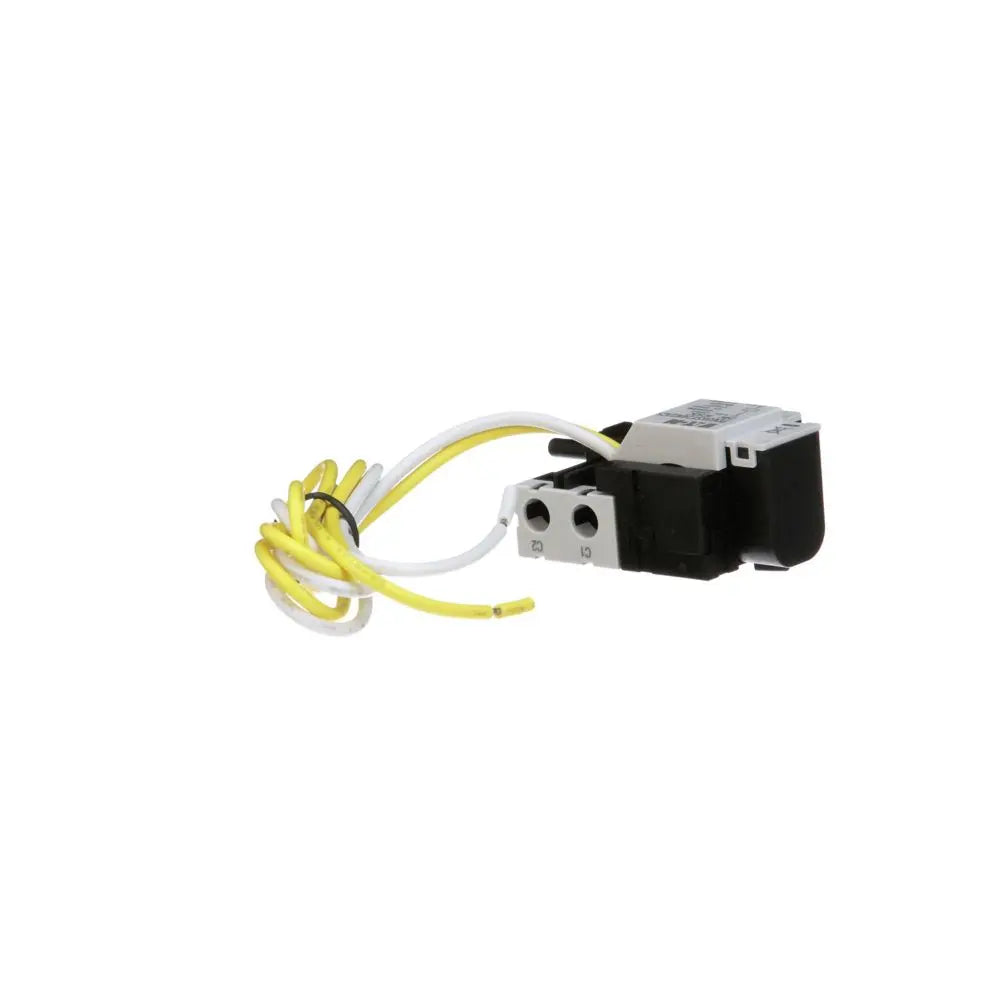

PDG3XST130ACDCS is a Cutler Hammer Power Defense shunt trip accessory designed for remote tripping of compatible molded case circuit breakers.
This shunt trip unit is engineered for use with Eaton Power Defense PD3 Global series circuit breakers in Frame J-K. It operates at 110-130VAC or 125VDC and includes a 0.75-meter pigtail for easy installation. The accessory enables remote or automatic tripping of the breaker, enhancing safety and control in critical power distribution applications.
-
Key Specifications
- Part Number: PDG3XST130ACDCS
- Manufacturer: Cutler Hammer (Eaton)
- Type: Shunt Trip Accessory
- Voltage: 110-130VAC / 125VDC
- Series/Frame: Power Defense PD3 Global, Frame J-K
- Mounting Type: Accessory for compatible molded case circuit breakers
- Pigtail Length: 0.75 meters
- Trip Unit: Not applicable (accessory only)
- Certifications: Not specified in available data
- Interrupt Rating: Not specified in available data
- Poles: Not specified in available data
- Amperage: Not specified in available data
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PDG3XST130ACDCS
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Power Defense Series
- Type : PDG
- Voltage : 110-130VAC, 125VDC
- Connection : Pigtail
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Control Voltage Minimum : 110
- Protection : Thermal Magnetic
- Compatible Frames : PDG
- Control Voltate Maximum : 130
Product Data
- UPC : 786679611111
- GTIN : 00786679611111
- Dimensions : 2.44 in x 1.3 in x 1.24 in (Length/Depth x Height x Width)
- Weight : 0.15 lb
- Standards : RoHS
- Certification : UL, CSA, IEC, CCC
