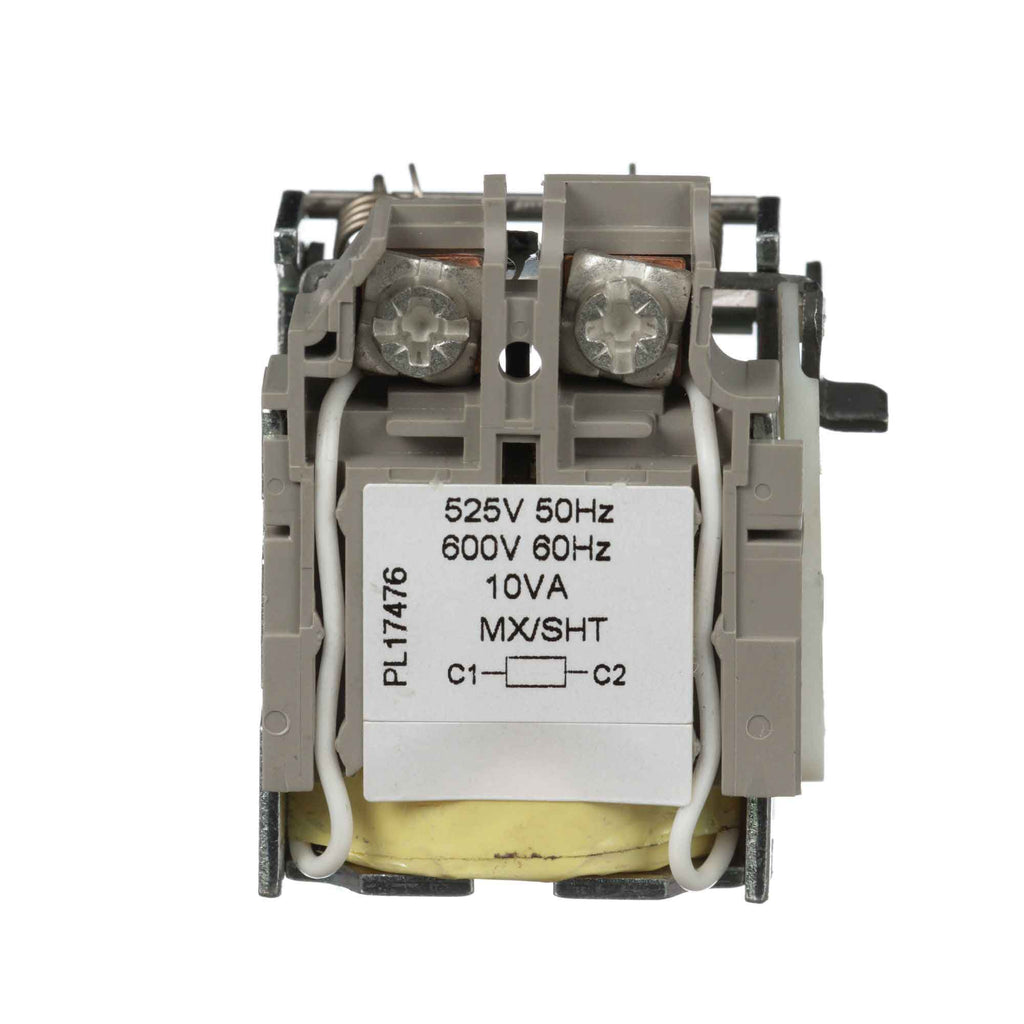

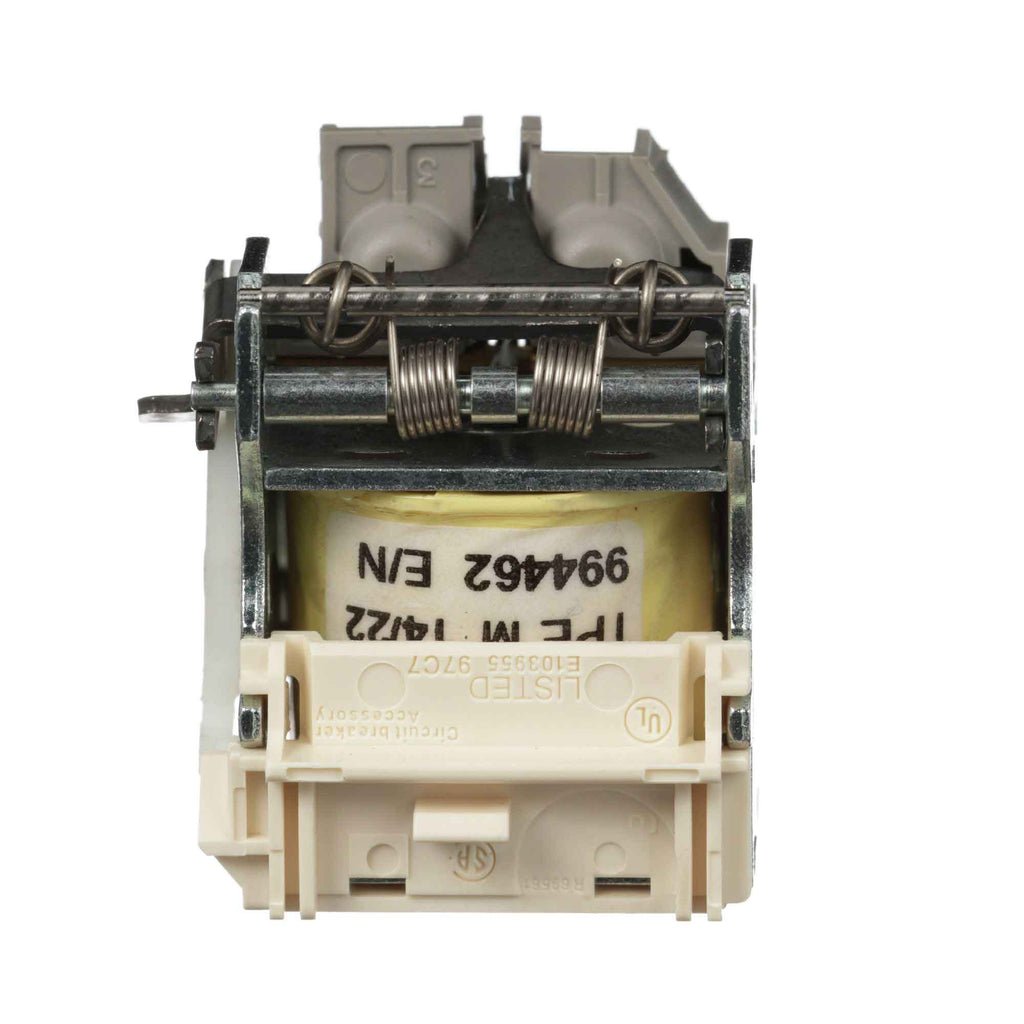

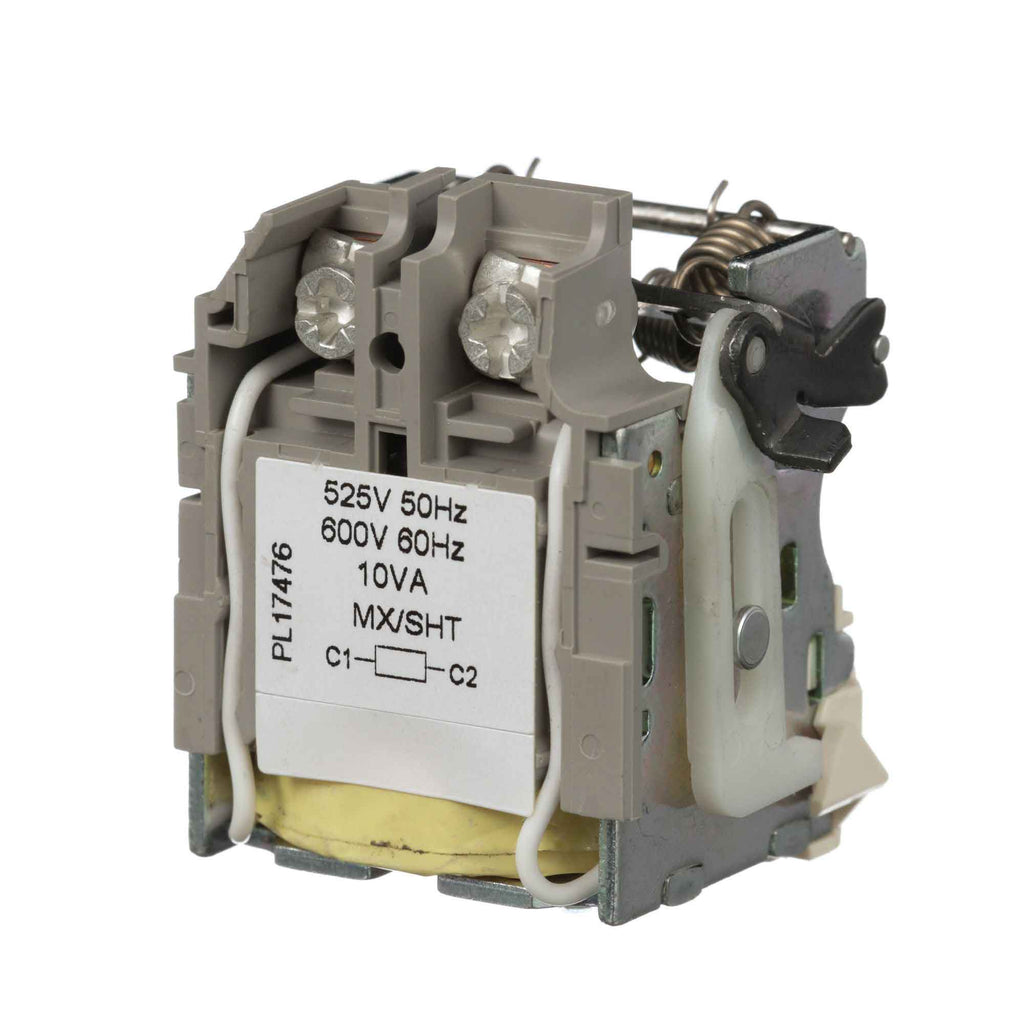

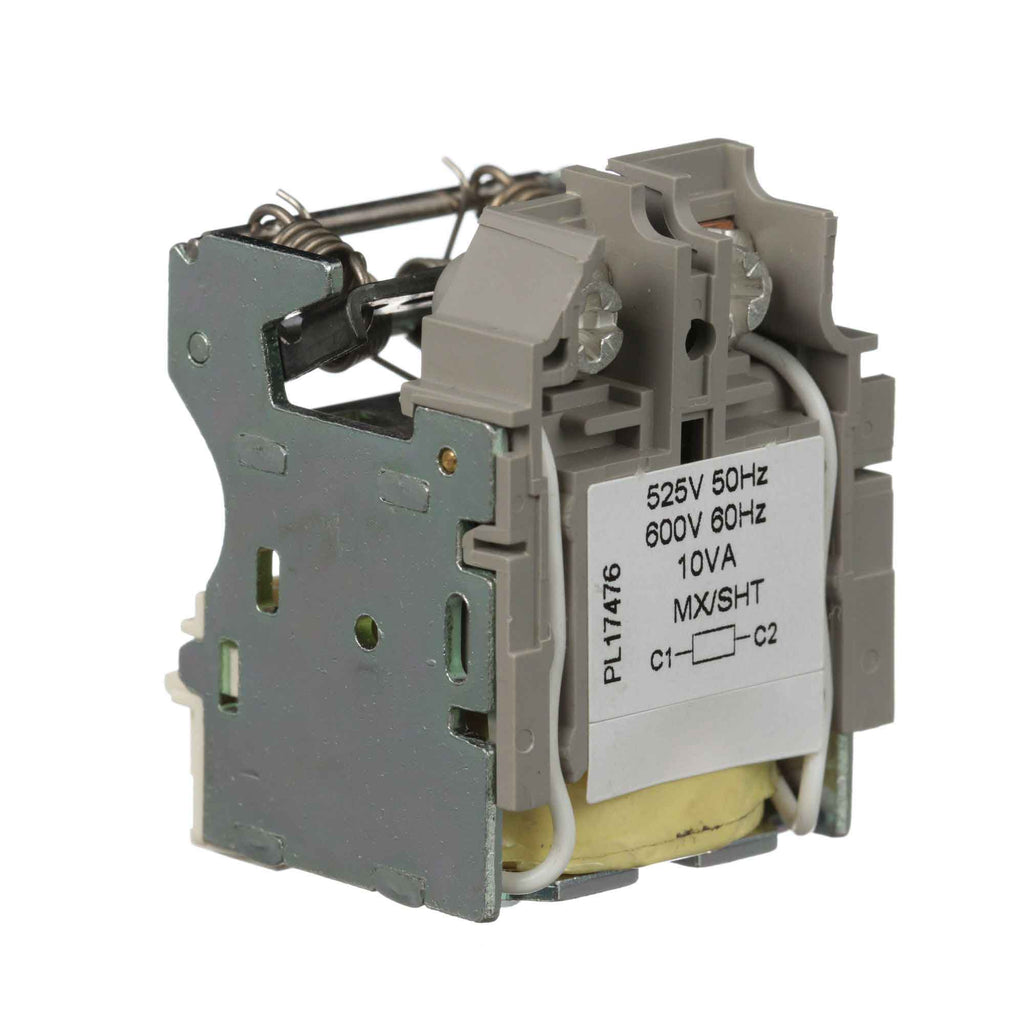

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Shunt Trip
- Series
- Powerpact
- Frame
- S29
- Voltage
- 525-600V
- Control Voltage Minimum
- 525
- Compatible Frames
- DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
- Control Voltate Maximum
- 600
- UPC
- 785901864172
- GTIN
- 00785901864172
- Dimensions
- Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
- Weight
- 1
- Certification
- CSA - UL listed
Product description & additional details
S29389
S29389 is a Schneider Electric PowerPact H/J/L frame shunt trip accessory designed for circuit breakers with a control voltage range of 525 to 600 volts.This shunt trip is compatible with multiple frame types including DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, and LR, and is intended for use with H, J, and L frame molded case circuit breakers. It provides remote tripping capability to enhance safety and control in electrical distribution systems.
- Manufacturer: Schneider Electric (Square D)
- Part Number: S29389
- Type: Shunt Trip Accessory
- Voltage Rating: 525 to 600 VAC
- Compatible Frames: PowerPact H, J, L Frames
- Frame Types Supported: DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
- Mounting: For molded case circuit breakers
- Interrupt Rating: Matches circuit breaker frame rating
- Trip Unit: Remote shunt trip
- Weight: Approximately 1 lb
- Certifications: Meets Schneider Electric standards
Specifications
- Part Number: S29389
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Powerpact
- Type : S29
- Voltage : 525-600
- Control Voltage Minimum : 525
- Compatible Frames : DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
- Control Voltate Maximum : 600
Product Data
- UPC : 785901864172
- GTIN : 00785901864172
- Dimensions : Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
- Weight : 1
- Certification : CSA - UL listed
