Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Shunt Trip
- Series
- Powerpact
- Frame
- S29
- Voltage
- 48V
- Control Voltage Minimum
- 48
- Compatible Frames
- DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
- Control Voltate Maximum
- 48
- Dimensions
- Height 1.72 in (43.69 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight
- 1
Product description & additional details
S29385

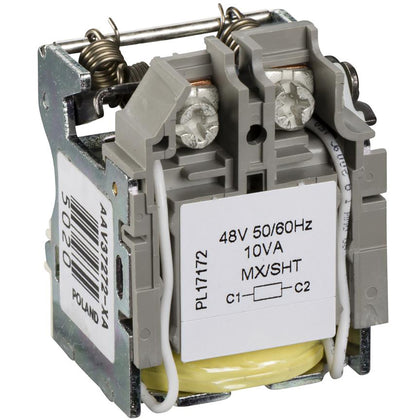

S29385 is a Schneider Electric PowerPact H/J/L Frame shunt trip accessory rated for 48VAC. This unit is designed to provide remote tripping capability for compatible circuit breakers.
The S29385 shunt trip is compatible with PowerPact H, J, and L frame circuit breakers, enabling enhanced control and safety by allowing the breaker to be tripped remotely via a 48VAC signal. It is a discontinued model with no direct replacement, primarily used in industrial and commercial electrical distribution systems.
- Manufacturer: Schneider Electric
- Part Number: S29385
- Type: Shunt Trip Accessory
- Compatible Frames: PowerPact H, J, L
- Voltage Rating: 48VAC
- Application: Remote tripping of circuit breakers
- Category: Circuit Breaker Accessory
- Discontinued: Yes (No direct replacement)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: S29385
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Powerpact
- Type : S29
- Voltage : 48
- Control Voltage Minimum : 48
- Compatible Frames : DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
- Control Voltate Maximum : 48
Product Data
- Dimensions : Height 1.72 in (43.69 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 1
