QOU360

QOU360

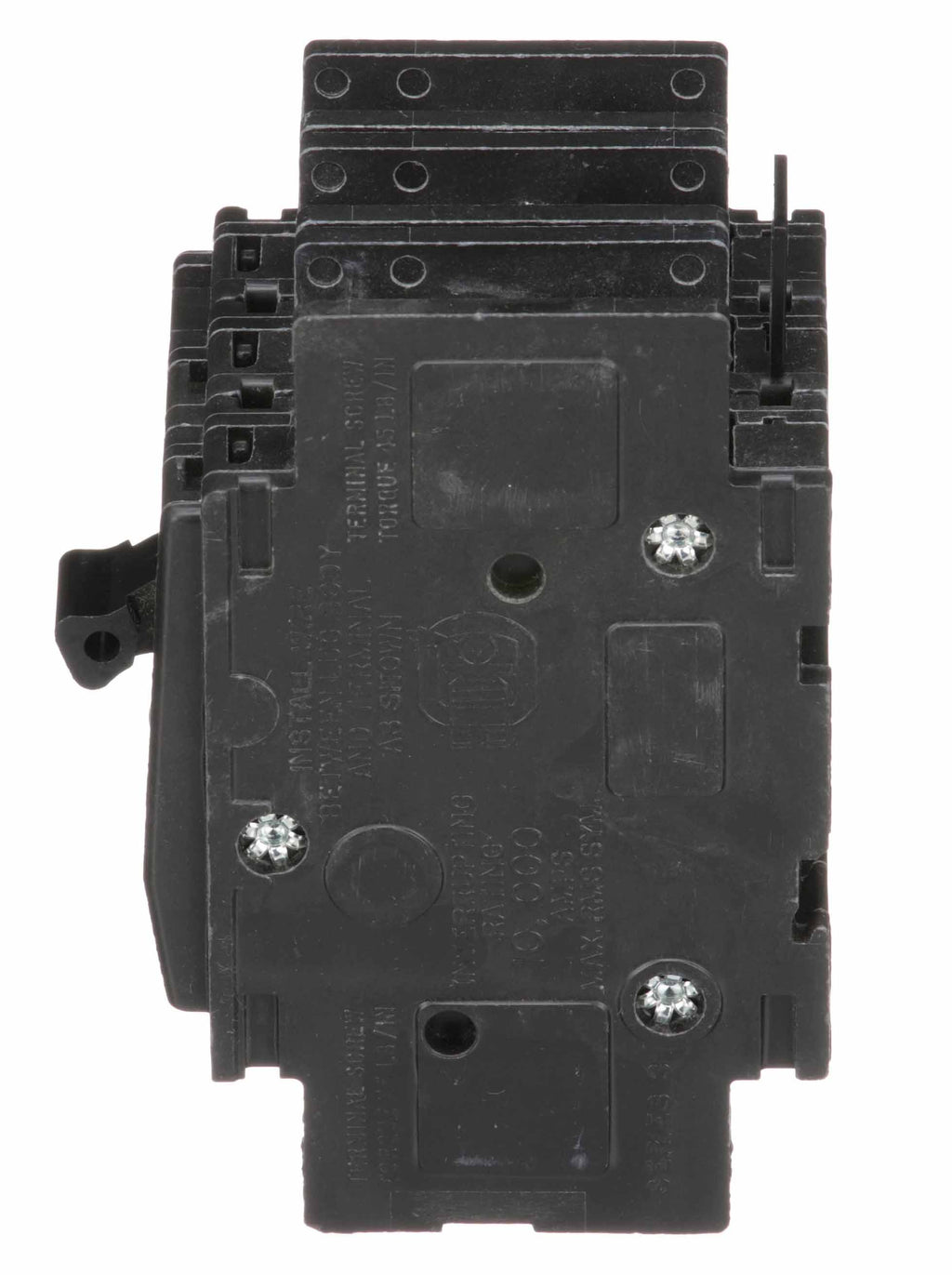

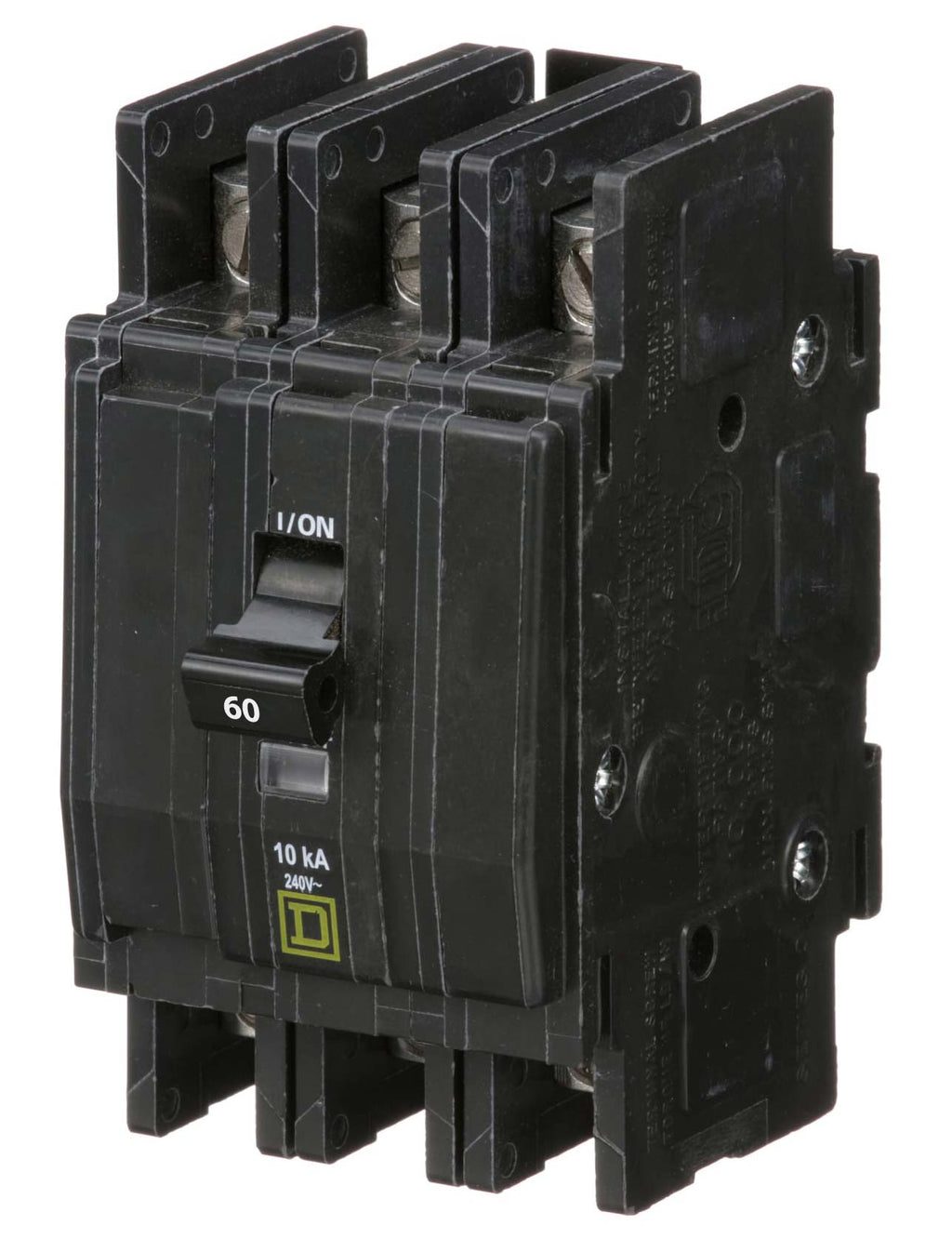

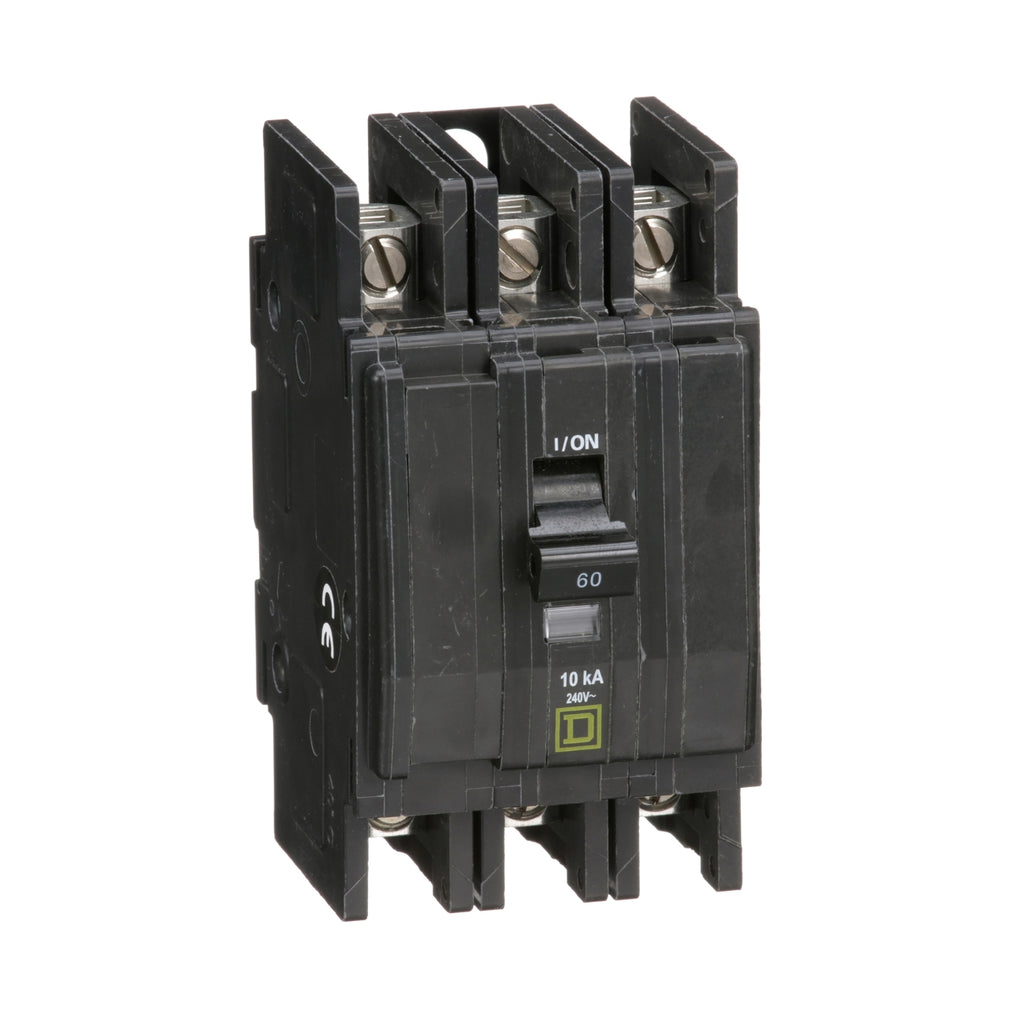

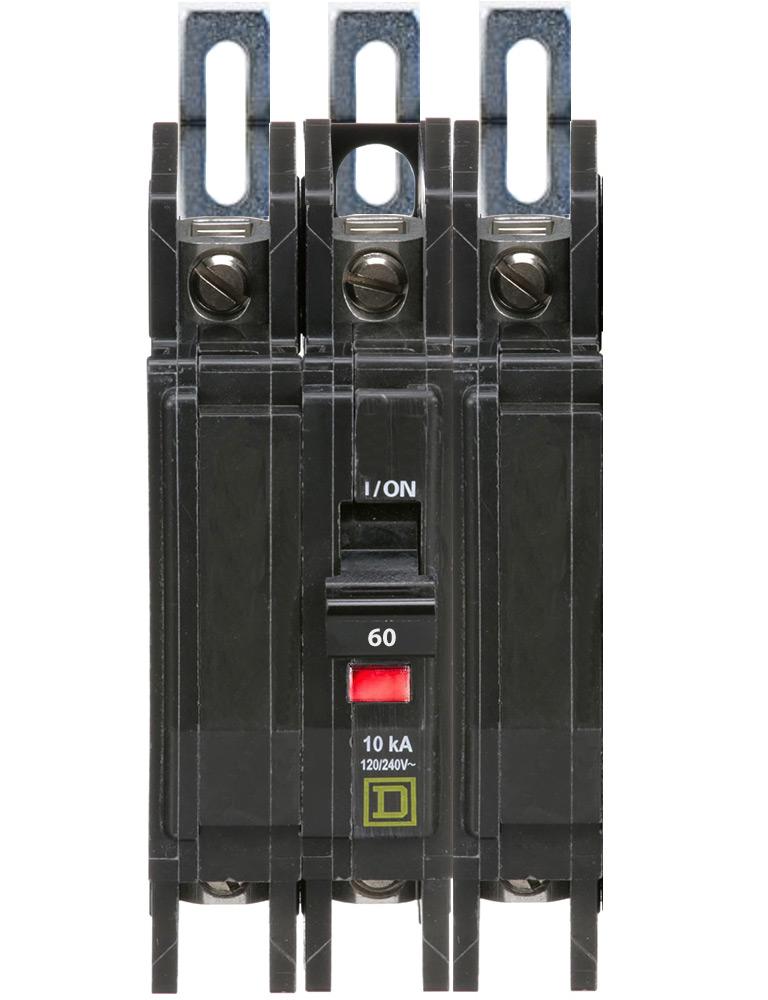

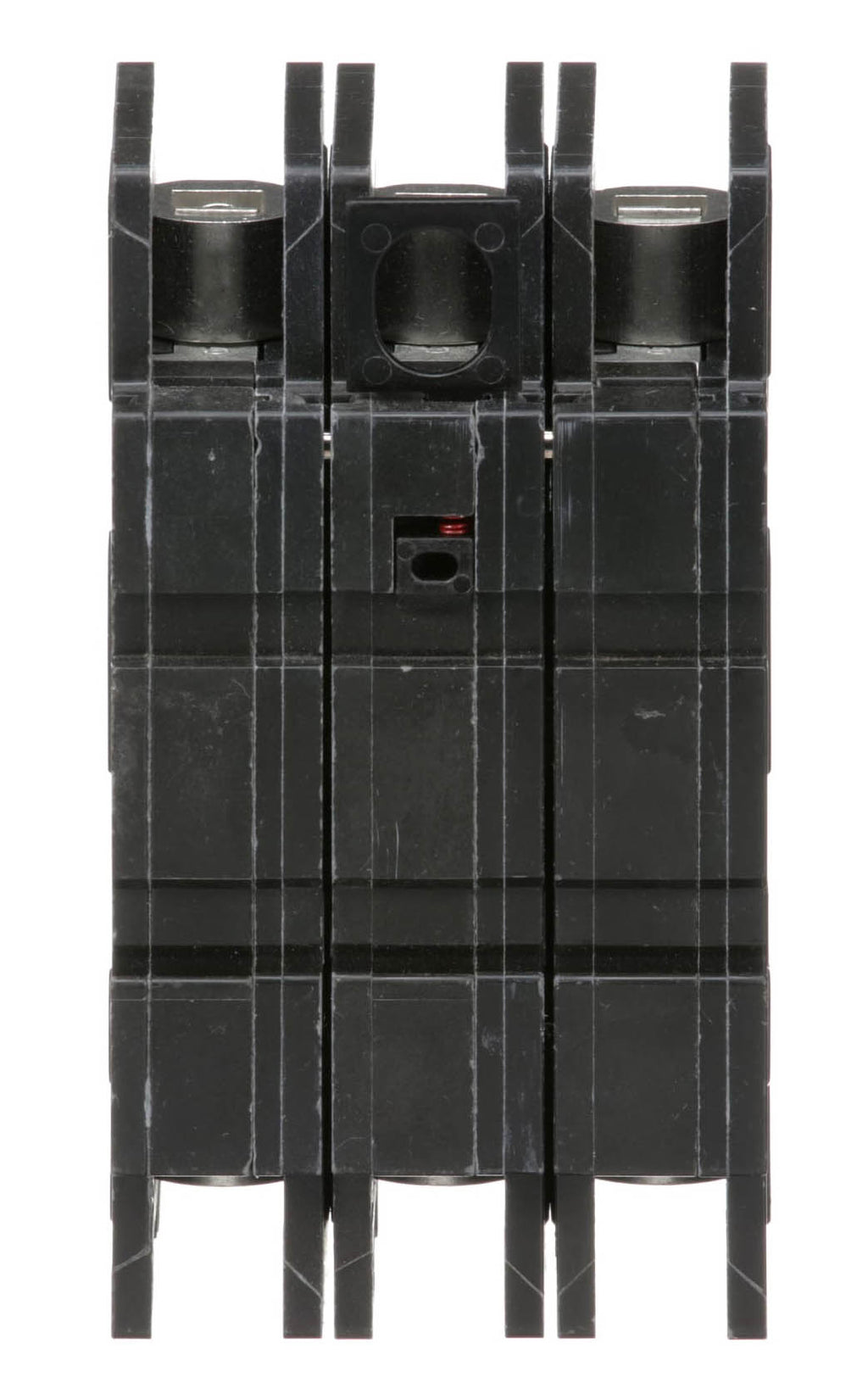

QOU360 is a Square D 60 Amp 3 Pole circuit breaker designed for reliable overcurrent protection in 240VAC systems.This thermal magnetic miniature circuit breaker features a unit mount design and is rated for 60 Amps with a voltage rating of 120/240 VAC and 48 VDC. It provides a 10 kilo-Amp interrupt rating at 240 VAC and 5 kilo-Amps at 48/60 VDC. The breaker supports copper or aluminum wiring from 14 to 2 AWG and is HACR and switching duty rated. It is UL, CSA, and IEC certified, ensuring compliance with industry safety standards.

Key Specifications
• Amperage: 60 A
• Voltage Rating: 120/240 VAC, 48 VDC
• Number of Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 10 kA at 240 VAC, 5 kA at 48/60 VDC
• Trip Unit: Thermal Magnetic
• Wire Gauge: 14-2 AWG Copper/Aluminum
• Certifications: UL Listed, CSA, IEC
• Dimensions: 4.05" H x 2.25" W x 2.95" D
• Application: HACR and Switching Duty Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QOU360
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Type : QOU
• Voltage : 240
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Slotted Box Lug (Reversible Line and Load)
• Frame Size : 100A/QOU
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Circuit Breaker Mounting Style : Unit Mount
• Protection : Thermal Magnetic



Product Data

• UPC : 785901060291
• GTIN : 00785901060291
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 2.25 in (57.15 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 1.15
• Panel Type : Air Conditioning and Refrigeration Equipment, Heating
• Standards : CSA, IEC, UL listed
• Certification : IEC, UL listed
• Wire Size : AWG 14...AWG 2 aluminium/copper
