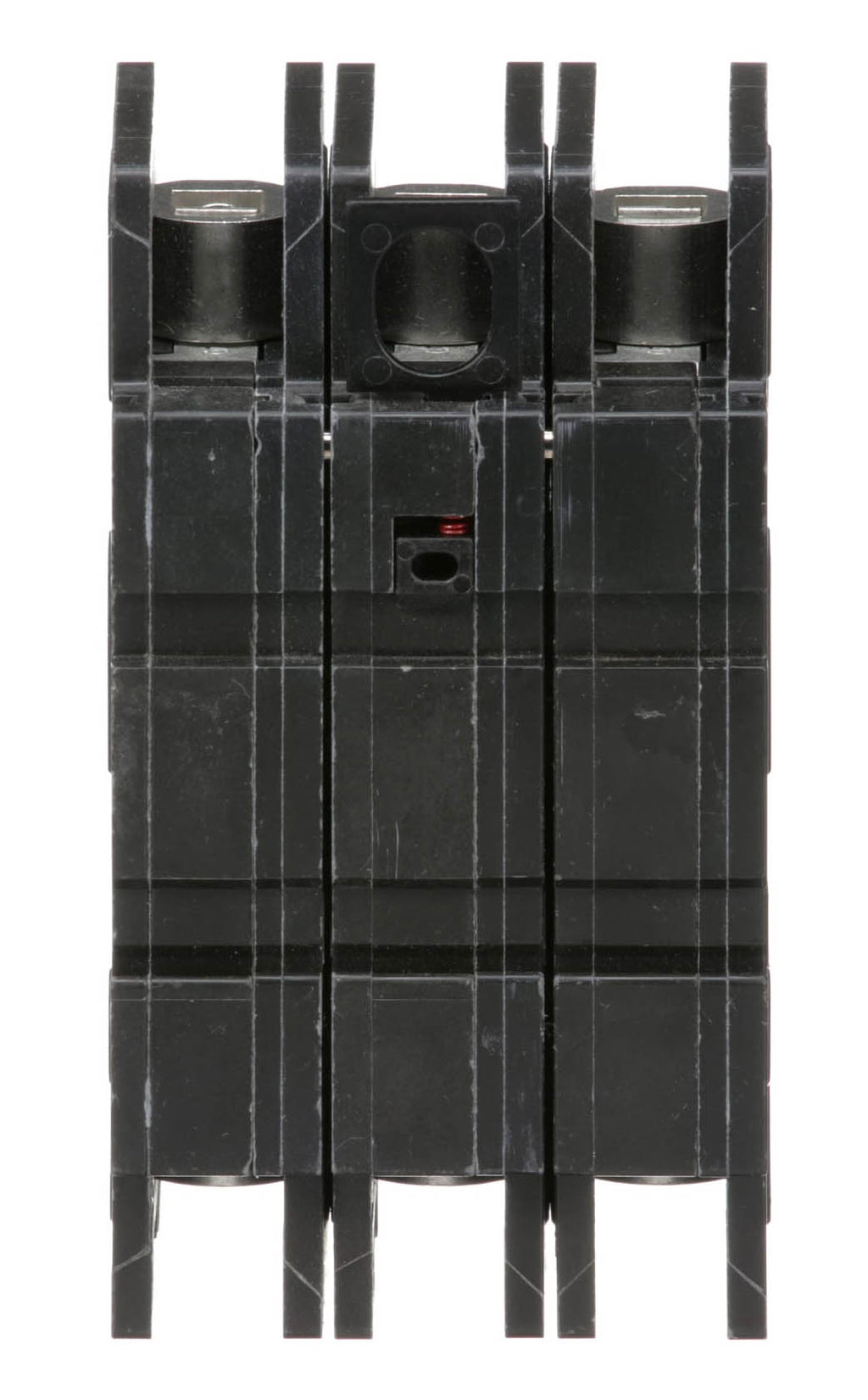

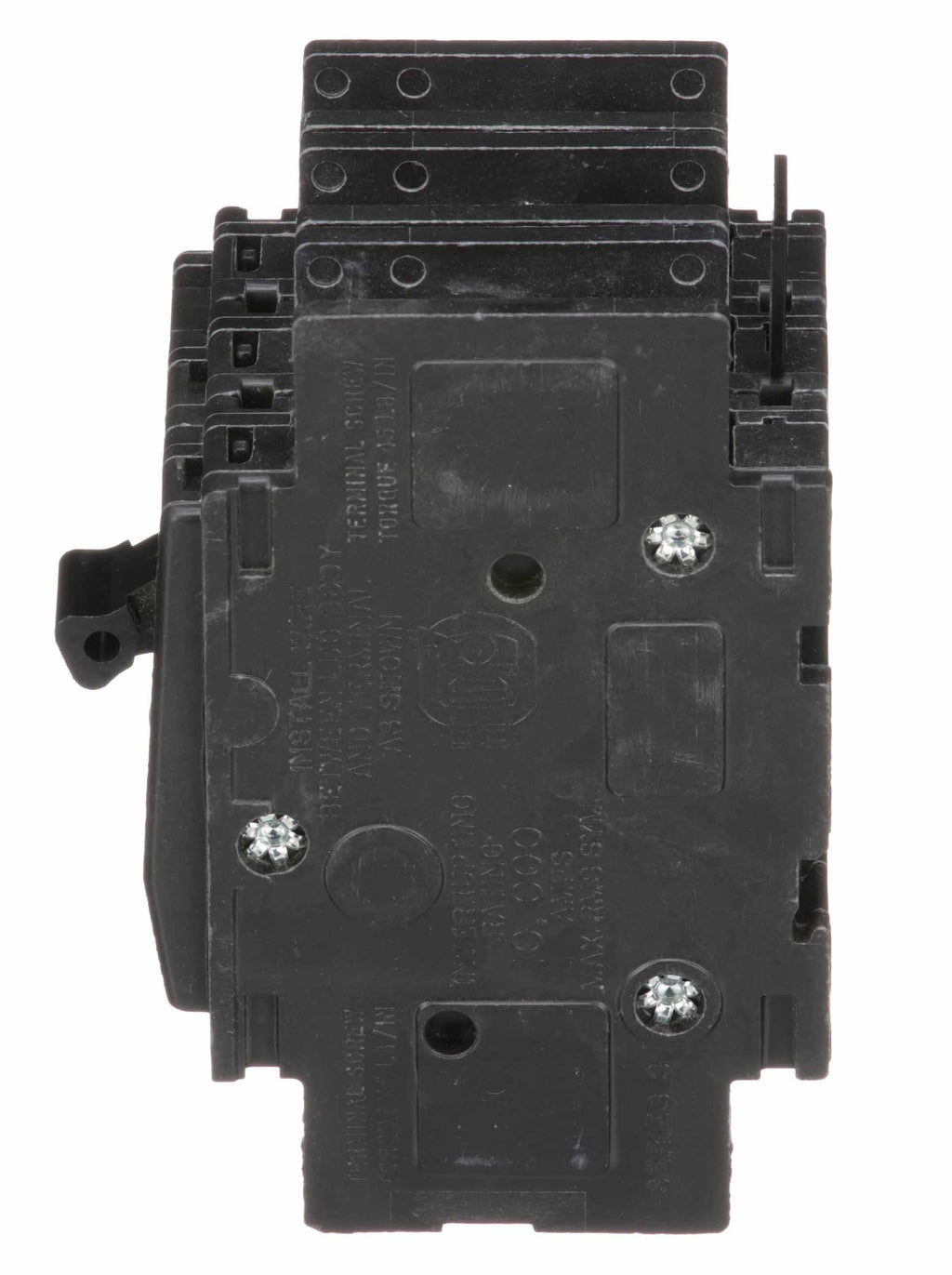

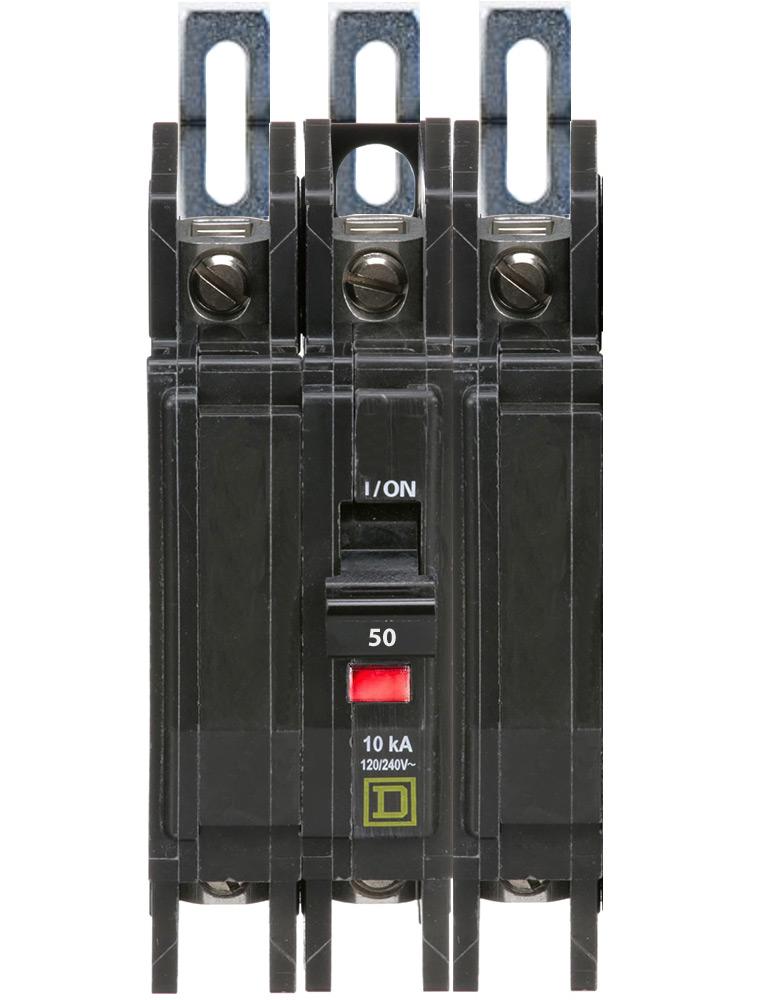

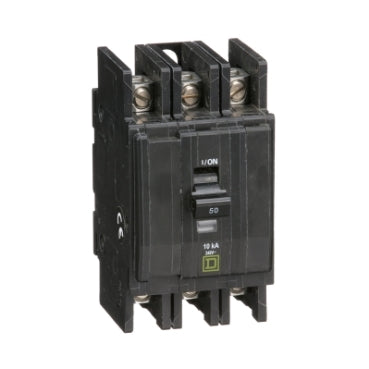

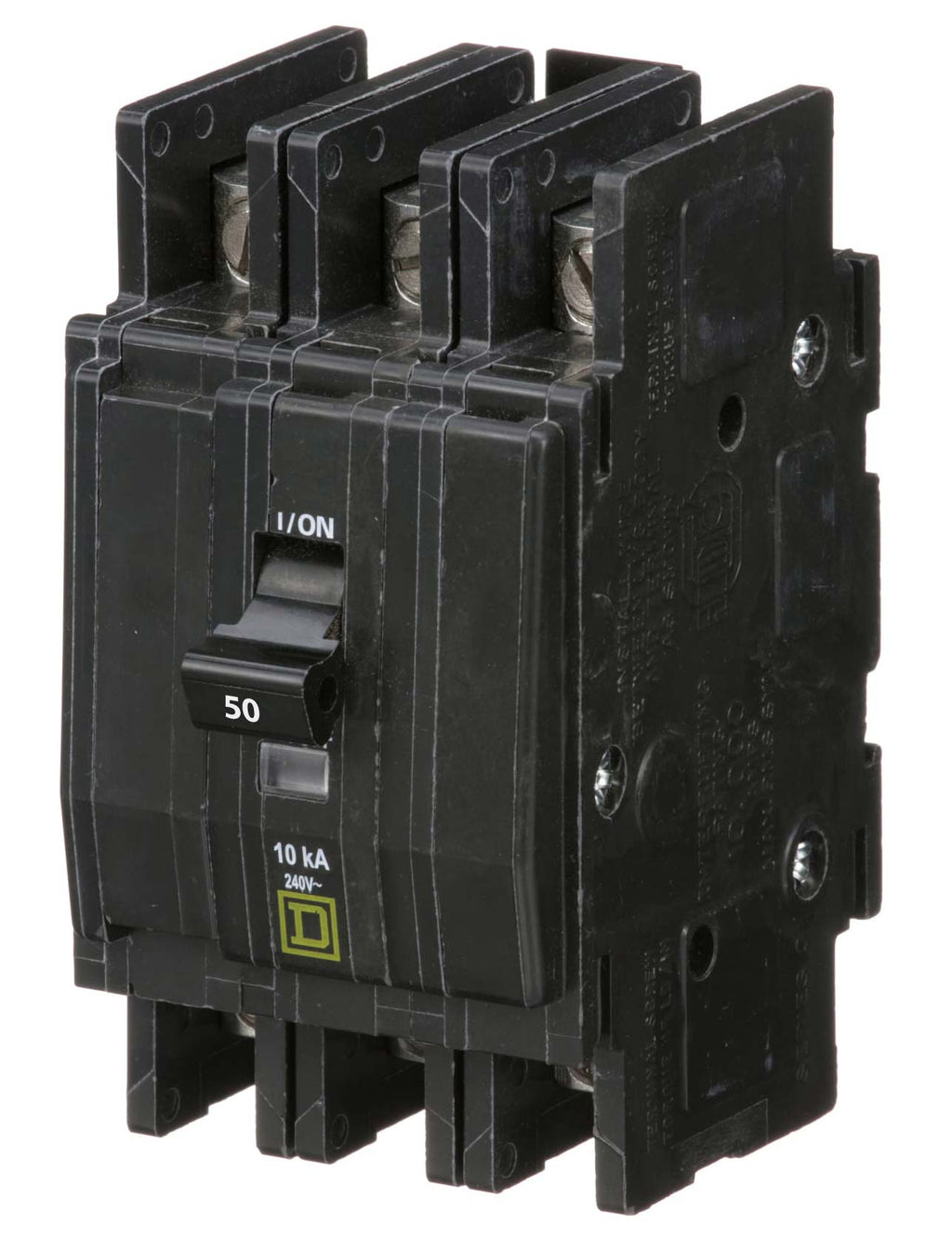

QOU350 - Square D 50A 3 Pole 120/240VAC Thermal Magnetic Circuit Breaker, 10kA Interrupt Rating

QOU350

QOU350 is a 3 pole, 50 amp thermal magnetic circuit breaker from Square D designed for 120/240VAC and 48VDC applications.QOU350 features a 10kA interrupting rating at 120/240VAC, feed-thru connection type, and includes long time and instantaneous trip functions for reliable protection. It supports wire sizes from AWG 14 to AWG 2 for both aluminum and copper conductors and is UL, CSA, and IEC certified.

Key Specifications
• Amperage: 50A
• Voltage: 120/240VAC, 48VDC
• Poles: 3
• Interrupt Rating: 10kA at 120/240VAC
• Mounting Type: Unit Mount
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Connection Type: Feed-Thru
• Terminal Connection: Slotted Box Line and Load Side Lug
• Wire Gauge: AWG 14 to AWG 2 (Aluminum/Copper)
• Certifications: UL, CSA, IEC
• Frame Type: QOU Series
• Breaker Feature: Mercury Free

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU350
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Type : QOU
• Voltage : 240
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Unit Mount
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Slotted Box Lug (Reversible Line and Load)
• Frame Size : 100A/QOU
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901418986
• GTIN : 00785901418986
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 2.25 in (57.15 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 1.15
• Panel Type : Air Conditioning and Refrigeration Equipment, Heating
• Standards : CSA, IEC, UL listed
• Certification : IEC, UL listed
• Wire Size : AWG 14...AWG 2 aluminium/copper
