QO360

QO360

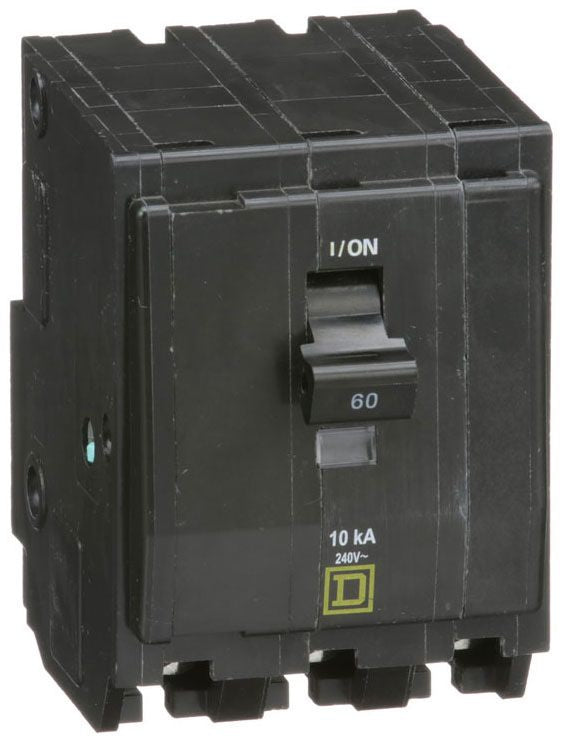

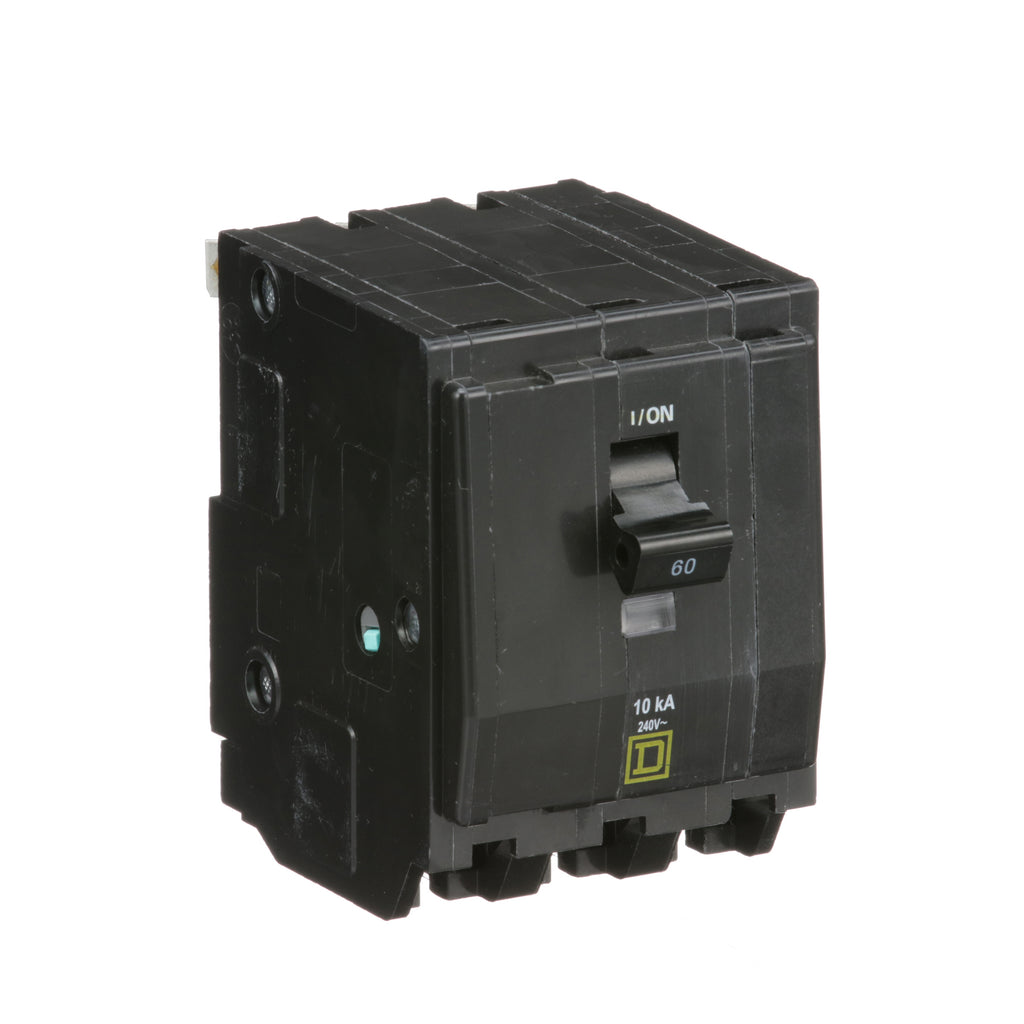

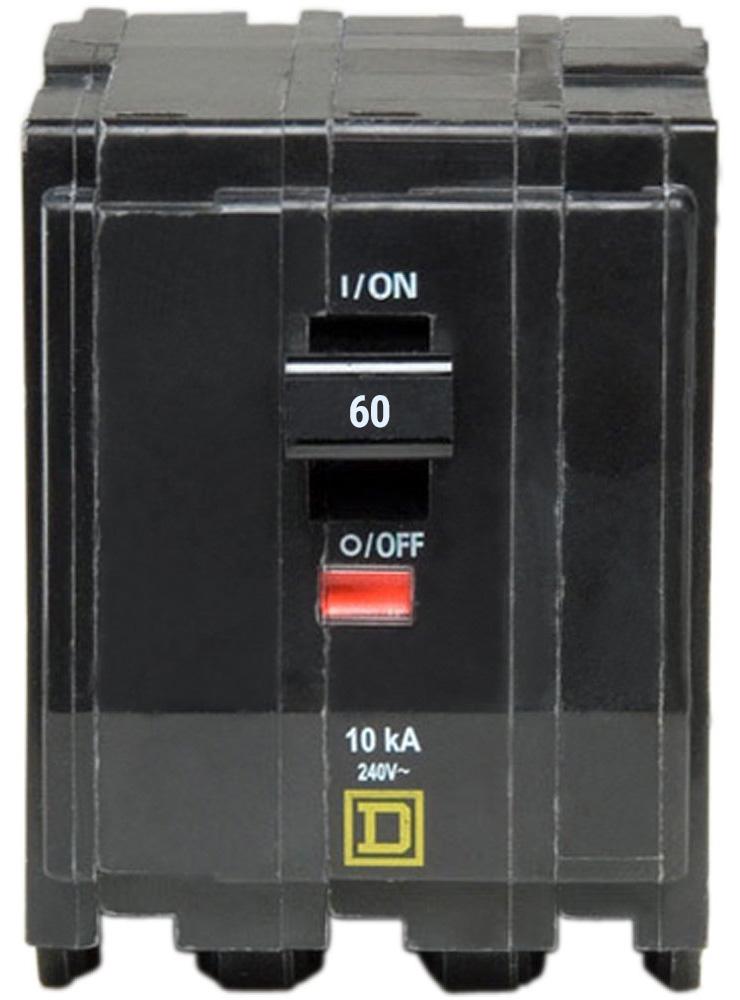

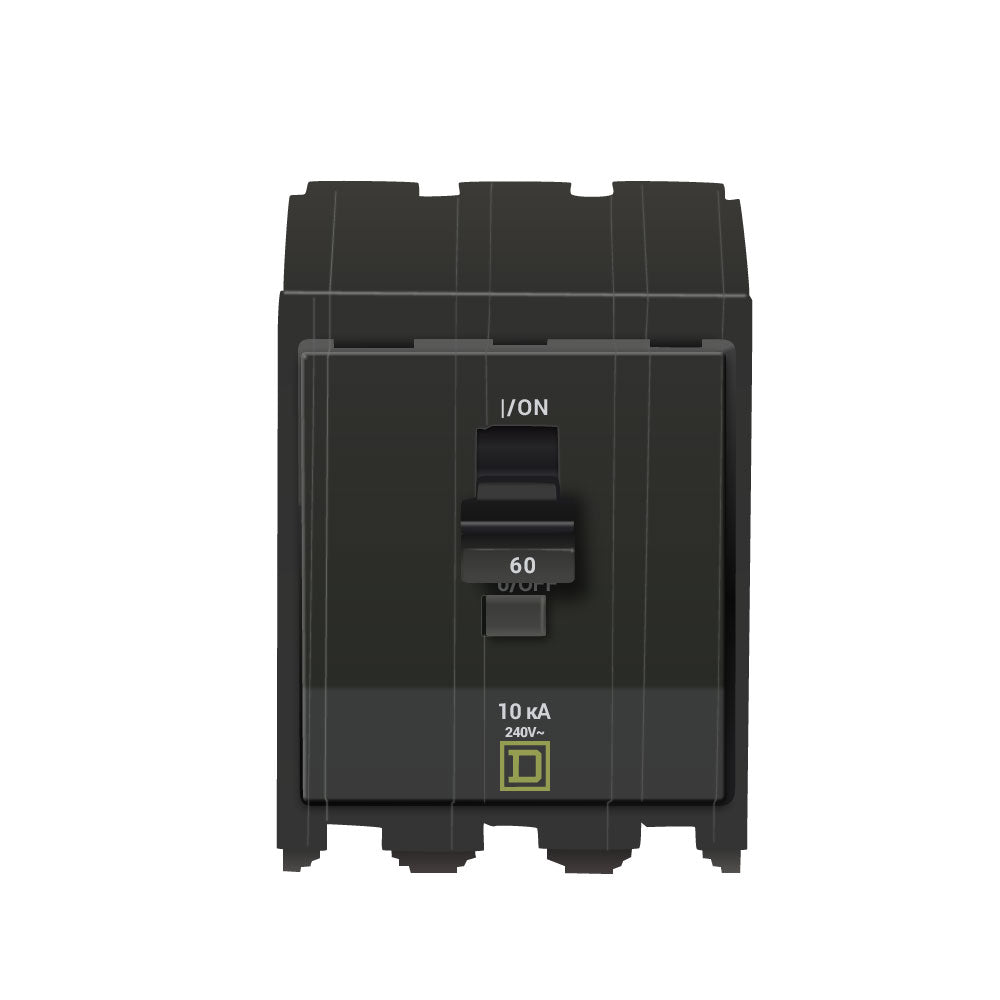

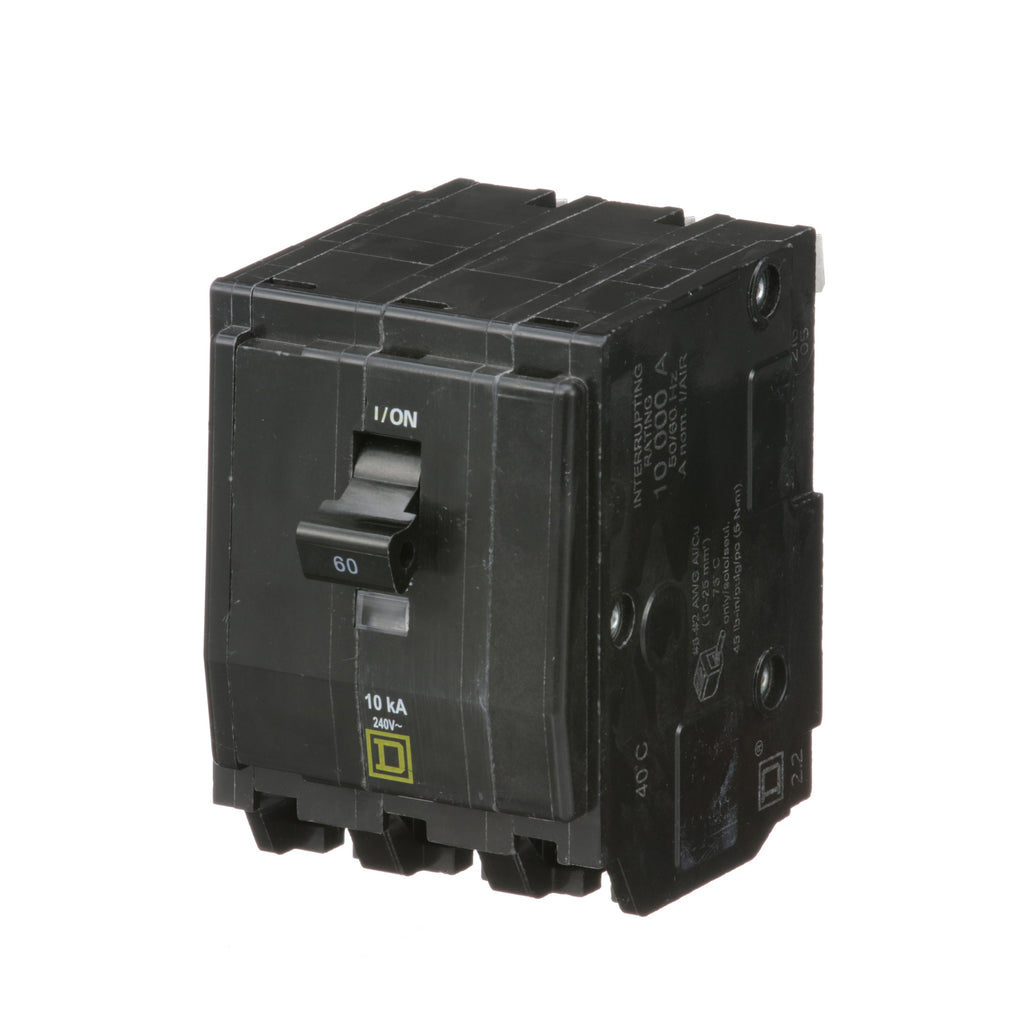

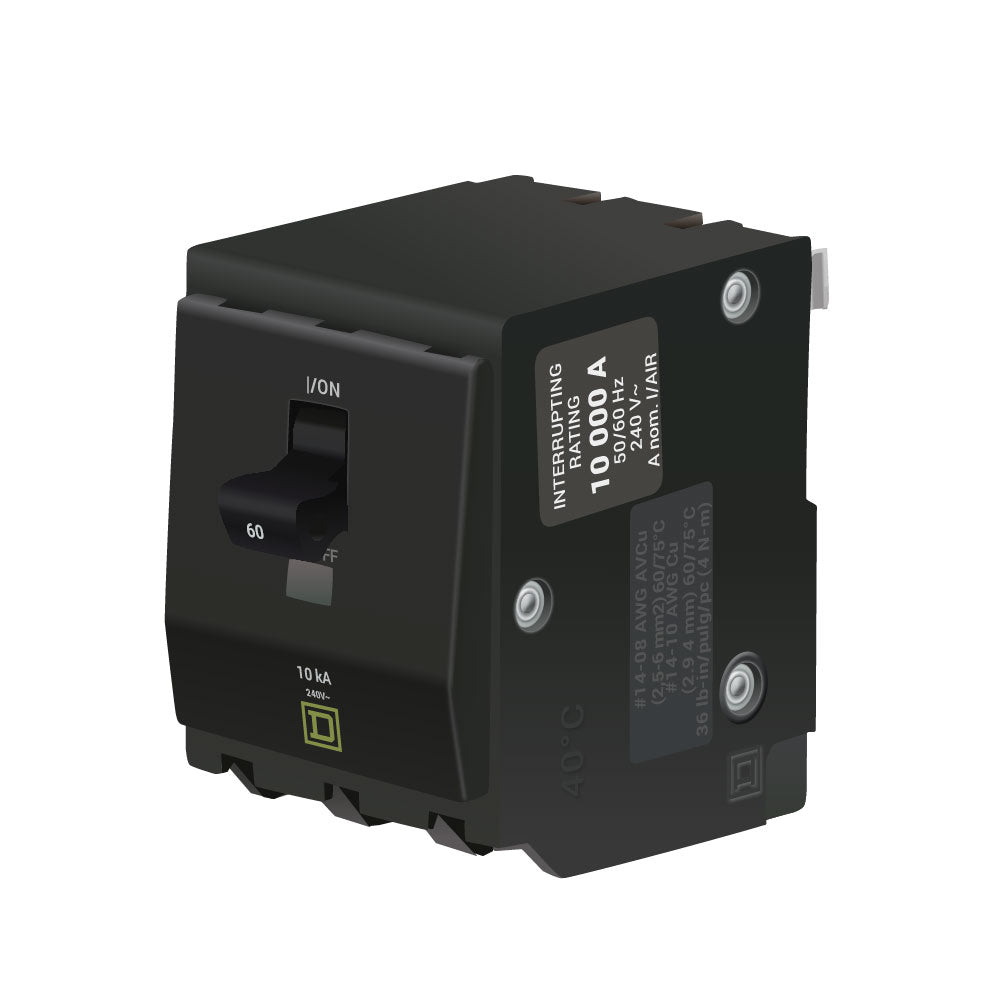

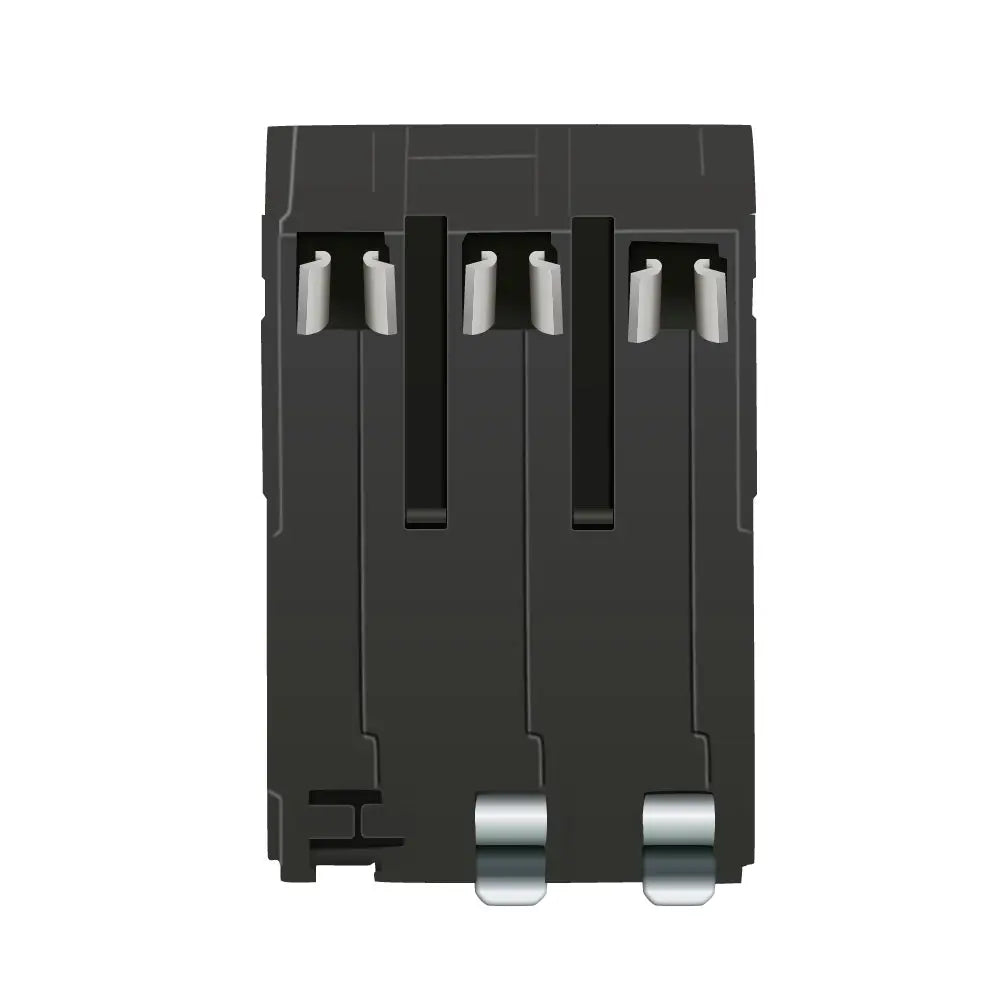

QO360 is a 3 pole, 60 amp, 120/240VAC circuit breaker from the Square D QO series, designed for reliable plug-in mounting in QO load centers and NQ panelboards.This thermal magnetic molded case circuit breaker features a 10kAIC interrupting rating at 120/240VAC, box lug connections, and long time and instantaneous trip functions for superior circuit protection. It is mercury free, HACR rated, and suitable for use with copper or aluminum wire from AWG 8 to AWG 2.

• Part Number: QO360
• Manufacturer: Square D
• Series/Frame: QO
• Amperage: 60 Amps
• Voltage: 120/240VAC, 48VDC
• Poles: 3

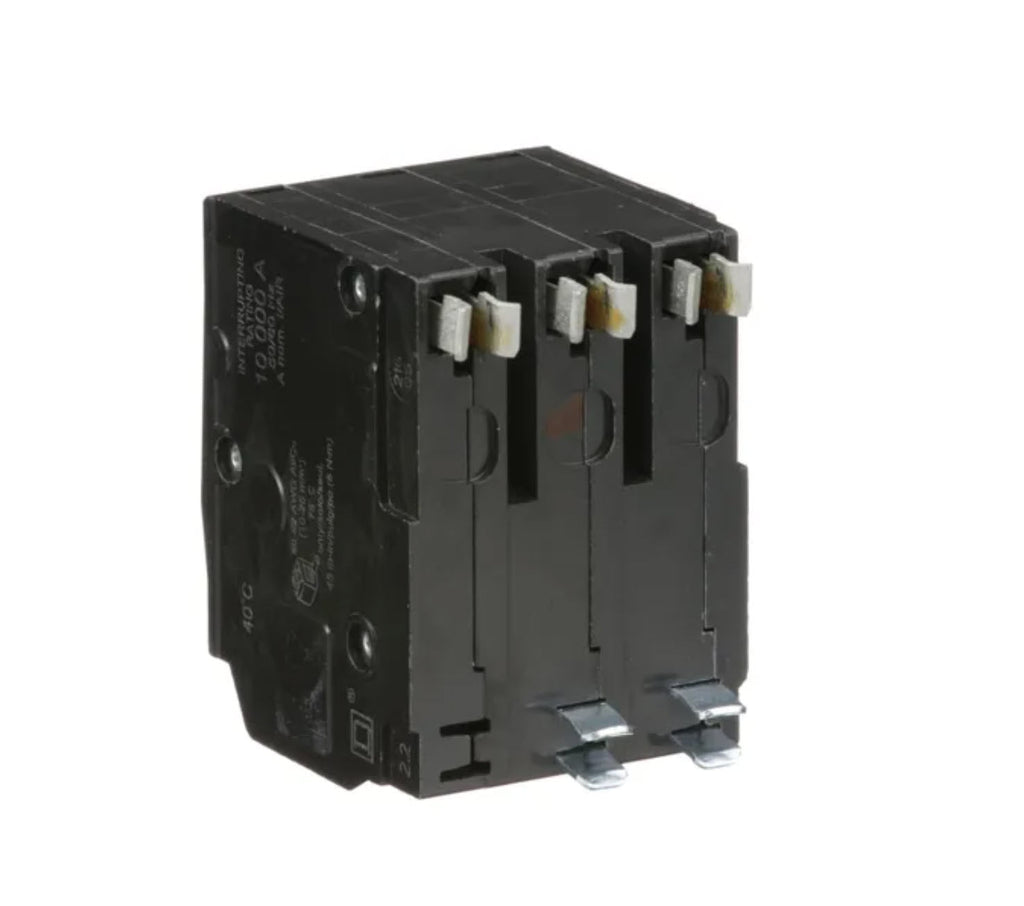

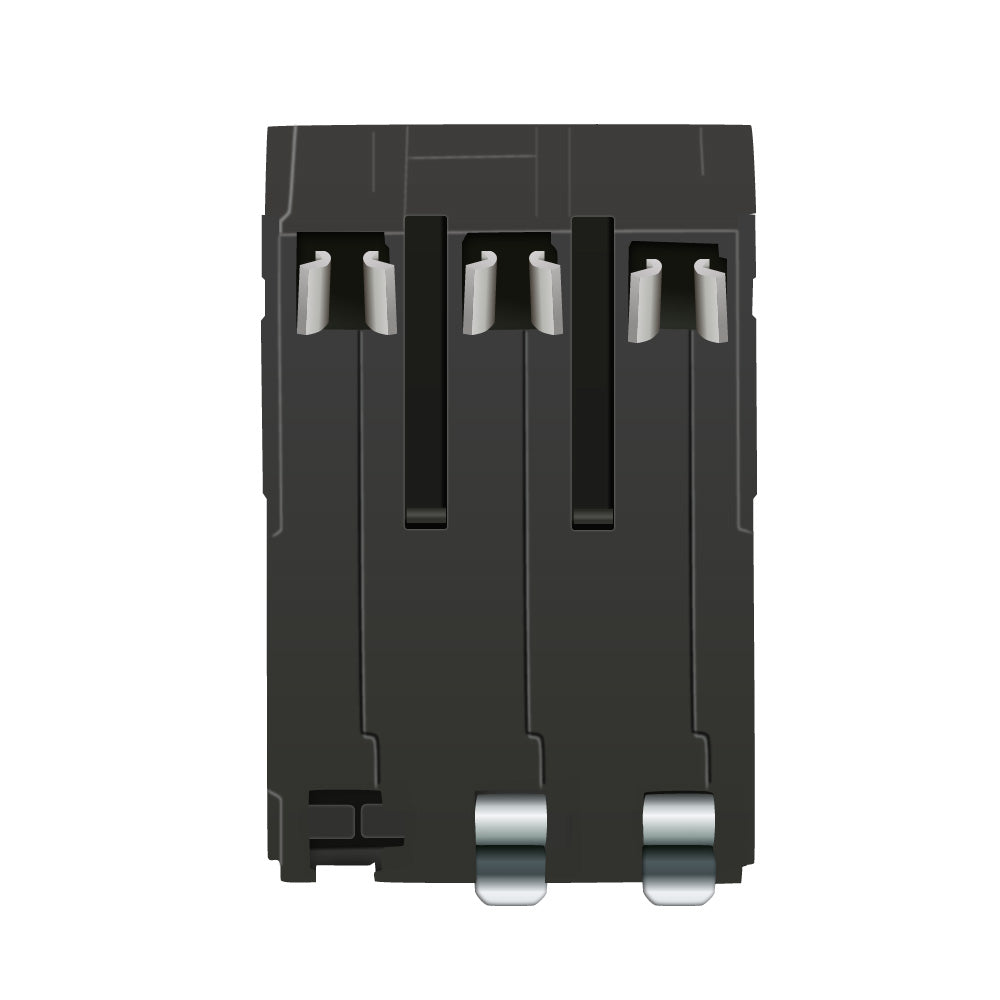

• Mounting Type: Plug-In

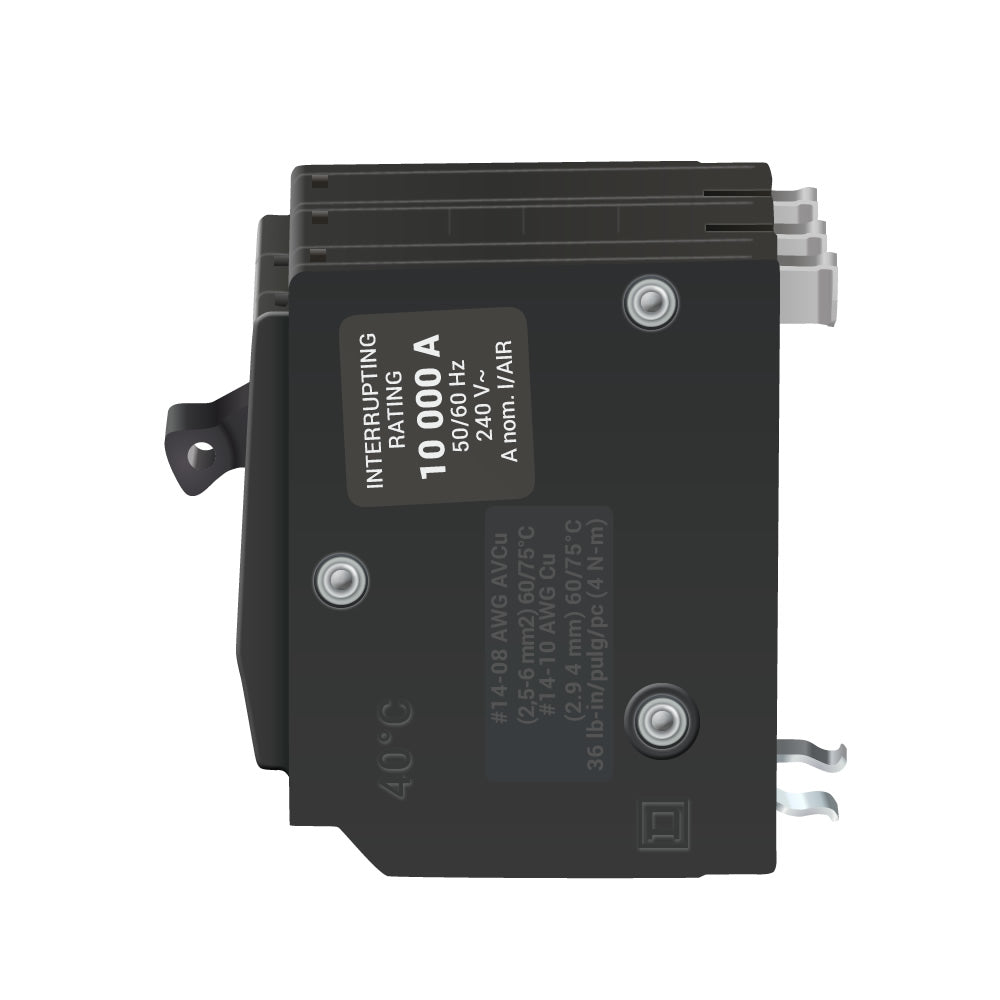

• Interrupt Rating: 10kAIC at 120/240VAC
• Protection Type: Thermal Magnetic
• Trip Functions: Long Time and Instantaneous
• Terminal Connection: Box Lugs
• Certifications: UL Listed, CSA Approved, RoHS, REACh, HACR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO360
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 240
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13°F to 158°F (-25°C to 70°C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901400844
• GTIN : 00785901400844
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.83
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
• Wire Size : AWG 8 to AWG 2, Copper or Aluminum
