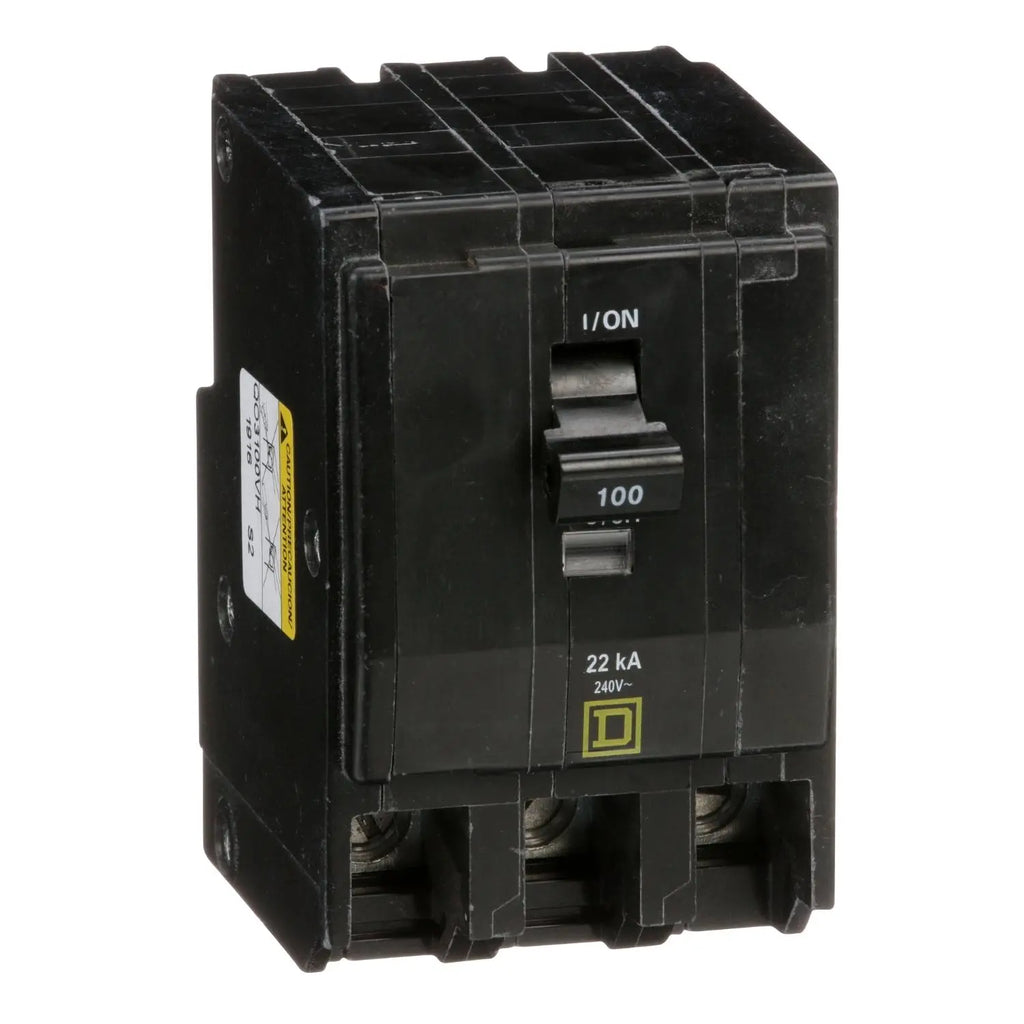

QO3100VH
QO3100VH is a Square D QO series 3-pole, 100A miniature circuit breaker designed for reliable circuit protection in commercial and industrial applications.
This standard thermal magnetic trip circuit breaker features a 120/240VAC voltage rating, 22kA interrupting capacity, and plug-in mounting for easy installation in QO load centers and NQ/NQOD panelboards. It is approved for use with 4 to 2/0 AWG copper or aluminum wire and operates in temperatures up to 104°F (40°C).
-
Key Specifications
- Amperage: 100A
- Voltage: 120/240VAC
- Poles: 3
- Mounting Type: Plug-In
- Interrupt Rating: 22kA at 120/240VAC
- Series/Frame: QO
- Trip Unit: Thermal Magnetic (long time and instantaneous)
- Certifications: UL Listed, CSA Certified
- Connection: Box lug terminals
- Wire Size: 4 to 2/0 AWG (copper/aluminum)
- Temperature Rating: 104°F (40°C)
- Dimensions: 2.91" L x 2.25" W x 3.5" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QO3100VH
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QO Series
- Type : QO
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 100A/QO
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 4 AWG Max. Wire Size 2 AWG
- Breaker Type : High Interrupting Capacity
- Protection : Thermal Magnetic
Product Data
- UPC : 785901060192
- GTIN : 00785901060192
- Country of Origin : Mexico
- Dimensions : 3.5 in (89 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 1.07
- Panel Type : QO Load Centers and NQ Panelboards
- Standards : CSA, UL Listed
- Certification : UL Listed
- Wire Size : AWG 4 to AWG 2/0, Copper/Aluminum
