Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- QO SEries
- Frame
- QO
- Rated current
- 100
- Voltage
- 240V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 10kA@240V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Terminals
- Lug
- Panel / equipment
- QO Load Centers and NQ Panelboards
- Standards
- CSA Certified, HACR, UL Listed
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 100A/QO
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 8 AWG Max. Wire Size 2 AWG
- Breaker Type
- Standard
- UPC
- 785901004417
- GTIN
- 00785901004417
- Dimensions
- 3.5 in (89 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight
- 1.1
- Certification
- HACR, UL Listed
- Wire Size
- AWG 4 to AWG 2/0, Copper or Aluminum
Product description & additional details

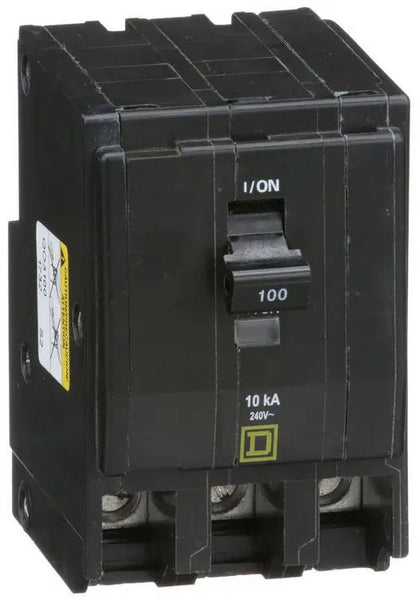

QO3100
QO3100 is a Square D 3-pole, 100 amp, 120/240VAC plug-in circuit breaker designed for reliable overload and short circuit protection in residential and commercial applications.
This thermal magnetic circuit breaker features a 10kA interrupting rating, plug-in mounting for easy installation, and is compatible with QO load centers and NQ panelboards. It is mercury-free, RoHS and REACH compliant, and carries UL and CSA certifications for safety and performance.
-
Key Specifications
- Amperage: 100A
- Voltage: 120/240VAC, 48VDC
- Poles: 3
- Mounting Type: Plug-In
- Interrupt Rating: 10kA at 120/240VAC
- Series/Frame: QO
- Trip Unit: Thermal Magnetic (long time and instantaneous)
- Certifications: UL, CSA, RoHS, REACH, HACR
- Wire Size: AWG 4 to AWG 2/0 (copper or aluminum)
- Temperature Rating: 40°C
- Actuator Type: Paddle
- Mercury Free: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QO3100
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QO SEries
- Type : QO
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 100A/QO
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 785901004417
- GTIN : 00785901004417
- Country of Origin : Mexico
- Dimensions : 3.5 in (89 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 1.1
- Panel Type : QO Load Centers and NQ Panelboards
- Standards : CSA Certified, HACR, UL Listed
- Certification : HACR, UL Listed
- Wire Size : AWG 4 to AWG 2/0, Copper or Aluminum
