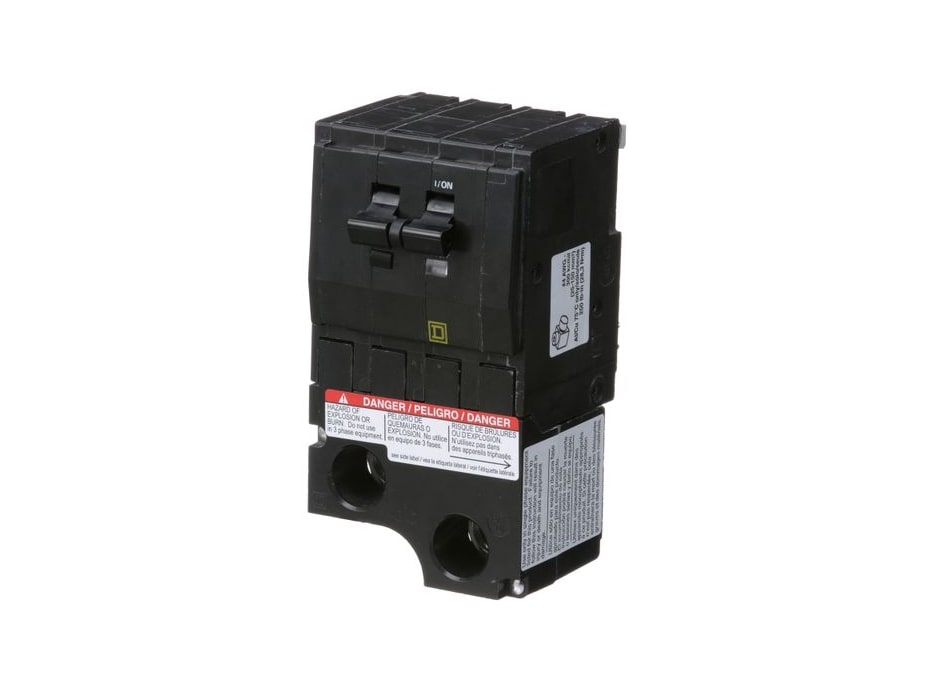

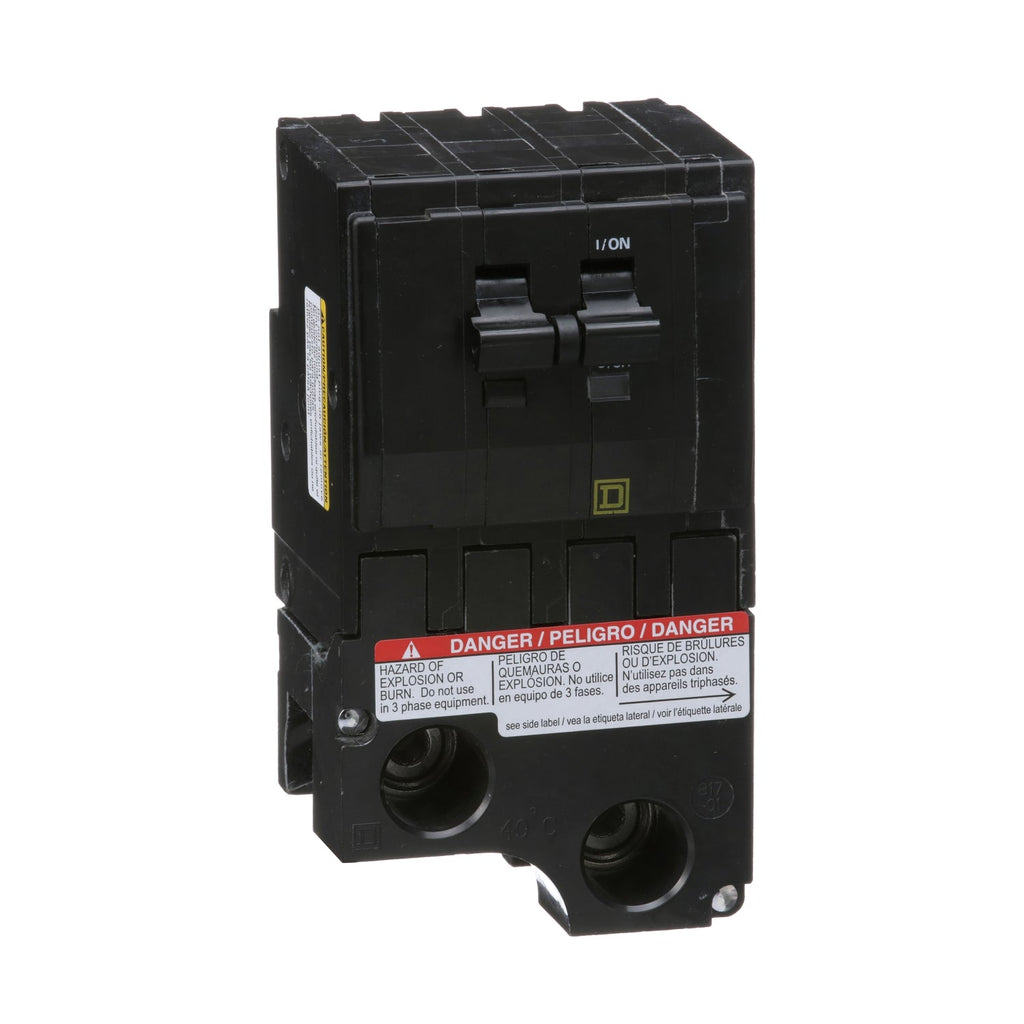

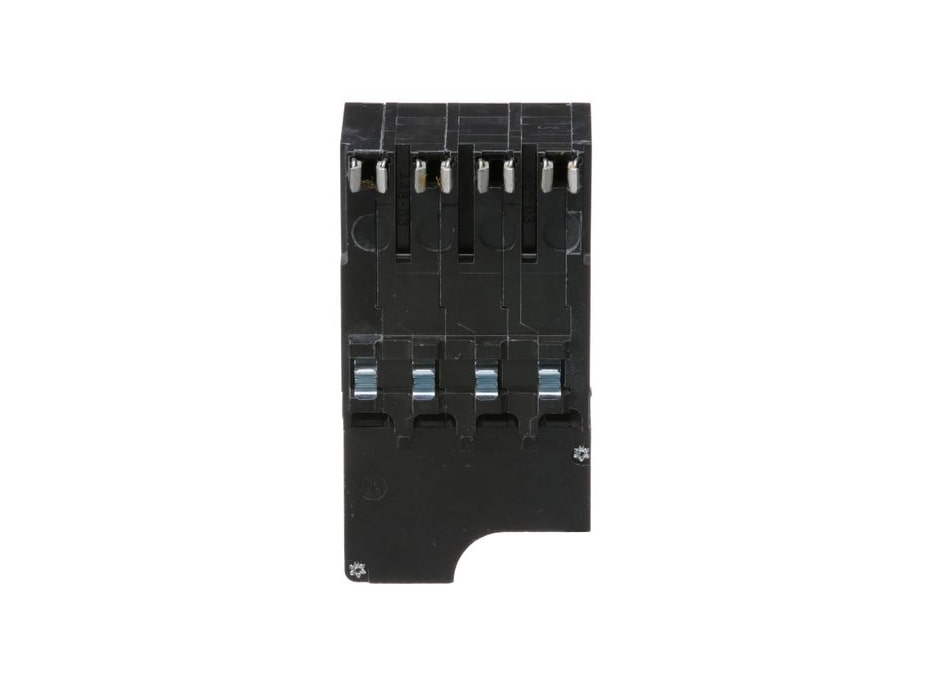

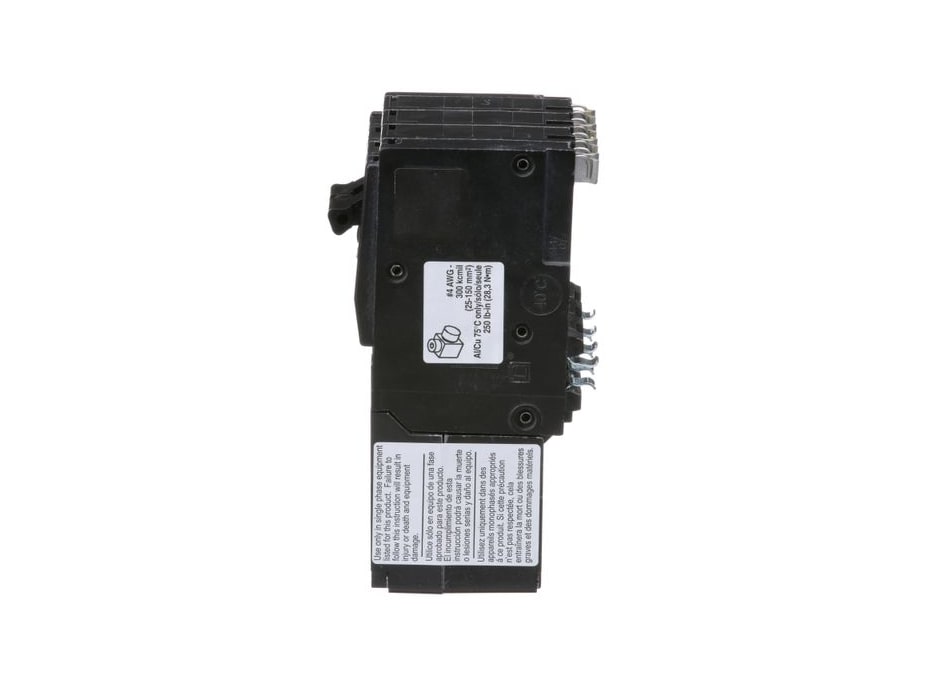

QO2175VH - Square D 175 Amp 120/240V 2 Pole Plug-In Circuit Breaker 22kA Interrupt Rating QO Series

QO2175VH

QO2175VH is a 2 pole, 175 amp, 120/240 Volt plug-in circuit breaker from Square D's QO Series designed for reliable thermal magnetic protection.This circuit breaker features a 22kA interrupting rating at 120/240VAC, long-time and instantaneous trip functions, and is UL and CSA certified. It is compatible with QO load centers and NQ panelboards, supports box lug terminal connections, and accommodates AWG 1 to 300 KCMil copper or aluminum wire. The breaker has a compact design with dimensions of 3.5" H x 1.5" W x 2.91" D and is rated for 104°F (40°C) operating temperature.

Key Specifications
• Amperage: 175 A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 22 kA at 120/240 VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Terminal Connection: Box Lug
• Wire Gauge: AWG 1 to 300 KCMil Copper/Aluminum
• Certifications: UL, CSA, RoHS
• Dimensions: 3.5" H x 1.5" W x 2.91" D
• Operating Temperature: 104°F (40°C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO2175VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 22kA@120V
• Connection : Plug-In
• Functions : LI - Long Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901501299
• GTIN : 00785901501299
• Country of Origin : Mexico
• Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 2.5
• Certification : UL Listed
• Wire Size : AWG 1 to 300KCmil Copper/Aluminum
