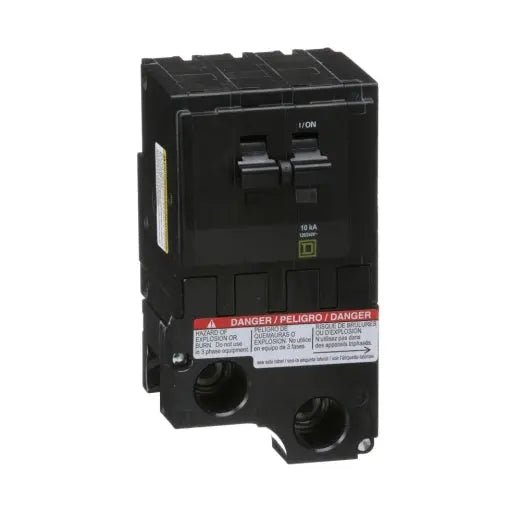

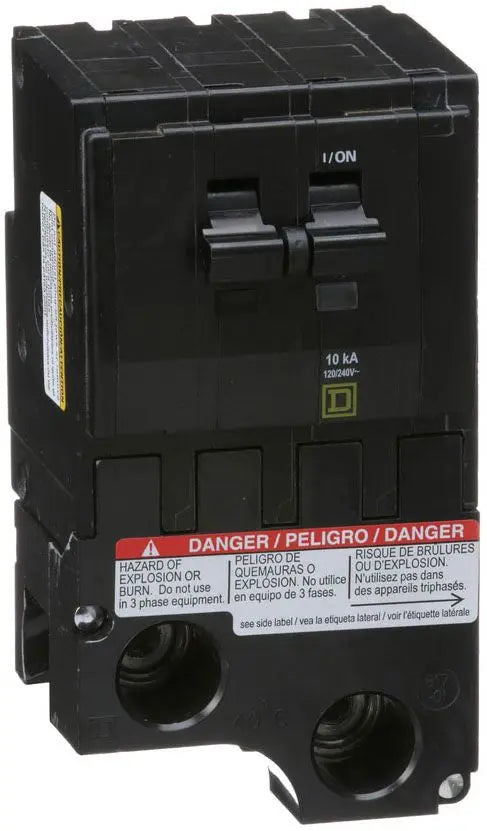

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Molded Case
- Series
- QO SEries
- Frame
- QO
- Rated current
- 175
- Voltage
- 120/240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Terminals
- Lug
- Panel / equipment
- Load center QO
- Standards
- CSA Certified, HACR, UL Listed
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 100A/QO
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
- Breaker Type
- Standard
- UPC
- 785901430520
- GTIN
- 00785901430520
- Dimensions
- 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight
- 2.551
- Certification
- HACR, UL Listed
- Wire Size
- AWG 1 to 300KCmil, Copper or Aluminum
Product description & additional details
QO2175
QO2175 is a Square D 2-pole, 175-amp, plug-on circuit breaker designed for reliable overload and short circuit protection in residential and light commercial applications.
This thermal magnetic molded case circuit breaker features a VISI-TRIP trip indicator for easy diagnostics, a compact plug-on design for fast installation, and is compatible with Square D QO load centers, NQ & NQOD panelboards/interiors, and Speed-D switchboard distribution panels. It is UL Listed and CSA Certified for safety and compliance.
-
Key Specifications
- Part Number: QO2175
- Manufacturer: Square D (Schneider Electric)
- Amperage: 175A
- Voltage: 120/240V AC
- Poles: 2
- Mounting Type: Plug-On
- Interrupt Rating: 10kA @ 120/240V AC
- Series/Frame: QO
- Trip Unit: Thermal Magnetic, Common Trip
- Terminal Type: Box Lugs
- Certifications: UL Listed, CSA Certified
- Application: Overload and short circuit protection
- Features: VISI-TRIP indicator, compact design
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QO2175
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QO SEries
- Type : QO
- Voltage : 120/240
- Amperage : 175
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 100A/QO
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 785901430520
- GTIN : 00785901430520
- Country of Origin : Mexico
- Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 2.551
- Panel Type : Load center QO
- Standards : CSA Certified, HACR, UL Listed
- Certification : HACR, UL Listed
- Wire Size : AWG 1 to 300KCmil, Copper or Aluminum
