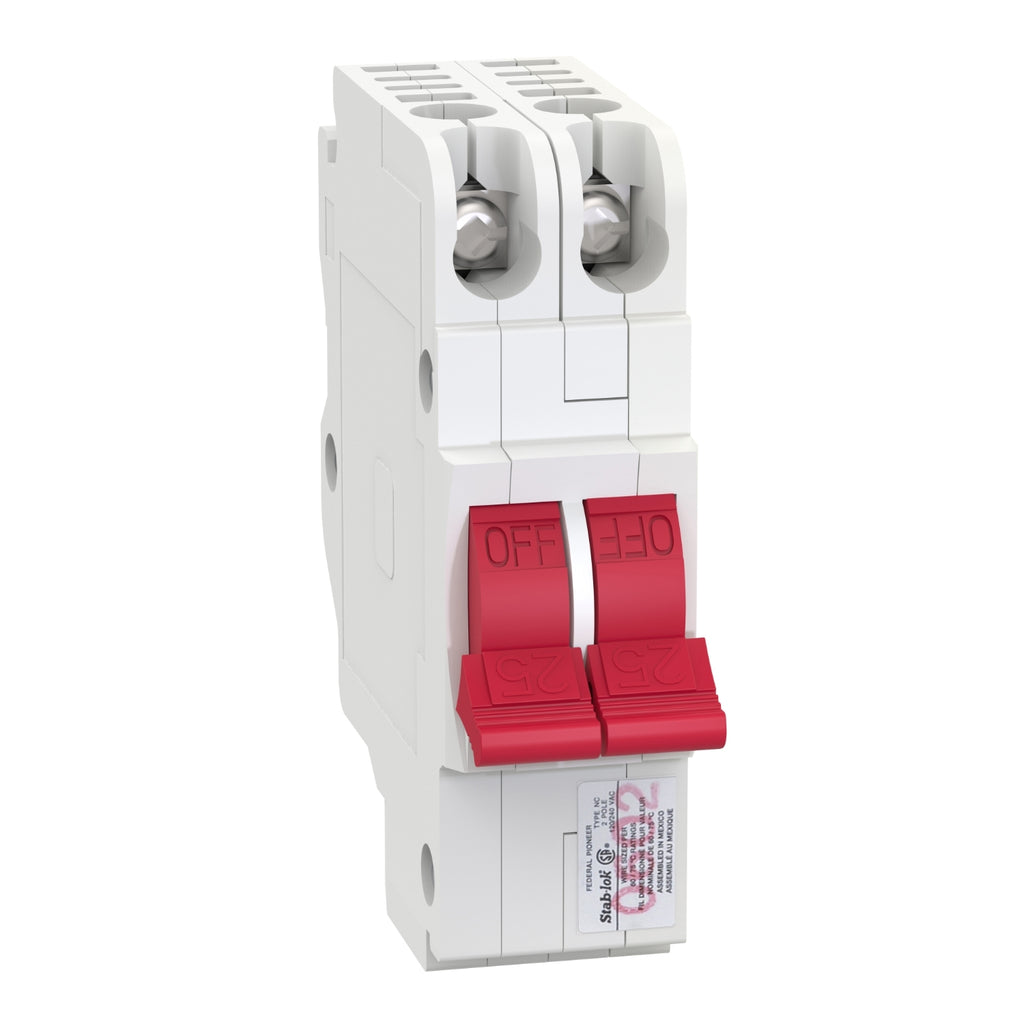

NC0225 - Schneider Electric 25A 2 Pole 120/240V Plug-In Circuit Breaker 10kA Interrupt Rating Stab-Lok

NC0225

NC0225 is a Schneider Electric 2 pole, 25 amp circuit breaker designed for 120/240V applications with a 10kA interrupt rating and plug-in mounting.This Stab-Lok series miniature circuit breaker features thermal magnetic trip protection, plug-in mounting for easy installation, and meets CSA certification standards. It is suitable for use in Federal Pioneer panels and supports AWG 14 to AWG 6 wiring with screw connectors.

• Amperage: 25A
• Voltage: 120/240 VAC
• Poles: 2
• Interrupt Rating: 10kA at 240V
• Mounting Type: Plug-In
• Trip Unit: Thermal Magnetic
• Series/Frame: Stab-Lok NC
• Certifications: CSA Certified
• Electrical Connection: Screw Connector
• AWG Range: 14 to 6

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NC0225
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Stab-Lok
• Type : NC
• Voltage : 240
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
• Weight : 0.39
• Certification : CSA
• Wire Size : AWG 14...AWG 6 copper
