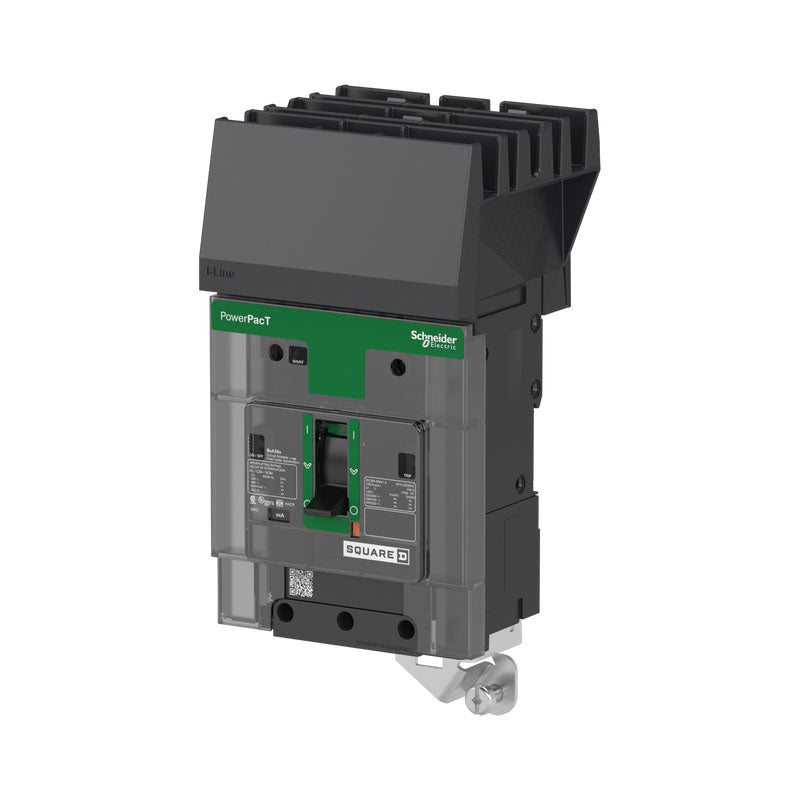

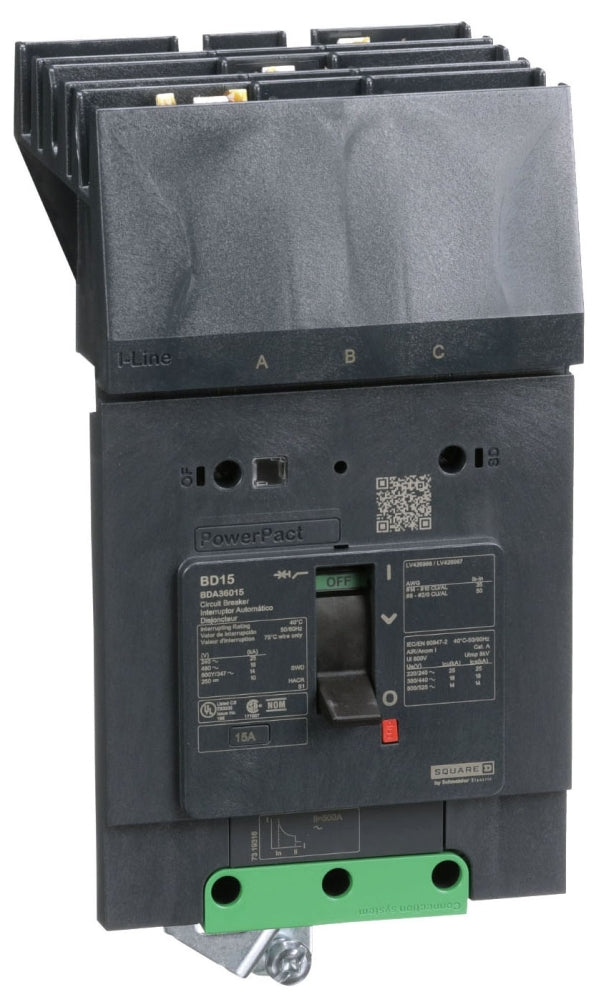

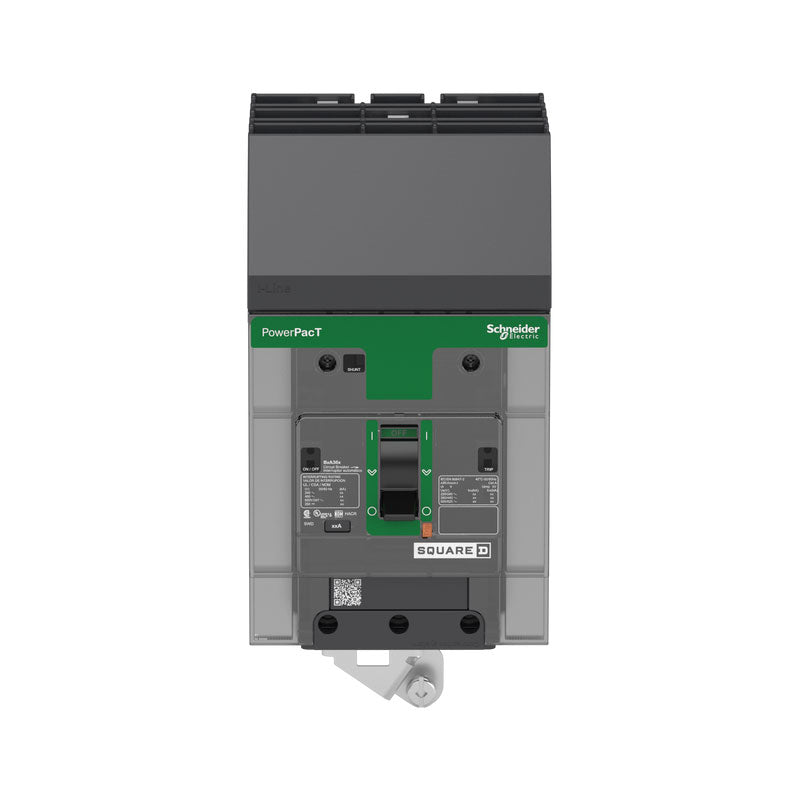

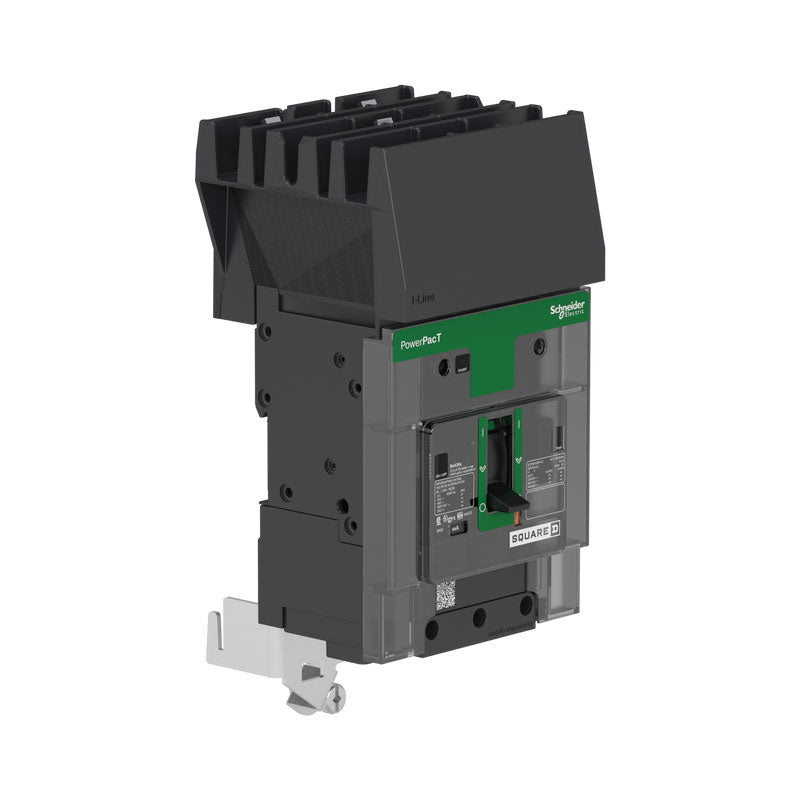

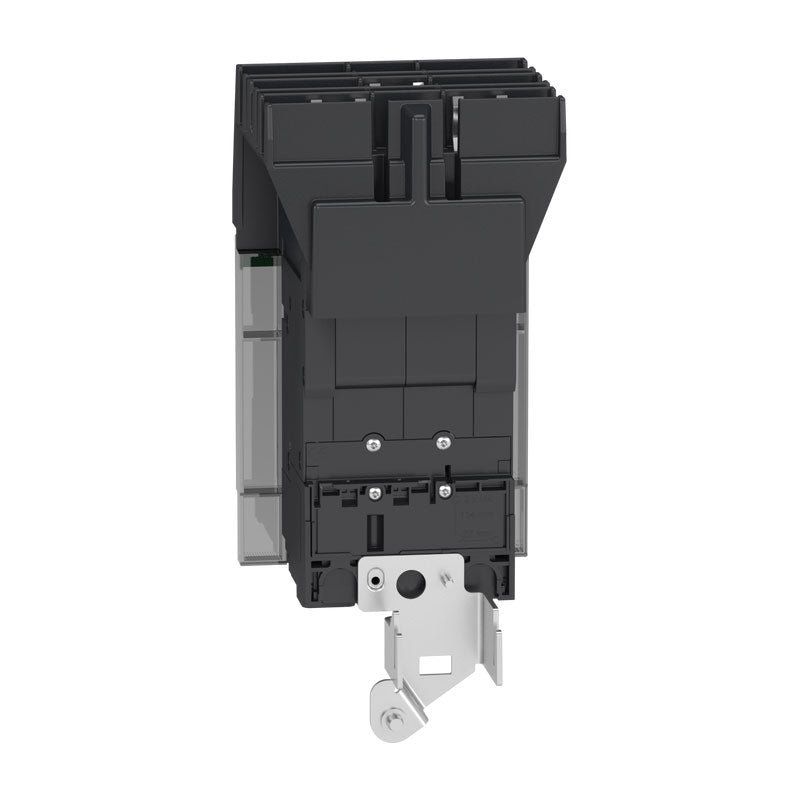

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Molded Case
- Series
- Powerpact
- Frame
- BDA
- Rated current
- 50
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 18kA@480V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- I-Line Style Plug-In
- Terminals
- Al Mechanical Lug OFF End, I-Line ON End
- Phase connection
- ABC
- Panel / equipment
- Electrical Distribution Equipment, Industrial Control Panels
- Standards
- NEMA AB1, CSA C22.2 No 5, GB 14048.2, EN/IEC 60947-5-1, UL 489, NMX J-266, EN/IEC 60947-2
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 125A/BD
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 14 AWG Max. Wire Size 2 AWG
- Breaker Type
- Standard
- UPC
- 785901010753
- GTIN
- 03606481152626

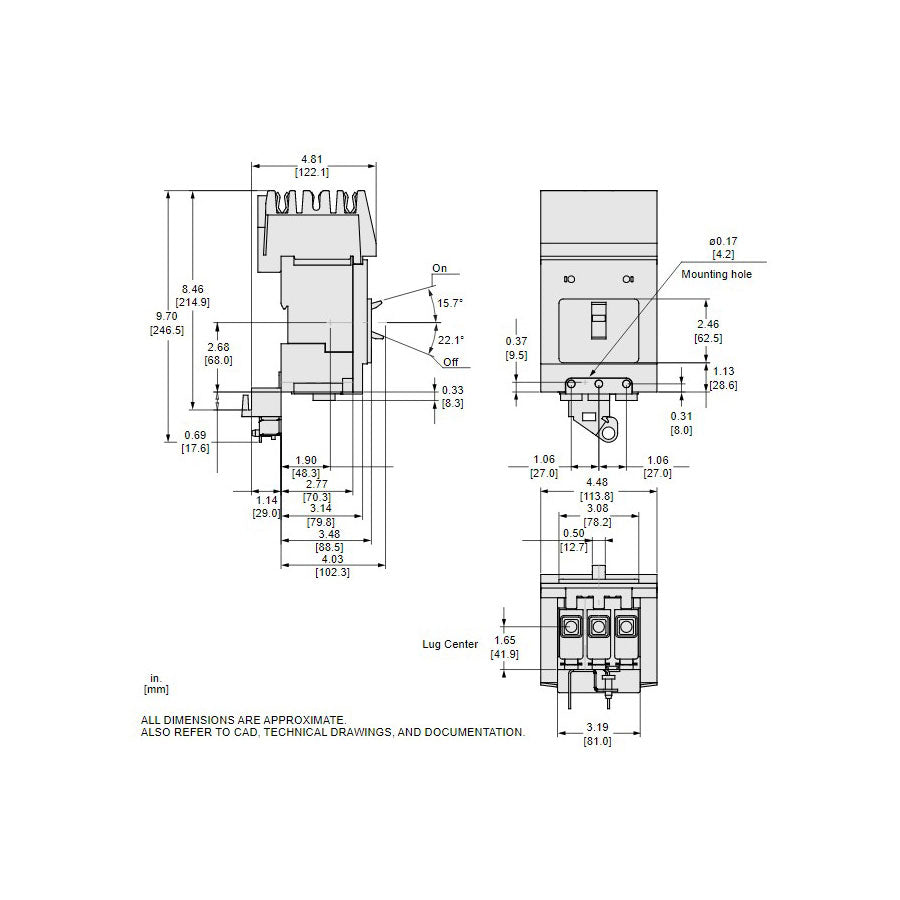

- Dimensions
- 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
- Weight
- 3.801
- Certification
- UL, IEC, CCC, EAC, CSA, NOM
- Wire Size
- AWG 14...AWG 2/0 aluminium/copper
Product description & additional details
BDA36050
BDA36050 is a Schneider Electric 50 Amp, 3-pole circuit breaker designed for reliable power distribution and protection.This molded case circuit breaker features a 600V rated operational voltage and an I-Line plug-in mounting style. It offers a breaking capacity of up to 25kA at 208Y/120V and 14kA at 600Y/347VAC, suitable for various industrial and commercial applications. The breaker includes a thermal-magnetic trip unit with long-time and instantaneous trip functions, ensuring precise overload and short circuit protection. It complies with UL 489 certification standards.
- Key Specifications
- Amperage: 50A
- Voltage Rating: 600V AC
- Poles: 3
- Mounting Type: I-Line plug-in
- Interrupting Capacity: 25kA at 208Y/120V, 14kA at 600Y/347VAC
- Series/Frame: PowerPact B
- Trip Unit: Thermal-magnetic, non-interchangeable
- Certifications: UL 489
- Part Number: BDA36050
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : BDA
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
- Frame Size : 125A/BD
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
- UPC : 785901010753
- GTIN : 03606481152626
- Country of Origin : Mexico
- Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
- Weight : 3.801
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : NEMA AB1, CSA C22.2 No 5, GB 14048.2, EN/IEC 60947-5-1, UL 489, NMX J-266, EN/IEC 60947-2
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 14...AWG 2/0 aluminium/copper
