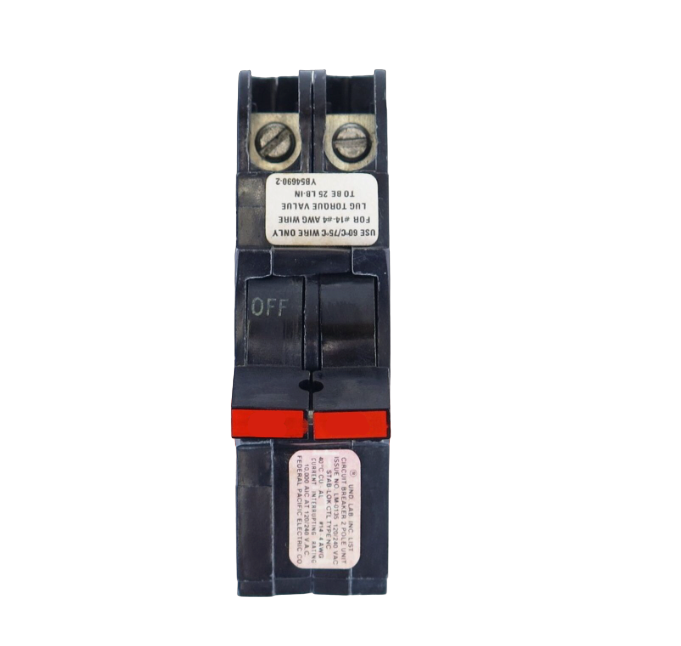

NC0215 - Federal Pacific 15A 2-Pole 240V NC Series Circuit Breaker

NC0215

NC0215 is a 15 Amp, 2 Pole circuit breaker from Federal Pacific designed for 240 Volt applications in the NC series frame. The NC0215 features a thermal magnetic trip unit with long time and instantaneous trip functions, providing reliable protection for electrical circuits. It has a 10kA interrupt rating at 120/240V and uses a plug-in mounting type with line side stab connections. This breaker supports single-phase power and includes trip free operation for enhanced safety.

Key Specifications
• Manufacturer: Federal Pacific
• Amperage: 15 Amps
• Voltage: 240 Volts AC
• Poles: 2
• Series/Frame: NC
• Interrupt Rating: 10kA at 120/240V
• Mounting Type: Plug-In with line side stab connection
• Trip Unit: Thermal Magnetic with long time and instantaneous trip
• Phase: Single Phase
• Trip Free Operation: Yes
• Width: Thin model, approx. 1 inch

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NC0215
• Manufacturer : Federal Pacific
• Brand : Federal Pacific
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Stab-Lok
• Type : NC
• Voltage : 240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 3
• Certification : CSA
• Wire Size : AWG 14...AWG 6 copper
