Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Molded Case
- Series
- Powerpact
- Frame
- BDA
- Rated current
- 30
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 18kA@480V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- I-Line Style Plug-In
- Terminals
- Al Mechanical Lug OFF End, I-Line ON End
- Phase connection
- ABC
- Panel / equipment
- Electrical Distribution Equipment, Industrial Control Panels
- Standards
- EN/IEC 60947-5-1, EN/IEC 60947-2, UL 489, GB 14048.2, NEMA AB1, NMX J-266, CSA C22.2 No 5
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 125A/BD
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 14 AWG Max. Wire Size 2 AWG
- Breaker Type
- Standard
- UPC
- 785901001188
- GTIN
- 03606481152565

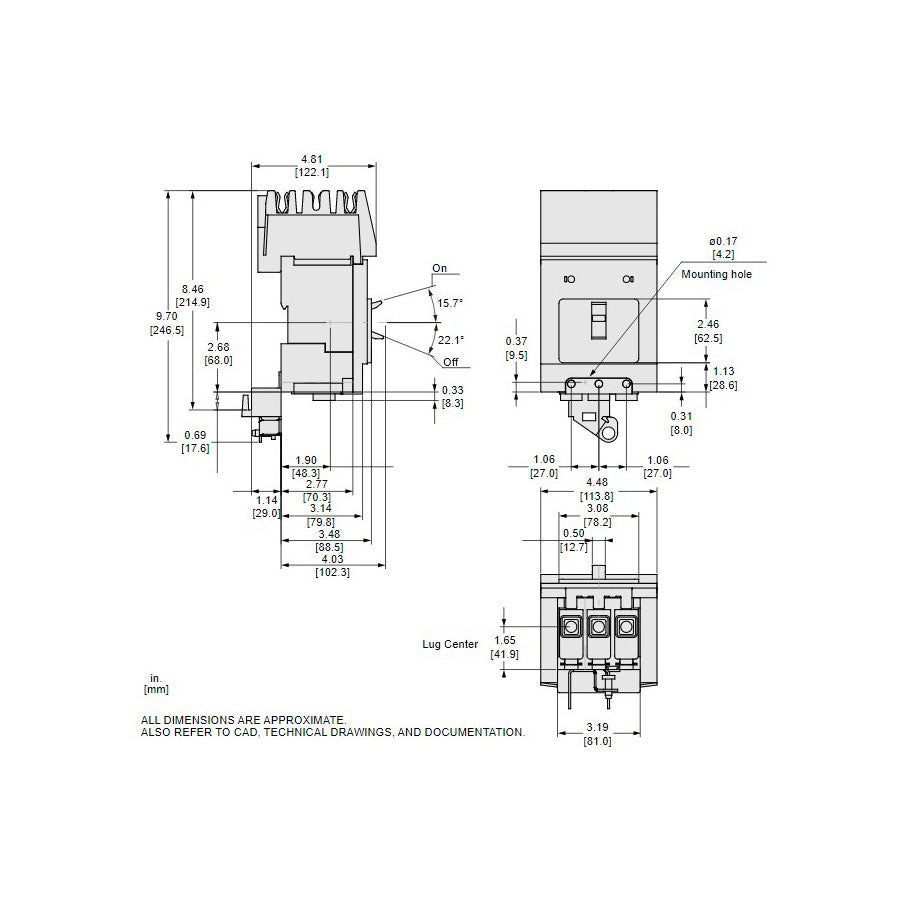

- Dimensions
- 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
- Weight
- 4.21 lb
- Certification
- UL, IEC, CCC, EAC, CSA, NOM
- Wire Size
- AWG 14...AWG 2/0 aluminium/copper
Product description & additional details

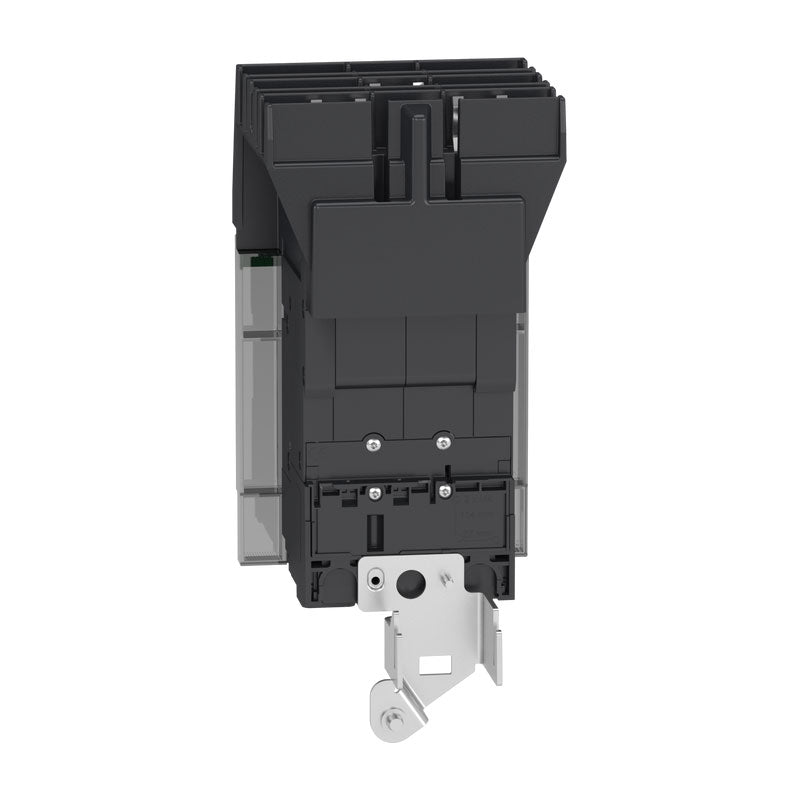

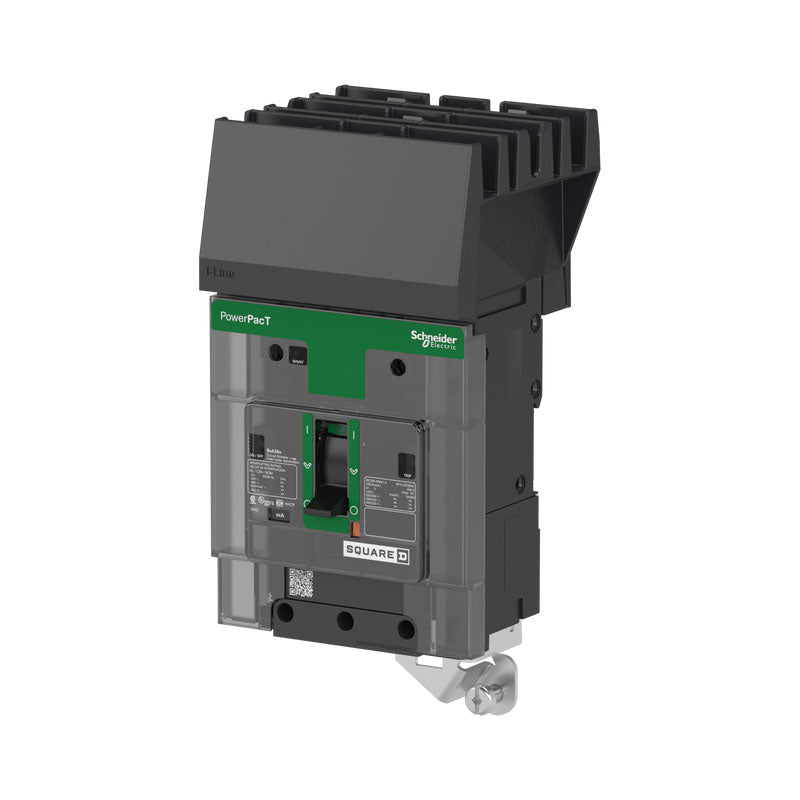

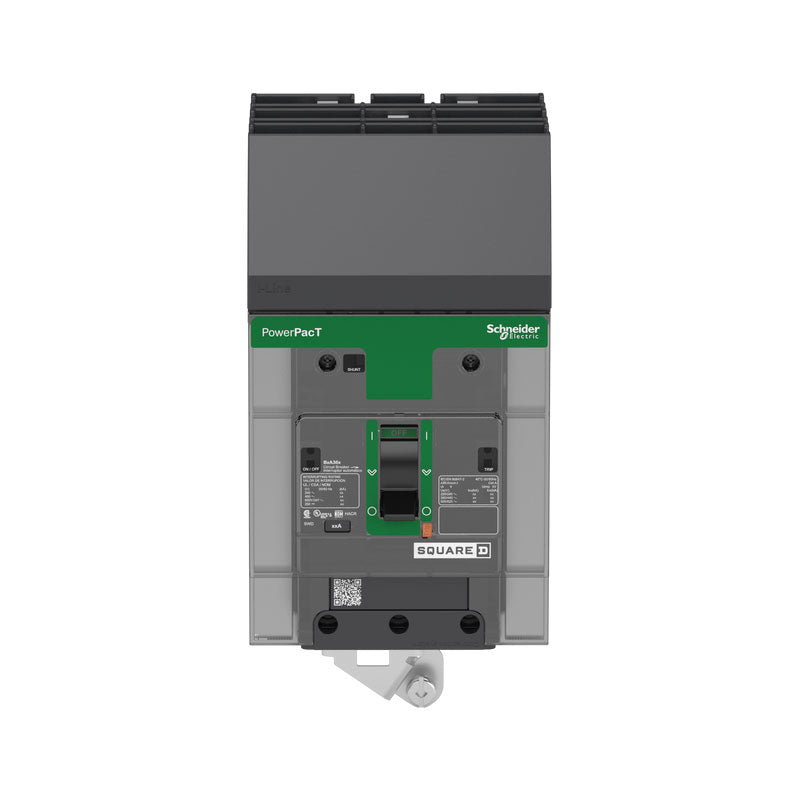

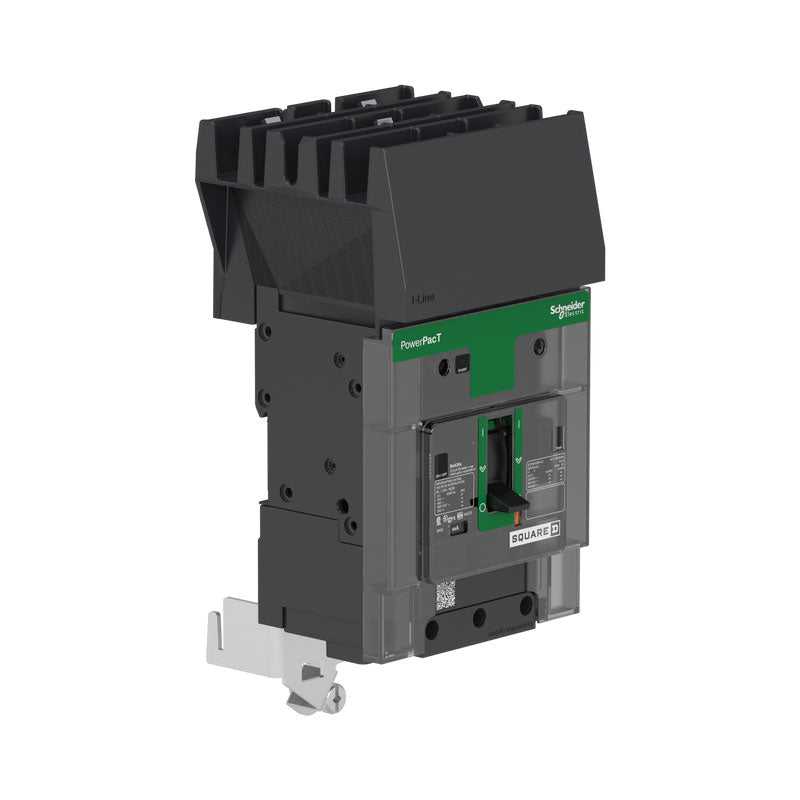

BDA36030
BDA36030 is a Schneider Electric Square D PowerPacT B-Frame, 3-pole, 30A, 600V AC thermal magnetic circuit breaker designed for I-Line panelboards.
This circuit breaker provides reliable protection for industrial and commercial electrical systems, featuring a robust thermal magnetic trip unit and a high interrupting capacity. It is suitable for a wide range of applications requiring dependable circuit protection and easy installation.
-
Key Specifications
- Amperage: 30A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: I-Line (plug-in)
- Interrupt Rating: 18kA @ 480V, 14kA @ 600Y/347V
- Series/Frame: PowerPacT B-Frame
- Trip Unit: Thermal Magnetic
- Certifications: UL, CSA, NOM, IEC, CCC, CE
- Continuous Current Rating: 80%
- Connection: ABC phase
- Environmental: Carbon footprint data available
- Packaging: Recycled cardboard
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BDA36030
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : BDA
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : I-Line Style Plug-In
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
- Frame Size : 125A/BD
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901001188
- GTIN : 03606481152565
- Country of Origin : Mexico
- Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
- Weight : 4.21 lb
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : EN/IEC 60947-5-1, EN/IEC 60947-2, UL 489, GB 14048.2, NEMA AB1, NMX J-266, CSA C22.2 No 5
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 14...AWG 2/0 aluminium/copper
