BJA36030

BJA36030

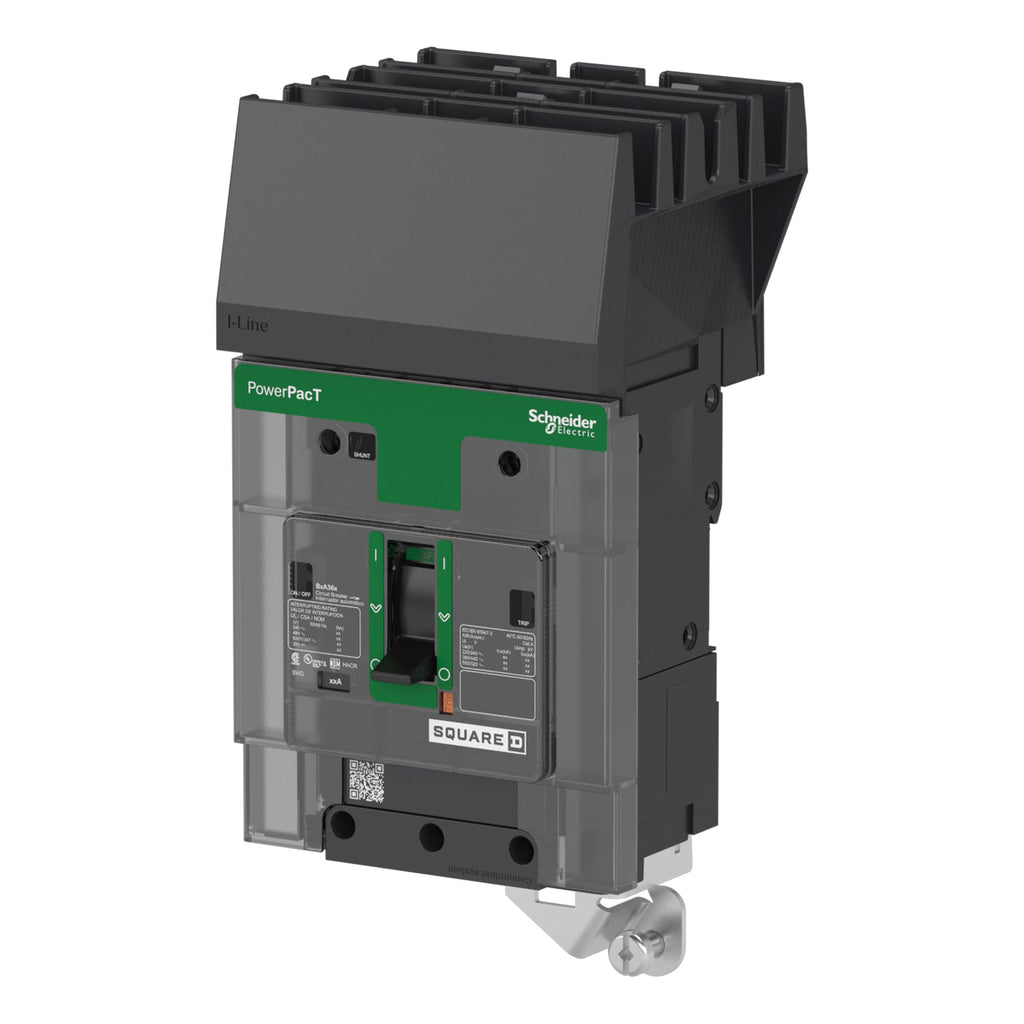

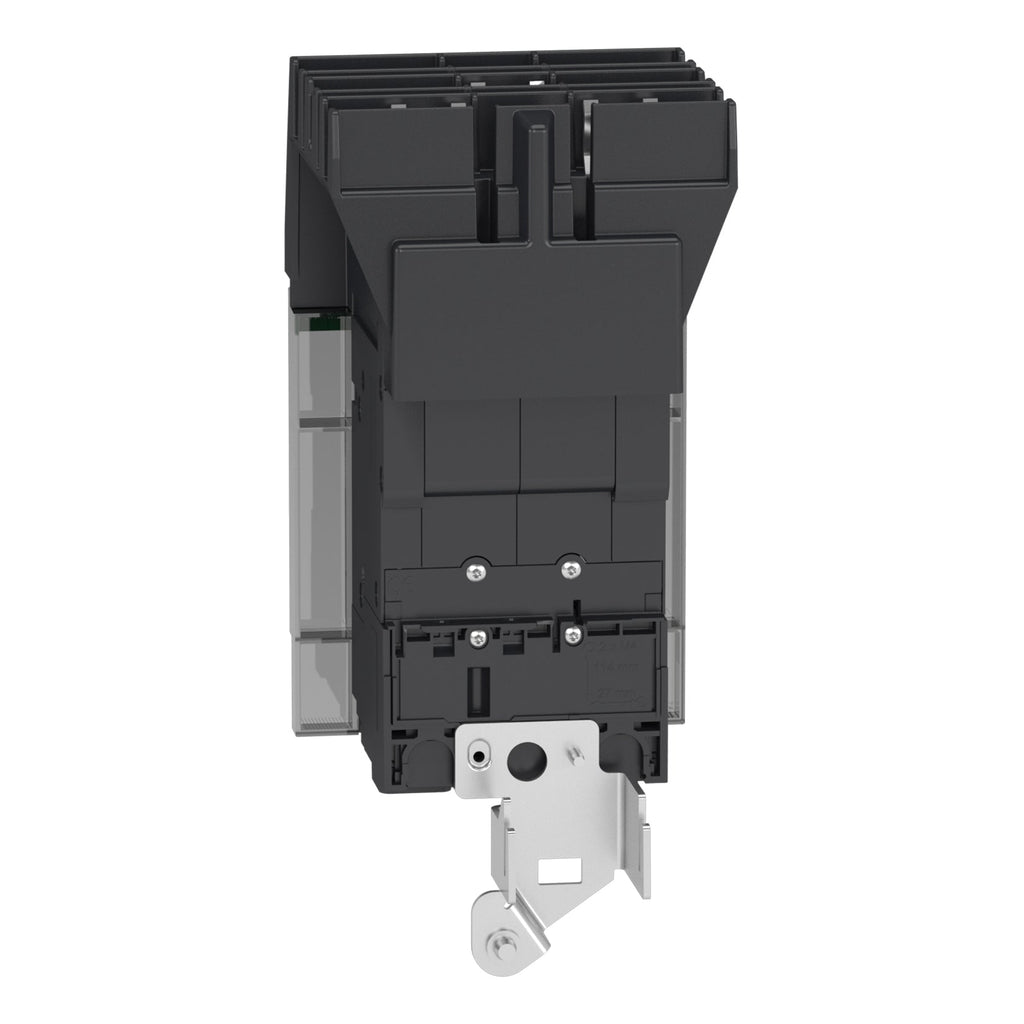

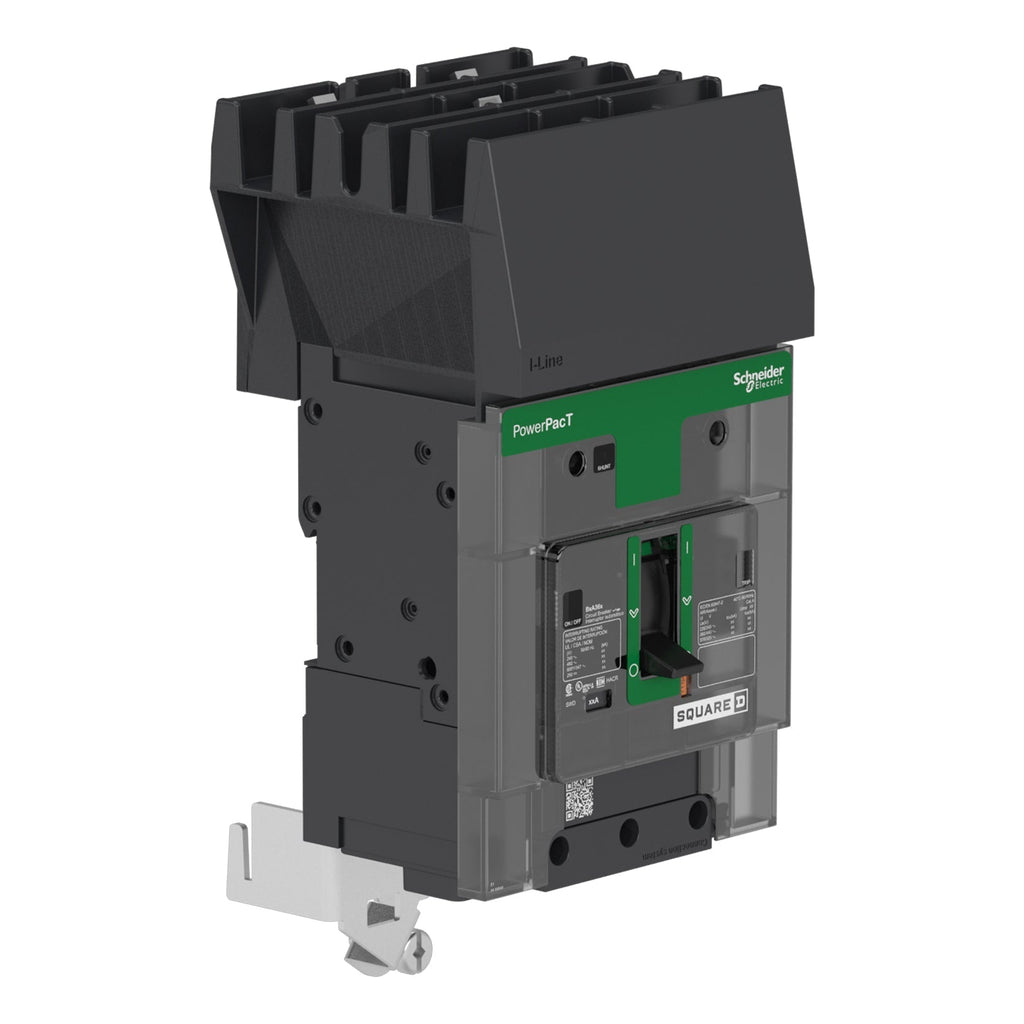

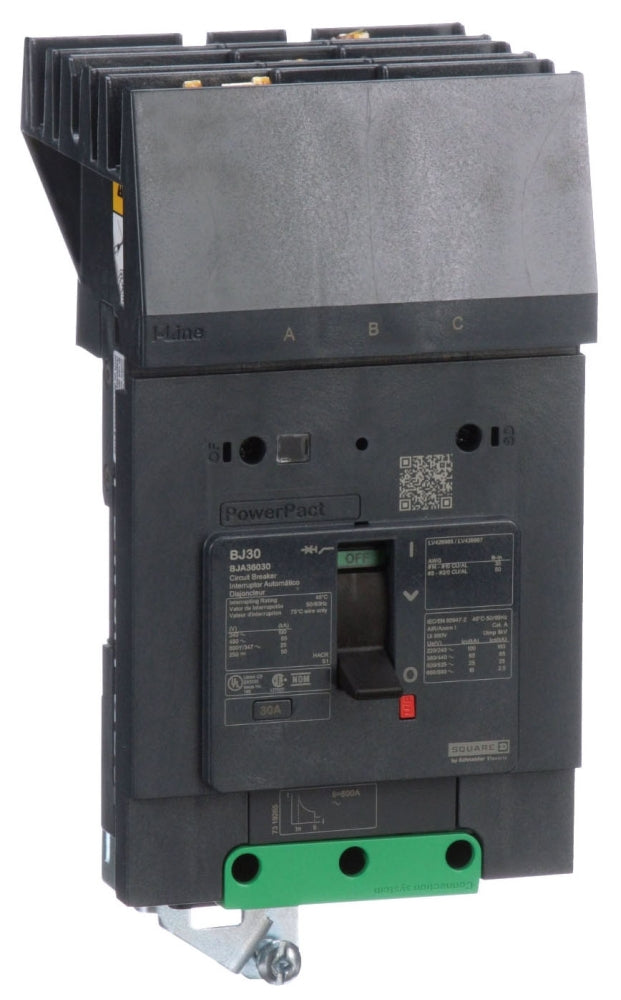

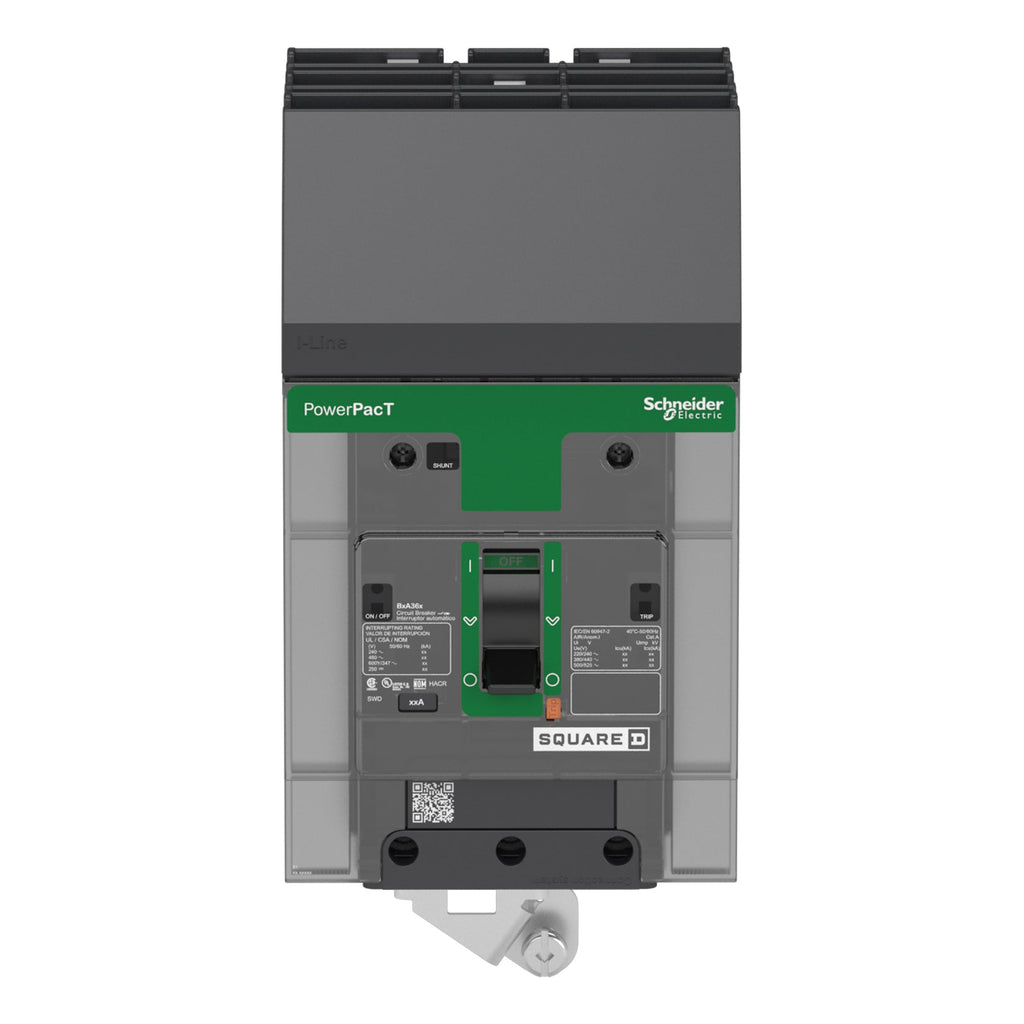

BJA36030 is a Schneider Electric PowerPact B circuit breaker rated at 30 amps with 3 poles and a 600Y/347VAC voltage rating designed for I-Line mounting.This thermal magnetic circuit breaker features a 25kA interrupt rating at 600Y/347VAC, an 80% continuous current rating, and is suitable for commercial and industrial power distribution applications. It complies with UL 489, IEC 60947-2, CSA C22.2, NOM, and is CE marked. The breaker supports ABC phase connection and is designed for reliable operation with 20,000 mechanical and 10,000 electrical cycles.

Key Specifications
• Amperage: 30A
• Poles: 3-Pole
• Voltage Rating: 600Y/347VAC, 50/60 Hz
• Interrupt Rating: 25kA at 600Y/347VAC
• Mounting Type: I-Line
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Standards: UL 489, IEC 60947-2, CSA C22.2, NOM, CE marked
• Durability: 20,000 mechanical cycles, 10,000 electrical cycles
• Environmental: RoHS compliant, halogen-free, recycled packaging
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BJA36030
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJA
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BJ
• Temp Rating : -13°F to 158°F (-25°C to 70°C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 785901014683
• GTIN : 03606481154309
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 4.17 lb
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : GB 14048.2, EN/IEC 60947-2, CSA C22.2 No 5, NEMA AB1, NMX J-266, EN/IEC 60947-5-1, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
