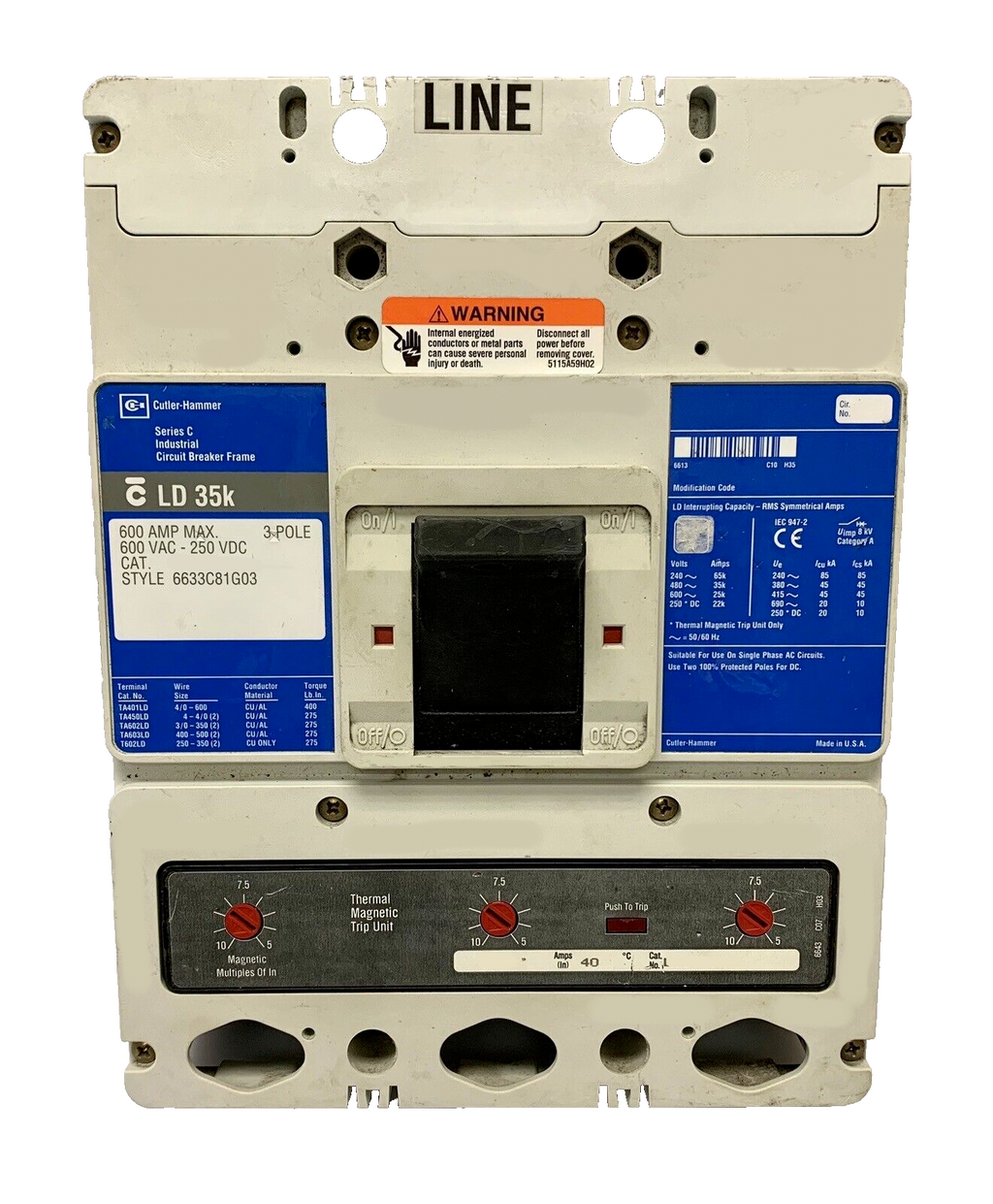

LDC3500W - Eaton 500A 600V 3-Pole Series C Molded Case Circuit Breaker

LDC3500W

LDC3500W is a three-pole molded case circuit breaker from Eaton's Series C line, designed for reliable protection in industrial and commercial power distribution systems. This breaker features a 500A current rating and a maximum voltage of 600V AC, making it suitable for a wide range of applications requiring robust circuit protection. The LDC3500W is built with a durable LD-frame and is compatible with various trip units for flexible protection settings. Eaton's Series C molded case circuit breakers are engineered for high performance and safety, meeting UL 489 standards. The LDC3500W is designed for fixed mounting and offers a high interrupting capacity, ensuring reliable operation under demanding conditions. Its robust construction and advanced trip technology provide dependable protection against overloads and short circuits.

• Part Number: LDC3500W
• Manufacturer: Eaton
• Series/Frame: Series C, LD-frame
• Amperage Rating: 500A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Interrupt Rating: 65kA @ 240V AC, 35kA @ 480V AC
• Mounting Type: Fixed
• Trip Unit: Compatible with various Series C trip units
• Certifications: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: LDC3500W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : LDC
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 20
