Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Motor Control Part And Accessory
- Series
- Harmony XB4
- Frame
- ZB4
- Rated current
- 10
- Voltage
- 600V
- Configuration
- 1NO
- Auxiliary contacts
- 1NO
- Country of origin
- France
- Section
- Contacts
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- UPC
- 785901370178
- GTIN
- 03389110889376
- Weight
- 0.115
Show all specifications (1 more)
- Certification
- UL, CSA, EN, IEC, JIS, BV, DNV, LROS
Product description & additional details
ZB4BZ101

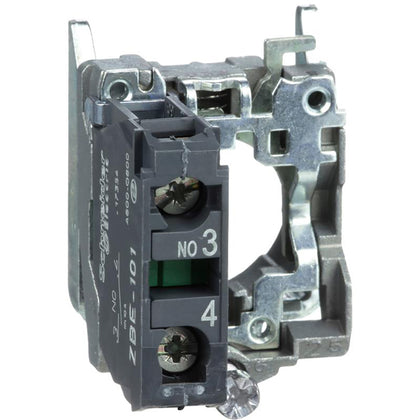

ZB4BZ101 is a Schneider Electric Harmony XB4 1NO contact block designed for reliable motor control applications.This contact block features a single normally open (1NO) contact with screw clamp terminals, rated for 600V and 10A. It includes a metal fixing collar and is part of the Harmony XB4 series, known for robust construction and easy assembly. The device offers slow-break contact operation, mechanical durability up to 5 million cycles, and is suitable for industrial environments.
- Type: Single contact block, 1NO
- Voltage rating: 600V
- Current rating: 10A
- Terminals: Screw clamp
- Fixing collar material: Zamak metal
- Operating travel: 2.6 mm (NO changing electrical state)
- Mechanical durability: 5,000,000 cycles
- Dimensions (HxWxD): 47 x 30 x 37 mm
- Contact operation: Slow-break
- Series: Harmony XB4
- Weight: 0.053 kg
Specifications
- Part Number: ZB4BZ101
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Contacts
- Family : Harmony XB4
- Type : ZB4
- Voltage : 600
- Amperage : 10
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Configuration : 1NO
- Aux Contacts : 1NO
Product Data
- UPC : 785901370178
- GTIN : 03389110889376
- Country of Origin : France
- Weight : 0.115
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Certification : UL, CSA, EN, IEC, JIS, BV, DNV, LROS
