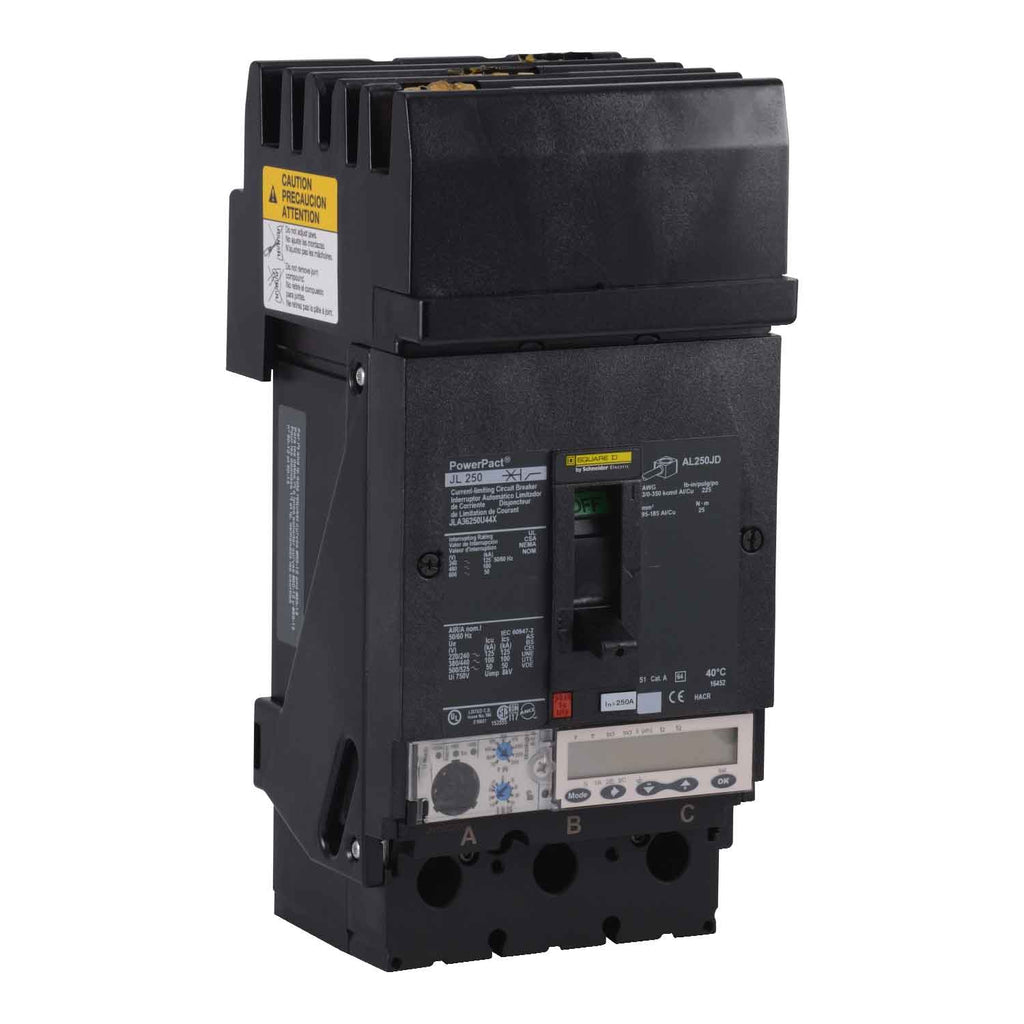

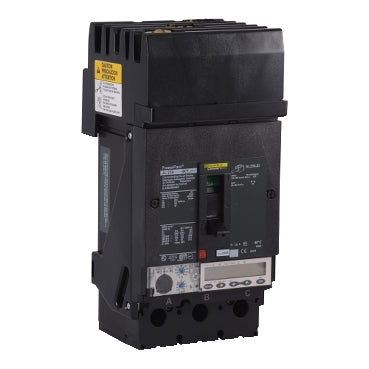

JLA36250U44X - Schneider Electric 250 Amp 3-Pole 600 VAC PowerPact J Circuit Breaker

JLA36250U44X

JLA36250U44X is a 250 Amp, 3-pole circuit breaker designed for reliable overcurrent protection in industrial and commercial applications.

This Schneider Electric PowerPact J series molded case circuit breaker operates at 600 VAC and features a 125 kA interrupt rating. It includes a Micrologic 6.2 A trip unit providing advanced overload and short-circuit protection. The breaker is designed for I-Line style plug-in mounting and complies with IEC 60947-2 standards for safety and performance.

• Amperage: 250 Amp
• Poles: 3
• Voltage Rating: 600 VAC
• Interrupt Rating: 125 kA
• Series/Frame: PowerPact J
• Trip Unit: Micrologic 6.2 A
• Mounting Type: I-Line Plug-in
• Standards: IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLA36250U44X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : I-Line, Lug
• Frame Size : L
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 078590195113
• GTIN : 00785901951131
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.074
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
