JLA36250U31X - Schneider Electric 250A 600V 3-Pole PowerPact J Circuit Breaker with Micrologic 3.2 Trip Unit

JLA36250U31X

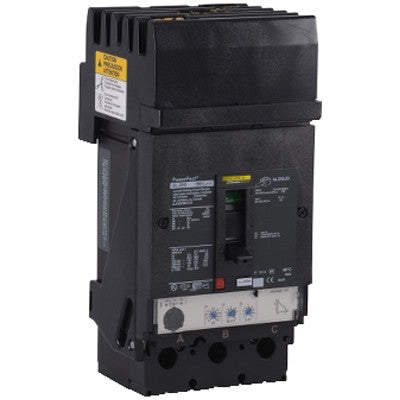

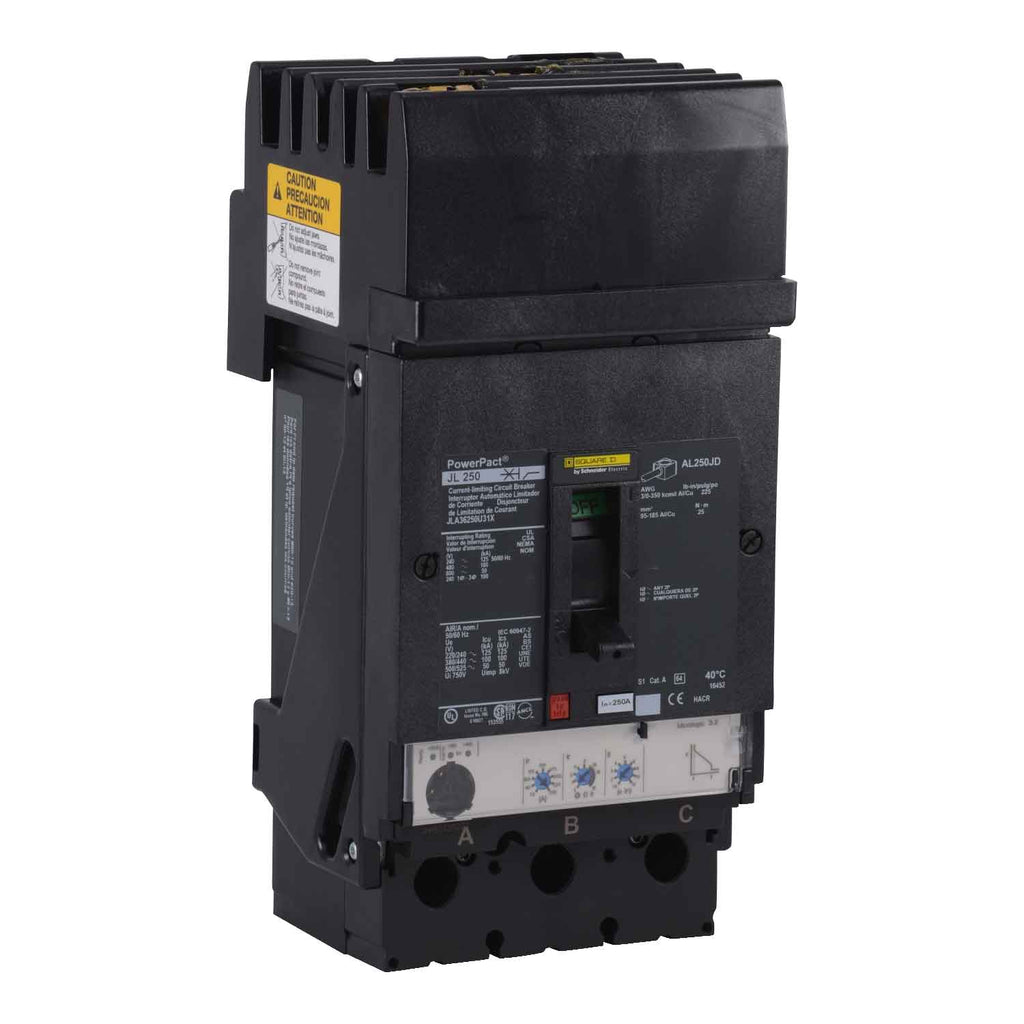

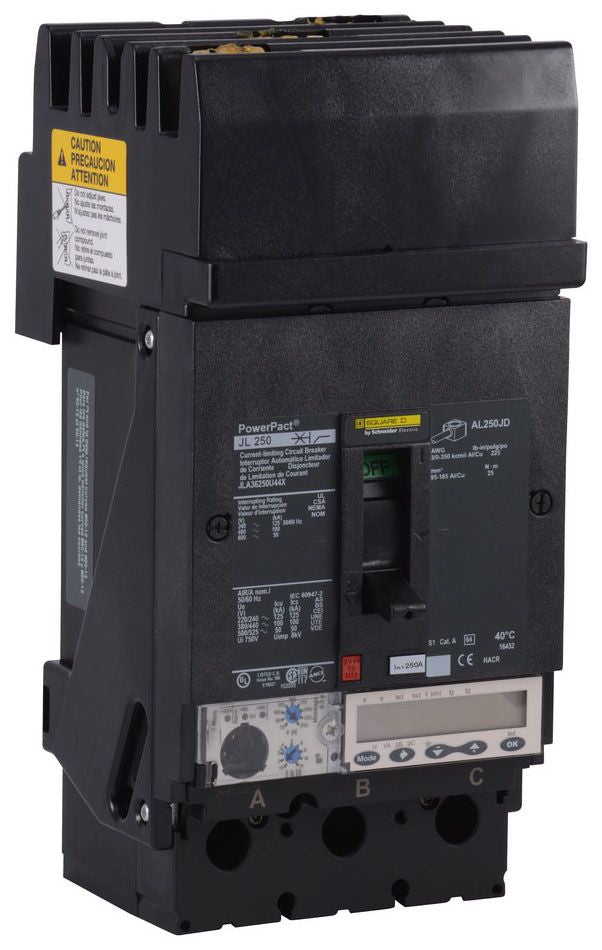

JLA36250U31X is a Schneider Electric PowerPact J molded case circuit breaker designed for reliable overcurrent protection.This 3-pole, 250 amp, 600 volt circuit breaker features an I-Line style plug-in connection and a Micrologic 3.2 electronic trip unit with long-time and instantaneous trip functions. It has a 100kA interrupting rating at 480V and is UL 489 listed with multiple certifications including CSA, NOM, IEC CCC, UKCA, and CE. The breaker supports 50/60 Hz frequency and is suitable for use in industrial and commercial electrical distribution.

Key Specifications
• Amperage: 250 A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 100kA @ 480V
• Frame: J
• Mounting Type: I-Line Style Plug-In
• Trip Unit: Micrologic 3.2, solid state electronic
• Frequency: 50/60 Hz
• Certifications: UL 489, CSA, NOM, IEC CCC, UKCA, CE
• Phase: 3
• Connection: ABC phase
• Dimensions: 4.48 in W x 5.87 in D x 11.48 in H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JLA36250U31X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State



Product Data

• UPC : 60648628345
• GTIN : 03606486283455
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.074
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
