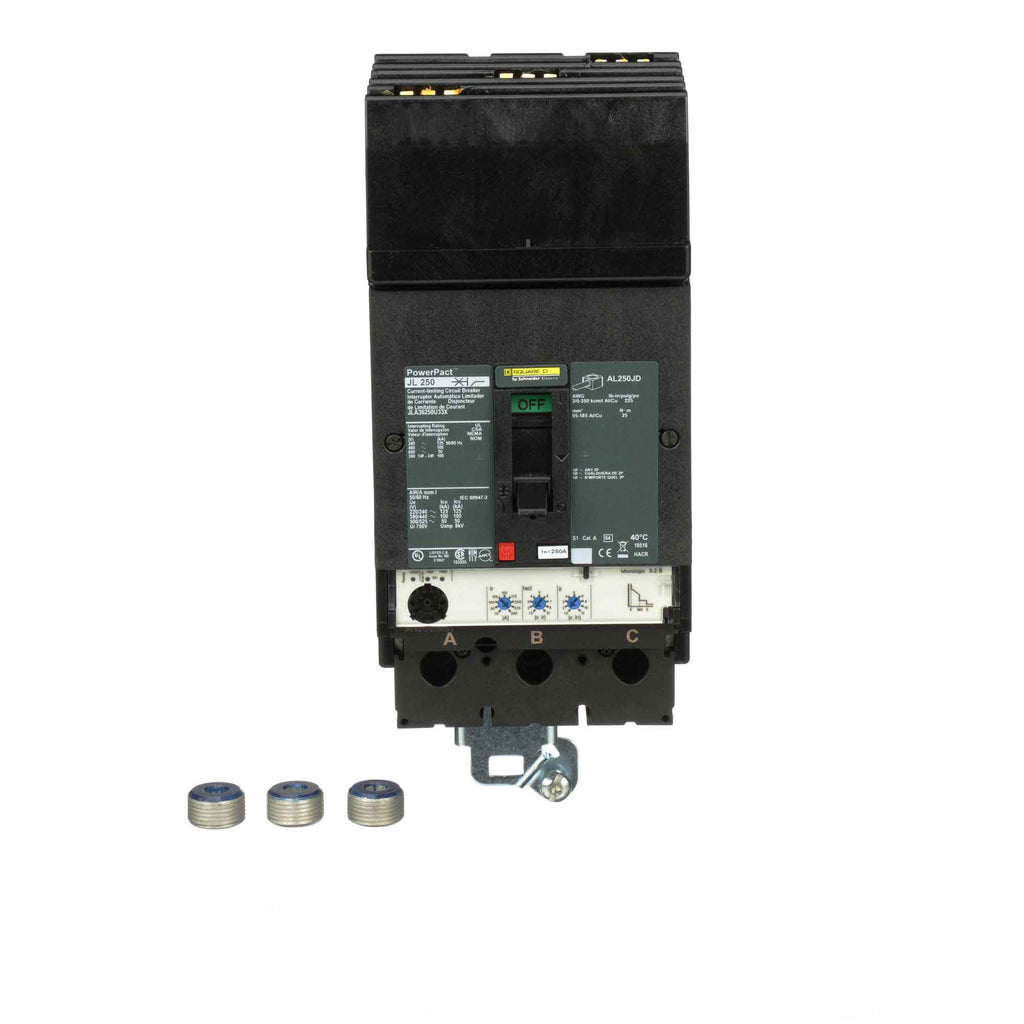

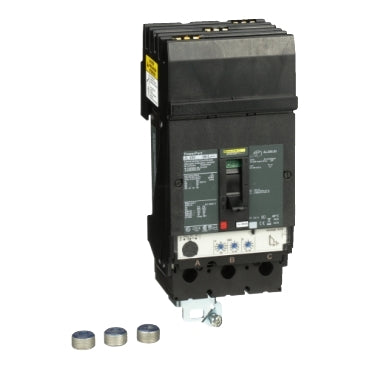

JLA36250U33X - Square D 250 Amp 3 Pole 600 VAC PowerPact J Molded Case Circuit Breaker

JLA36250U33X

JLA36250U33X is a Square D PowerPact J molded case circuit breaker designed for reliable overcurrent protection in industrial and commercial applications.This 3-pole circuit breaker features a 250 Amp rating and operates at a maximum voltage of 600 VAC. It utilizes an I-Line style plug-in mounting system for easy installation and replacement. The breaker has a 125 kA interrupt rating, ensuring high fault current interruption capability. It includes a Micrologic 3.2S trip unit with LSI (Long-Time, Short-Time, Instantaneous) protection functions and an 80% rating for selective coordination. The breaker is suitable for AC systems and compatible with common accessories across the PowerPact J range.

• Manufacturer: Square D (Schneider Electric)
• Type: PowerPact J Molded Case Circuit Breaker
• Amperage: 250 Amp
• Poles: 3
• Voltage: 600 VAC
• Interrupt Rating: 125 kA
• Mounting Type: I-Line Style Plug-In
• Trip Unit: Micrologic 3.2S with LSI protection
• Frame/Series: PowerPact J
• Suitable for AC systems

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLA36250U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : L
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 078590195112
• GTIN : 00785901951124
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
