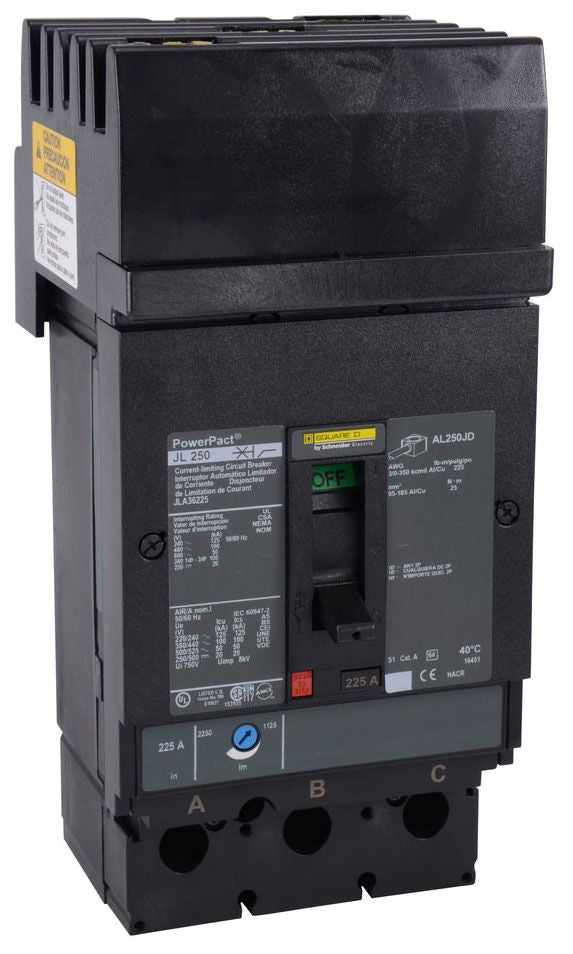

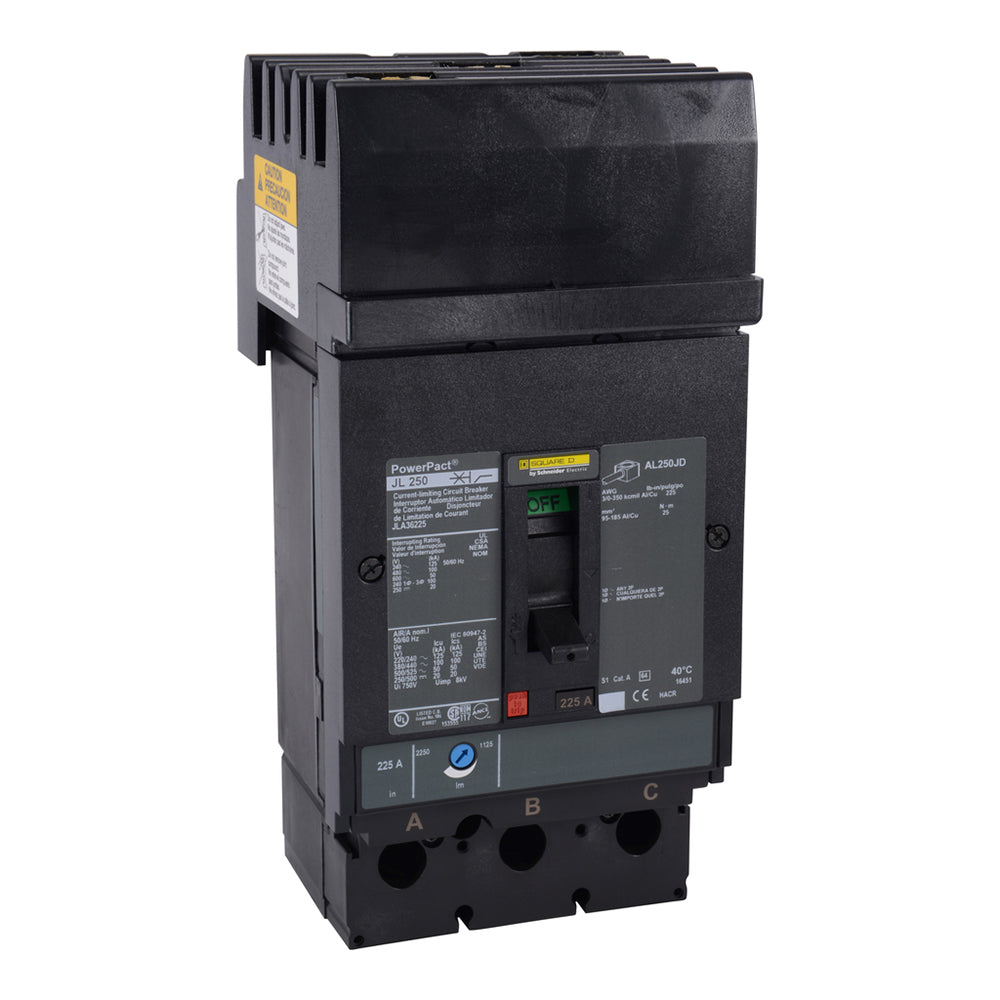

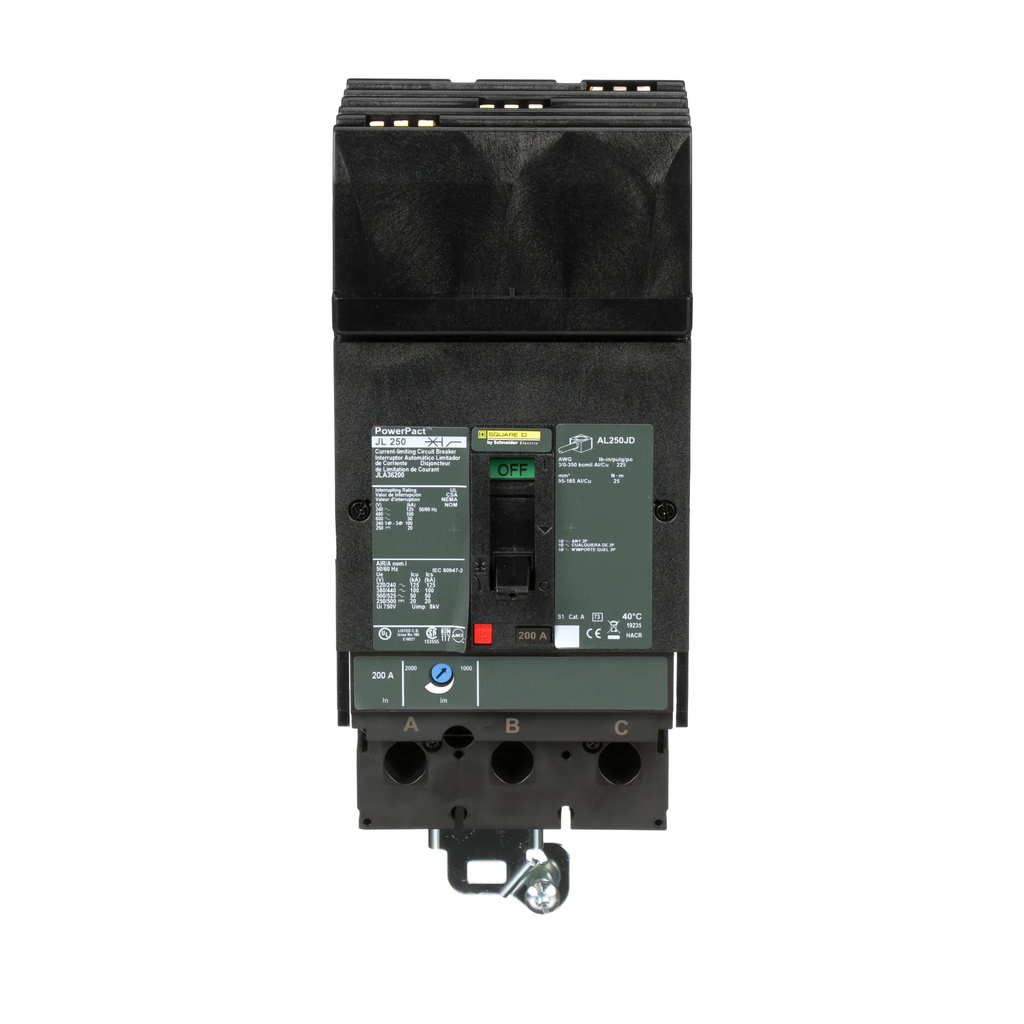

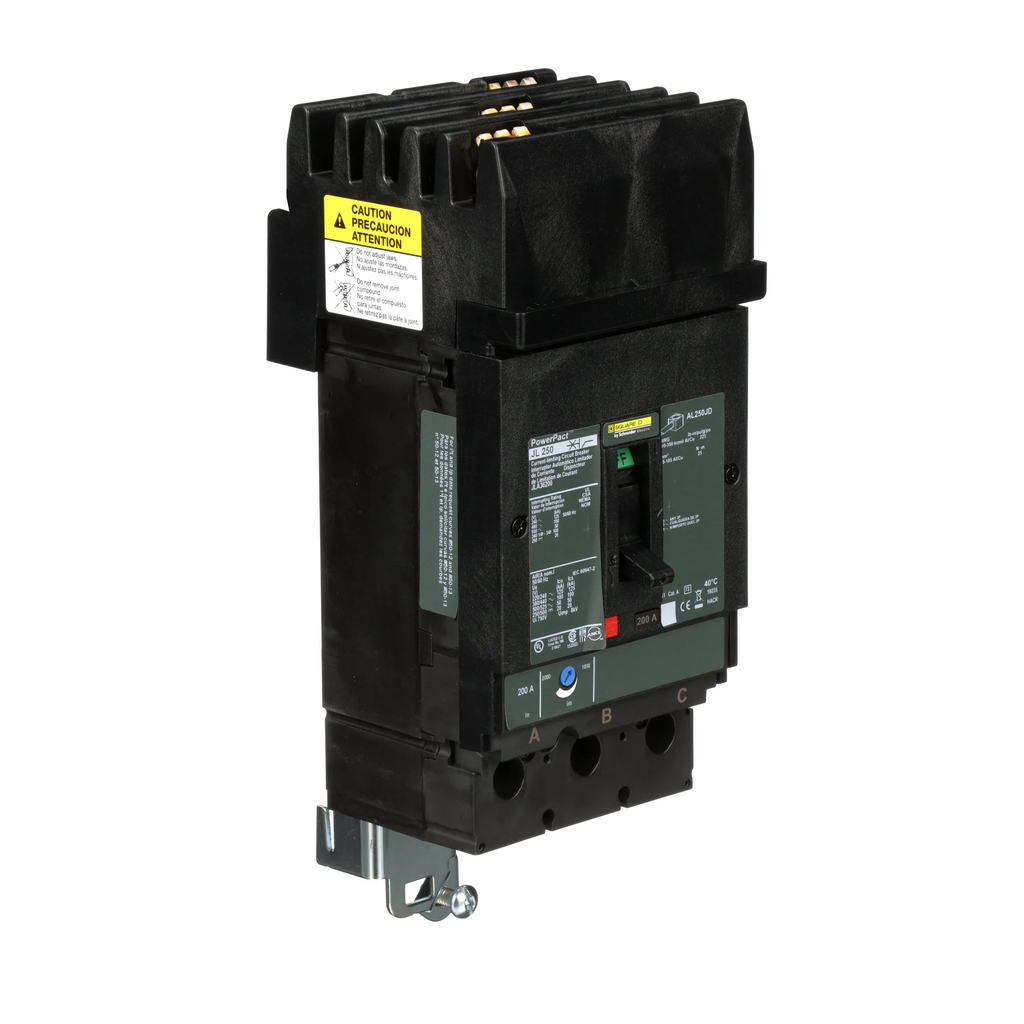

JLA36250 - Square D 250A 600V 3-Pole Powerpact J-Frame I-Line Circuit Breaker

JLA36250

JLA36250 is a Square D Powerpact J-Frame molded case circuit breaker rated for 250 amps, 600 volts, and 3 poles with I-Line plug-in mounting.This thermal-magnetic circuit breaker provides overload and short circuit protection with a 100kA interrupt rating at 480V and 50kA at 600V. It features a toggle actuator, ABC phase connection, and is UL, CSA, and CE listed. Designed for use in panelboards and switchboards, it supports wire sizes from AWG 4 to 4/0 aluminum or copper and has a compact dimension of 11.48" x 4.48" x 5.87".

Key Specifications
• Amperage: 250 A
• Voltage: 600 VAC / 500 VDC
• Poles: 3
• Frame Type: J-Frame
• Mounting Type: I-Line plug-in
• Interrupt Rating: 100kA @ 480V, 50kA @ 600V
• Trip Unit: Thermal-magnetic
• Connection: I-Line line/load lug
• Phase: 3 (ABC)

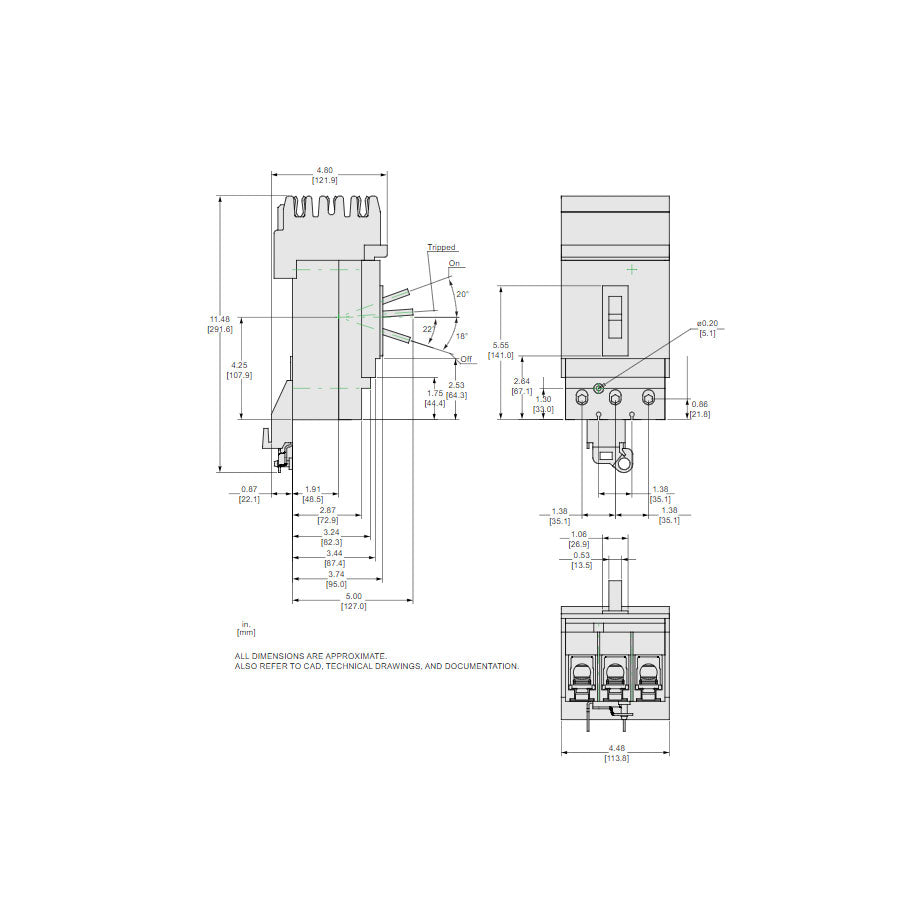

• Dimensions (HxWxD): 11.48" x 4.48" x 5.87"
• Certifications: UL Listed, CSA, CE
• Control Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLA36250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : L
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901673149
• GTIN : 00785901673149
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.074
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
