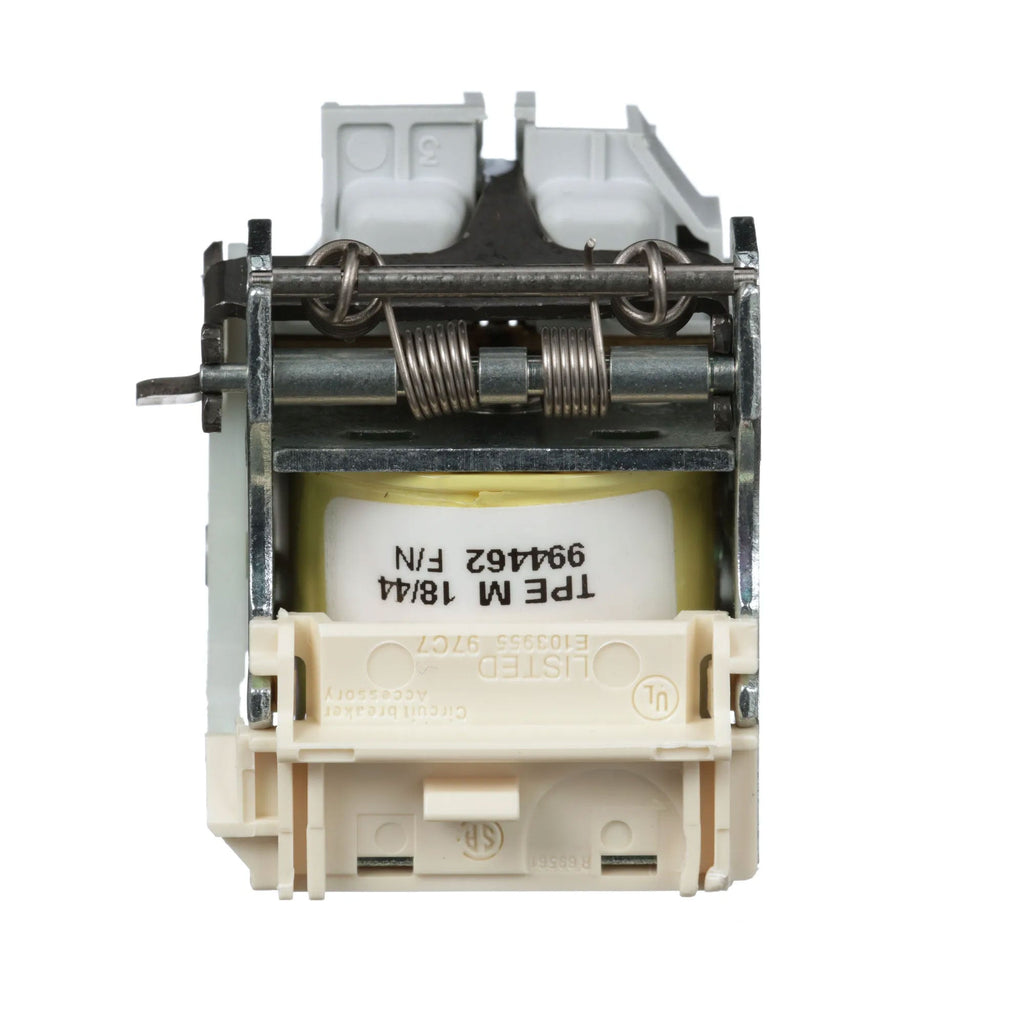

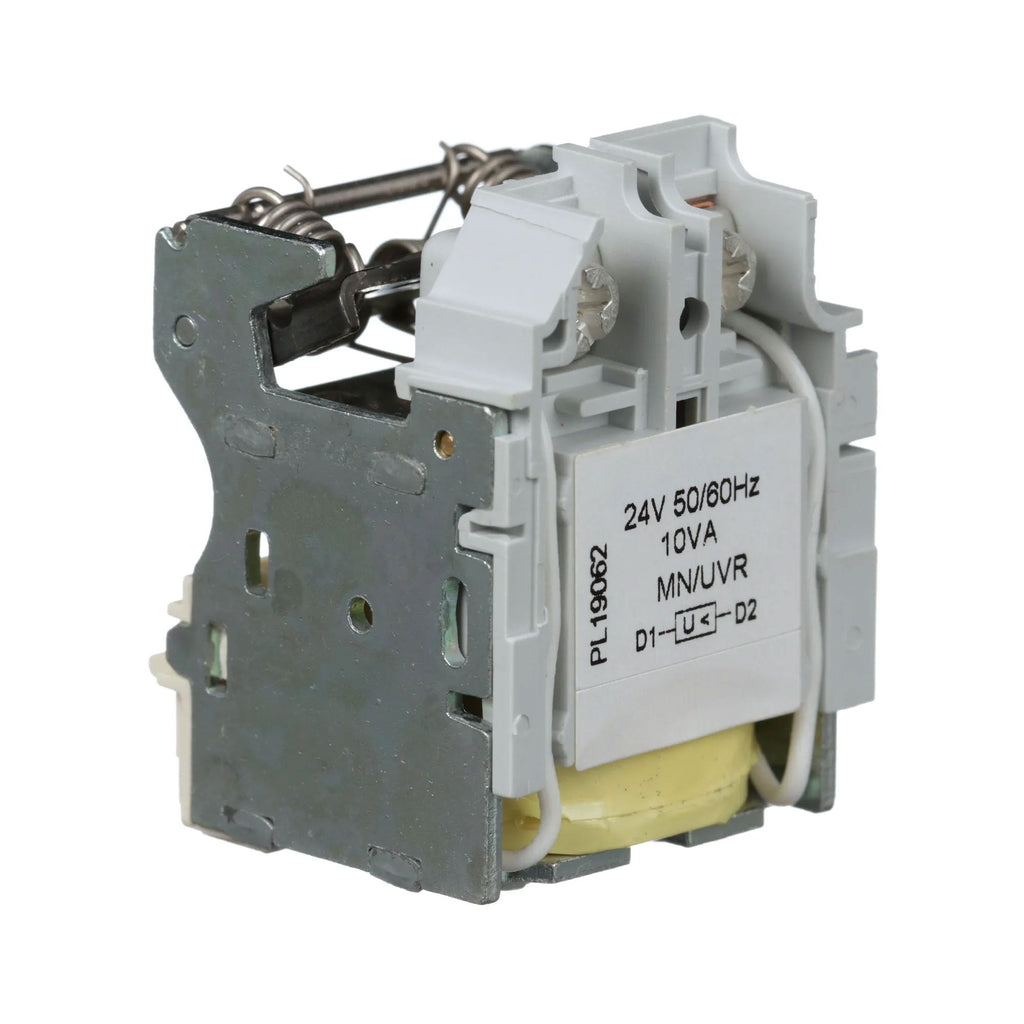

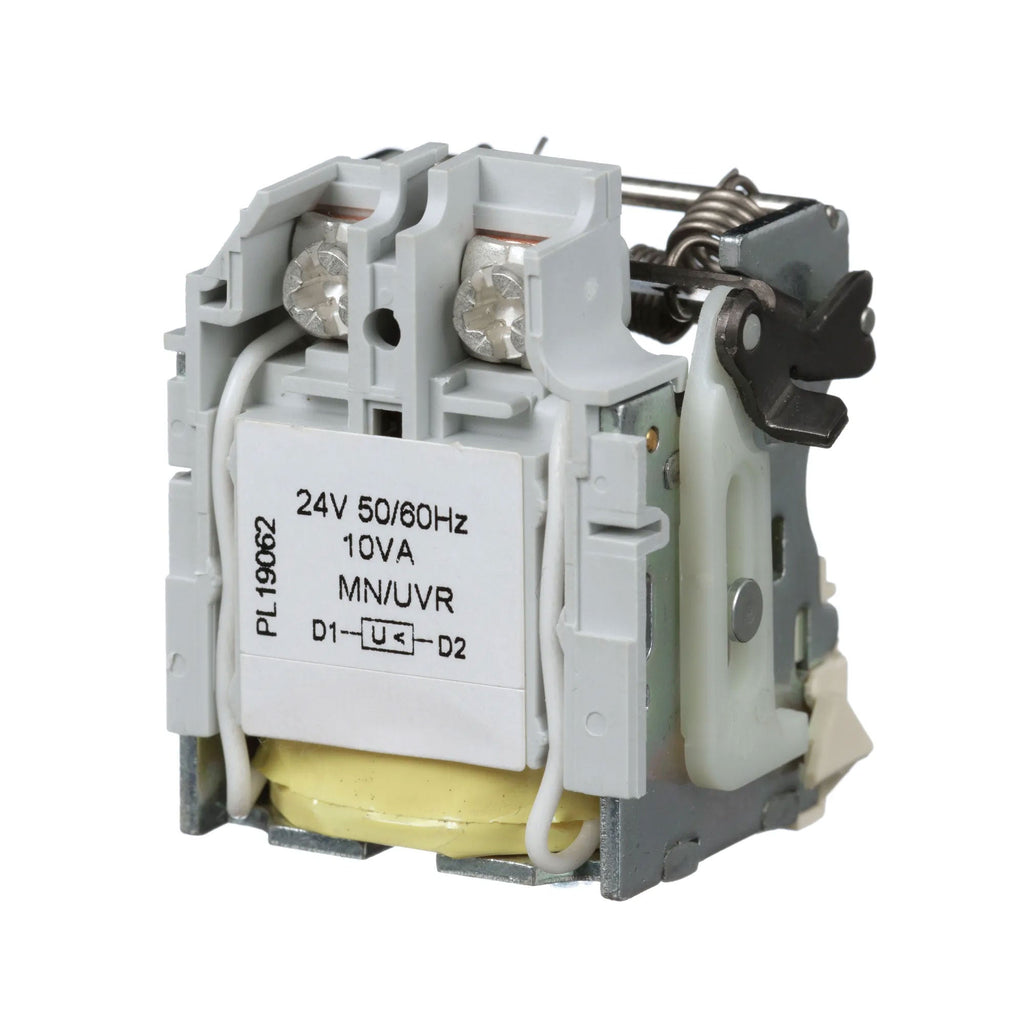

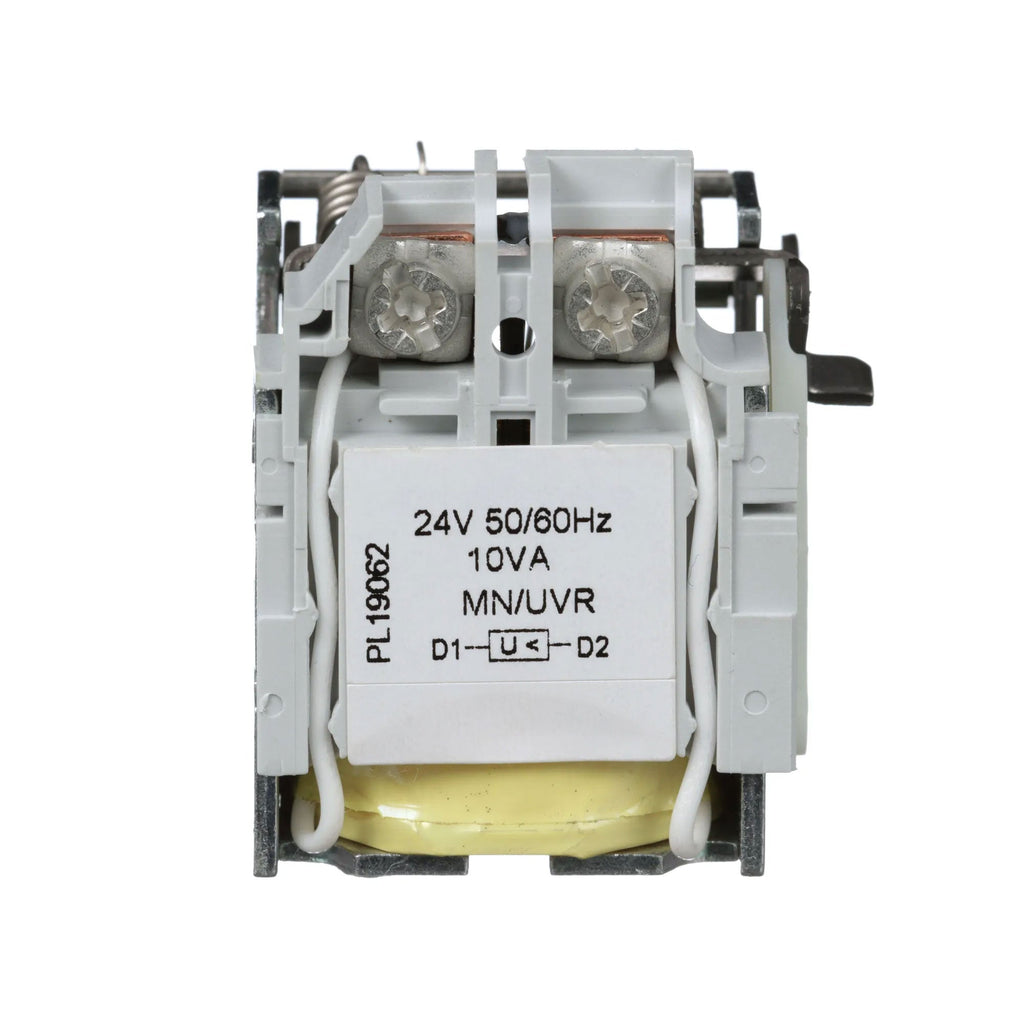

Reference images. Contact us for photos of the available unit.


Schneider Electric

S29404

Square D 24V AC Undervoltage Trip for H, J, L Frame Circuit Breakers

Voltage: 24V
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$266.95 $1,112.00
Save $845.05
Low inventory, please call (866) 377-3532 for stock check
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Schneider Electric
Brand
Square D
Sub-Category
Under Voltage Release
Series
Powerpact
Frame
S2
Voltage
24V
Control Voltage Minimum
24
Compatible Frames
DG,DJ,DL,HD,HG,HJ,HL,HR,JD,JG,JJ,JL,JR,LD,LG,LJ,LL,LR
Control Voltate Maximum
24
UPC
785901597179
GTIN
00785901597179
Dimensions
Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
Weight
5
Product description & additional details

S29404


S29404 is a Square D undervoltage trip accessory designed for use with H, J, and L frame molded case circuit breakers operating at 24 volts AC.The S29404 undervoltage release instantly trips the circuit breaker when the control voltage drops between 35% to 70% of its rated 24V, providing reliable protection for motor and power circuits.
  • Manufacturer: Square D
  • Part Number: S29404
  • Type: Undervoltage Trip Accessory
  • Voltage Rating: 24 VAC
  • Compatible Frames: H, J, L Frame Molded Case Circuit Breakers
  • Trip Range: 35% to 70% of rated voltage
  • Mounting: Field installable on specified breaker frames
  • Interrupt Rating: Matches associated breaker frame ratings
  • Series: S2 Series
  • Certifications: UL Listed, ANSI Compliant
  • Torque Rating: 12.4 lbf.in (1.4 N.m)
  • UPC: 785901597179
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: S29404
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Under Voltage Release
  • Family : Powerpact
  • Type : S2
  • Voltage : 24
  • Control Voltage Minimum : 24
  • Compatible Frames : DG,DJ,DL,HD,HG,HJ,HL,HR,JD,JG,JJ,JL,JR,LD,LG,LJ,LL,LR
  • Control Voltate Maximum : 24

Product Data

  • UPC : 785901597179
  • GTIN : 00785901597179
  • Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
  • Weight : 5

Technical Documents
Product Datasheet
