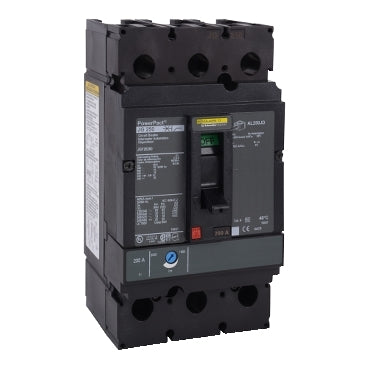

JGF26175 - Square D PowerPact J 175 Amp 2-Pole 600VAC Molded Case Circuit Breaker

JGF26175

JGF26175 is a Square D PowerPact J molded case circuit breaker designed for overcurrent protection and switching on AC systems. This thermal magnetic, current limiting circuit breaker delivers reliable performance in industrial and commercial applications with field-installable accessories for flexible deployment.Key Specifications

• Amperage Rating: 175 Amp
• Voltage Rating: 600 VAC
• Number of Poles: 2 Pole
• Frame Type: J Frame
• Interrupt Rating: 18 kA at 600 VAC
• Trip Type: Thermal Magnetic
• Mounting Type: Bolt-On
• Frequency Rating: 50/60 Hz
• Certifications: UL 489 Listed, CSA, NOM, IEC, CCC, UKCA, CE marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGF26175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGF
• Voltage : 600
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.699
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
