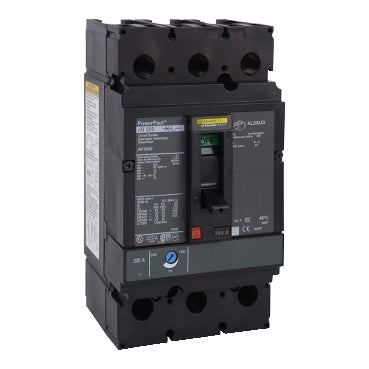

JGF26200 - Square D PowerPact J 200 Amp 2-Pole 600V Molded Case Circuit Breaker

JGF26200

JGF26200 is a 200-amp, 2-pole molded case circuit breaker manufactured by Square D for industrial and commercial power distribution applications. This thermal-magnetic, current-limiting breaker is rated for 600 volts AC maximum and features adjustable trip settings for customized protection. The PowerPact J series design provides reliable overcurrent protection with a compact footprint suitable for unit mount installations. Wire size compatibility is 3/0 AWG, making it ideal for heavy-duty electrical systems requiring dependable circuit protection and coordination with downstream devices.

• Amperage: 200 Amp
• Voltage Rating: 600 VAC
• Poles: 2-Pole
• Molded Case Type: PowerPact J Series
• Trip Mechanism: Thermal-Magnetic
• Current Limiting: Yes
• Adjustable Trip: Yes
• Wire Size: 3/0 AWG
• Mounting: Unit Mount
• Dimensions: 4.09 inch Width x 3.39 inch Depth x 7.52 inch Height
• Manufacturer: Square D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGF26200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGF
• Voltage : 600
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078590194909
• GTIN : 00785901949091
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.699
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
