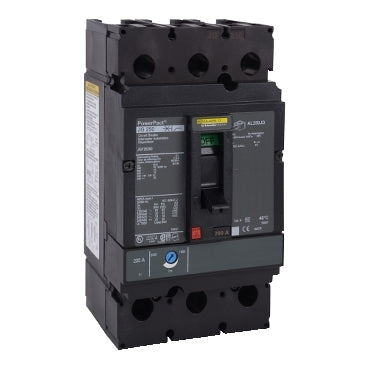

JGF26250 - Square D PowerPacT J 250A 2-Pole 600VAC Molded Case Circuit Breaker

JGF26250

JGF26250 is a Square D PowerPacT J-Frame molded case circuit breaker designed for thermal magnetic overcurrent protection in AC electrical systems. This 250-amp, 2-pole unit mount breaker operates at 600VAC and delivers reliable protection against overloads and short circuits with dual-break rotating contacts that minimize peak current during faults. The breaker features an integral push-to-trip button for manual operation and feed-thru lugs on both line and load sides for flexible installation. Key Specifications

• Part Number: JGF26250
• Manufacturer: Square D
• Amperage: 250A
• Voltage: 600VAC
• Poles: 2
• Frame Type: PowerPacT J
• Mounting: Unit Mount
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Dimensions: 7.52 inches height x 4.09 inches width x 3.39 inches depth
• Weight: 5.29 lbs
• Certifications: UL 489, CSA, NOM, IEC, CE marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGF26250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGF
• Voltage : 600
• Amperage : 250
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.699
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
