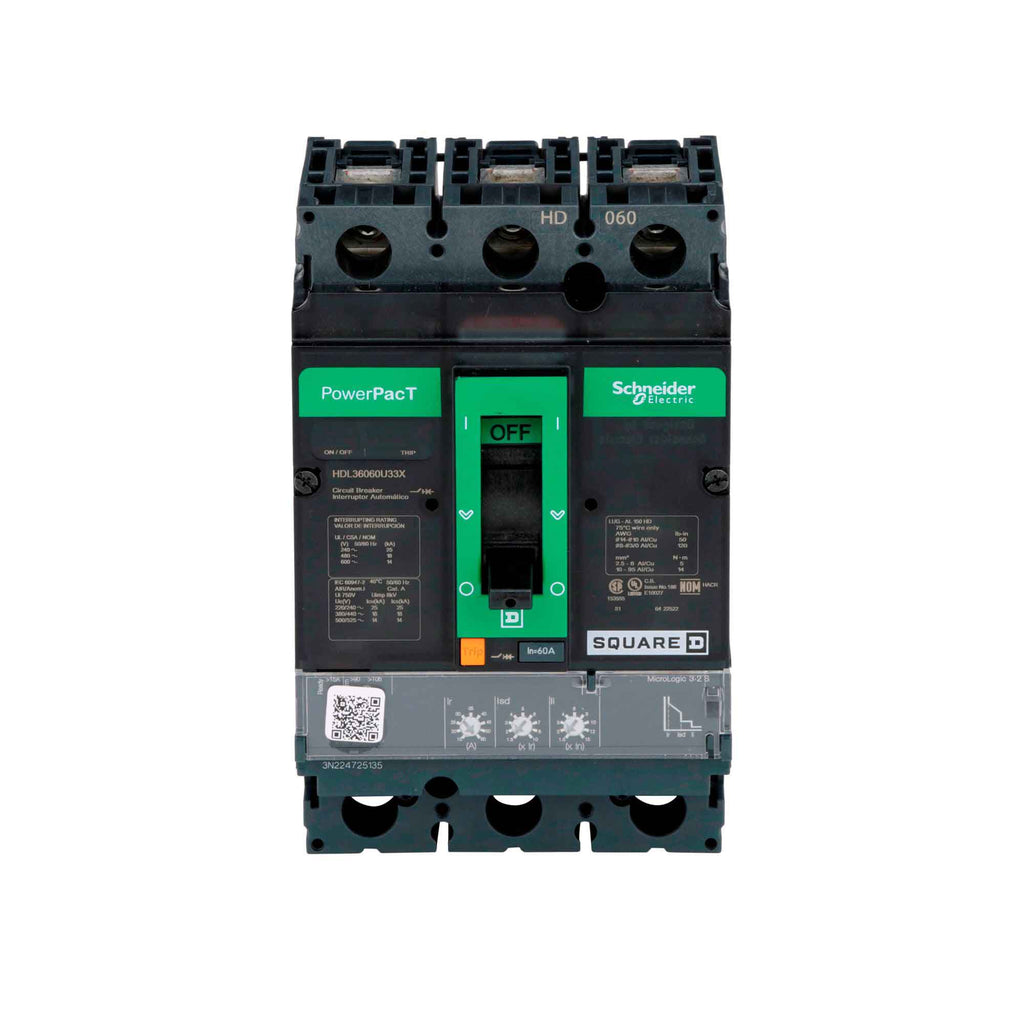

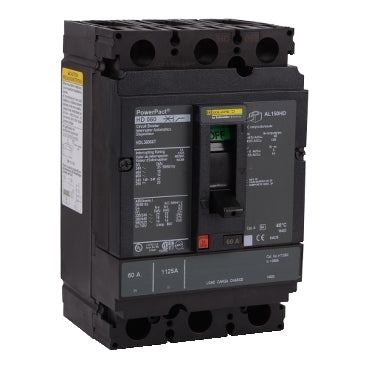

HDL36060U33X - Square D 60A 600VAC 3 Pole PowerPacT H Molded Case Circuit Breaker

HDL36060U33X

HDL36060U33X is a 3 pole, 60 amp molded case circuit breaker from Square D's PowerPacT H series designed for unit mounting and thermal magnetic protection.This circuit breaker operates at 600/690VAC with an interrupting rating of 18kAIC at 480VAC. It features long time, short time, and instantaneous trip functions with feed-thru connection type and line/load side lug terminals. The breaker is UL, CSA, CE, NEMA, NOM, and IEC certified, suitable for use in demanding industrial and commercial applications.

• Amperage: 60A
• Voltage: 600/690VAC
• Poles: 3
• Series/Frame: PowerPacT H, HDL frame
• Interrupt Rating: 18kAIC at 480VAC
• Mounting Type: Unit mount
• Trip Unit: Thermal Magnetic with LSI (Long, Short, Instantaneous)
• Connection Type: Feed-Thru
• Terminal Connection: Line and Load Side Lug
• Certifications: UL, CSA, CE, NEMA, NOM, IEC
• Operating Temperature: -25 to 70 °C
• Color: Black

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36060U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901950264
• GTIN : 00785902000000
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
