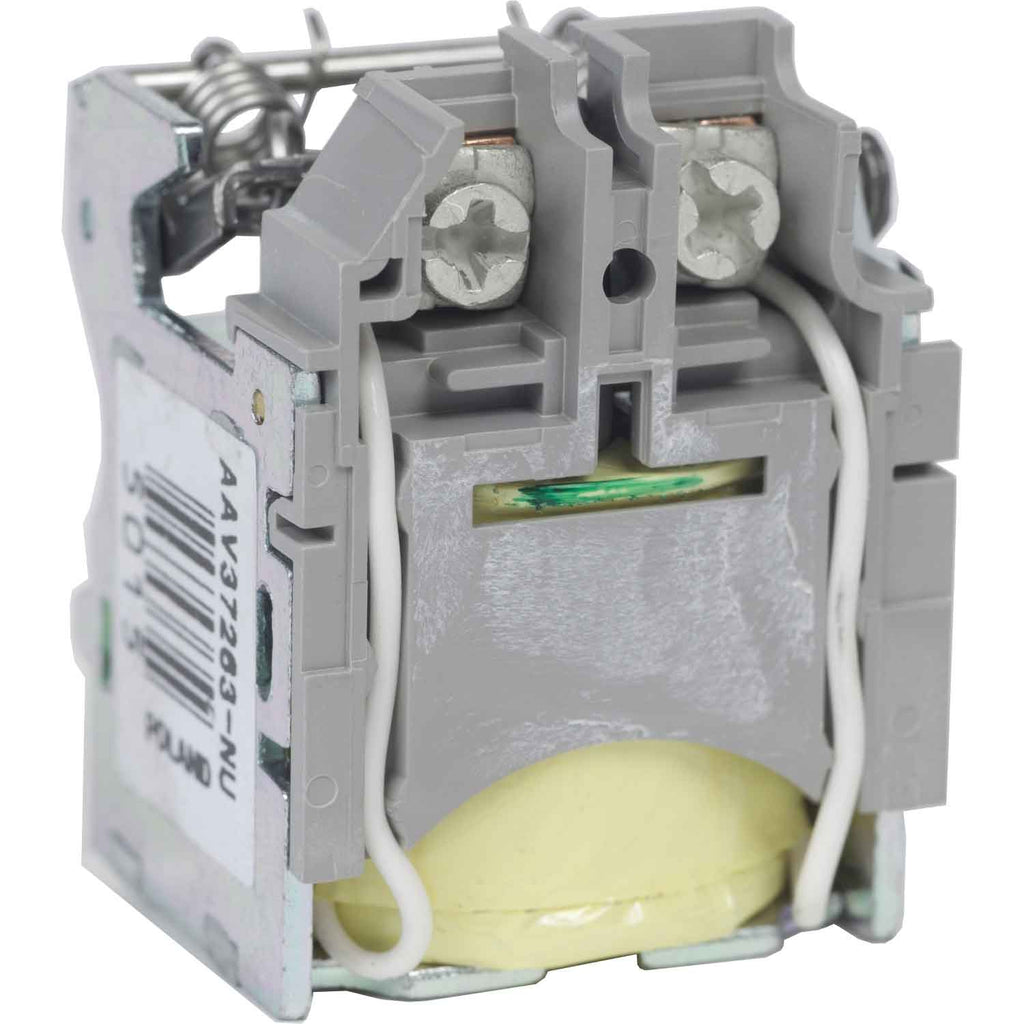

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Under Voltage Release
- Series
- Powerpact
- Frame
- PowerPact
- Voltage
- 125VDC
- Control Voltage Minimum
- 125
- Compatible Frames
- DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
- Control Voltate Maximum
- 125
- GTIN
- 00045923294136
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight
- 1
Product description & additional details
S29413
S29413 is a Schneider Electric PowerPact undervoltage trip unit designed for circuit breakers operating at 125V DC control voltage.
This trip unit automatically trips the circuit breaker when the control voltage drops, typically between 35% and 70% of the rated voltage, providing protection for motors and other electrical equipment. It is compatible with PowerPact H, J, and L series circuit breakers, enhancing their functionality by adding undervoltage protection.
- Manufacturer: Schneider Electric
- Part Number: S29413
- Product Type: Undervoltage Trip Unit
- Compatible Series: PowerPact H, J, L
- Control Voltage: 125 V DC
- Function: Automatically trips breaker on undervoltage
- Application: Motor and equipment protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: S29413
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Under Voltage Release
- Family : Powerpact
- Type : PowerPact
- Voltage : 125VDC
- Control Voltage Minimum : 125
- Compatible Frames : DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
- Control Voltate Maximum : 125
Product Data
- GTIN : 00045923294136
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 1
Technical Documents
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
