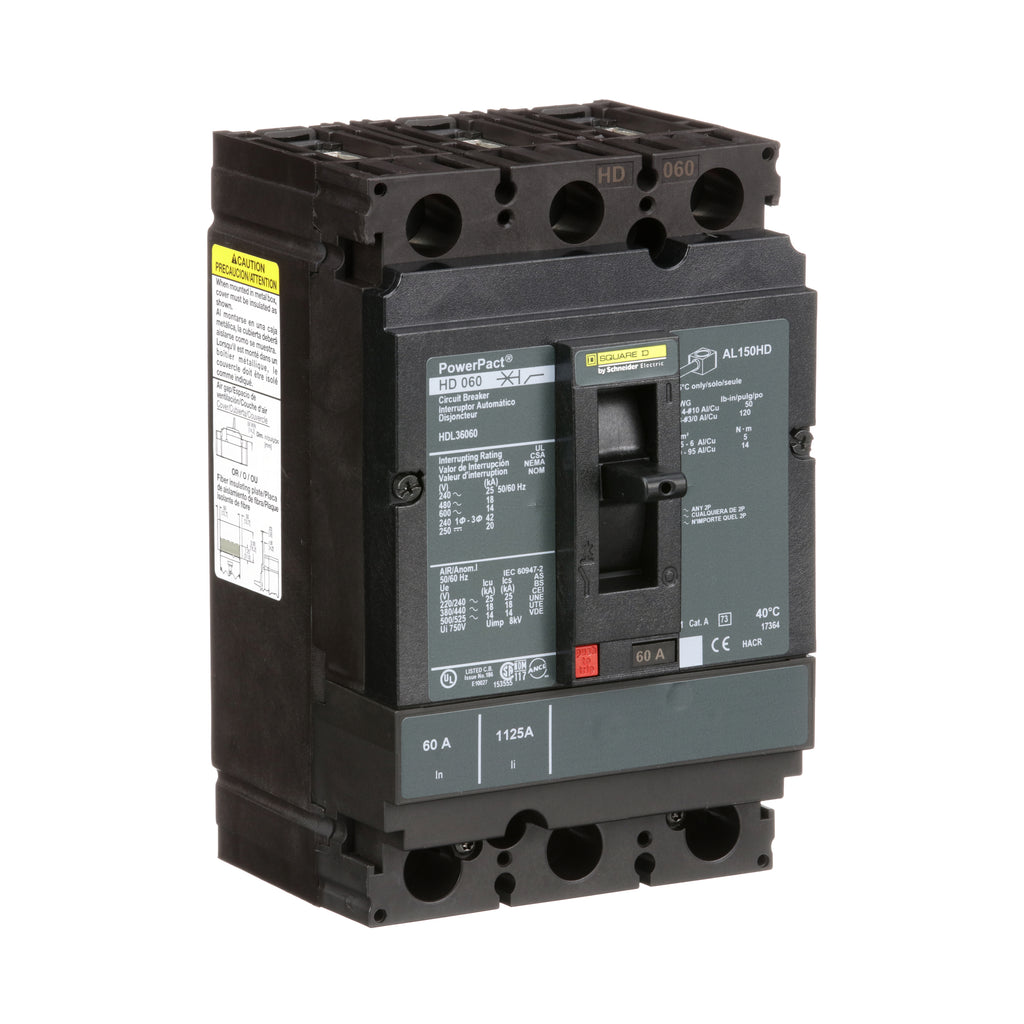

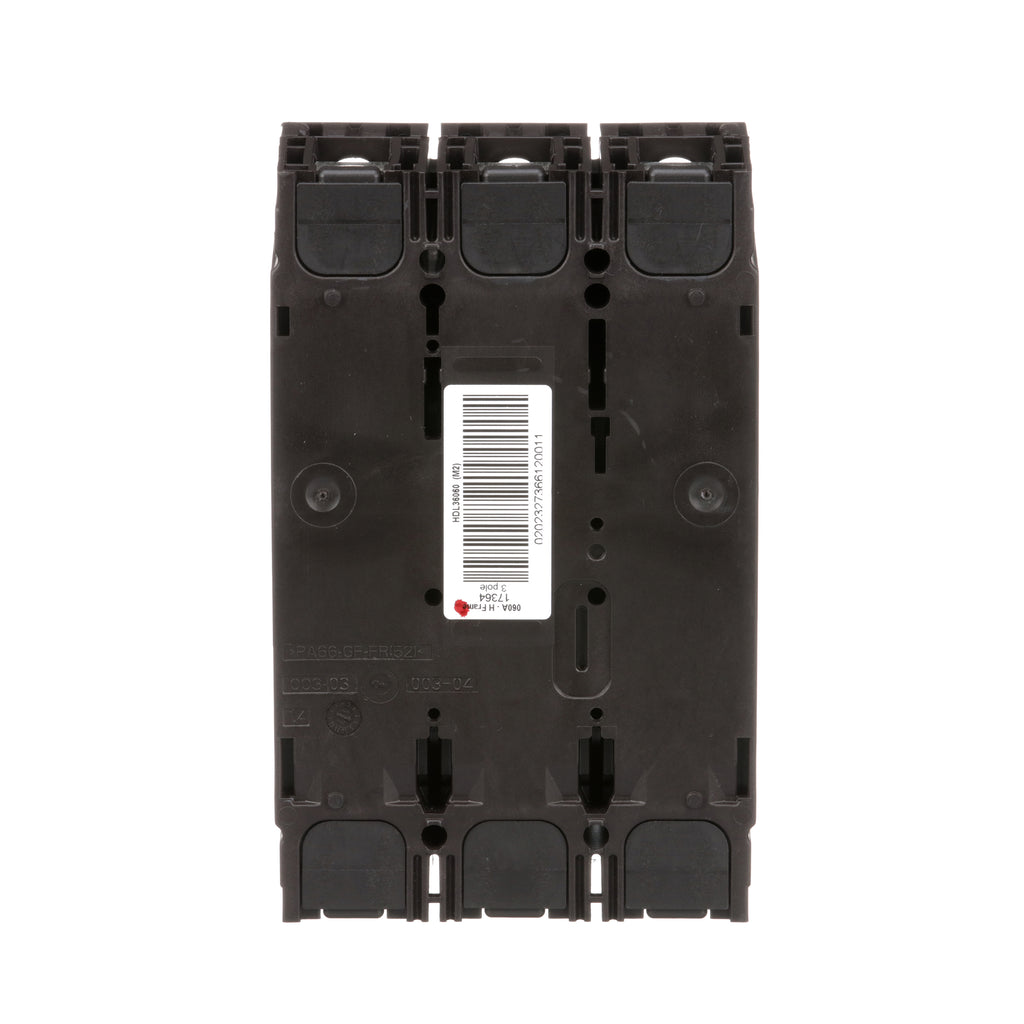

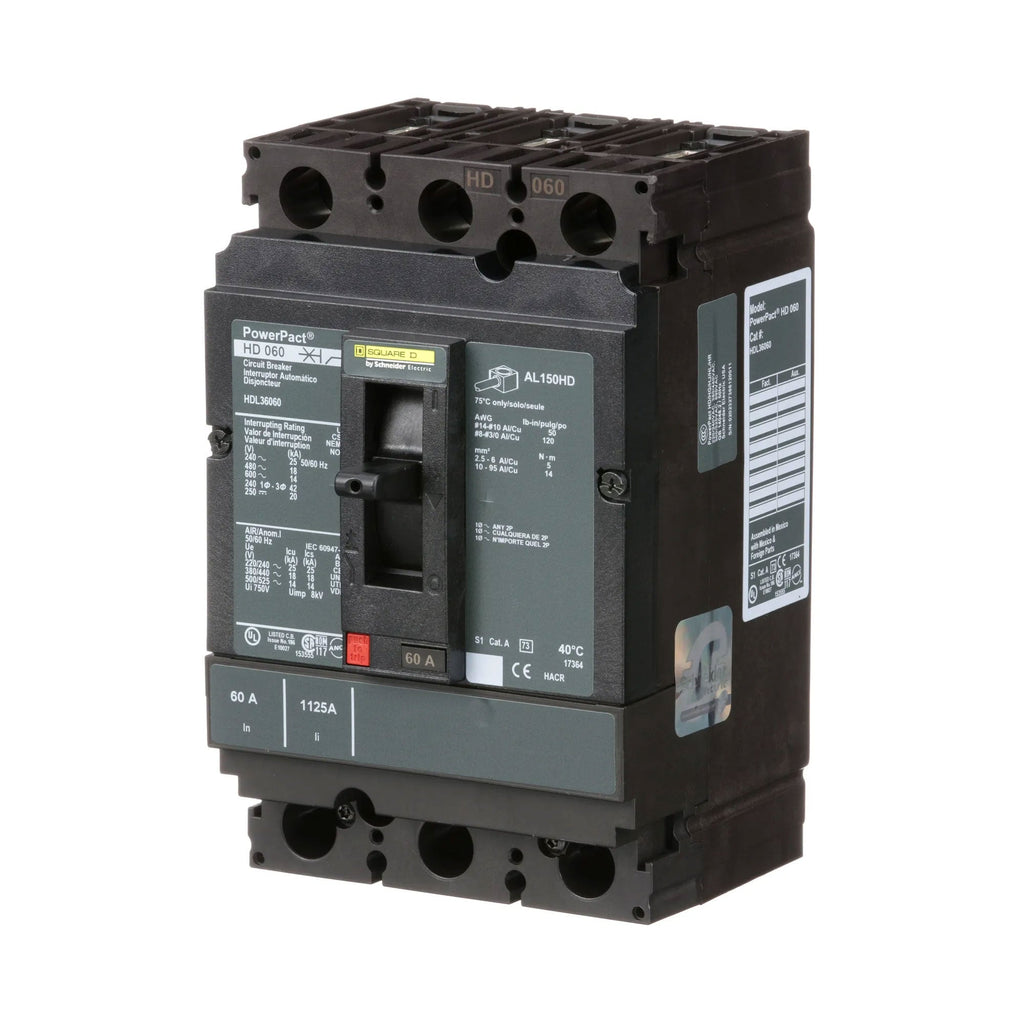

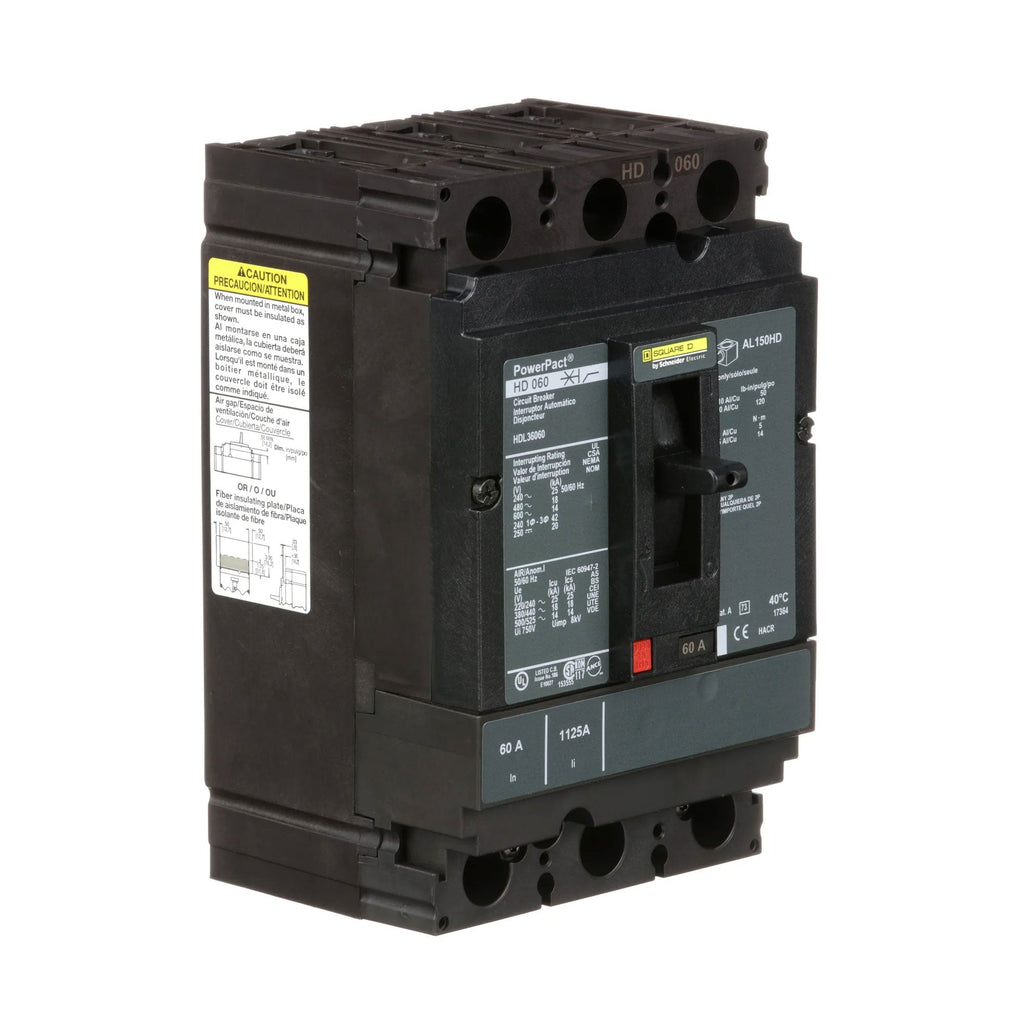

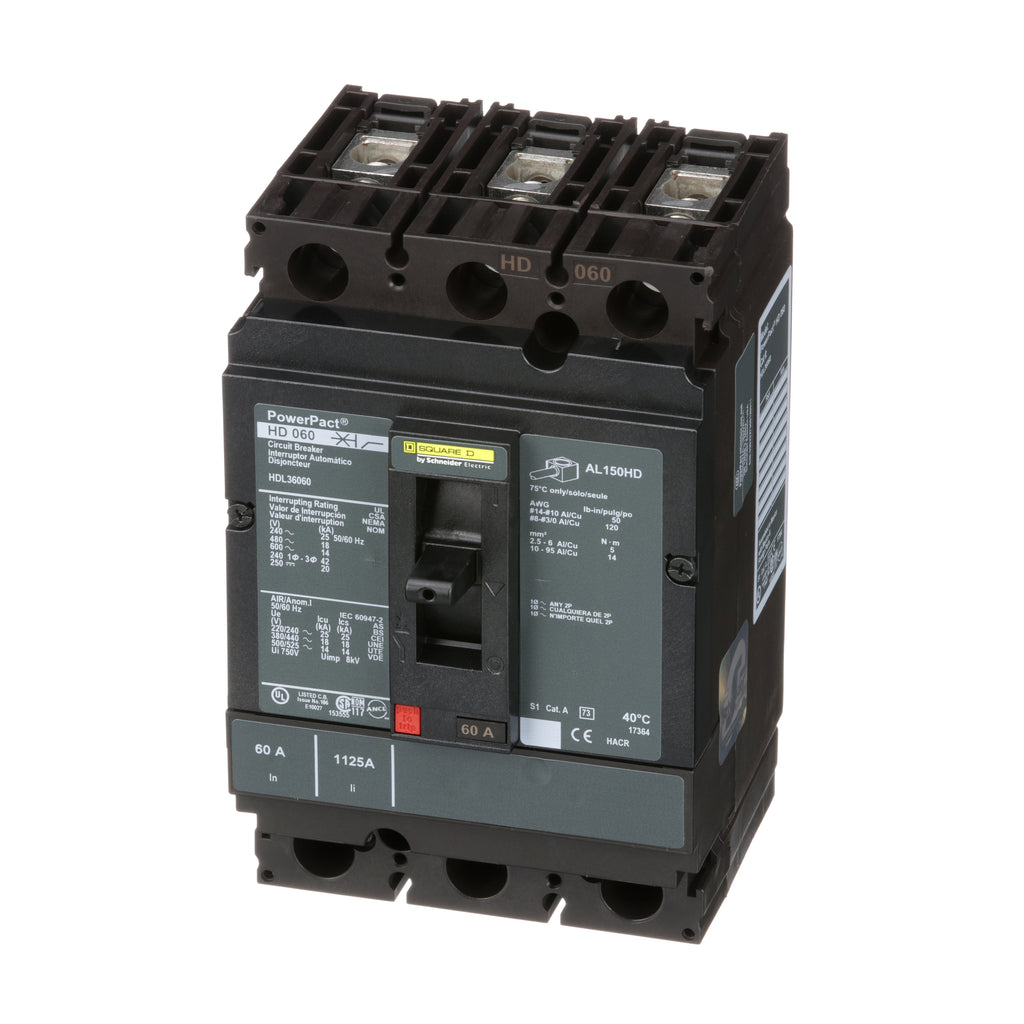

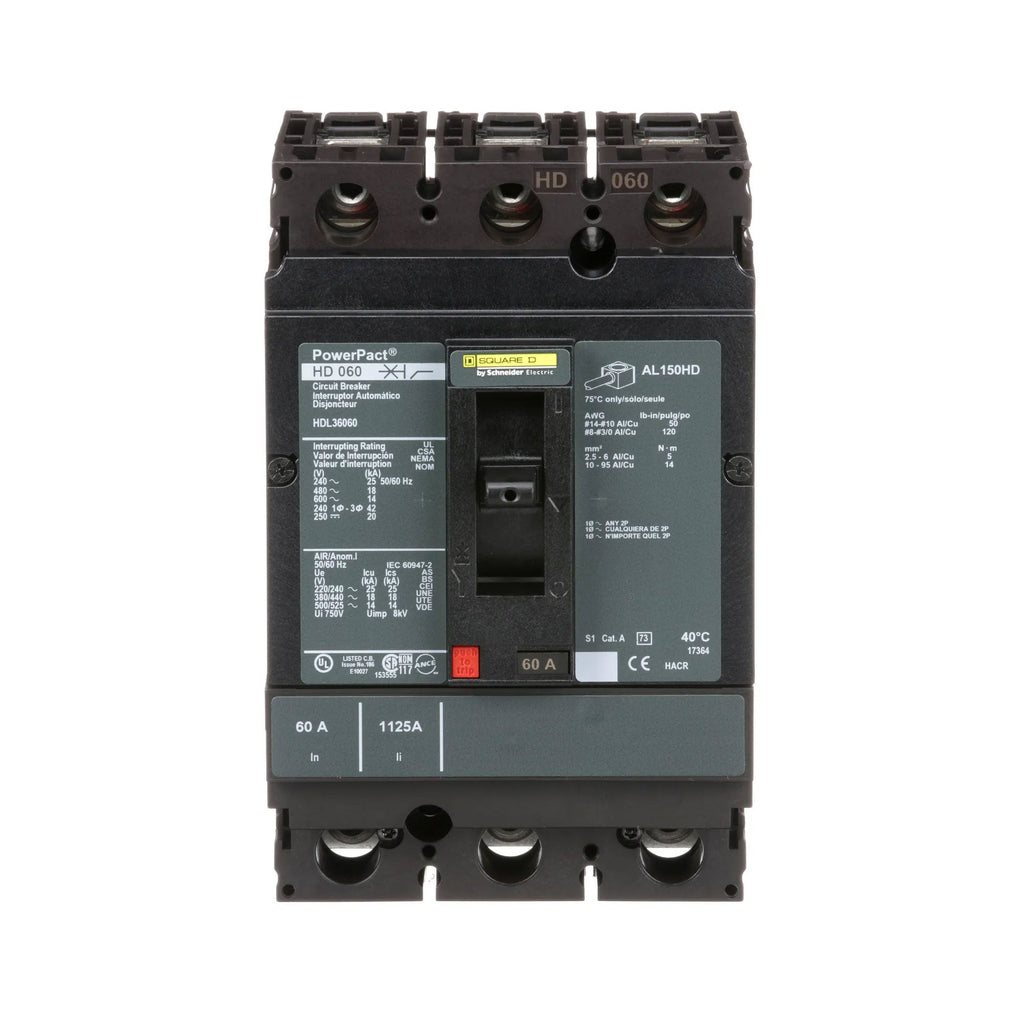

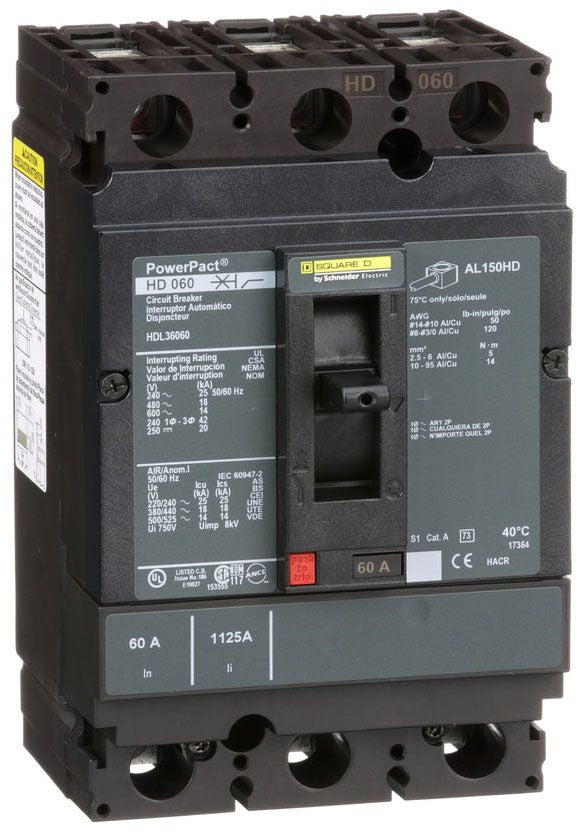

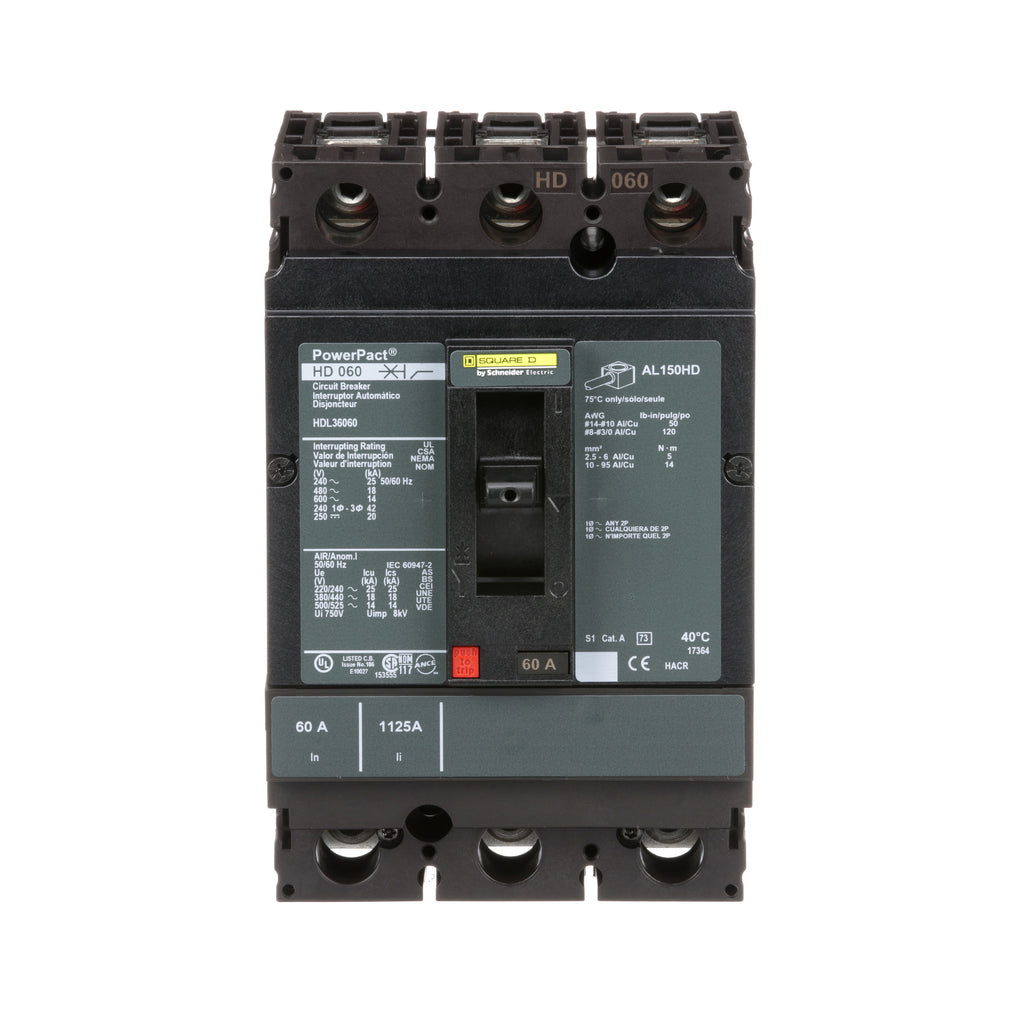

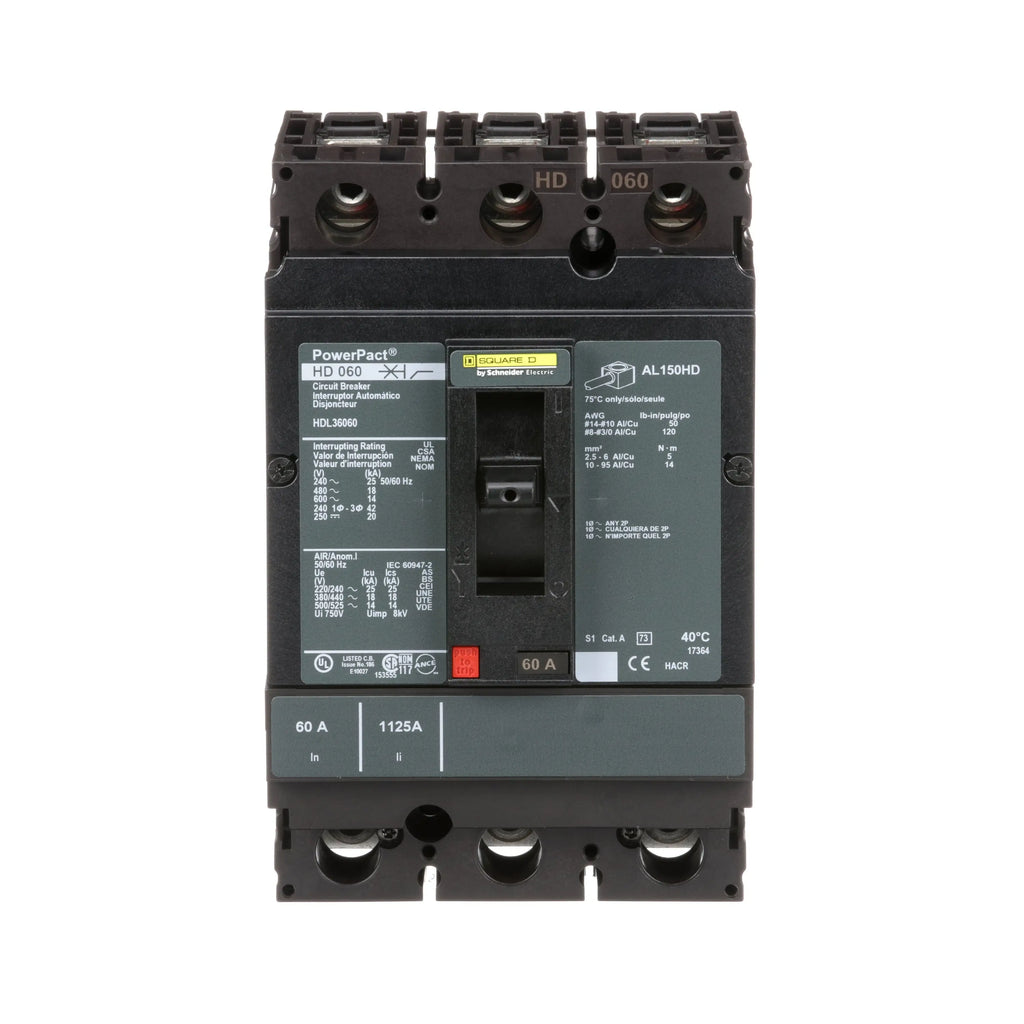

HDL36060 - Square D 60 Amp 600V 3 Pole PowerPacT H Molded Case Circuit Breaker

HDL36060

HDL36060 is a 60 Amp, 600 Volt, 3 Pole molded case circuit breaker from Square D's PowerPacT H series.This thermal magnetic circuit breaker features a unit mount design with feed-thru connections, providing reliable protection with long-time and instantaneous trip functions. It has an interrupting rating of 18kA at 480VAC and is UL 489, CSA, IEC, and CE certified. The breaker supports wire gauges from AWG 14 to AWG 3/0 for aluminum and copper conductors.

• Manufacturer: Square D
• Part Number: HDL36060
• Series/Frame: PowerPacT H, HDL Frame
• Amperage: 60 Amps
• Voltage Rating: 600/690 VAC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA at 480VAC
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Connection Type: Feed-Thru
• Certifications: UL 489, CSA, IEC, CE, NOM, NEMA
• Terminal Connection: Line and Load Side Lug

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901577959
• GTIN : 00785901577959
• Country of Origin : Mexico

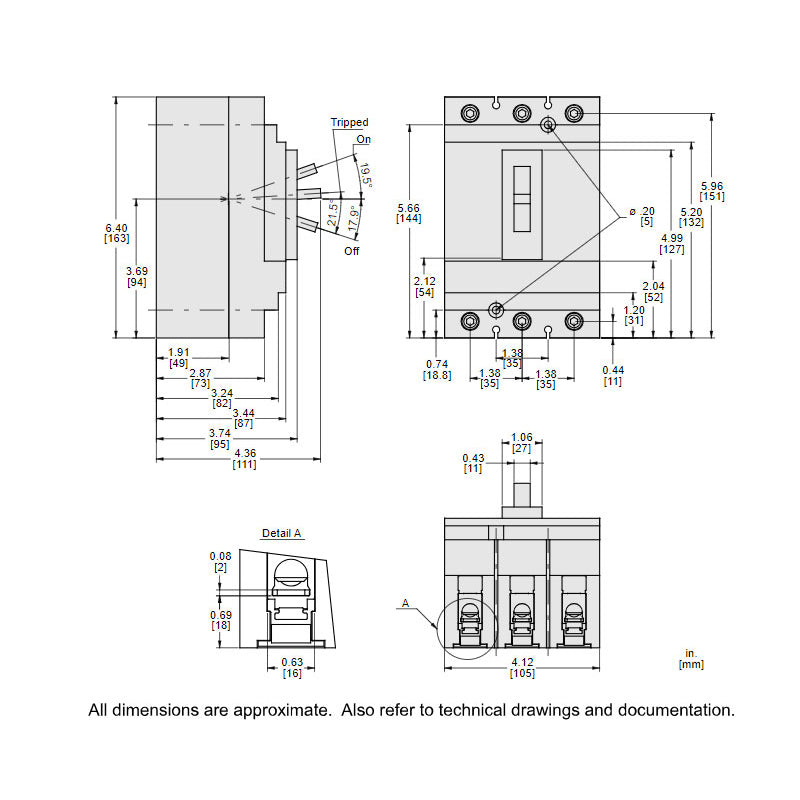

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.07
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
