Product Info
- Manufacturer:General Electric
- Sub-Category:Disconnect
Description
TGN3321

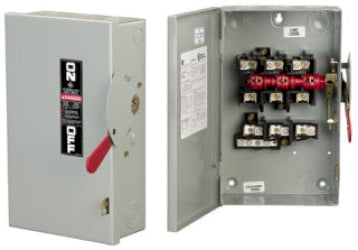

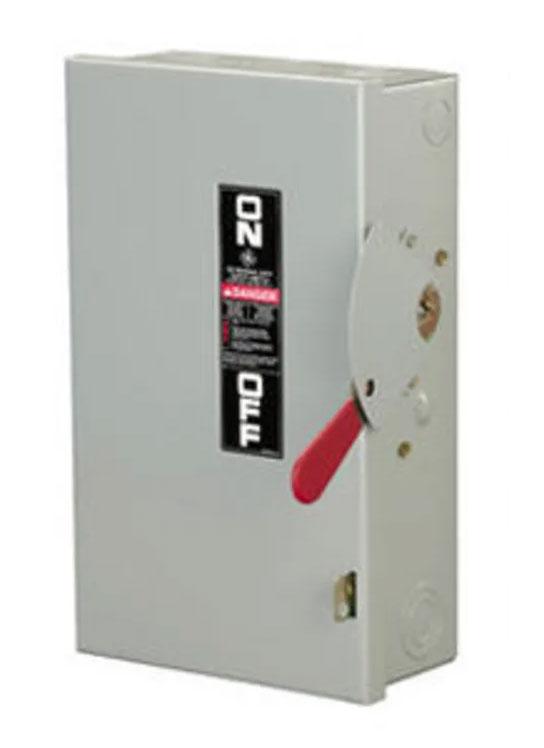

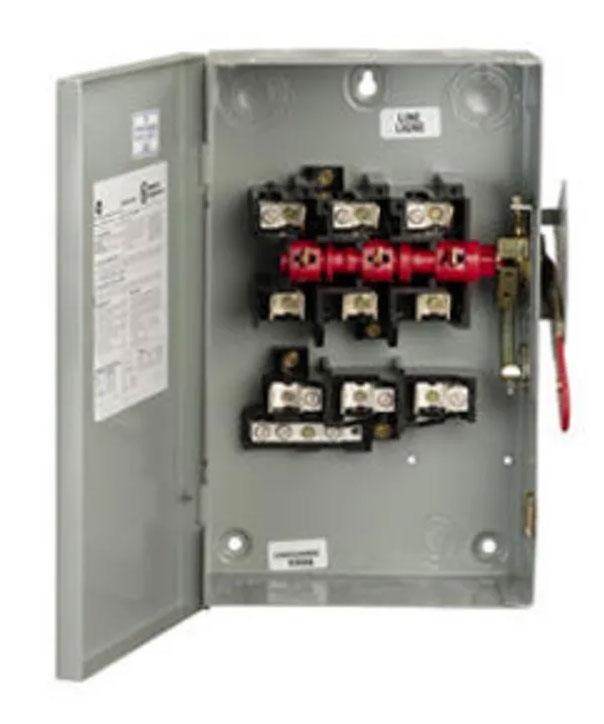

TGN3321 is a General Electric Spec-Setter general duty non-fusible safety switch designed for reliable indoor electrical disconnect applications. This switch features a quick-make, quick-break mechanism for safe and efficient operation. Engineered for 30A, 240VAC, 3 pole, 3 wire service, the TGN3321 is suitable for general duty use and meets UL Listed and CSA Certified standards. The rugged NEMA 1 enclosure provides protection for indoor installations, and the switch is rated for 100kA interrupting capacity at 240V.
- Part Number: TGN3321
- Manufacturer: General Electric
- Series: Spec-Setter
- Amperage: 30A
- Voltage: 240VAC
- Poles: 3
- Mounting Type: Indoor (NEMA 1)
- Interrupt Rating: 100kA @ 240V
- Switch Type: Non-Fusible
- Wire Range: 14-8 Cu / 12-8 Al
- Certifications: UL Listed, CSA Certified
- Standards: NEMA KS1, CSA 22.2 No. 4-04
Specifications
- Part Number: TGN3321
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Disconnect
- Family : Spec-Setter
- Type : TGN
- Voltage : 240
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
- Compatible Frames : ED
Product Data
- UPC : 783164008784
- GTIN : 00785901994572
- Weight : 5 lb
