Product Info
- Manufacturer:General Electric
- Sub-Category:Disconnect
Description
TGN3325

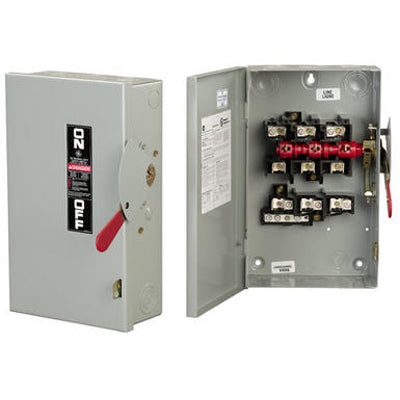

TGN3325 is a General Electric 400 Amp, 240 Volt, 3-Pole non-fusible general duty safety switch designed for reliable power control in commercial and light industrial applications.This switch features a NEMA 1 painted steel enclosure suitable for indoor use, a handle actuator for secure manual operation, and is UL listed for safety. It supports up to 100 horsepower motors and provides dependable performance with a 3-wire, 3-phase configuration.
- Amperage: 400A
- Voltage: 240 VAC
- Poles: 3-Pole, 3-Wire
- Type: Non-Fusible General Duty Safety Switch
- Enclosure: NEMA 1 (Indoor, Painted Steel)
- Interrupt Rating: 100kA at 240V
- Horsepower Rating: Up to 100 hp
- Mounting: Surface Mount
- UL Listed
- Handle actuator for manual operation
- Series: Spec-Setter
Specifications
- Part Number: TGN3325
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Disconnect
- Family : Spec-Setter
- Type : TGN
- Voltage : 240
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
- Compatible Frames : ED
Product Data
- UPC : 078316400885
- GTIN : 00782113205724
- Weight : 70
