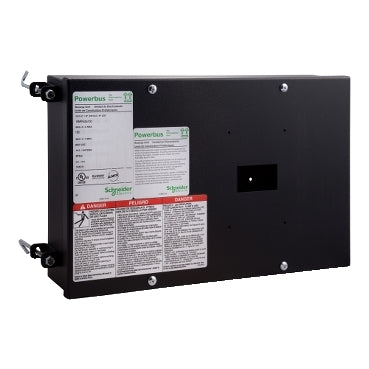

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Breaker Type
- Series
- Powerbus
- Frame
- PBPFA
- Rated current
- 100
- Voltage
- 600V
- Phases
- 3
- Interrupting rating
- 10kA@240V
- Wires
- 3
- Country of origin
- United States
- Compatible Frames
- FAP
- GTIN
- 00785901680192
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight
- 30
Product description & additional details
PBPFA3A100
PBPFA3A100 is a Square D 100 Amp, 3-Phase, 3-Wire 600 Volt Powerbus bus plug designed for busway systems.PBPFA3A100 is a breaker-type bus plug used with Square D Powerbus busway, providing reliable power distribution with a 100 Amp rating and 600 Volt maximum voltage. It is designed for 3-phase, 3-wire configurations and fits within the Powerbus series for industrial and commercial electrical applications.
- Amperage: 100 Amps
- Voltage: 600 Volts
- Phases: 3-Phase
- Wires: 3-Wire
- Type: Breaker-type Bus Plug
- Series: Powerbus
- Mounting: Plug-in for Busway
- Enclosure: NEMA Type 1 (standard for Powerbus)
Specifications
- Part Number: PBPFA3A100
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : Powerbus
- Type : PBPFA
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 10kA@240V
- Wire : 3
- Compatible Frames : FAP
Product Data
- GTIN : 00785901680192
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 30
