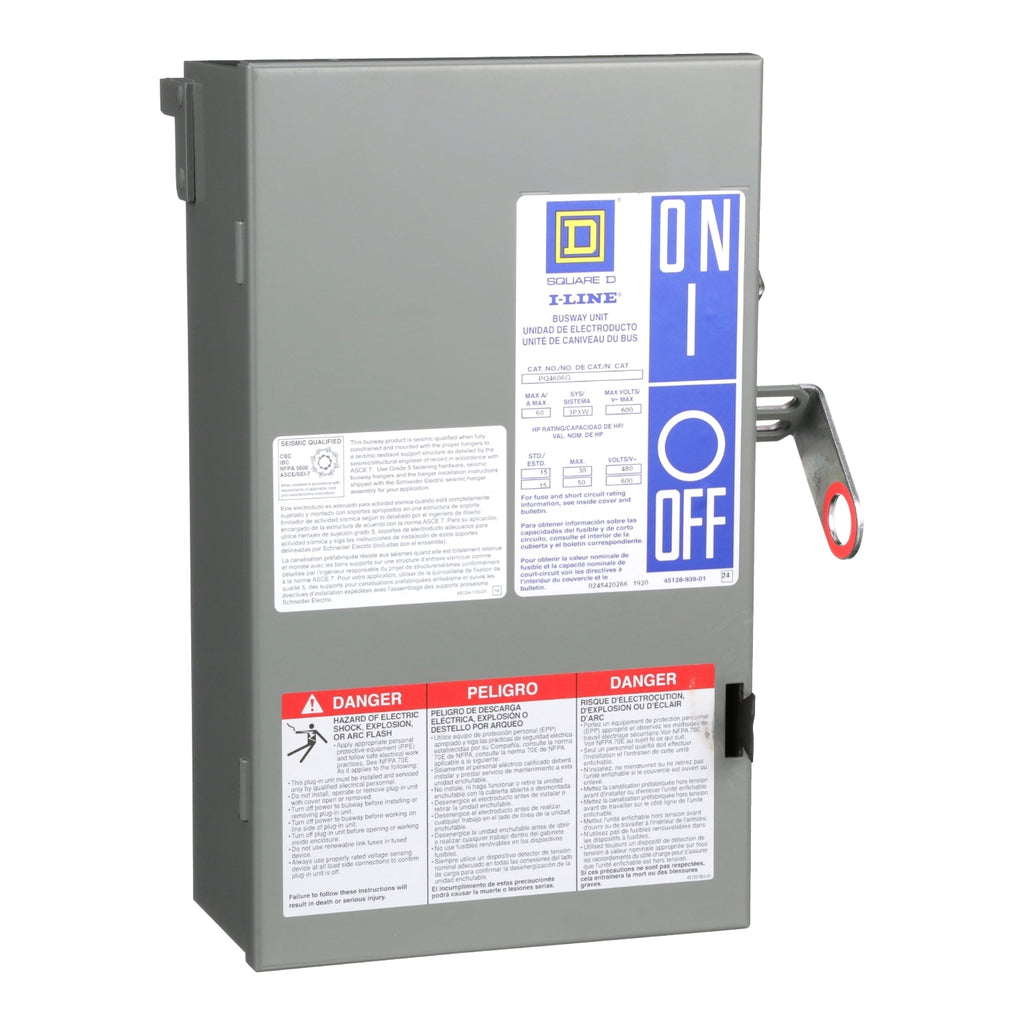

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Bus Plug Part
- Series
- I-Line
- Frame
- PQ
- Rated current
- 60
- Voltage
- 600V
- Phases
- 3
- Interrupting rating
- 200kA@480V
- Wires
- 4
- Fuse class
- H, K, R
- Weight
- 30
Product description & additional details
PQ4606
PQ4606 is a fusible bus plug rated at 60 amperes, designed for use with Schneider Electric I-Line II busway systems at voltages up to 600V. This plug-in unit features a compact, totally enclosed design with sandwich-type construction that delivers superior voltage drop characteristics and low surface-to-surface contact resistance. The unit utilizes a durable polyester powder coat paint finish and provides easy, quick installation with up to 75% savings in installation time compared to traditional methods. Key Specifications
- Amperage Rating: 60A
- Voltage: 277/480/600V AC
- Poles: 4-pole with 3 fuses and ground
- Series/Frame: PQ, I-Line II
- Mounting Type: Hook-swing plug-in
- Trip Unit: Fusible (Class R)
- Interrupt Rating: 200kA at 480V
- Wire Compatibility: AWG 12 to AWG 1/0 phase, AWG 10 to AWG 2 ground
- Construction: Sandwich-type with integral ground bus
- Finish: Polyester powder coat paint
Specifications
- Part Number: PQ4606
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Bus Plug
- Item Subcategory : Bus Plug Part
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 60
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H, K, R
- Wire : 4
Product Data
- Weight : 30
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
