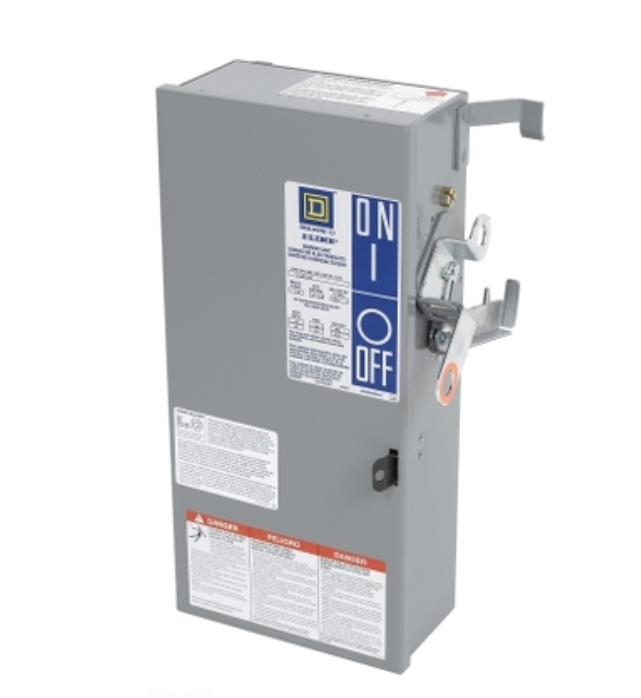

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Fusible
- Series
- I-Line
- Frame
- PQ
- Rated current
- 100
- Voltage
- 600V
- Phases
- 3
- Interrupting rating
- 200kA@480V
- Wires
- 3
- Fuse class
- H,K,R
- Weight
- 35
Product description & additional details
PQ3610
PQ3610 is a 100A, 600V, 3-pole fusible bus plug designed for I-Line busway systems. This plug-in unit provides reliable power distribution with Class H, J, K, or R fuses for industrial and commercial applications. The PQ3610 features a plug-in mounting style, making installation quick and easy. It is rated for 100A continuous current and 600V AC, with a ground connection for added safety. The unit is compatible with I-Line Style I and II busway systems and is suitable for use with both aluminum and copper bus bars. It offers an interrupt rating of 200kA at 480V and is certified by UL and CSA for safety and reliability.
- Part Number: PQ3610
- Manufacturer: Schneider Electric
- Series: I-Line
- Amperage: 100A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Plug-in
- Fuse Type: Class H, J, K, R
- Interrupt Rating: 200kA @ 480V
- Ground: Yes
- Certifications: UL, CSA
- Busway Compatibility: I-Line Style I & II
Specifications
- Part Number: PQ3610
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H,K,R
- Wire : 3
Product Data
- Weight : 35
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
