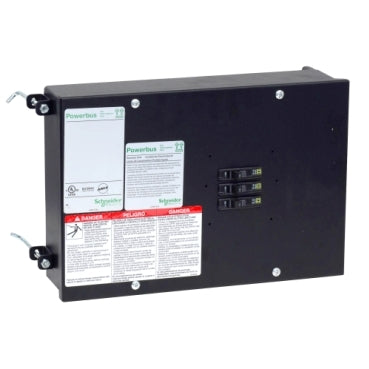

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Breaker Type
- Series
- Powerbus
- Frame
- PBPQO
- Rated current
- 100
- Voltage
- 240V
- Phases
- 3
- Interrupting rating
- 10kA@240V
- Wires
- 4
- Country of origin
- United States
- UPC
- 785901438700
- GTIN
- 00785901438700
- Dimensions
- Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
- Weight
- 13.001
Product description & additional details
PBPQO4A100
PBPQO4A100 is a 3-phase, 4-wire bus plug designed for use with Square D Powerbus 225 busway systems, rated for 100A at 240V. This breaker type plug-in unit offers reliable and scalable power distribution for commercial and industrial applications.Engineered for flexibility and modularity, the PBPQO4A100 allows for easy installation, movement, and reconfiguration within the busway system. It features a NEMA 1 enclosure and is compatible with QO or QOB circuit breakers, making it suitable for a wide range of power distribution needs.
- 100A rated current
- 240V maximum voltage
- 3-phase, 4-wire configuration
- 4 poles
- Compatible with Powerbus 225 busway
- Breaker type plug-in unit
- NEMA 1 enclosure
- Designed for QO or QOB circuit breakers
- Integral ground (50%)
- Scalable and modular design
- Simple installation and reconfiguration
- US origin
Specifications
- Part Number: PBPQO4A100
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : Powerbus
- Type : PBPQO
- Voltage : 240
- Amperage : 100
- Phase : 3
- AIC rating : 10kA@240V
- Wire : 4
Product Data
- UPC : 785901438700
- GTIN : 00785901438700
- Country of Origin : United States
- Dimensions : Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
- Weight : 13.001
Technical Documents
