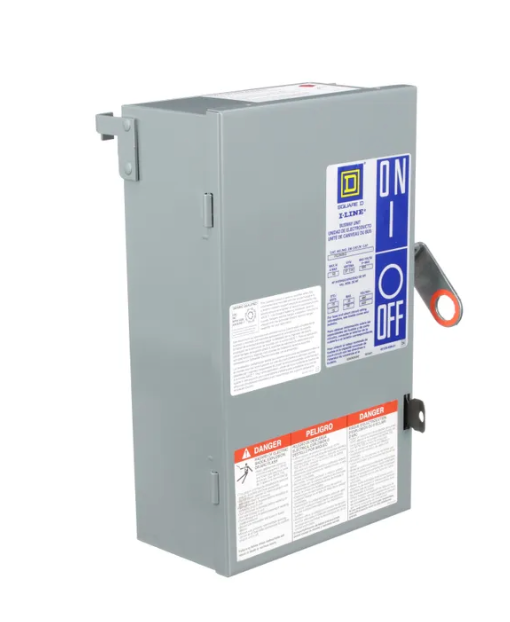

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Fusible
- Series
- I-Line
- Frame
- PQ
- Rated current
- 30
- Voltage
- 600V
- Phases
- 3
- Interrupting rating
- 200kA@480V
- Wires
- 3
- Fuse class
- H,K,R
- GTIN
- 00785901263906
- Weight
- 30
Product description & additional details
PQ3603
PQ3603 is a Schneider Electric fusible bus plug designed for 3-phase, 3-wire busway systems, rated at 30 Amps and 600 Volts. It belongs to the I-Line series and provides reliable power distribution with fusible protection.The PQ3603 bus plug features a plug-in mounting type compatible with I-Line Style I and II aluminum and copper busway systems. It supports a 3-pole configuration and is rated for 30A continuous current at 600V AC. This fusible bus plug is engineered for safe and efficient power interruption with UL class H, K, and R fuse compatibility.
- Amperage: 30 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Wire: 3-wire
- Mounting Type: Plug-in
- Interrupt Rating: Fusible with UL class H, K, R fuse compatibility
- Series/Frame: I-Line
- Manufacturer: Schneider Electric (Square D)
- Phase: 3-phase
- Compatible Busway: I-Line Style I & II Aluminum and Copper
- Type: Fusible Bus Plug
- Certifications: UL Listed
Specifications
- Part Number: PQ3603
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H,K,R
- Wire : 3
Product Data
- GTIN : 00785901263906
- Weight : 30
