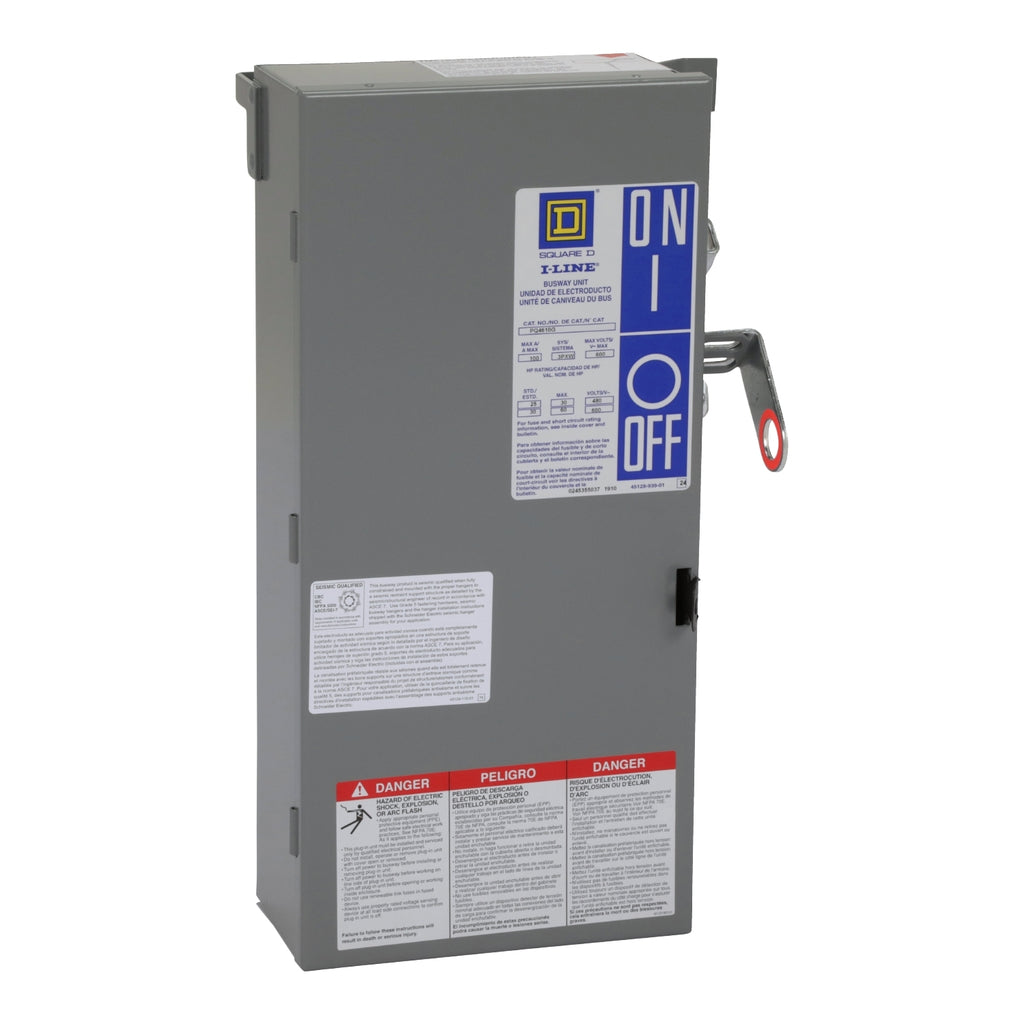

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Fusible
- Series
- I-Line
- Frame
- PQ
- Rated current
- 100
- Voltage
- 277-480 V
- Poles
- 4
- Phases
- 3
- Interrupting rating
- 200 kA
- Wires
- 4
- Fuse class
- H, K, R
- Country of origin
- Mexico
- Breaker Type
- PQ
- Bus Type
- Plug-in fusible busway unit
Show all specifications (8 more)
- Mounting
- Hook-swing mounting
- Hz
- 60 Hz
- Enclosure Type
- NEMA 1
- UPC
- 785901309901
- GTIN
- 00785901309901
- Dimensions
- Height 18.90 in (480 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight
- 17.81 lb
- Certification
- CSA C22.2 No 27 - UL listed file E22182
Product description & additional details
PQ4610G
PQ4610G is a Schneider Electric fusible plug-in busway unit used as a bus plug in I-Line and I-Line II busway systems.This I-Line style fusible bus plug is rated 100 A at 277/480 VAC, 4-pole (3-pole plus ground), and is designed for three-phase power distribution applications up to 600 V AC.Key Specifications
- Part Number: PQ4610G
- Manufacturer: Schneider Electric
- Family: I-Line
- Type: PQ
- Voltage: 277-480 V
- Amperage: 100 A
- Phase: 3
- Poles: 4
- AIC Rating: 200 kA
- Wire: 4 W
- Breaker Type: PQ
- Fuse Class: H, K, R
- Bus Type: Plug-in fusible busway unit
- Mounting: Hook-swing mounting
- Hz: 60 Hz
- Enclosure Type: NEMA 1
Specifications
- Part Number: PQ4610G
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 277-480 V
- Amperage : 100 A
- Phase : 3
- Poles : 4
- AIC rating : 200 kA
- Breaker Type : PQ
- Fuse Class : H, K, R
- Wire : 4 W
- Bus Type : Plug-in fusible busway unit
- Mounting : Hook-swing mounting
- Hz : 60 Hz
- Enclosure Type : NEMA 1
Product Data
- UPC : 785901309901
- GTIN : 00785901309901
- Country of Origin : Mexico
- Dimensions : Height 18.90 in (480 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 17.81 lb
- Certification : CSA C22.2 No 27 - UL listed file E22182
Technical Documents
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
