LDA36600U33X - Square D PowerPact L 600A 600VAC 3 Pole Molded Case Circuit Breaker

LDA36600U33X

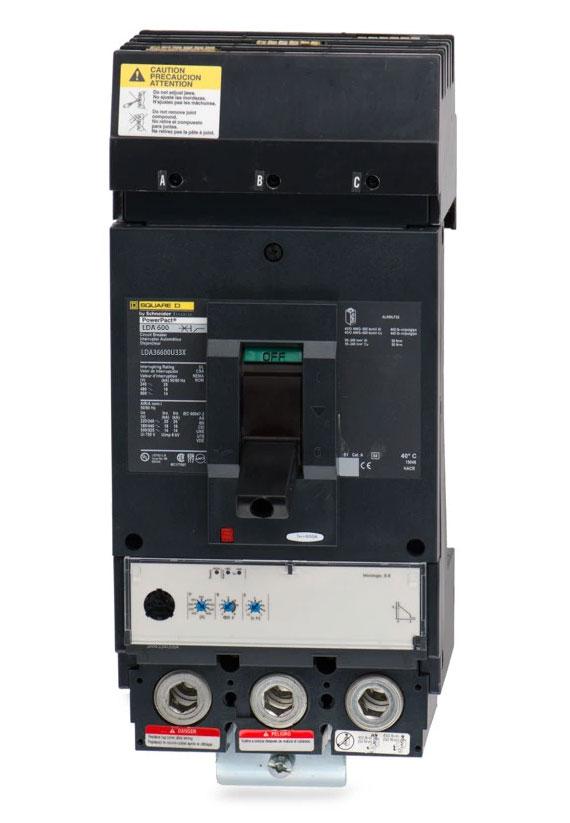

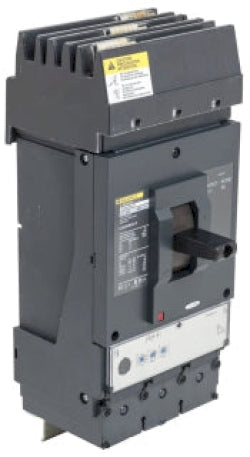

LDA36600U33X is a Square D PowerPact L molded case circuit breaker rated for 600 Amps and 600 Volts AC with 3 poles.This circuit breaker features a solid state trip unit with Micrologic 3.3S electronic trip technology, providing long time, short time, and instantaneous protection. It has an interrupt rating of 18kA at 480V and is designed for I-Line style plug-in mounting. The breaker is suitable for three-phase applications and meets industry certifications including UL 489 and ANSI standards.

• Manufacturer: Square D
• Series/Frame: PowerPact L (LDA type)
• Amperage: 600 Amps
• Voltage Rating: 600 VAC
• Poles: 3 Pole
• Interrupt Rating: 18kA at 480V
• Trip Unit: Micrologic 3.3S electronic trip
• Mounting Type: I-Line style plug-in
• Phase: 3 Phase
• Certifications: UL 489, ANSI C37

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LDA36600U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LDA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State

Product Data

• UPC : 060648628373
• GTIN : 03606486283738
• Country of Origin : Mexico
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
