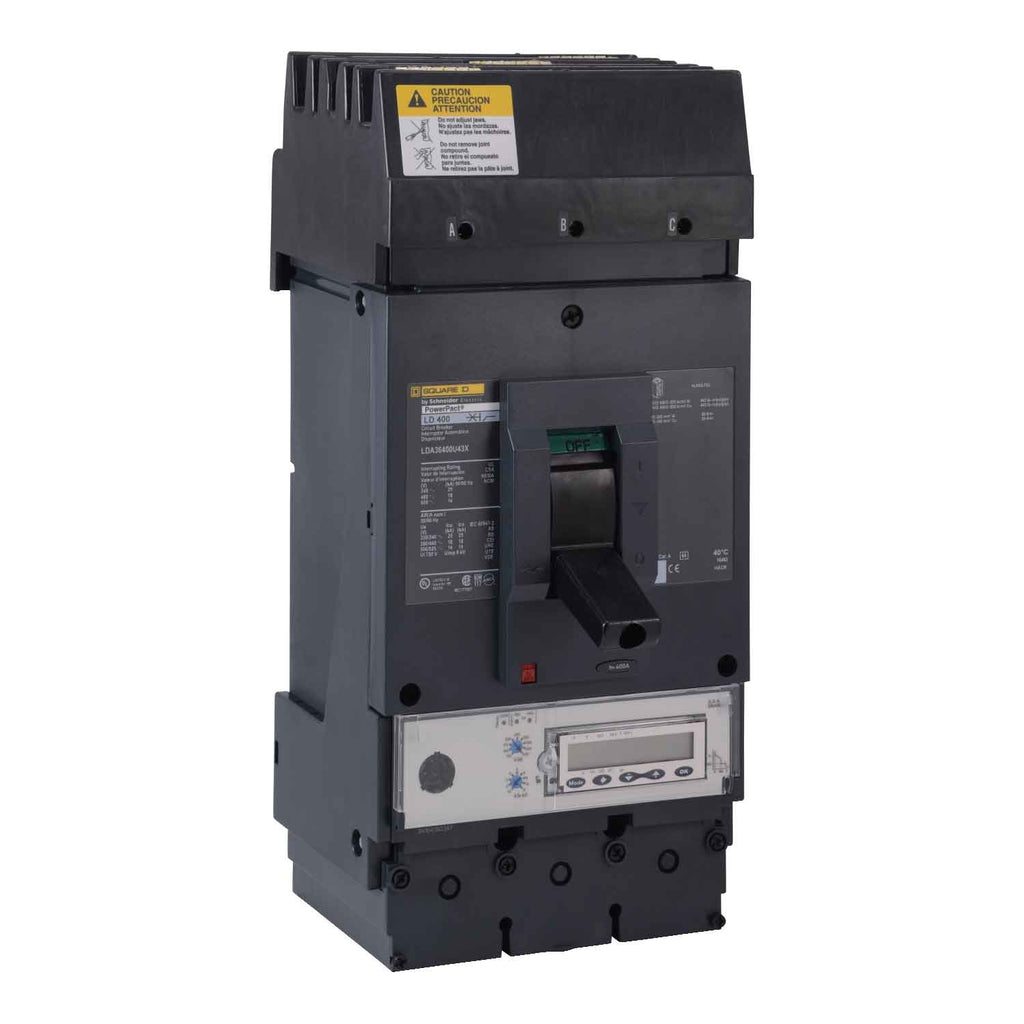

LDA36600U43X - Square D PowerPact L 600V 600A 3 Pole Molded Case Circuit Breaker I-Line Plug-In

LDA36600U43X

LDA36600U43X is a 3 pole, 600V, 600A molded case circuit breaker from the Square D PowerPact L series, designed for I-Line style plug-in mounting in commercial and industrial power distribution systems. This breaker features a solid-state trip unit, 18kA@480V AIC rating, and is built to meet UL 1066, UL 489, and ANSI C37 standards for reliable protection and performance in demanding applications.

• Part Number: LDA36600U43X
• Manufacturer: Square D
• Series/Frame: PowerPact L
• Amperage: 600A
• Voltage: 600V
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 18kA@480V
• Phase: 3 Phase
• Trip Unit: Solid-State
• Certifications: UL 1066, UL 489, ANSI C37
• Application: Commercial & Industrial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LDA36600U43X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LDA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State

Product Data

• UPC : 060648628374
• GTIN : 03606486283745
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
