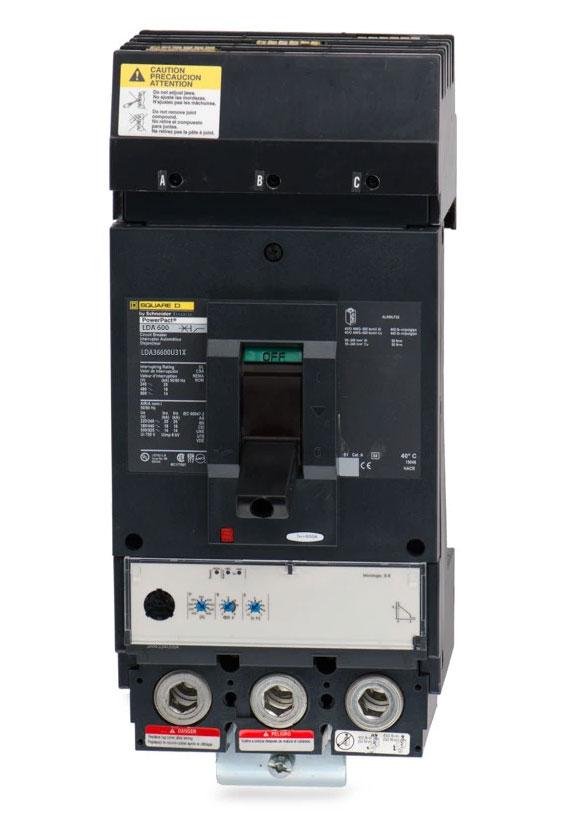

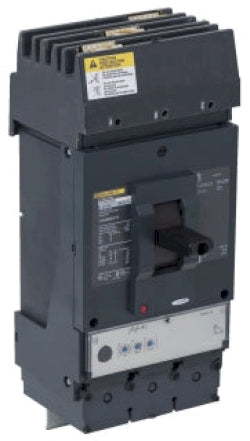

LDA36600U31X - Square D 600A 600V 3-Pole Molded Case Circuit Breaker I-Line Plug-On Micrologic 3.3

LDA36600U31X

LDA36600U31X is a 3-pole molded case circuit breaker from Square D designed for power distribution applications.This circuit breaker features a 600 ampere current rating and a 600 volt AC voltage rating. It uses an I-Line plug-on mounting style and includes a Micrologic 3.3 solid state electronic trip unit with long-time and instantaneous trip functions. The breaker has interrupt ratings of 25 kA at 240 VAC, 18 kA at 480 VAC, and 14 kA at 600 VAC. It is UL and CSA certified for safety and reliability.

Key Specifications
• Amperage: 600A
• Voltage Rating: 600V AC
• Poles: 3
• Mounting Type: I-Line Plug-On
• Interrupt Rating: 25kA @ 240V, 18kA @ 480V, 14kA @ 600V
• Series/Frame: PowerPact LDA
• Trip Unit: Micrologic 3.3, solid state electronic
• Certifications: UL 489, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LDA36600U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LDA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• MCM Size : Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901986737
• GTIN : 00785901986737
• Country of Origin : Mexico
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 18.77 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
