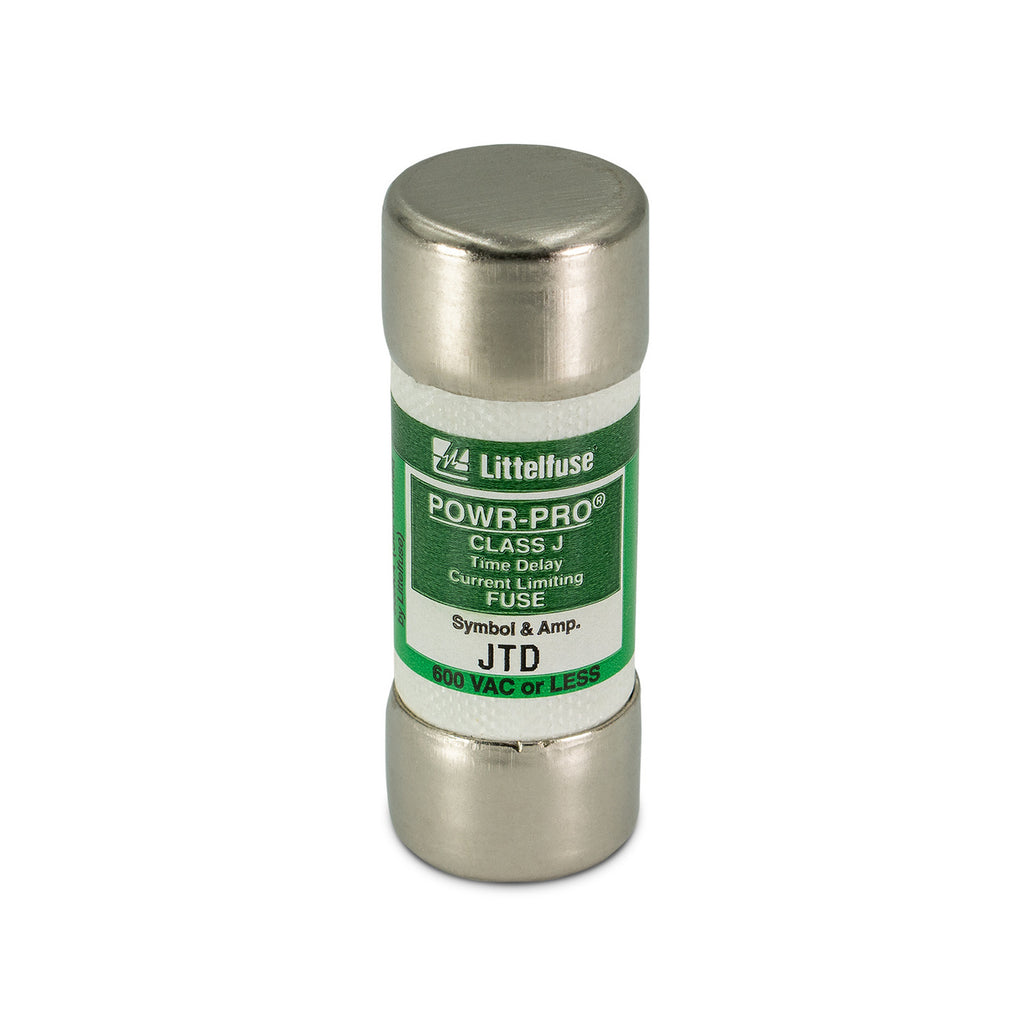

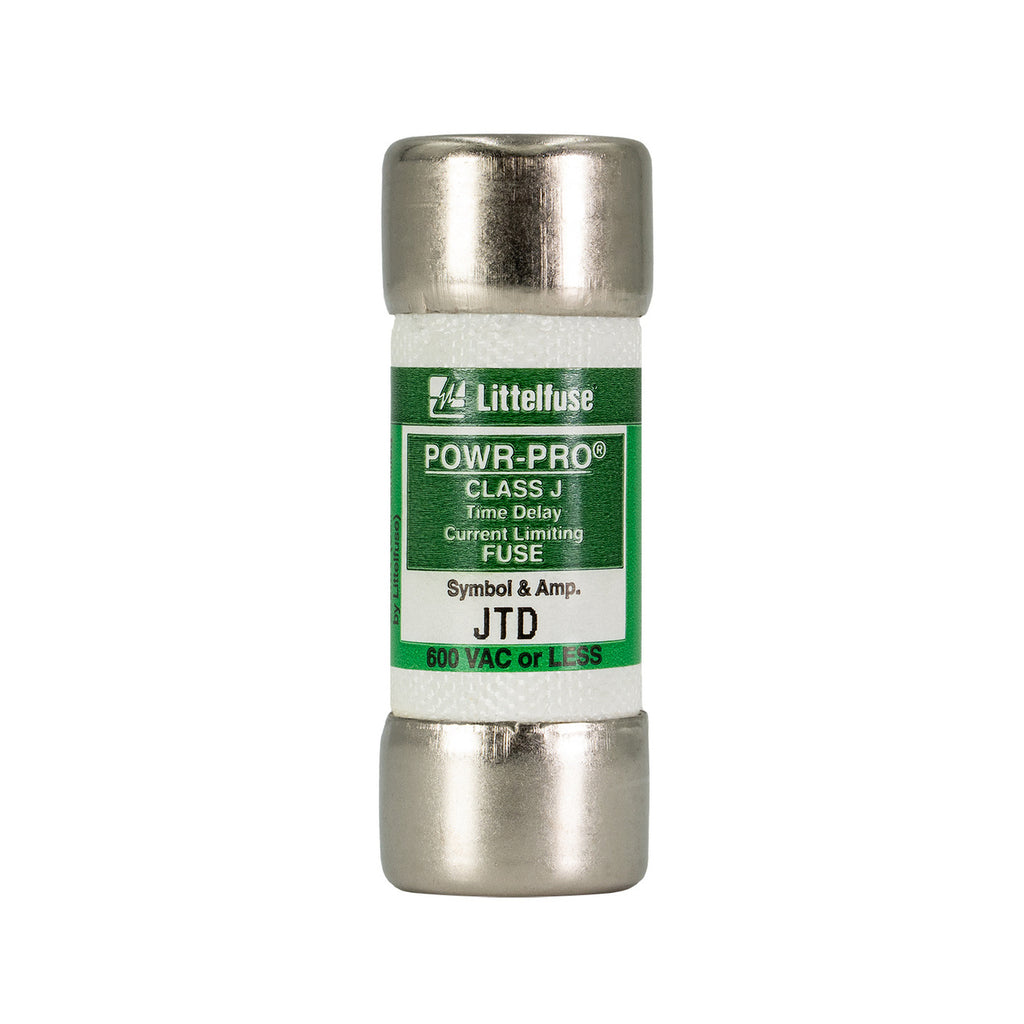

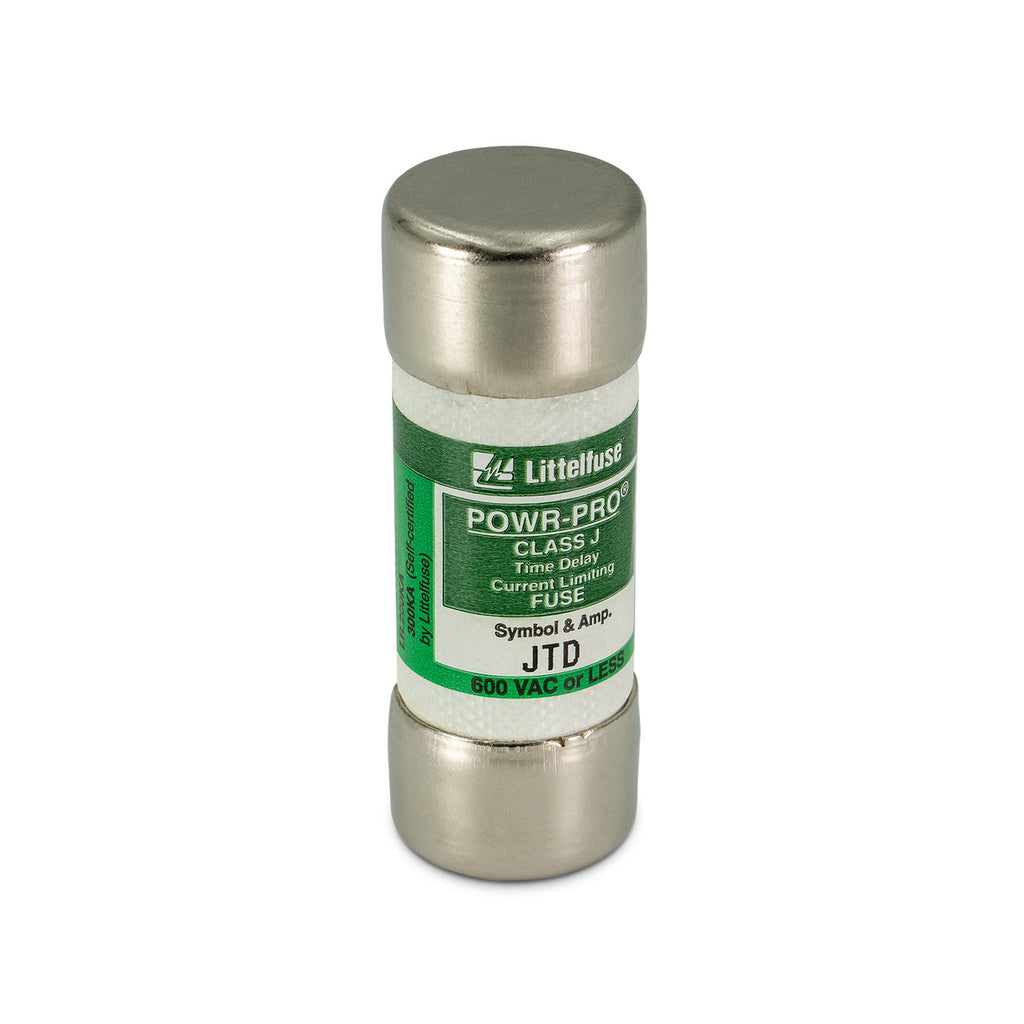

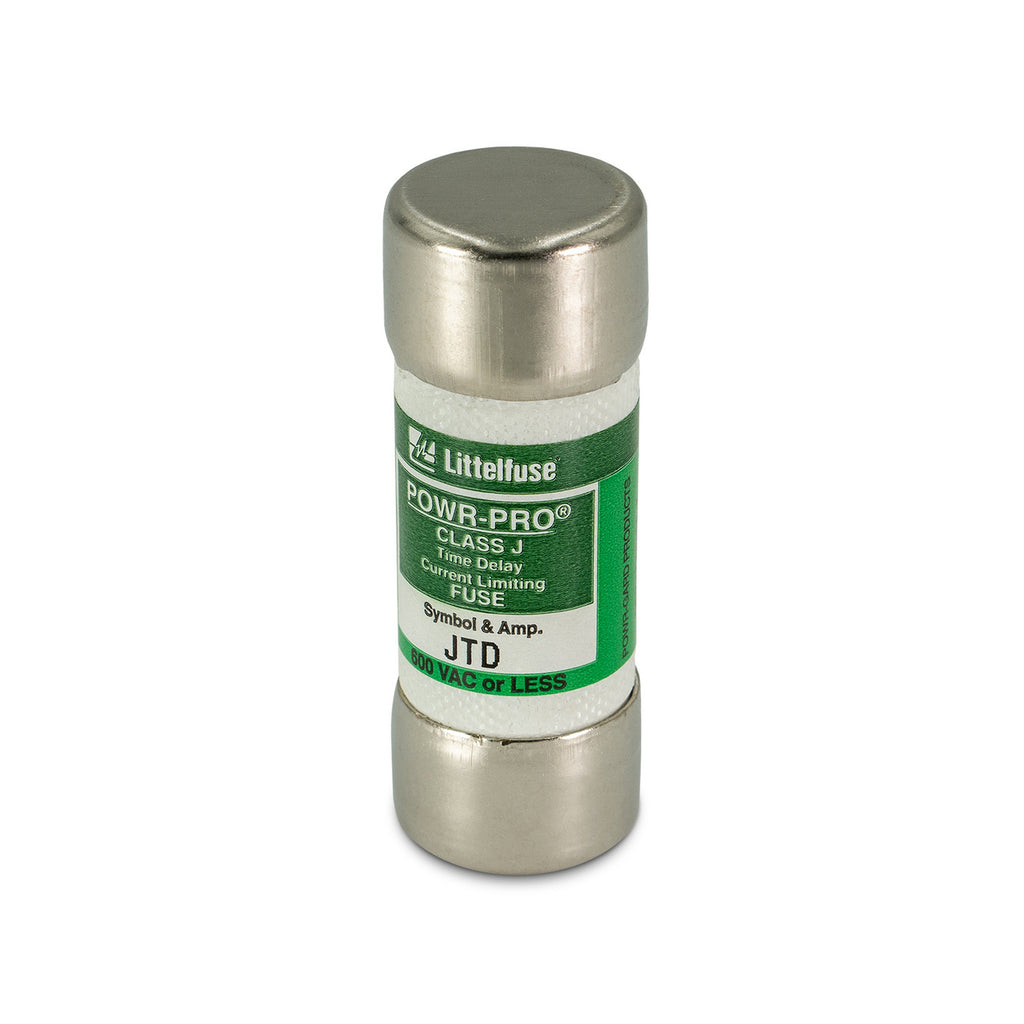

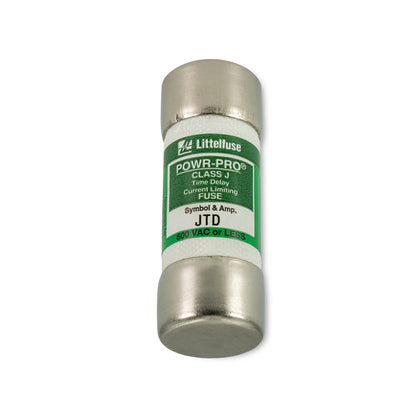

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Littelfuse
- Sub-Category
- Low Voltage Fuse
- UPC
- 079458202137
- GTIN
- 079458202137
- Weight
- 25
Product description & additional details
JTD-020
JTD-020 is a 20 Amp, 600 Volt Class J time delay fuse from Littelfuse designed for industrial cartridge applications.This Littelfuse JTD Series fuse features POWR-PRO advanced technology with dual-element, time-delay construction to provide superior current limiting and reduce nuisance fuse openings. It offers Type 2 "No Damage" protection for NEMA- and IEC-type motor circuit components, making it ideal for motor control centers, transformers, and fused combination motor controllers. The fuse has a 20 kA interrupt rating at 300 VDC and complies with UL 248-8 standards.
- Key Specifications
- Amperage: 20 A
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Class: Class J
- Fuse Type: Time Delay (Slow Blow), Dual Element
- Interrupt Rating: 20 kA at 300 VDC
- Mounting Type: Cartridge Style
- Size: 2.25 inch length x 0.811 inch diameter
- Certifications: UL 248-8, CSA, CE, PROP65
- POWR-PRO Technology for enhanced protection
- Type 2 "No Damage" motor circuit protection
Specifications
- Part Number: JTD-020
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
Product Data
- UPC : 079458202137
- GTIN : 079458202137
- Weight : 25
