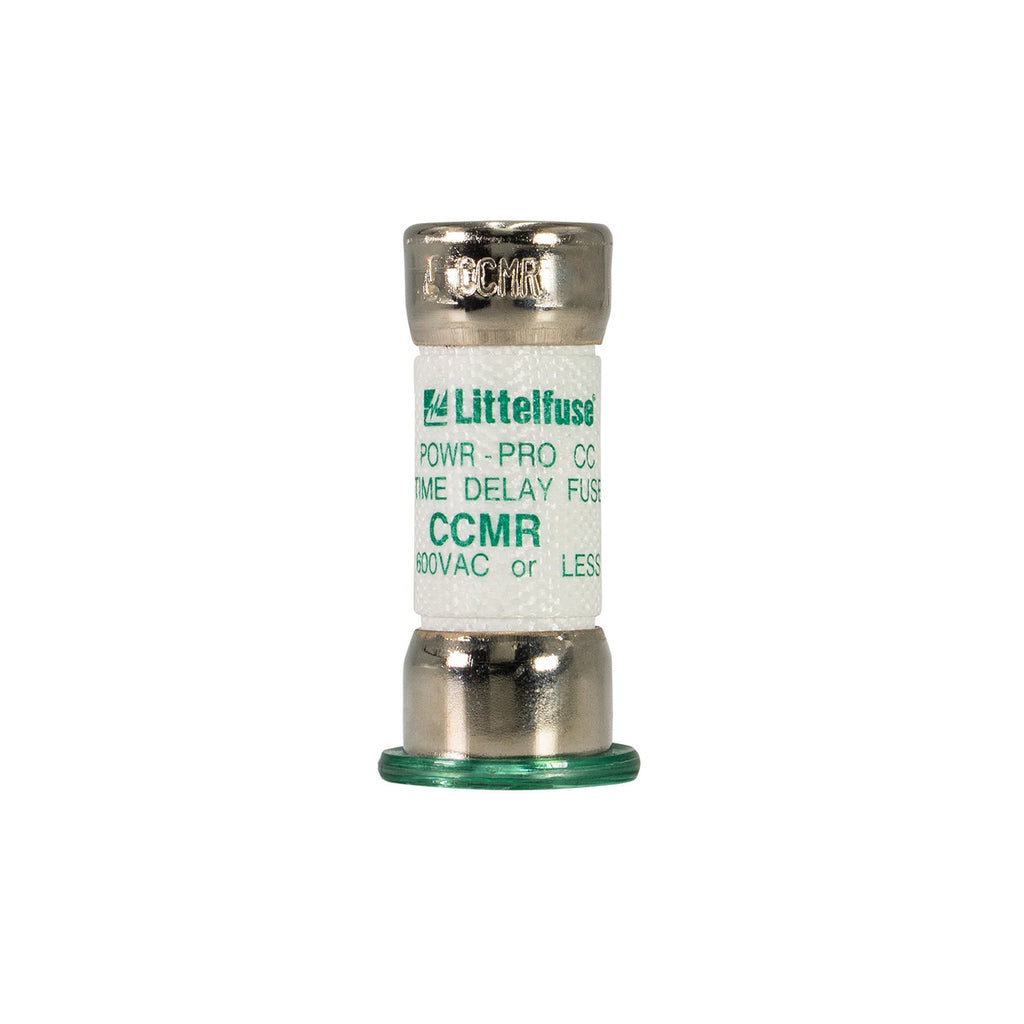

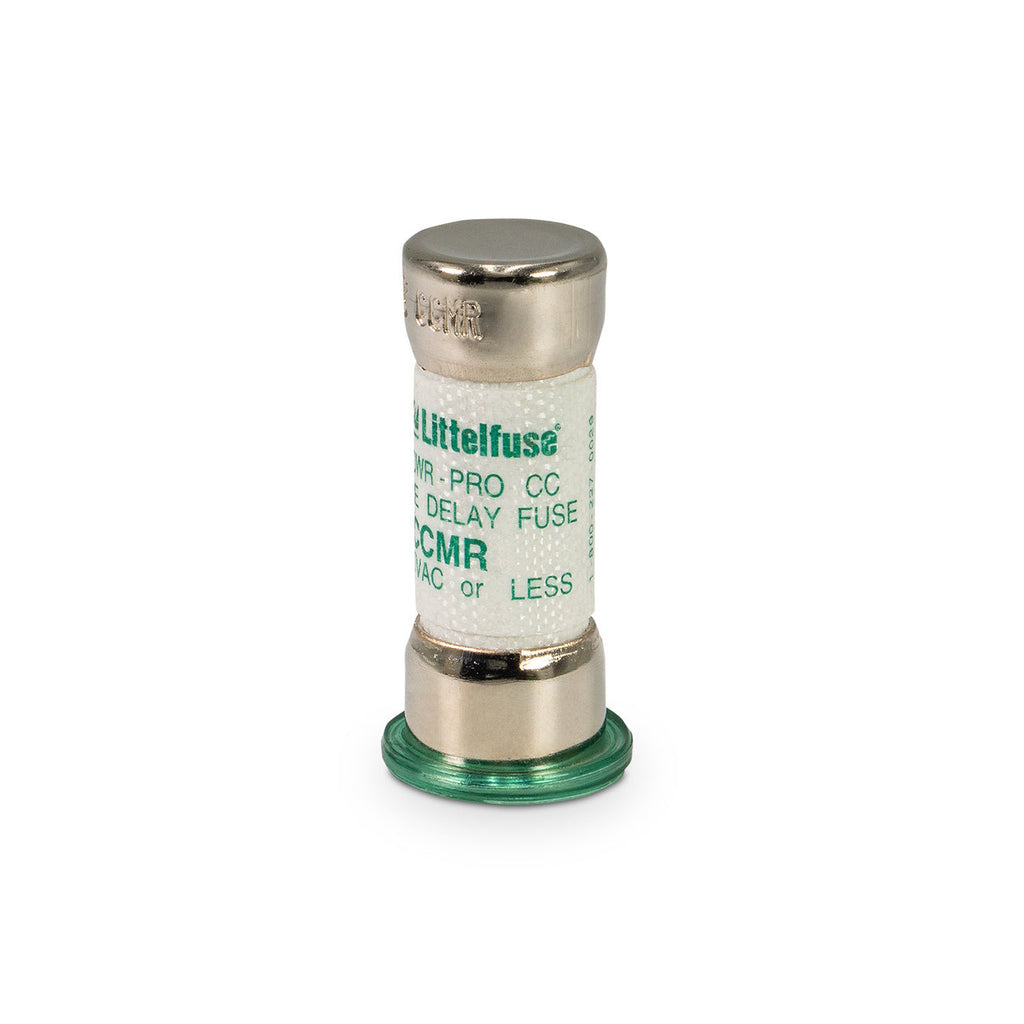

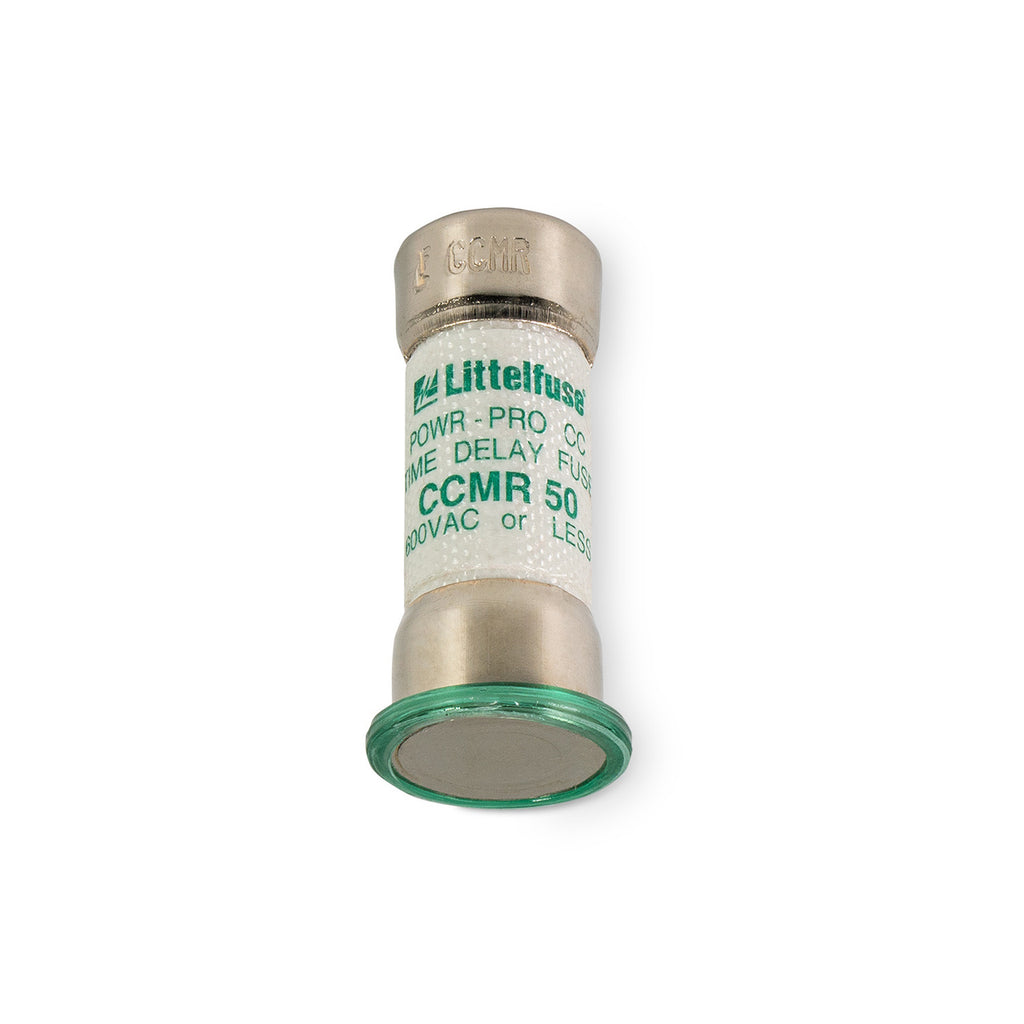

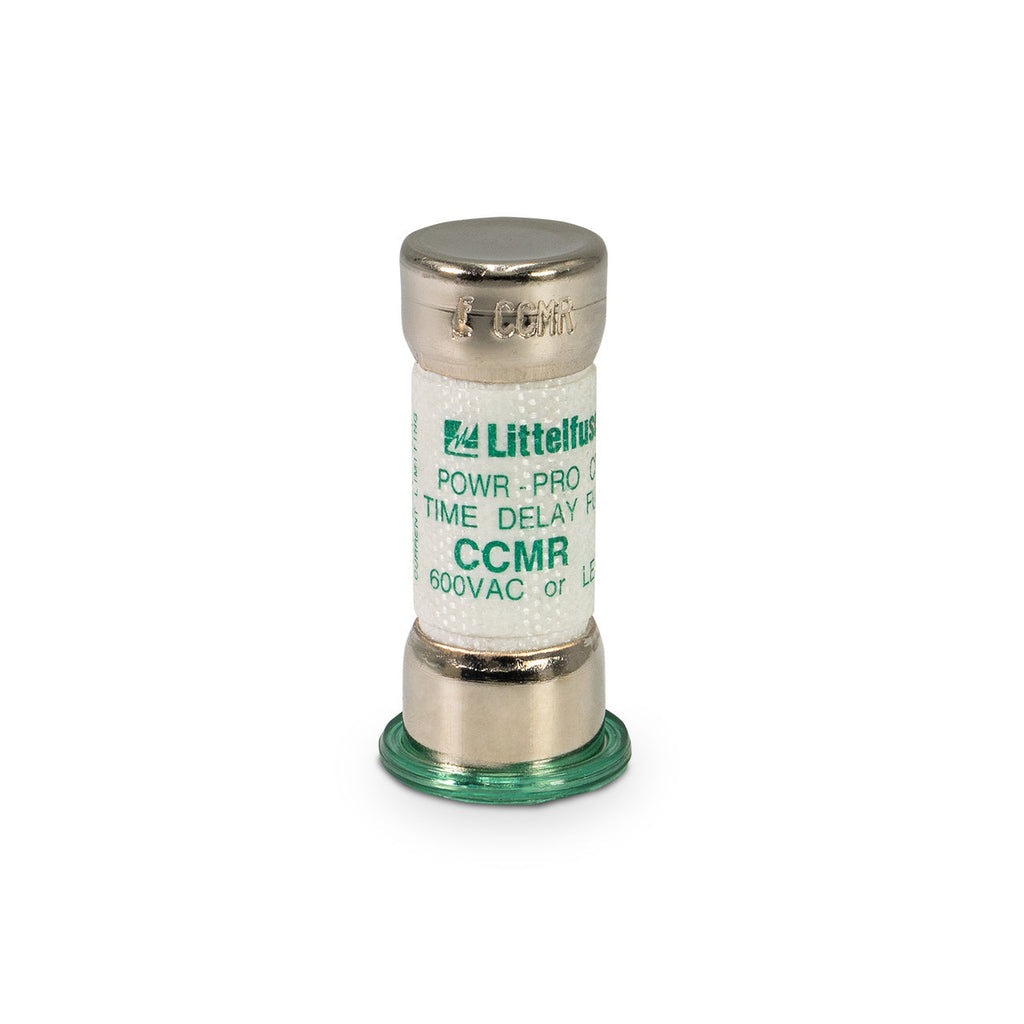

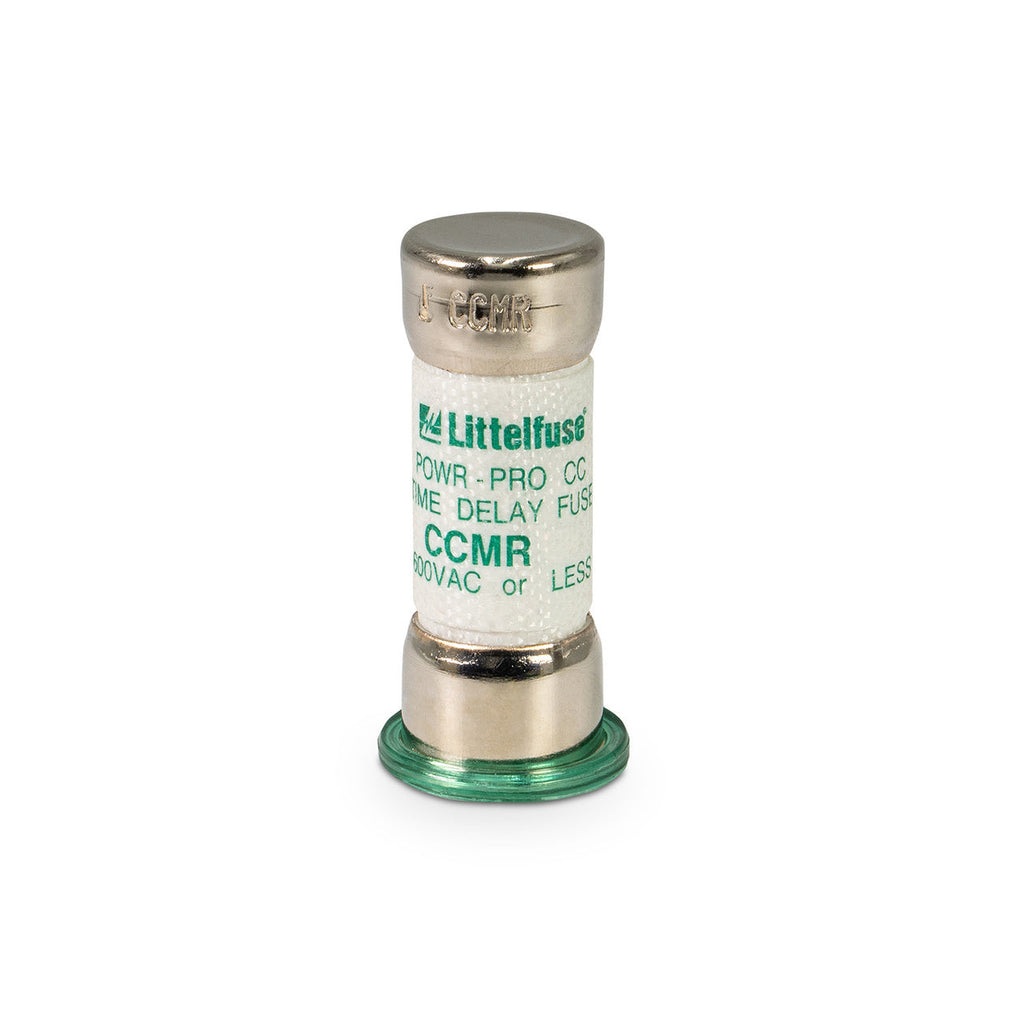

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Littelfuse
- Sub-Category
- Low Voltage Fuse
- Series
- Powr-Gard
- Frame
- CCMR
- Rated current
- 50
- Voltage
- 600V
- Interrupting rating
- 200kA@600V
- Connection
- Ferrule
- Class rating
- CC/CD
- Barrels
- 1
- Diameter
- 0.41 in
- UPC
- 07945801709
- GTIN
- 00079458017090
- Weight
- 2 lb
Product description & additional details
CCMR-050
CCMR-050 is a Littelfuse Class CC fuse rated for 50 Amps and 600 Volts AC, designed for motor and branch circuit protection.CCMR-050 features a time delay, dual element construction providing extremely current limiting performance with an interrupting rating of 200,000 AIC at 600VAC and 20,000 AIC at 250VDC. Its compact size and UL Class CC certification make it ideal for space-saving applications in motor circuits up to 40 HP.
- Amperage: 50 Amps
- Voltage Rating: 600 VAC, 250 VDC
- Fuse Class: UL Class CC
- Time Delay: Yes
- Dual Element Construction
- Interrupting Rating: 200,000 AIC @ 600VAC, 20,000 AIC @ 250VDC
- Physical Size: 0.85" x 1.88"
- Application: Motor and Motor Branch Circuit Protection
- Series: CCMR
- Certifications: UL Listed
Specifications
- Part Number: CCMR-050
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : CCMR
- Voltage : 600
- Amperage : 50
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC/CD
- Barrels : 1
Product Data
- UPC : 07945801709
- GTIN : 00079458017090
- Weight : 2 lb
