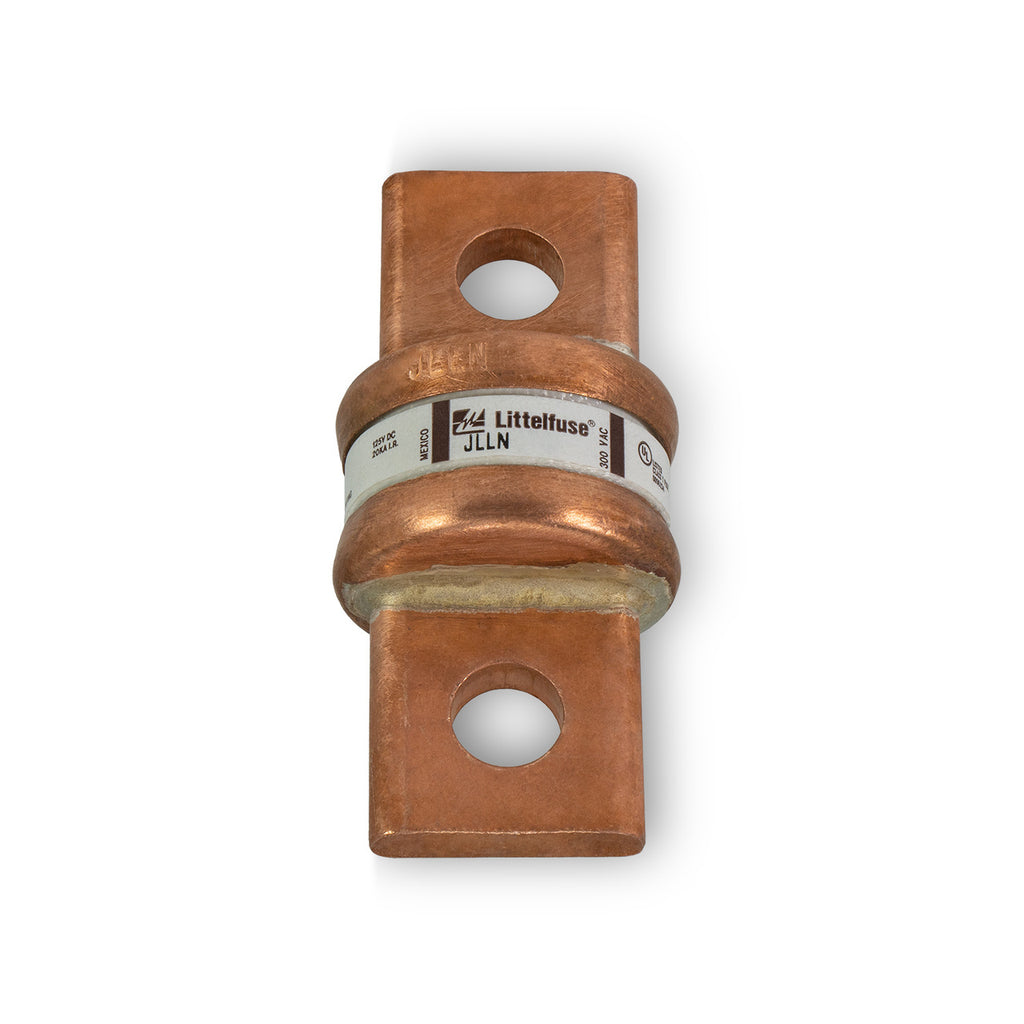

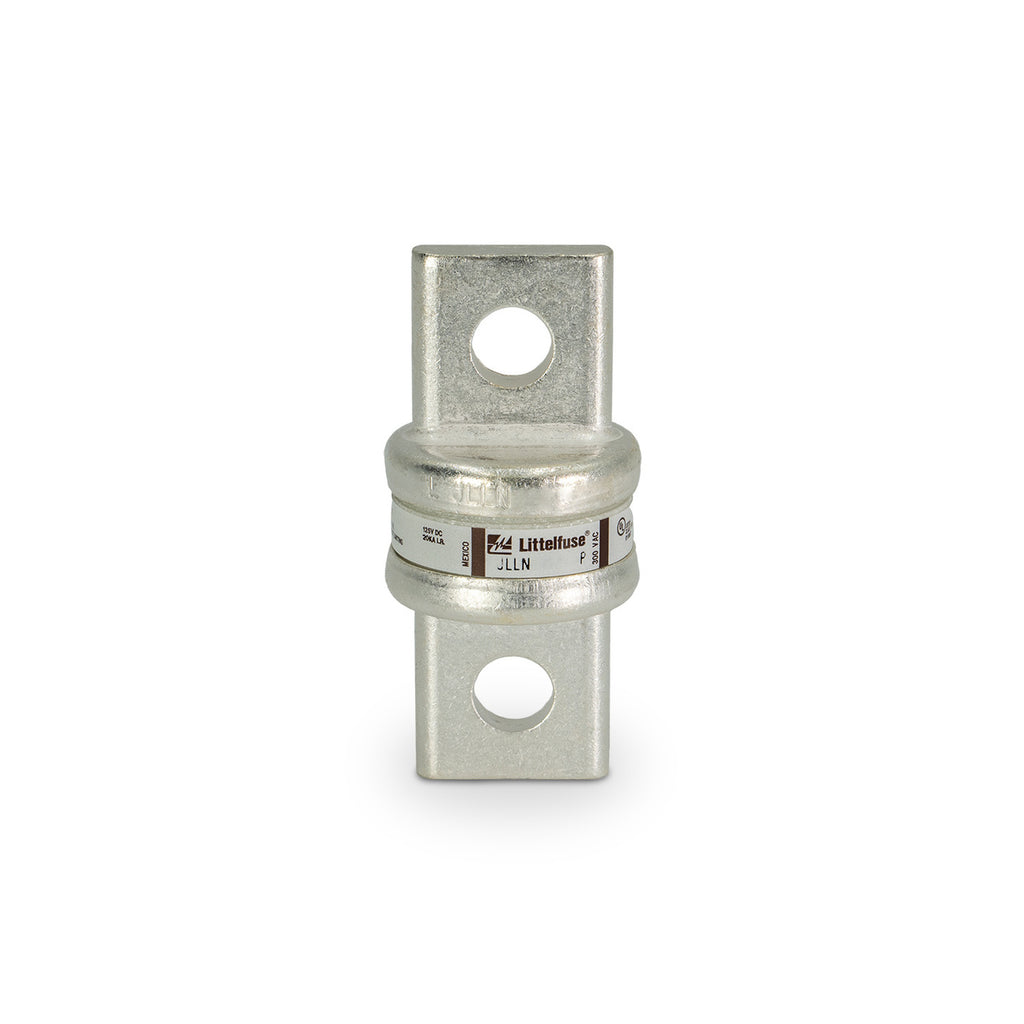

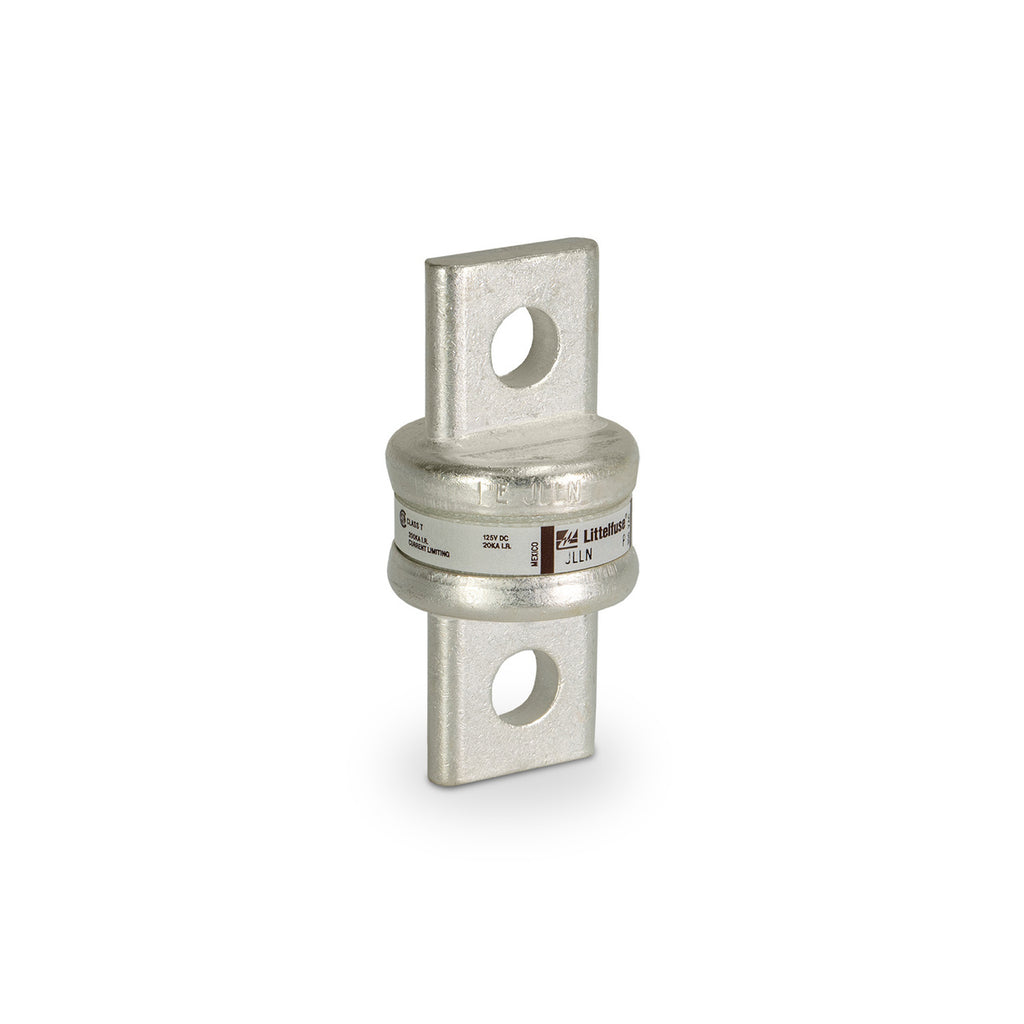

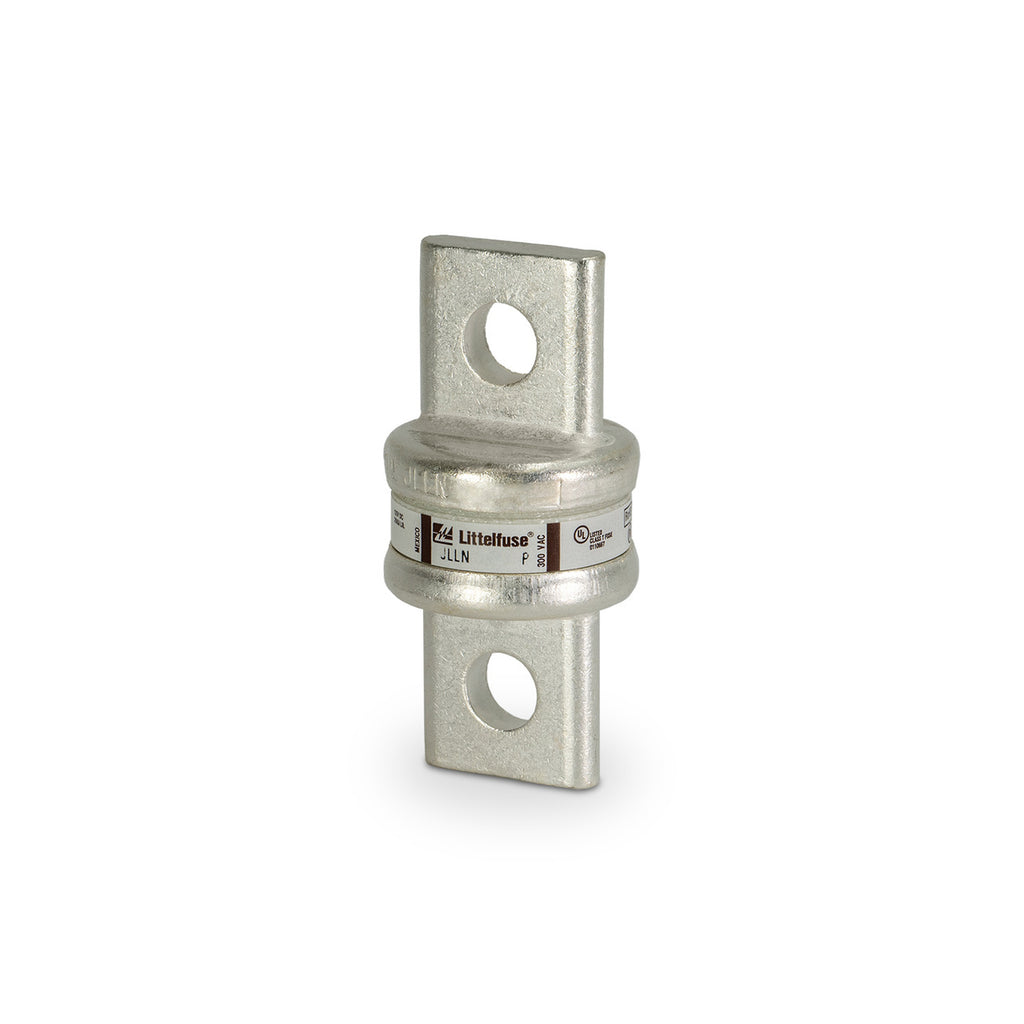

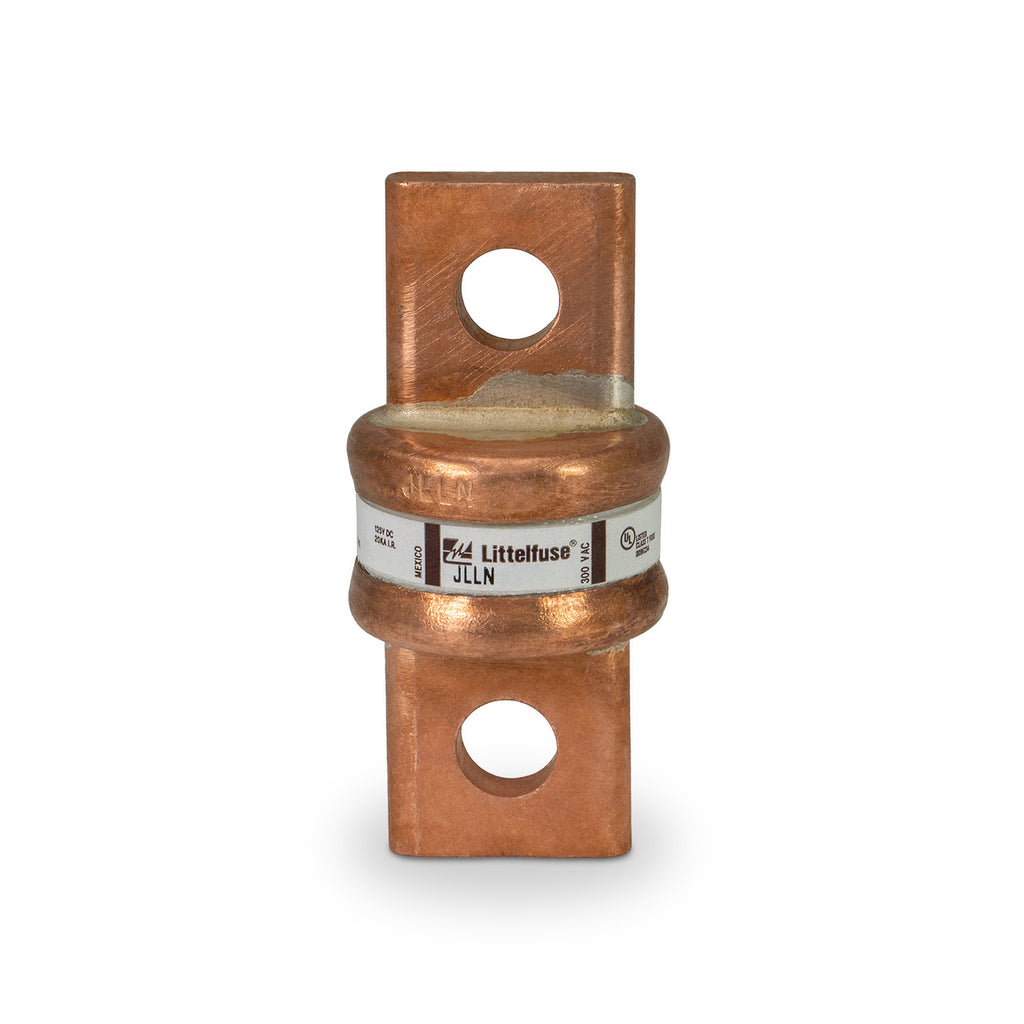

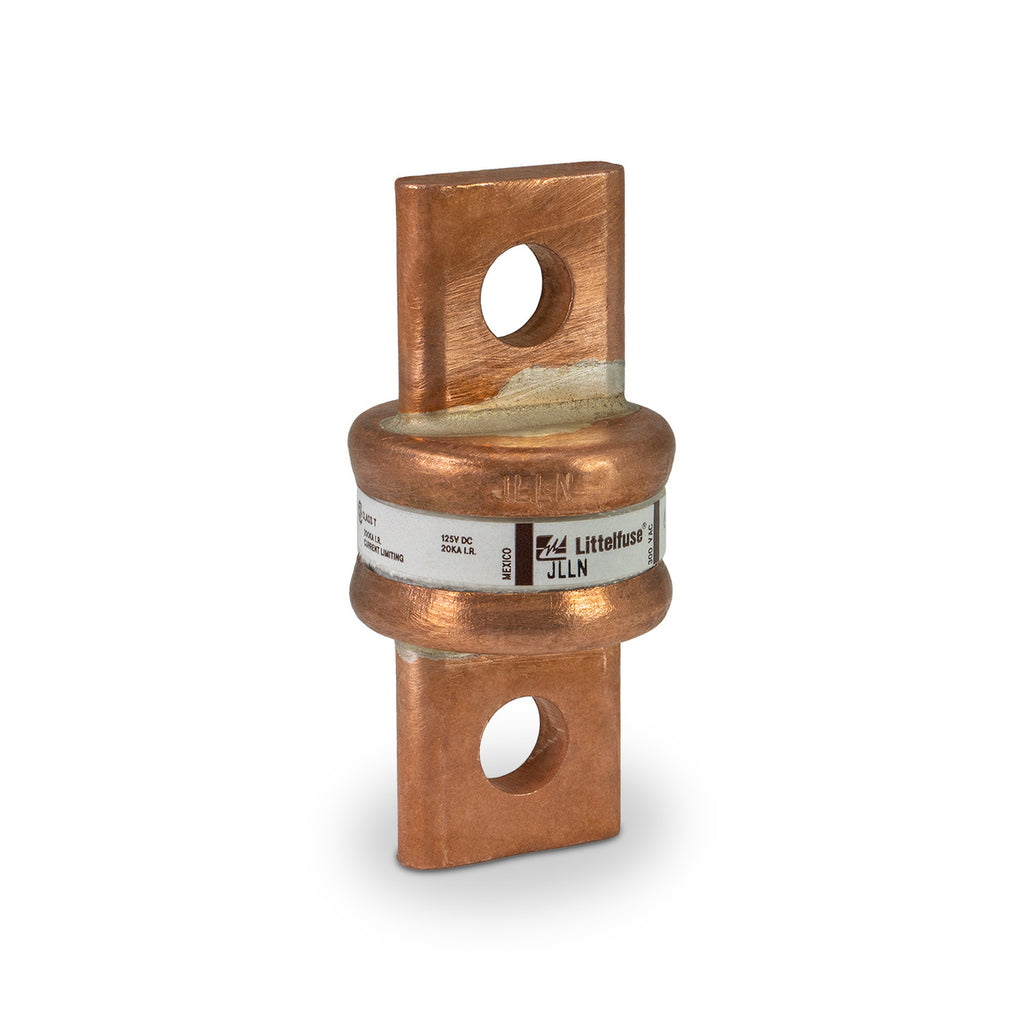

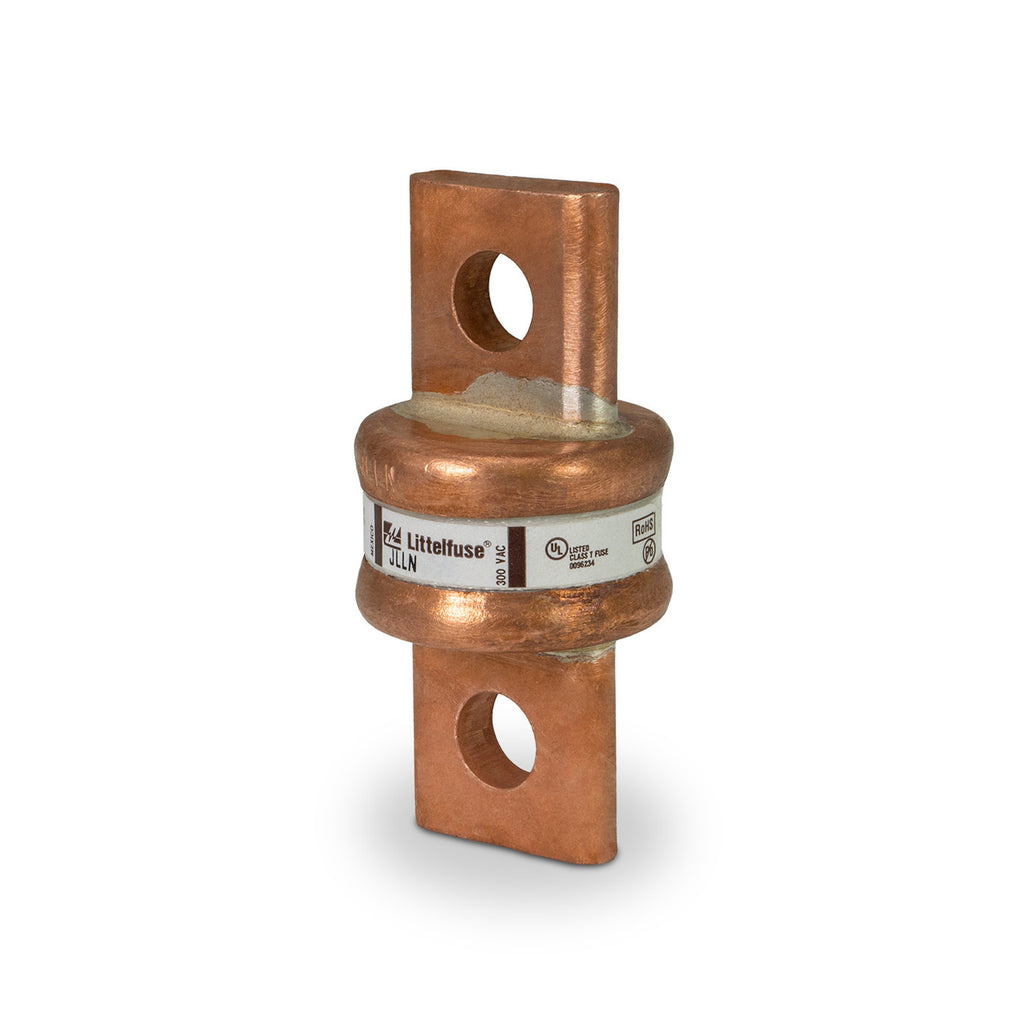

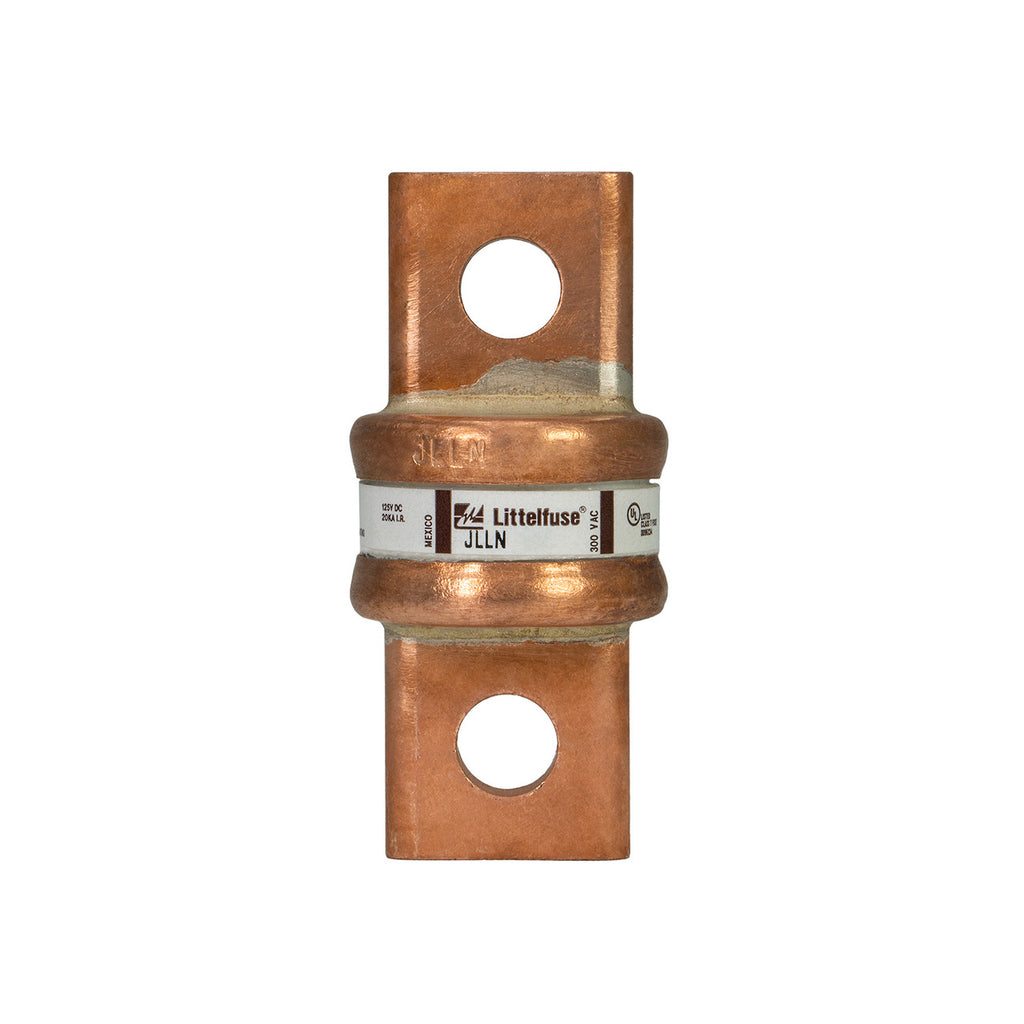

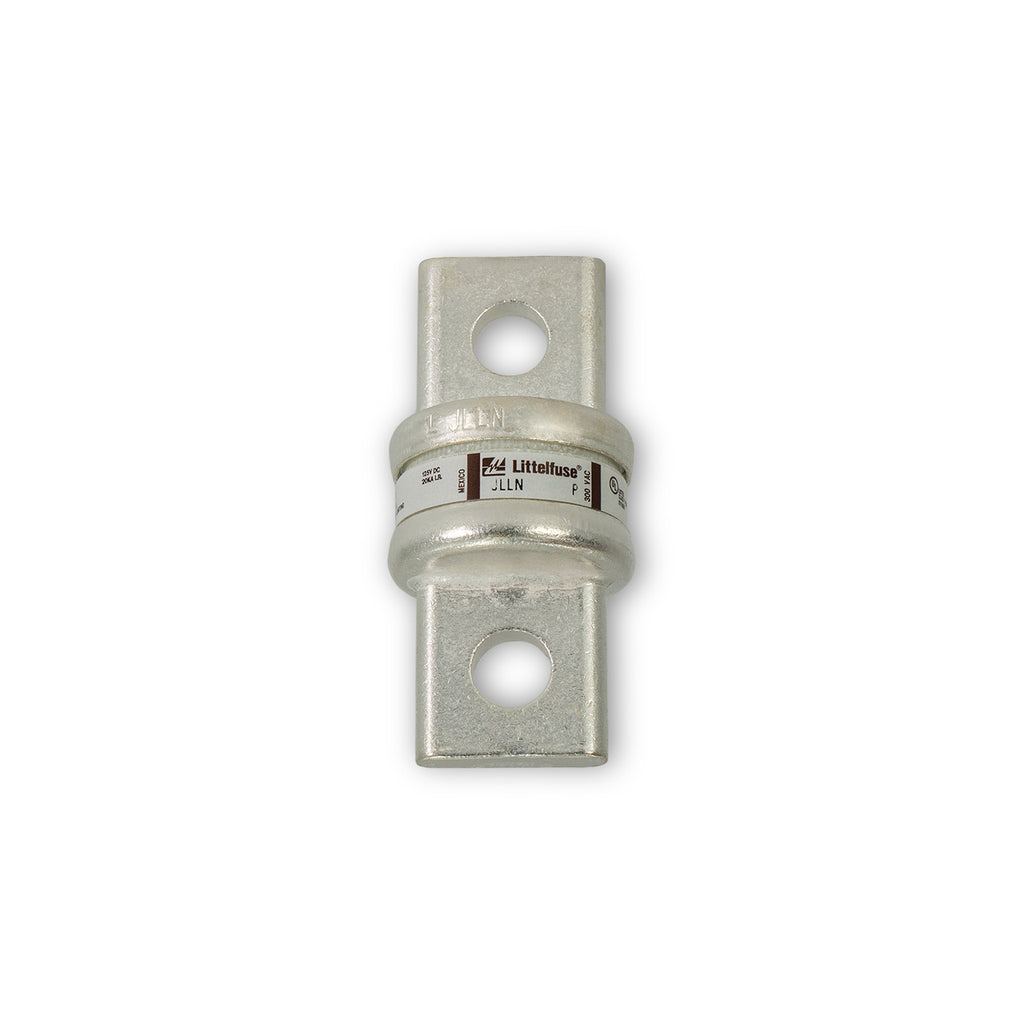

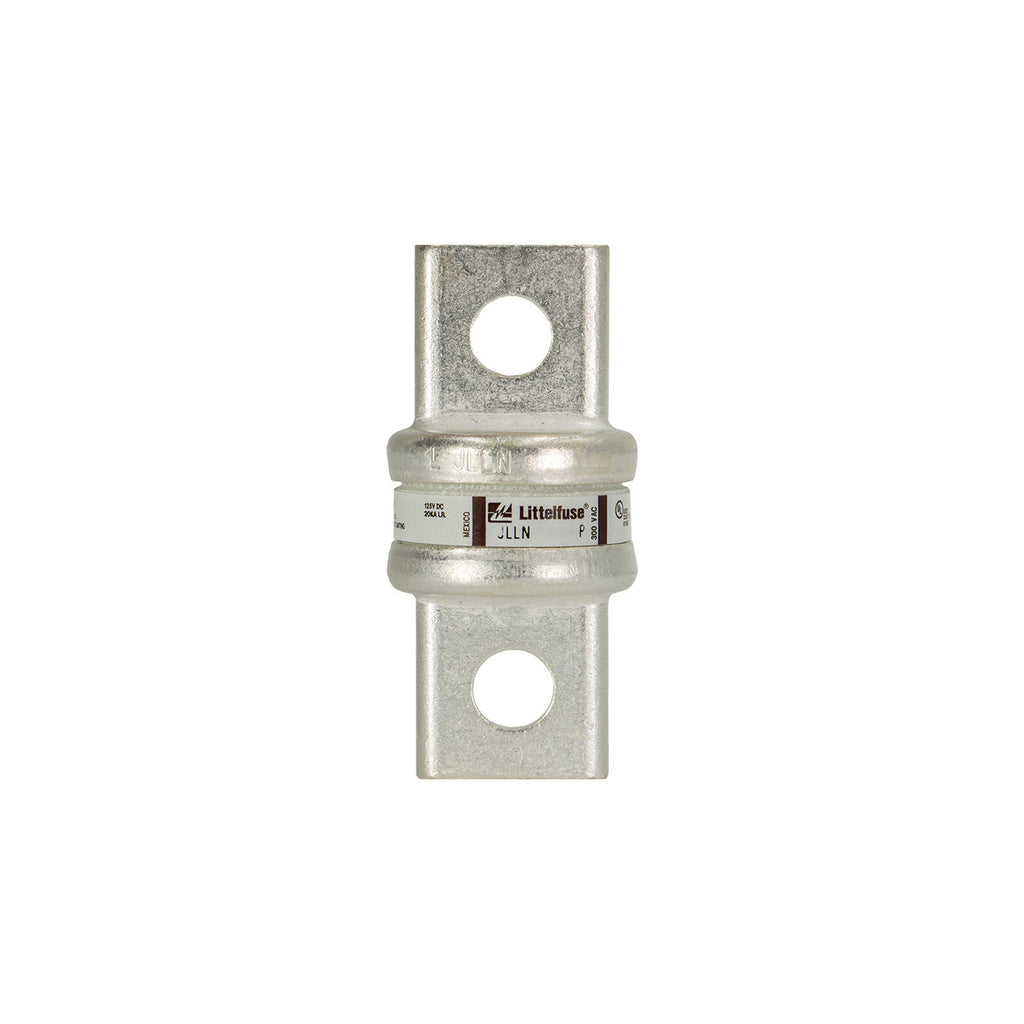

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Littelfuse
- Sub-Category
- Low Voltage Fuse
- Series
- Powr-Gard
- Frame
- JLLN
- Rated current
- 300
- Voltage
- 300V
- Interrupting rating
- 200kA@300V
- Class rating
- T
- Barrels
- 1
- Diameter
- 1.31 in
- Country of origin
- Mexico
- UPC
- 07945818091
- GTIN
- 00079458180916
- Weight
- 1.2
Product description & additional details
JLLN-300
JLLN-300 is a Littelfuse Class T fast-acting fuse rated for 300 amps and 300 volts AC, designed for compact and reliable circuit protection.This fuse features a very fast-acting, current-limiting design ideal for protecting variable speed drives and non-inductive circuits. It has a compact size of 1 5/16" x 2 3/4", an interrupting rating of 200,000 AIC at 300 VAC, and 20,000 AIC at 125 VDC. The JLLN-300 is UL Listed, CSA Certified, RoHS compliant, and manufactured in Mexico.
- Amperage: 300 A
- Voltage Rating: 300 V AC, 125 V DC
- Fuse Type: Class T, Fast Acting
- Interrupt Rating: 200,000 AIC @ 300 VAC, 20,000 AIC @ 125 VDC
- Physical Size: 1.31" diameter x 2.75" length
- Current Limiting
- Compact Design
- UL Listed (File: E81895)
- CSA Certified (File: LR29862)
- RoHS Compliant
- Country of Origin: Mexico
Specifications
- Part Number: JLLN-300
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 300
- AIC rating : 200kA@300V
- Diameter : 1.31
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818091
- GTIN : 00079458180916
- Country of Origin : Mexico
- Weight : 1.2
