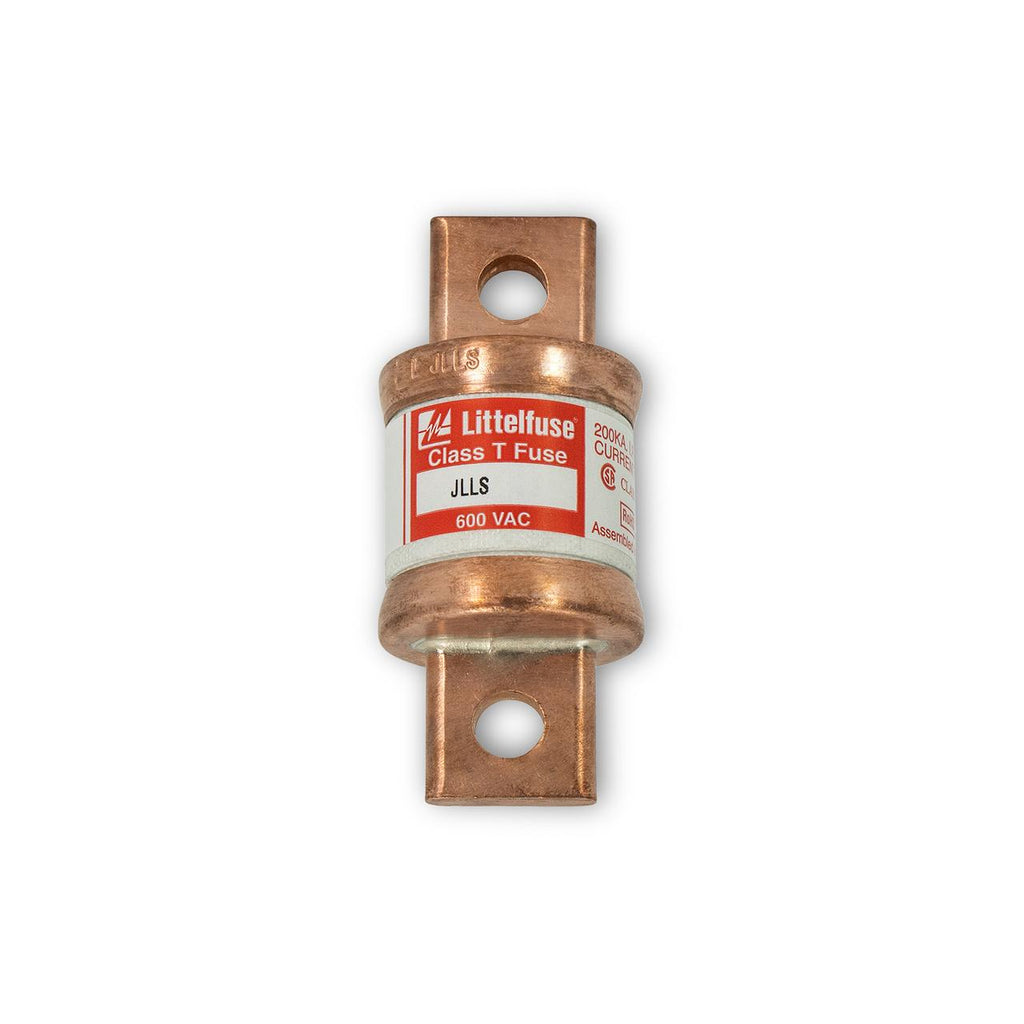

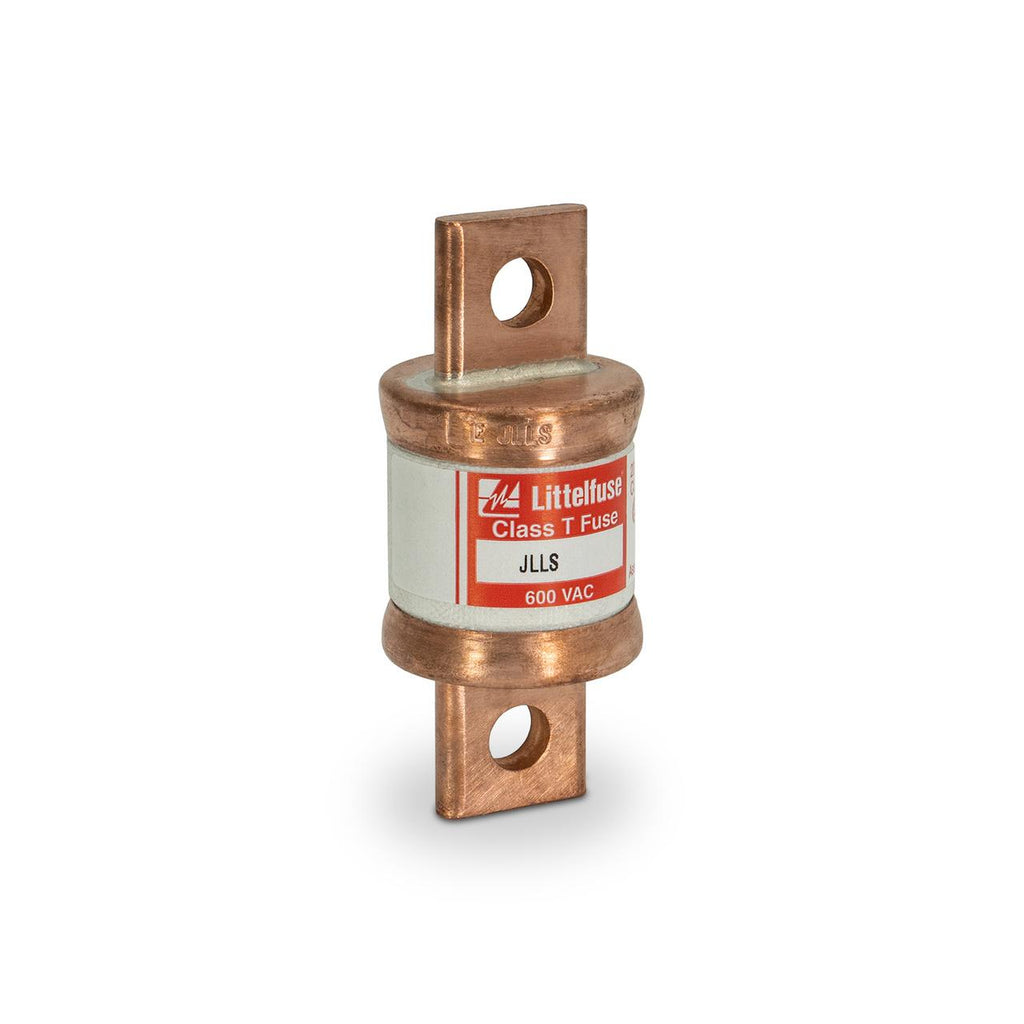

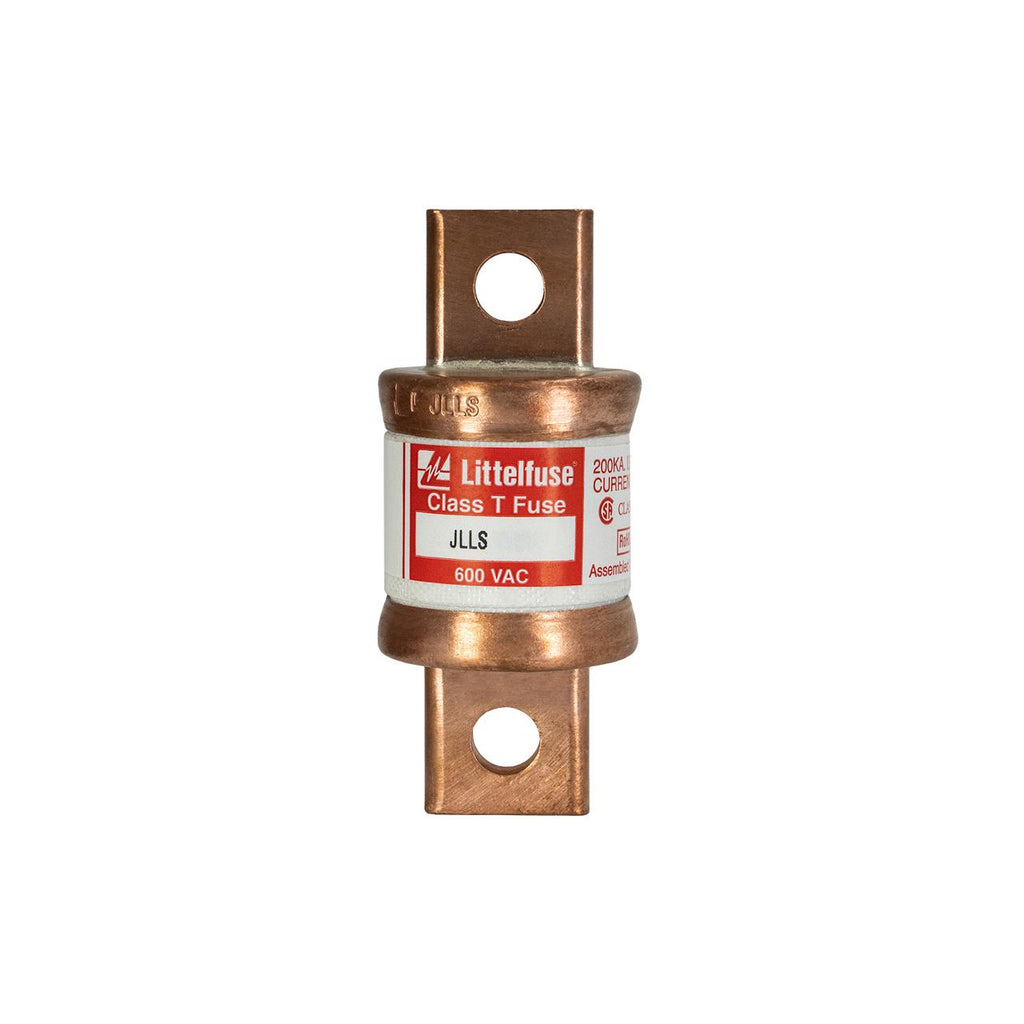

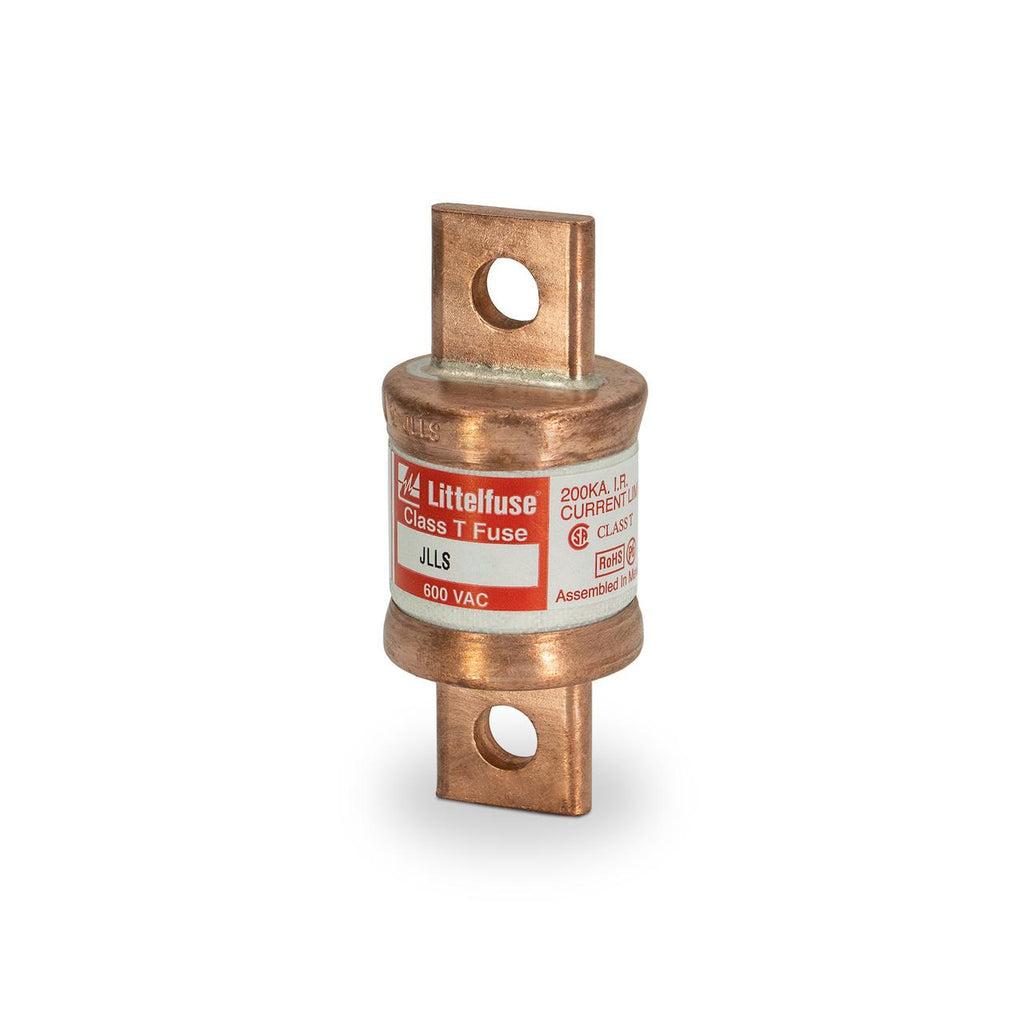

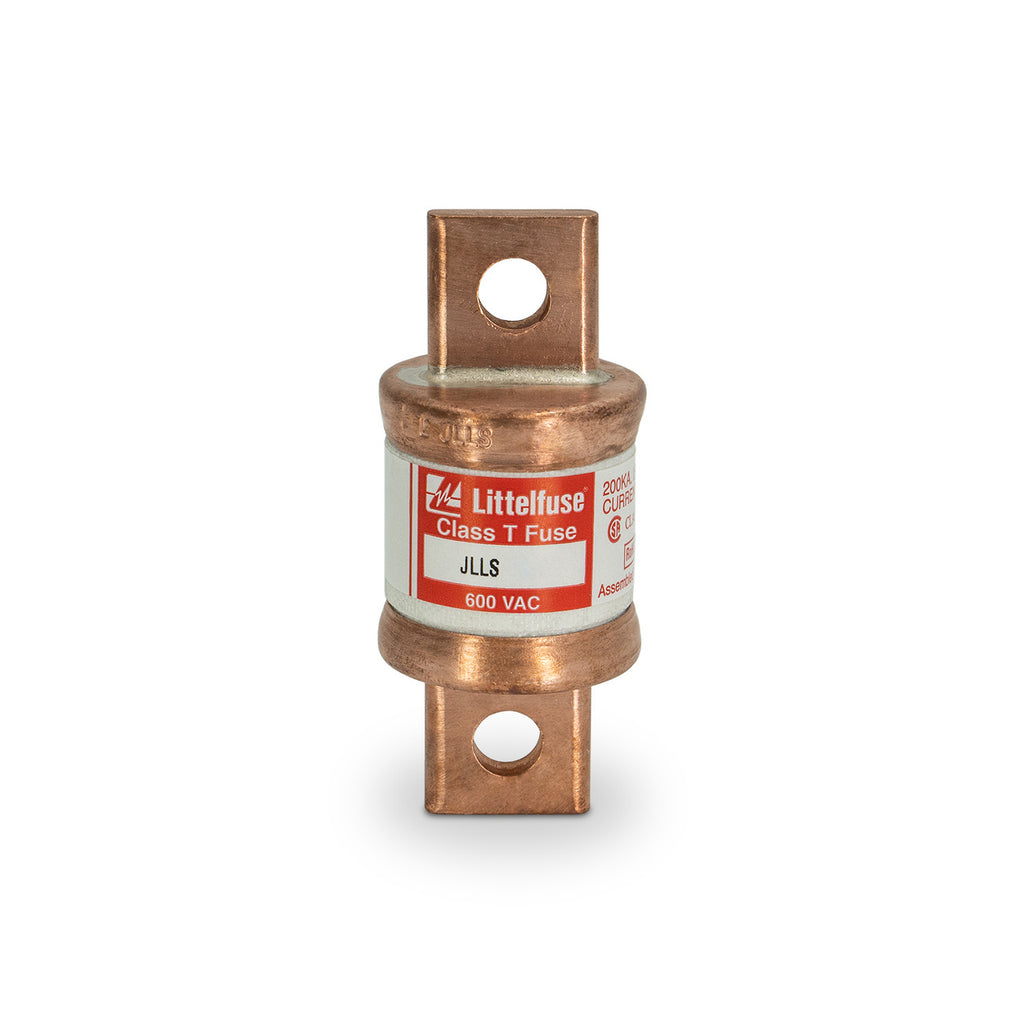

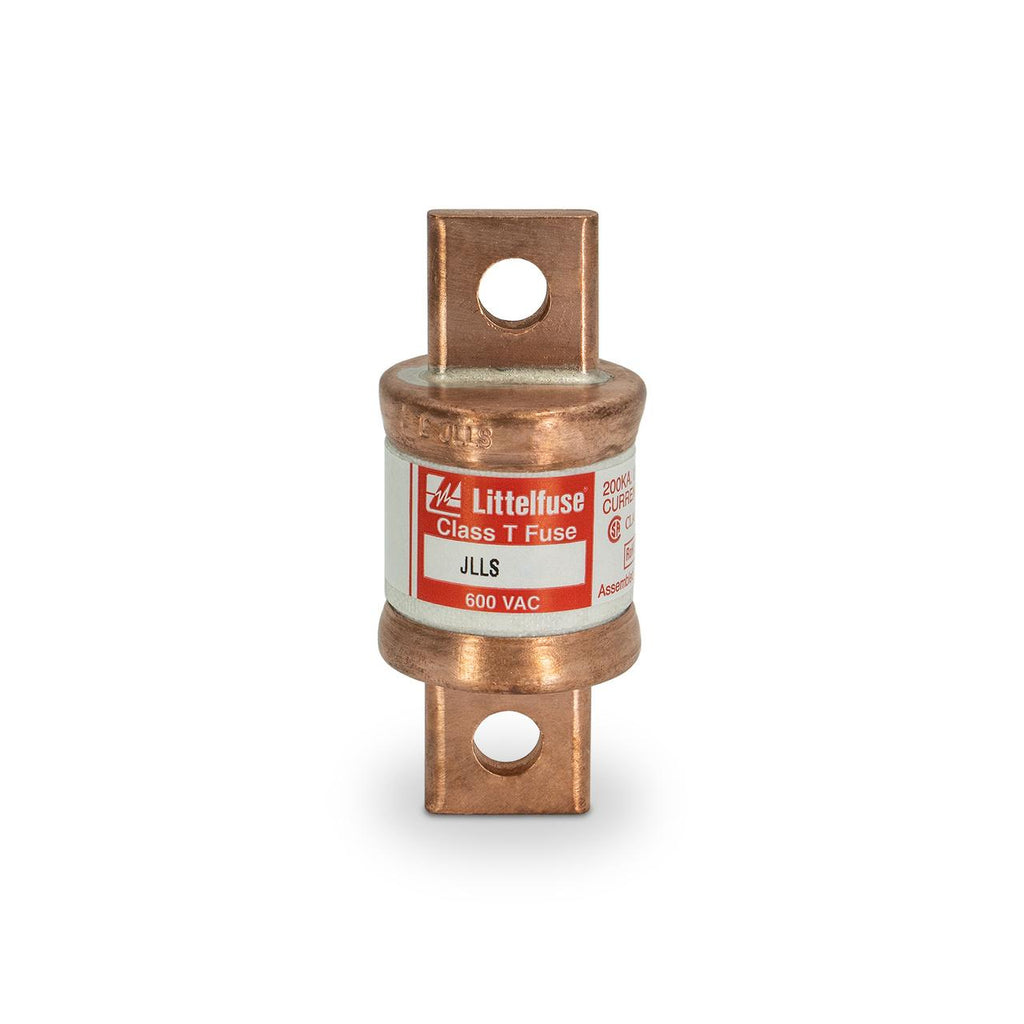

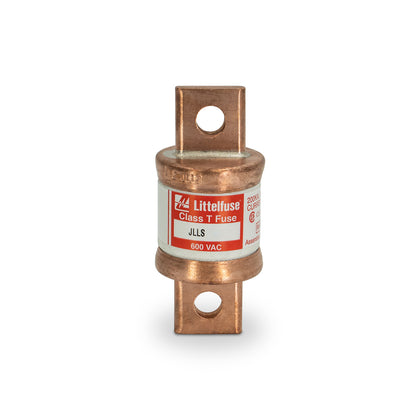

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Littelfuse
- Sub-Category
- Low Voltage Fuse
- Series
- Powr-Gard
- Frame
- JLLS
- Rated current
- 225
- Voltage
- 600V
- Interrupting rating
- 200kA@600V
- Connection
- Bolt-In
- Class rating
- T
- Barrels
- 1
- Diameter
- 1.6 in
- UPC
- 07945819089
- GTIN
- 00079458190892
- Weight
- 1.2
Product description & additional details
JLLS-225
JLLS-225 is a Littelfuse Class T fast acting fuse rated for 225 amperes and 600 VAC/300 VDC voltage applications.
This compact JLLS series fuse offers fast-acting characteristics with a high interrupting rating of 200,000 amps at 600 VAC and 20,000 amps at 300 VDC. It is UL 248-15, CSA, and CE certified, designed for reliable overcurrent protection in industrial and commercial electrical systems. The fuse body is melamine with copper end caps, ensuring durability and compliance with RoHS standards.
- Key Specifications
- Amperage: 225 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class T
- Series: JLLS
- Fuse Type: Fast Acting
- Interrupting Rating: 200 kA AC / 20 kA DC
- Mounting Type: Cartridge
- Certifications: UL Listed, CSA Certified, CE Compliant
- Material: Melamine body with copper caps
- RoHS Compliant
- Part Number: JLLS-225
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 225
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 1.6
- Class Rating : T
- Barrels : 1
- UPC : 07945819089
- GTIN : 00079458190892
- Weight : 1.2
