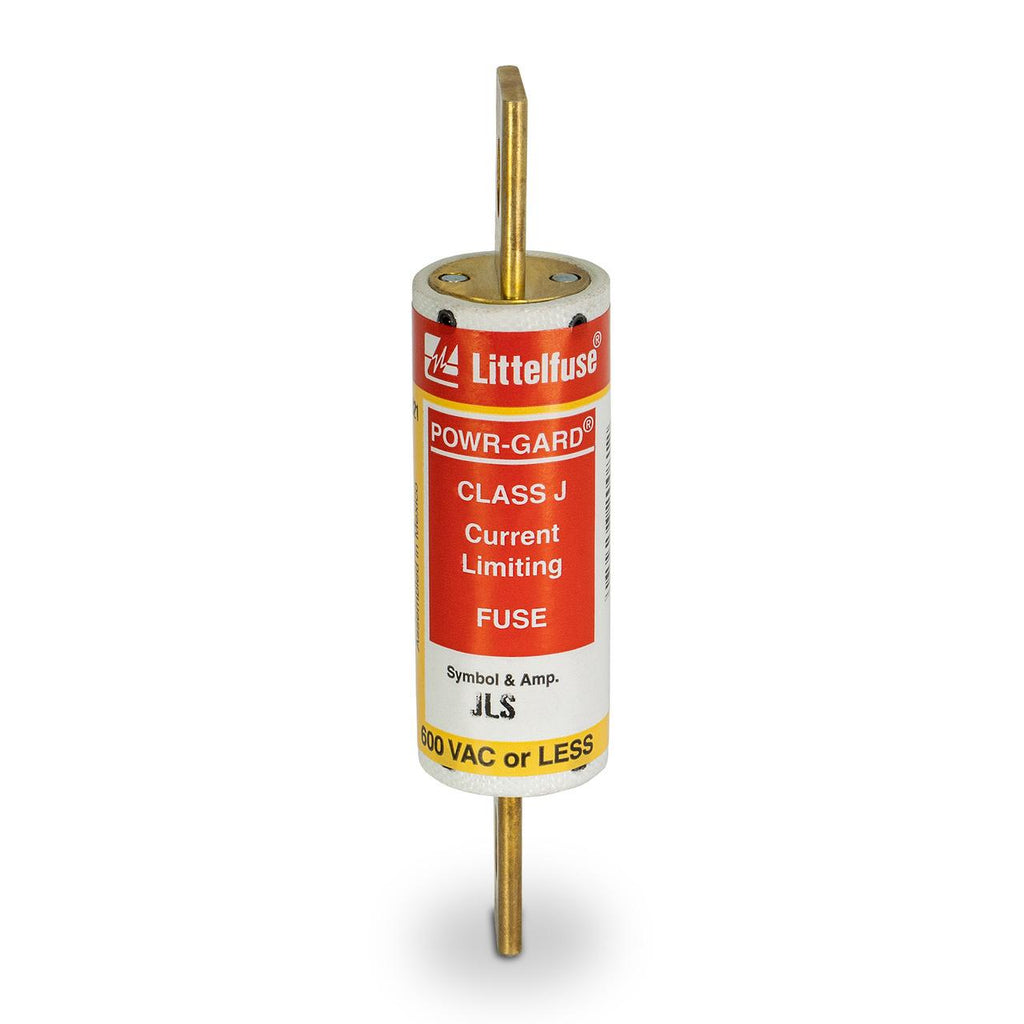

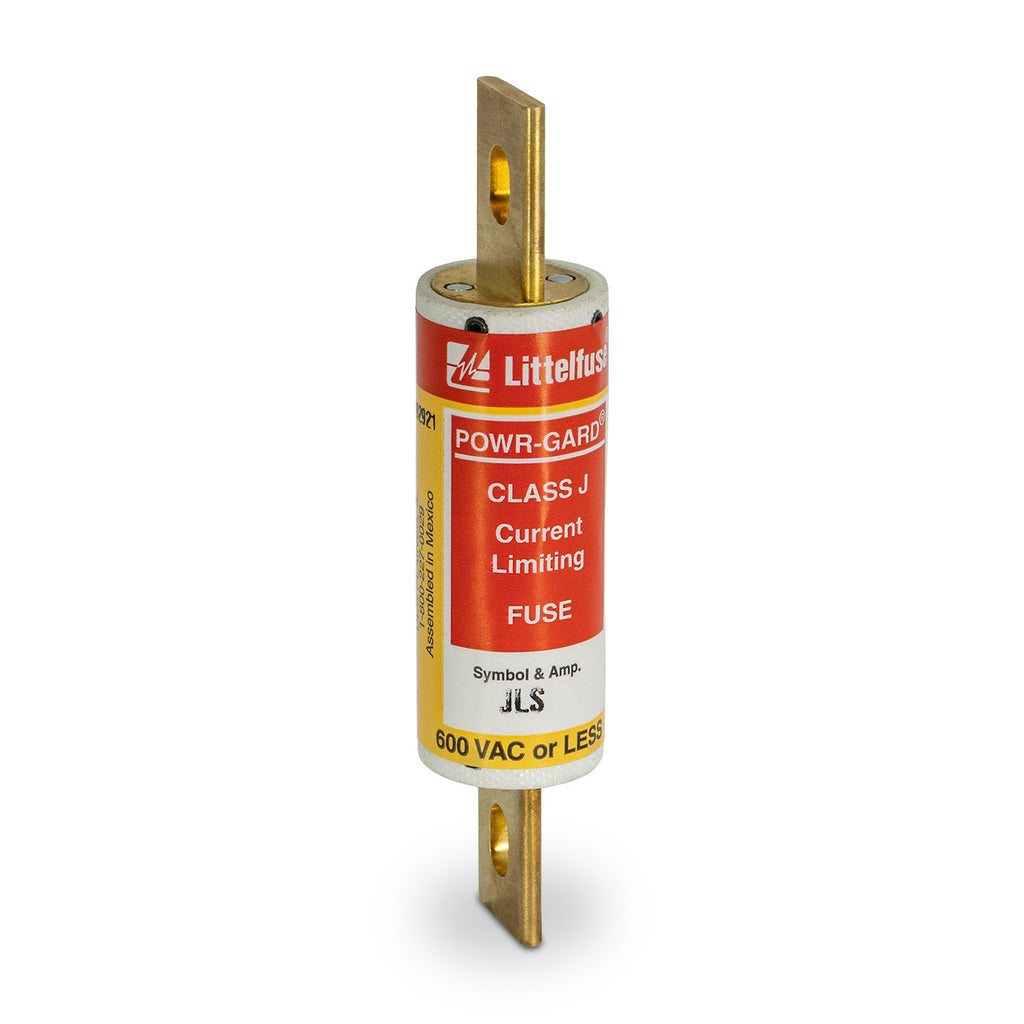

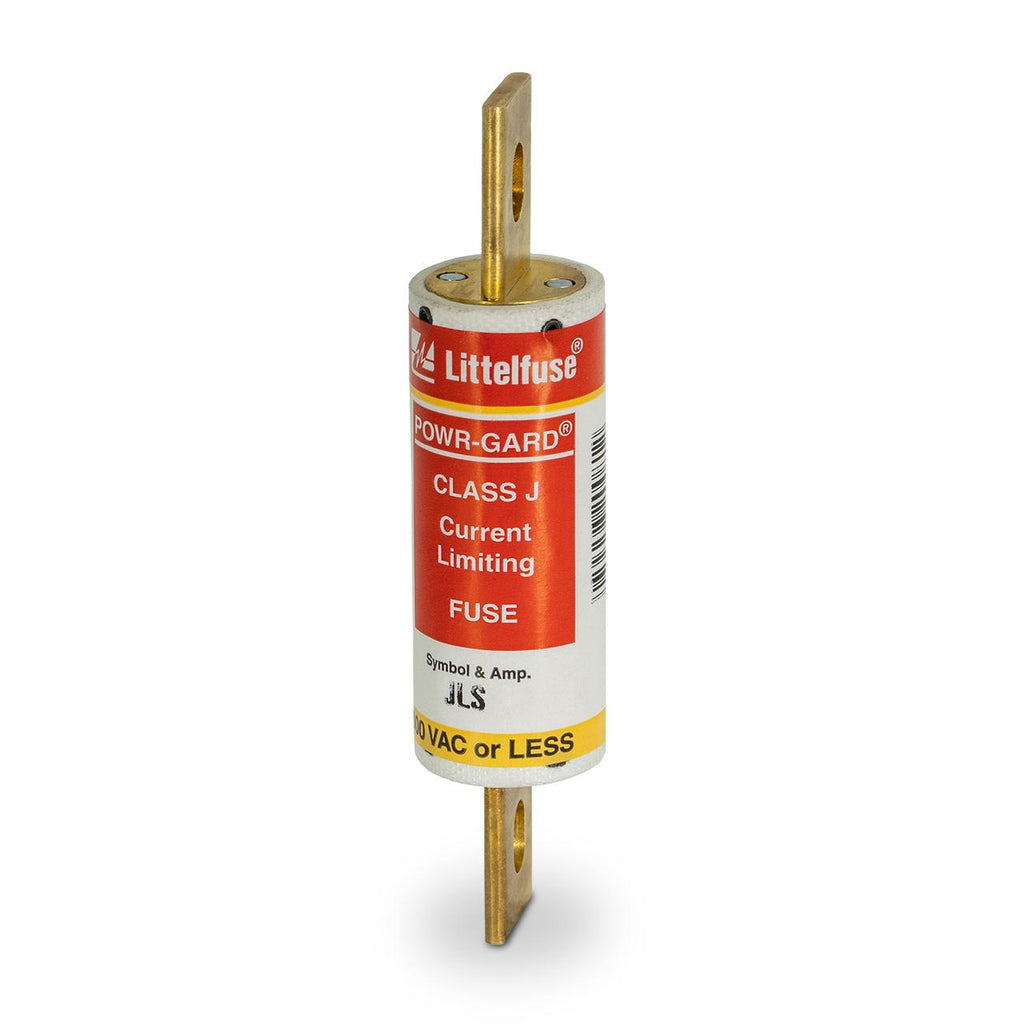

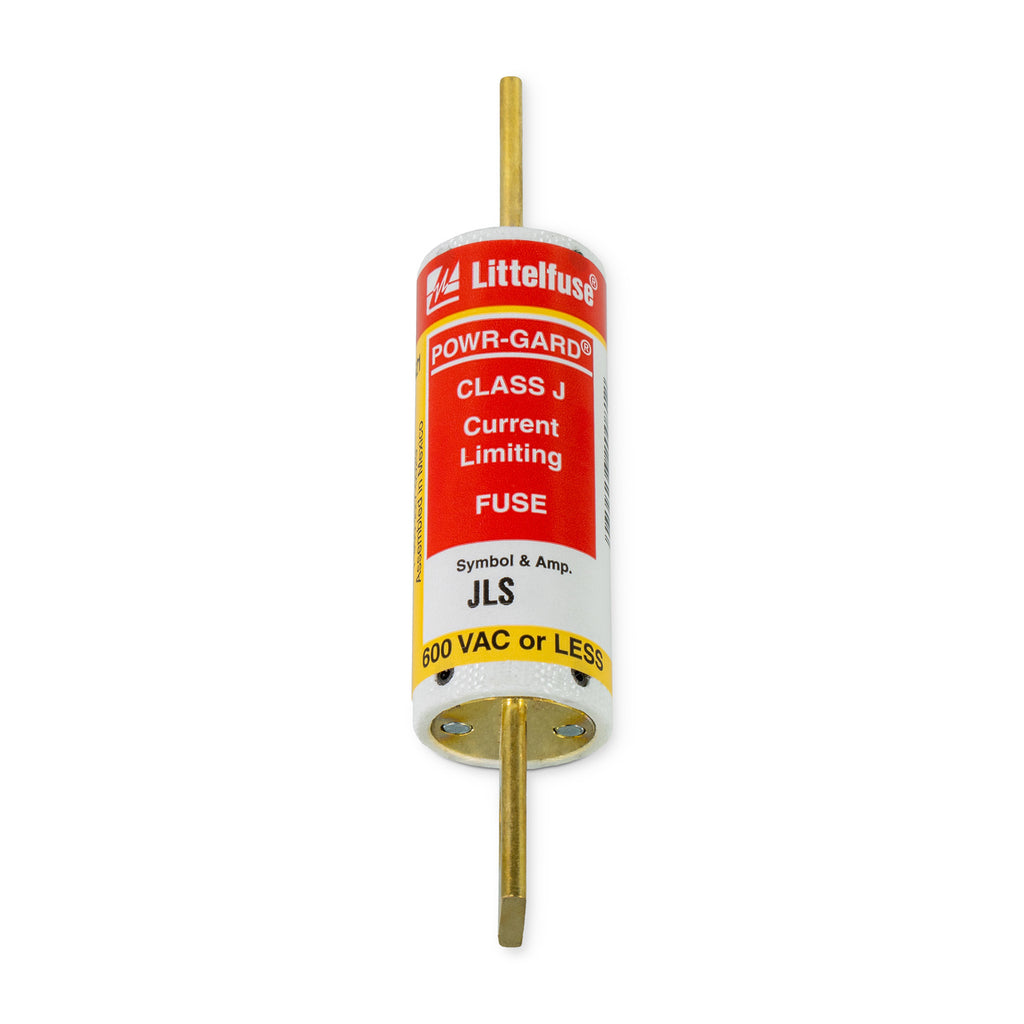

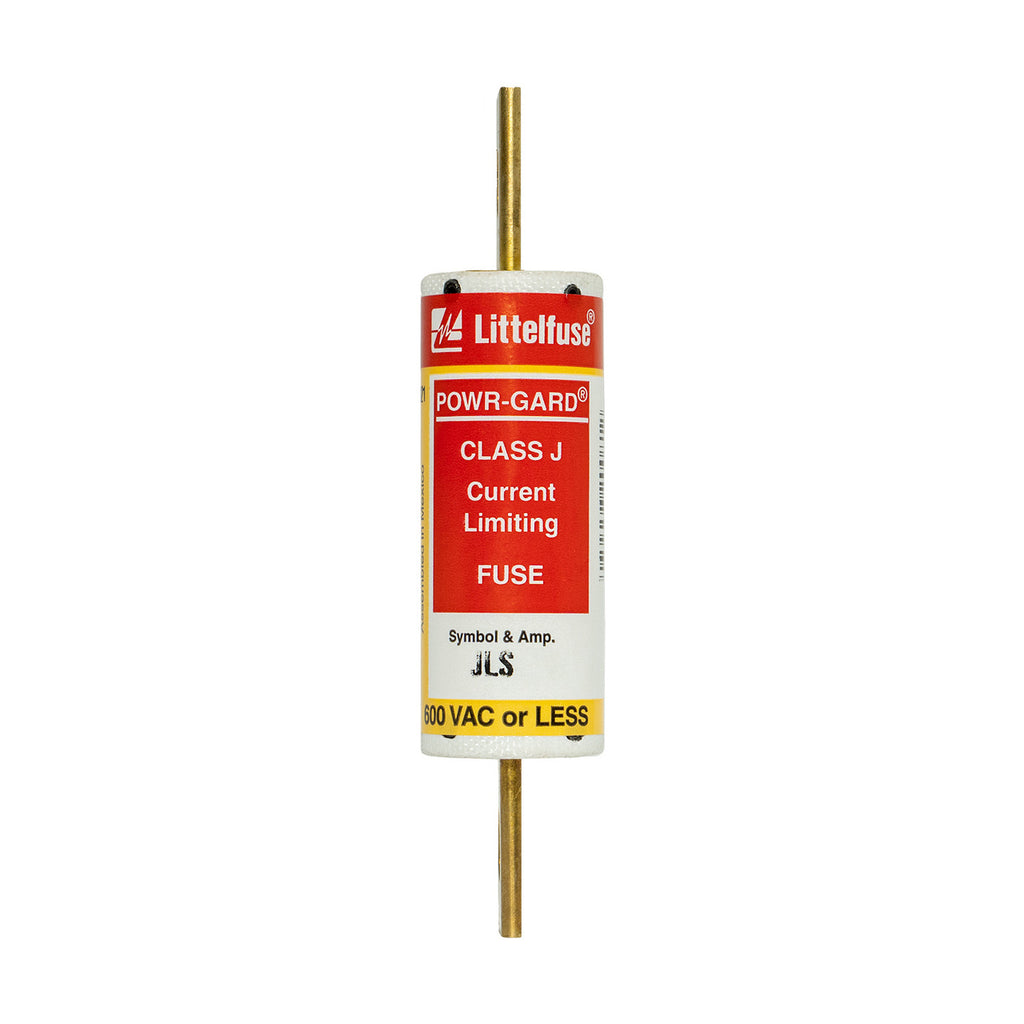

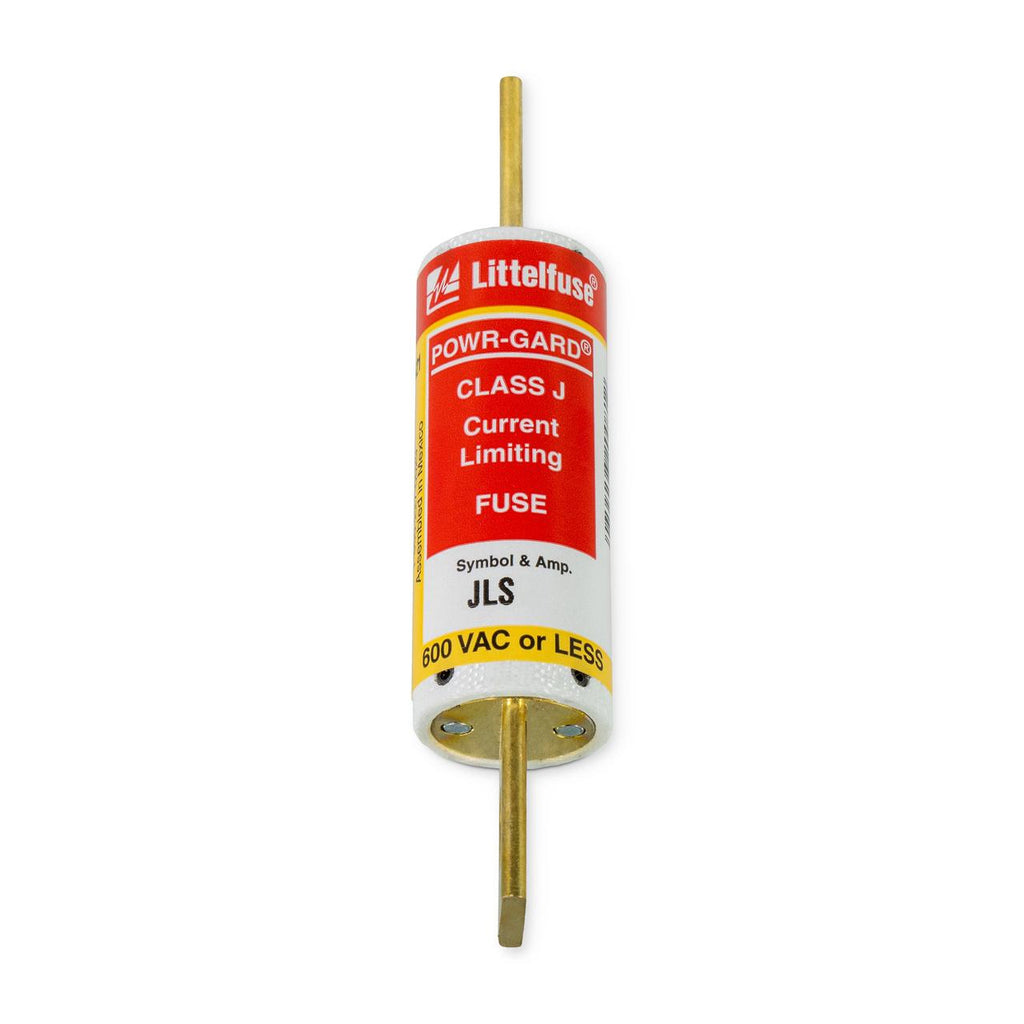

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Littelfuse
- Sub-Category
- Low Voltage
- Rated current
- 100
- Voltage
- 600V
- Class rating
- J
- Barrels
- 1
- Diameter
- 0.81 in
- UPC
- 007945820082
- GTIN
- 00079458200829
- Weight
- 0.3
Product description & additional details
JLS-100
JLS-100 is a Littelfuse Class J fast-acting fuse rated for 100 amps and 600 volts AC, designed for reliable overload and short-circuit protection. This 200,000 AIC interrupting rated fuse features a compact 1 1/8" diameter by 4 5/8" length cartridge blade design suitable for general purpose and resistive load circuits.
- Amperage: 100 Amps
- Voltage Rating: 600 Volts AC
- Fuse Class: Class J
- Speed: Fast Acting
- Interrupting Rating: 200,000 AIC @ 600 VAC
- Mounting Type: Knife Blade (Cartridge Blade)
- Physical Size: 1 1/8" diameter x 4 5/8" length
- Current Limiting Technology
- UL Listed (File No. E81895)
- CSA Certified (File No. LR29862)
- Applications: General purpose circuits with little or no motor load, resistive loads such as electric heat
Specifications
- Part Number: JLS-100
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Voltage : 600
- Amperage : 100
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 007945820082
- GTIN : 00079458200829
- Weight : 0.3
