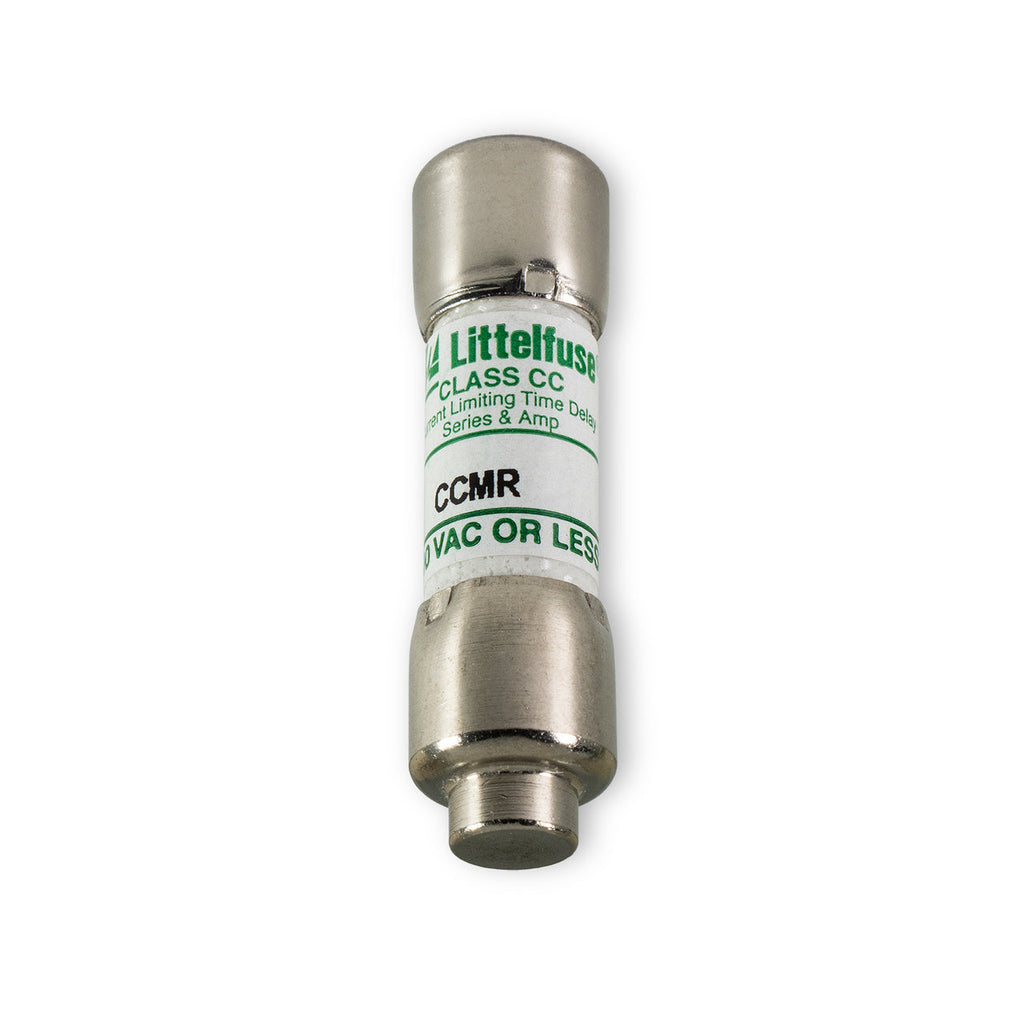

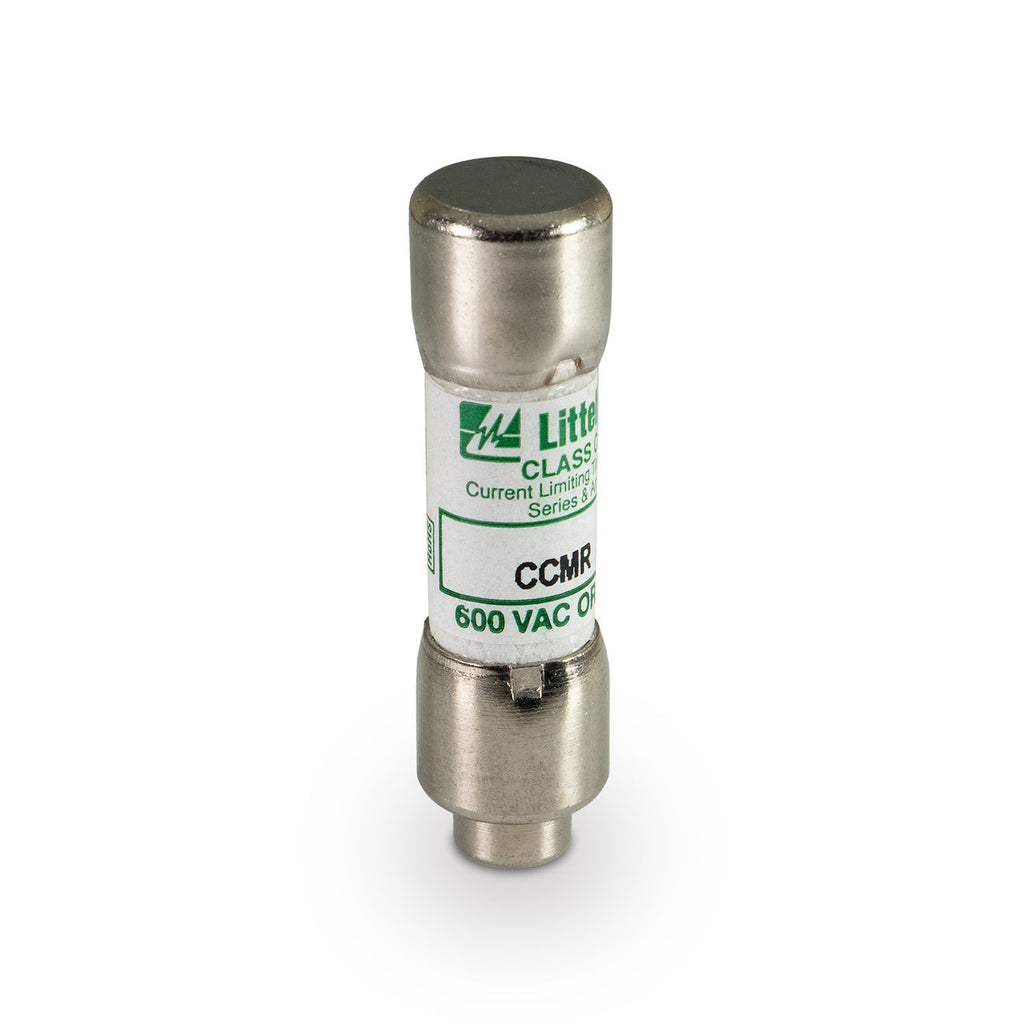

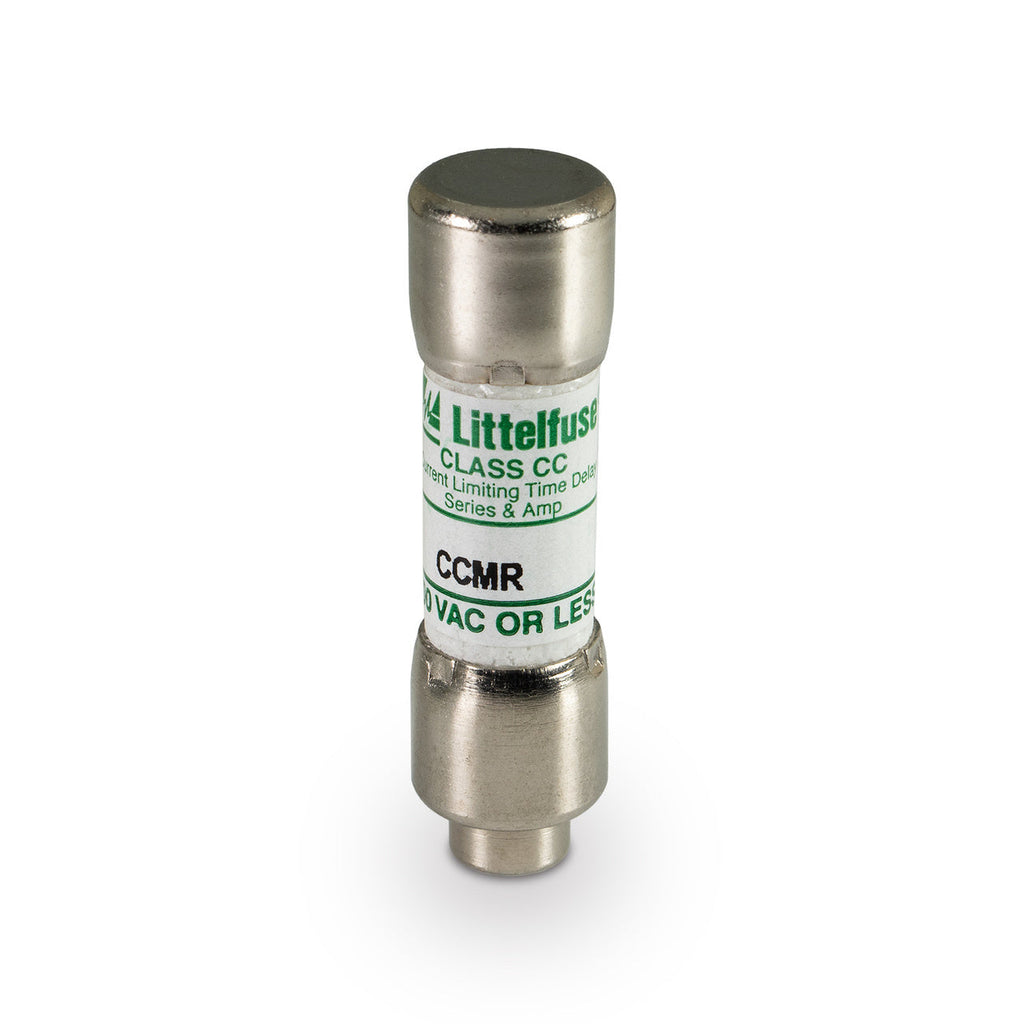

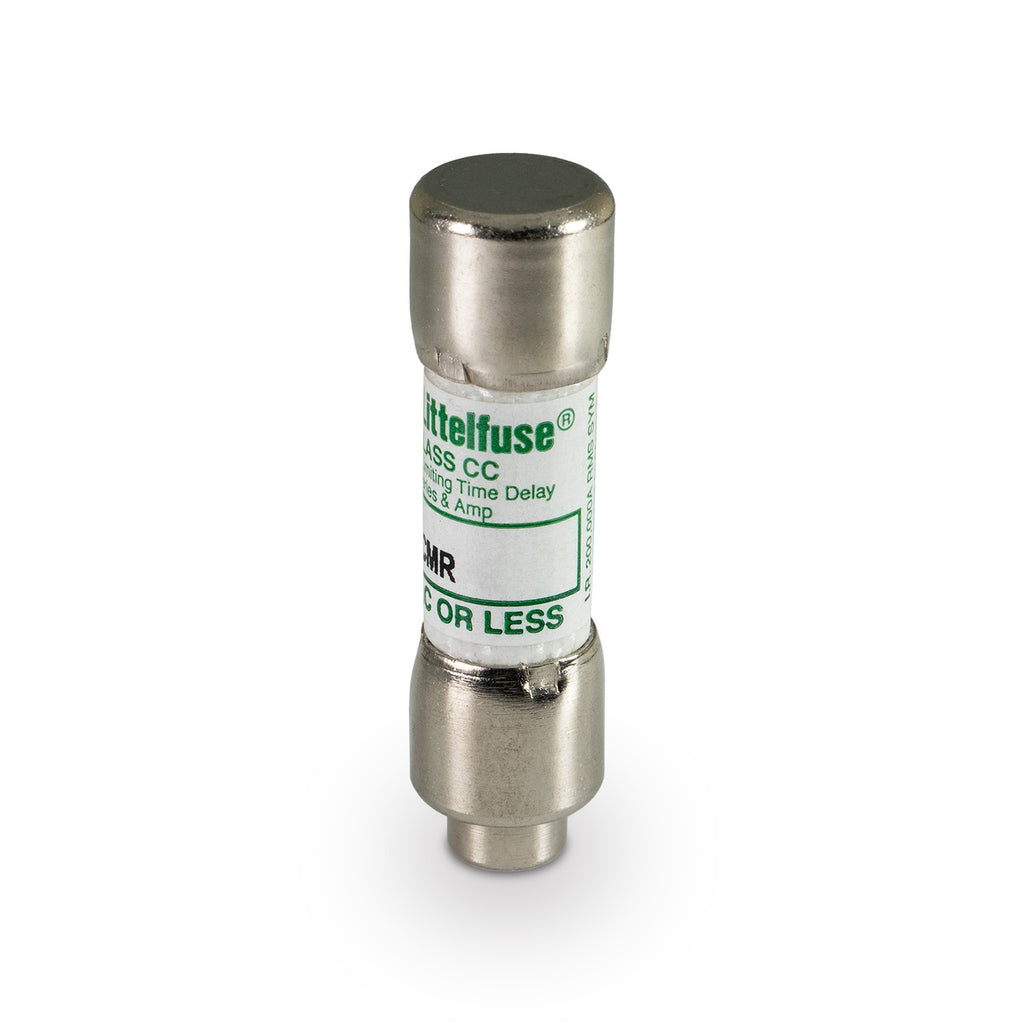

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Littelfuse
- Sub-Category
- Low Voltage Fuse
- Series
- Powr-Gard
- Frame
- CCMR
- Rated current
- 15
- Voltage
- 600V
- Interrupting rating
- 200kA@600V
- Connection
- Ferrule
- Class rating
- CC/CD
- Barrels
- 1
- Diameter
- 0.41 in
- UPC
- 079458968361
- GTIN
- 00079458968361
- Weight
- 0.02 lb
Product description & additional details
CCMR-015
CCMR-015 is a Littelfuse Class CC time-delay, dual-element fuse designed for reliable circuit protection in demanding applications.
This fuse features advanced current-limiting technology, making it ideal for motor circuit protection up to 40 HP. It offers superior time-delay performance to withstand inrush currents, minimizing nuisance tripping, and provides Type 2 "No Damage" protection for both NEMA and IEC components. The CCMR-015 is part of the Littelfuse Powr-Pro series, known for compact size and high interrupting capacity.
-
Key Specifications
- Amperage: 15 A
- Voltage: 600 VAC, 500 VDC
- Poles: Single
- Mounting Type: Ferrule (cartridge, fuse block/clip/holder compatible)
- Interrupt Rating: 200 kA at 600 VAC, 20 kA at 250 VDC
- Series/Frame: CCMR Series, Class CC (Midget)
- Trip Unit: Dual-element, time-delay (slow blow)
- Certifications: UL, CSA, CE
- Dimensions: 0.406" Dia x 1.5" L (10.31 x 38.1 mm)
- Indicating: Non-indicating
- Technology: Powr-Pro, current-limiting
- Application: Motor circuit protection, general purpose
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CCMR-015
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : CCMR
- Voltage : 600
- Amperage : 15
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC/CD
- Barrels : 1
Product Data
- UPC : 079458968361
- GTIN : 00079458968361
- Weight : 0.02 lb
